Data sheet PDF Product Description

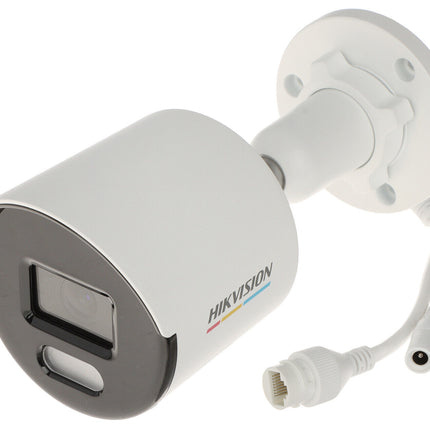

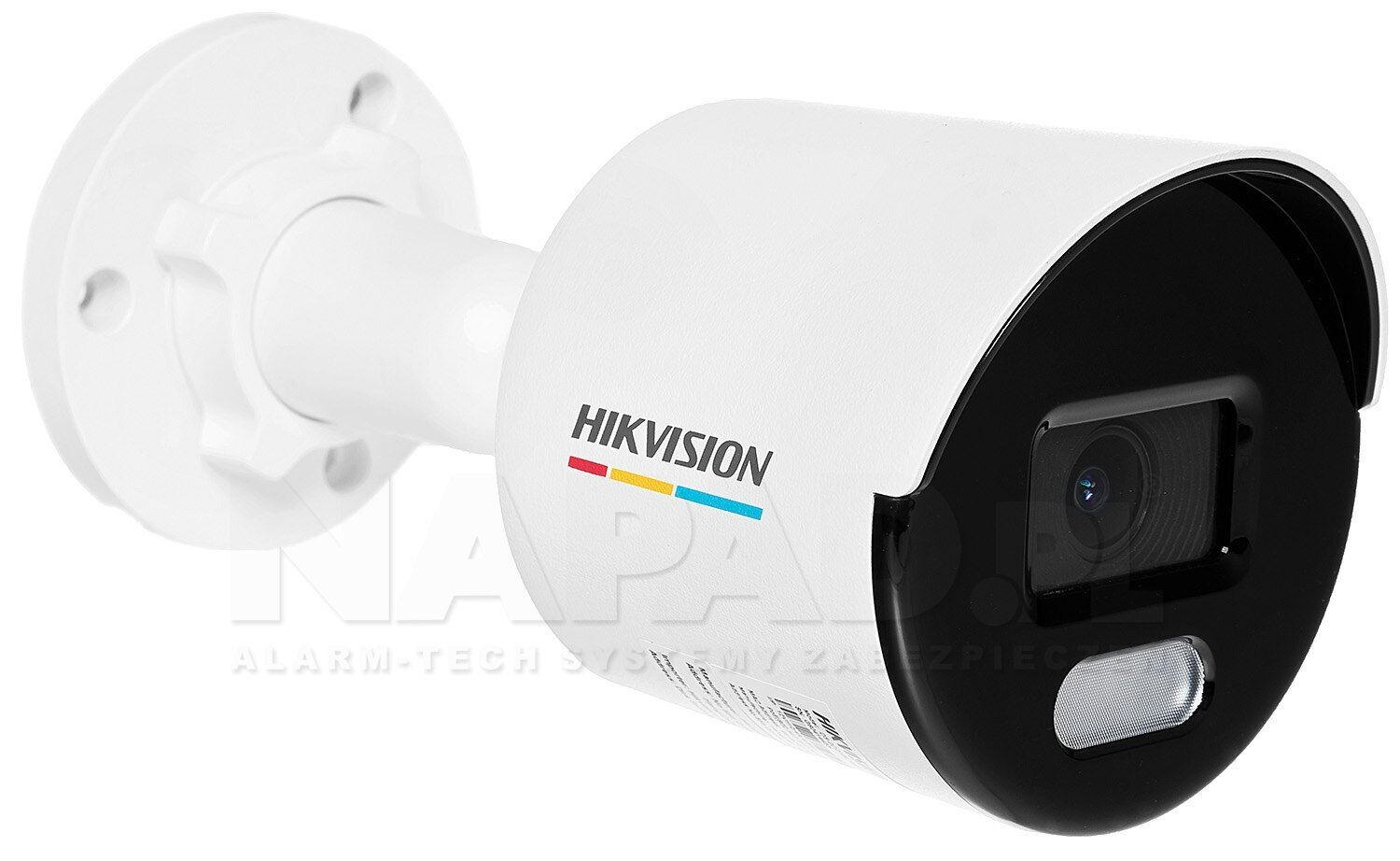

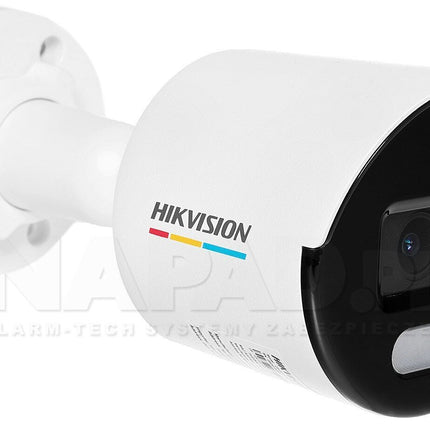

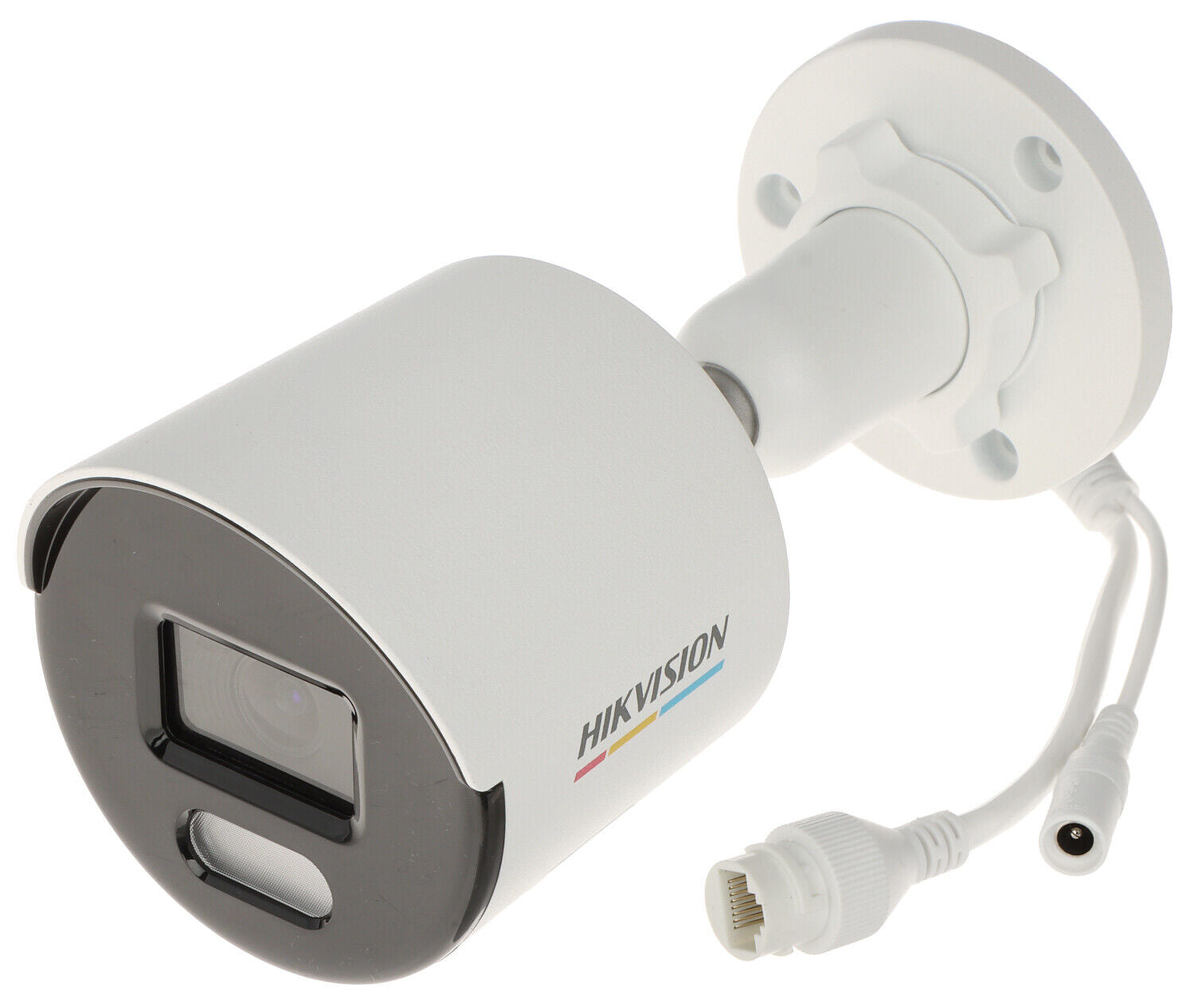

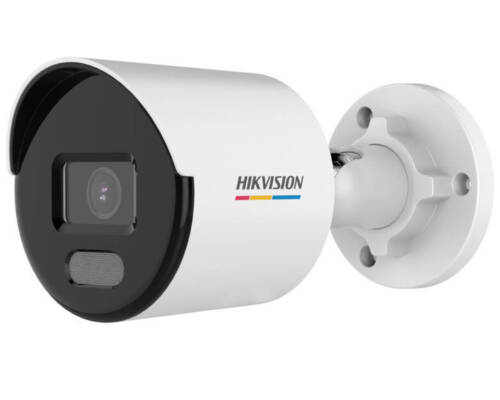

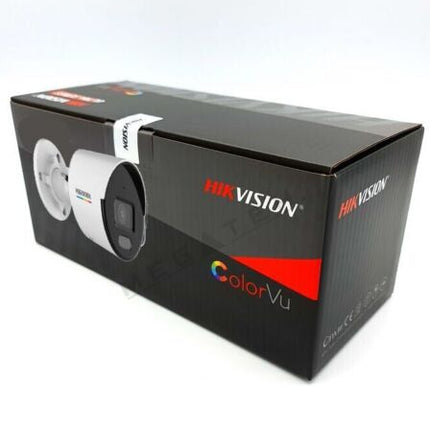

4 MP ColorVu Fixed Mini Bullet Network Camera
High quality imaging with 4 MP resolution Excellent low-light performance Efficient H.265+ compression technology Water and dust resistant (IP67) 24/7 colorful imaging Specification
Camera Image Sensor1/3" Progressive Scan CMOS Max. Resolution2560 ? 1440 Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light Shutter Time1/3 s to 1/100, 000 s Angle AdjustmentPan: 0? to 360?, tilt: 0? to 90?, rotate: 0? to 360? Lens Focal Length & FOV2.8 mm, horizontal FOV 96.5?, vertical FOV 50.8?, diagonal FOV 113.9?
4 mm, horizontal FOV 75.8?, vertical FOV 40.8?, diagonal FOV 89.1?
Lens MountM12 FocusFixed ApertureF1.0 DORI DORI2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m
Illuminator Supplement Light RangeUp to 30 m Smart Supplement LightYes Video Main Stream50 Hz:
20 fps (2560 ? 1440),
25 fps (1920 ? 1080, 1280 ? 720)
60 Hz:
20 fps (2560 ? 1440),
30 fps (1920 ? 1080, 1280 ? 720)
Sub-Stream50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
Third Stream50 Hz: 1 fps (640 ? 360)
60 Hz: 1 fps (640 ? 360)
Video CompressionMain stream: HH.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate32 Kbps to 8 Mbps H.264 TypeBaseline Profile/Main Profile/High Profile H.265 TypeMain Profile Region Of Interest (ROI)1 fixed region for main stream Audio Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Audio Sampling Rate8 kHz/16 kHz Environment Noise FilteringYes Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS Simultaneous Live ViewUp to 6 channels APIOpen Network Video Interface, ISAPI User/HostUp to 32 users. 3 levels: administrator, operator and user ClientiVMS-4200, Hik-Connect Web BrowserPlug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser. Day/Night SwitchDay, Night, Auto, Schedule Wide Dynamic Range (WDR)130 dB Image EnhancementBLC, 3D DNR Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB Built-In MicrophoneYes Reset KeyYes Event Basic EventMotion detection, video tampering alarm, exception Smart EventLine crossing detection, intrusion detection LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture General Power12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimension?76.6 mm ? 164.4 mm (?3" ? 6.5") Package Dimension234 mm ? 120 mm ? 117 mm (9.2" ? 4.7" ? 4.6") WeightApprox. 430 g (0.95 lb.) With Package WeightApprox. 648 g (1.42 lb.) Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing) Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing) LanguageEnglish, Ukrainian General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Approval EMCFCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
EnvironmentCE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)
Data sheet PDF Product Description

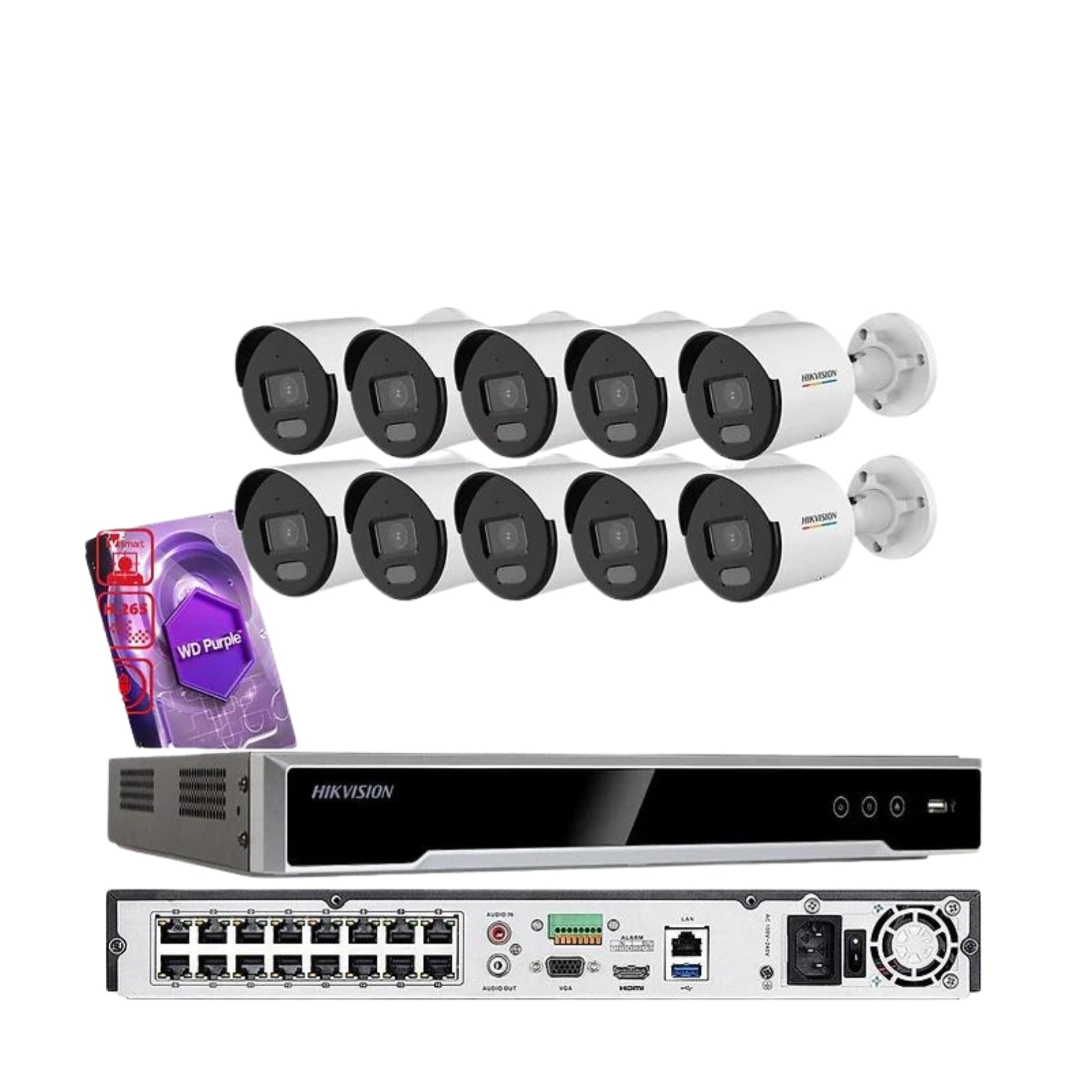

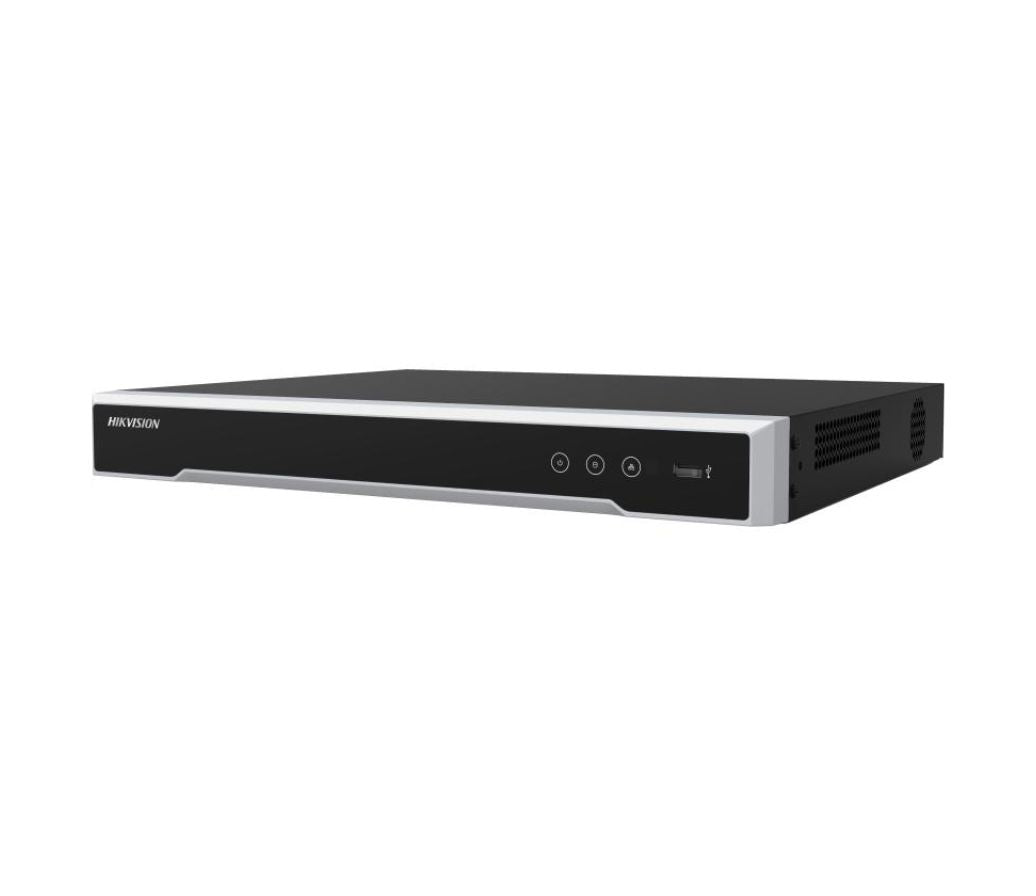

16ch 1U 16 PoE 4K NVR
Up to 16ch IP cameras can be connected Up to 2-ch@12 MP/16ch@1080p decoding capacity 1 HDMI and 1 VGA interfaces: both interfaces support independent video output 2 HDDs for continuous video recording Plug & Play with 16 Power-over-Ethernet (PoE) interfaces Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition) Advanced streaming technology enables smooth live view and data self-correction in poor network conditions Supports dual-stream recording to save time and bandwidth Specification
Video And Audio IP Video Input16ch
Up to 12 MP resolution
Incoming Bandwidth160 Mbps Outgoing Bandwidth256 Mbps HDMI Output4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz VGA Output1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz Video Output ModeHDMI/VGA independent output Audio Input1-ch, RCA (2.0 Vp-p, 1 K?) Audio Output1-ch, RCA (Linear, 1 K?) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input) Decoding Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4 Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF Synchronous Playback16ch Decoding Capability2-ch@12 MP (20 fps)/4ch@8 MP (25 fps)/8ch@4 MP (30 fps)/16ch@1080p (30 fps) Dual-Stream RecordingSupport Stream TypeVideo, Video & Audio Audio CompressionG.711ulaw/G.711alaw/G.722/G.726 Network Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS Remote Connection128 Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface PoE Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power? 200W StandardIEEE 802.3 af/at Auxiliary Interface SATA2 SATA interfaces CapacityUp to 10 TB capacity for each HDD USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 3.0 Alarm In/Out4/1 General Power Supply100 to 240 VAC, 50 to 60 Hz Consumption?15 W (without enabling PoE) Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F) Working Humidity10 to 90 % Dimension (W ? D ? H)385 ? 315? 52 mm (15.2" ? 12.4" ? 2.0") Weight? 3 kg (6.6 lb) Certification CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 Obtained CertificationCE, CB, UKCA, IC
