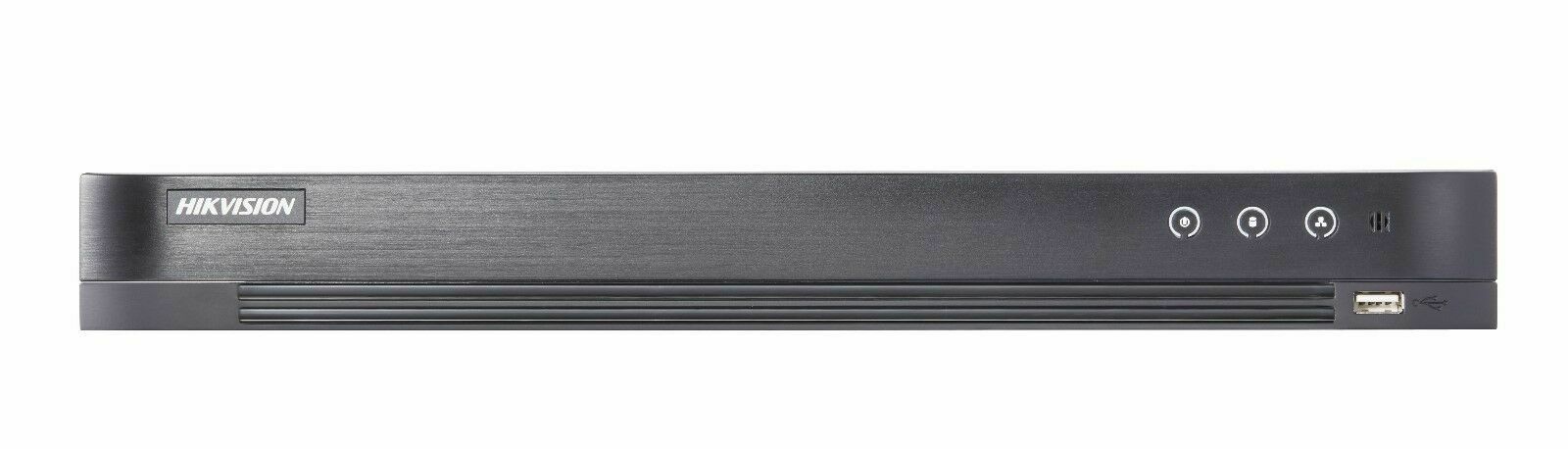

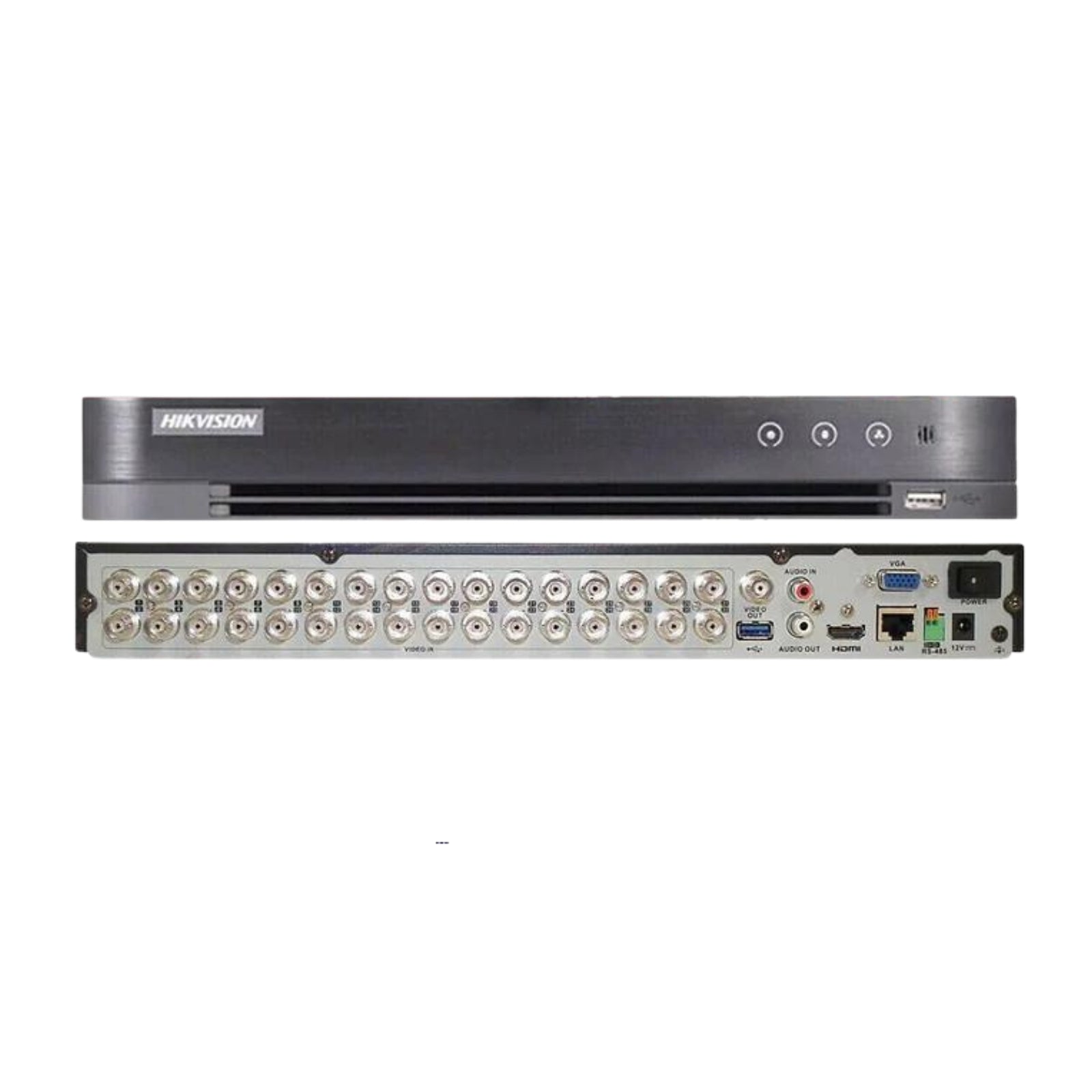

Hikvision 32 CH DVR DS-7232HGHI-K2 7200 Series TurboHD Tribrid (OPTIONAL HDD)
Hikvision 32 CH DVR DS-7232HGHI-K2 7200 Series TurboHD Tribrid (OPTIONAL HDD)
Out of stock
Description
Description
Hikvision 32 CH DVR DS-7232HGHI-K2 7200 Series TurboHD Tribrid (OPTIONAL HDD)
This listing includes:
-  (1) HARD DRIVE OPTION: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB
- (1) DIGITAL VIDEO RECORDER: DS-7232HGHI-K2
DS-7232HGHI-K2  view data sheet
32ch 1080p Lite 1U H.265 DVR
- 32chs and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p lite @ 15 fps
- 5 signals input adaptively ("Hybrid")
- Up to 18 network cameras can be connected
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
32ch 1080p Lite 1U H.265 DVR
- 32chs and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p lite @ 15 fps
- 5 signals input adaptively ("Hybrid")
- Up to 18 network cameras can be connected
Specification
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution1080p lite/720p/VGA/WD1/4CIF/CIF
- Frame Rate
Main stream:
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)
For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
For 1080p and 720p stream access: CIF/QVGA@15fps
For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 4 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
- IP Video Input
2-ch (up to 18ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras

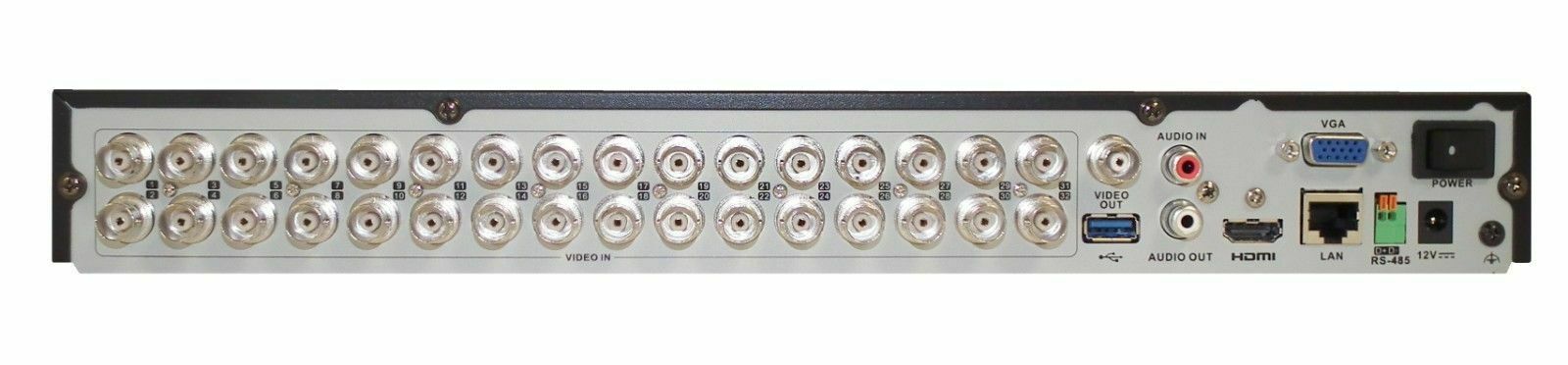

- Analog Video Input
32ch
BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
- HDTVI Input1080p25, 1080p30, 720p25, 720p30
- AHD Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- HDMI Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?)
- Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
- Synchronous Playback16ch
- Network
- Remote Connection128
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
- Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary Interface
- SATA2, SATA interface
- CapacityUp to 10 TB capacity for each disk
- USB Interface
Front panel: 1 ? USB 2.0
Rear panel: 1 ? USB 3.0
- General
- Power Supply12 VDC, 3.2 A
- Consumption? 18 W
- Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Working Humidity10% to 90%
- Dimension (W ? D ? H)380 ? 320 ? 48 mm (10.2 ? 8.7 ? 1.8 inch)
- Weight? 2.2 kg (4.9 lb)
