Product Description

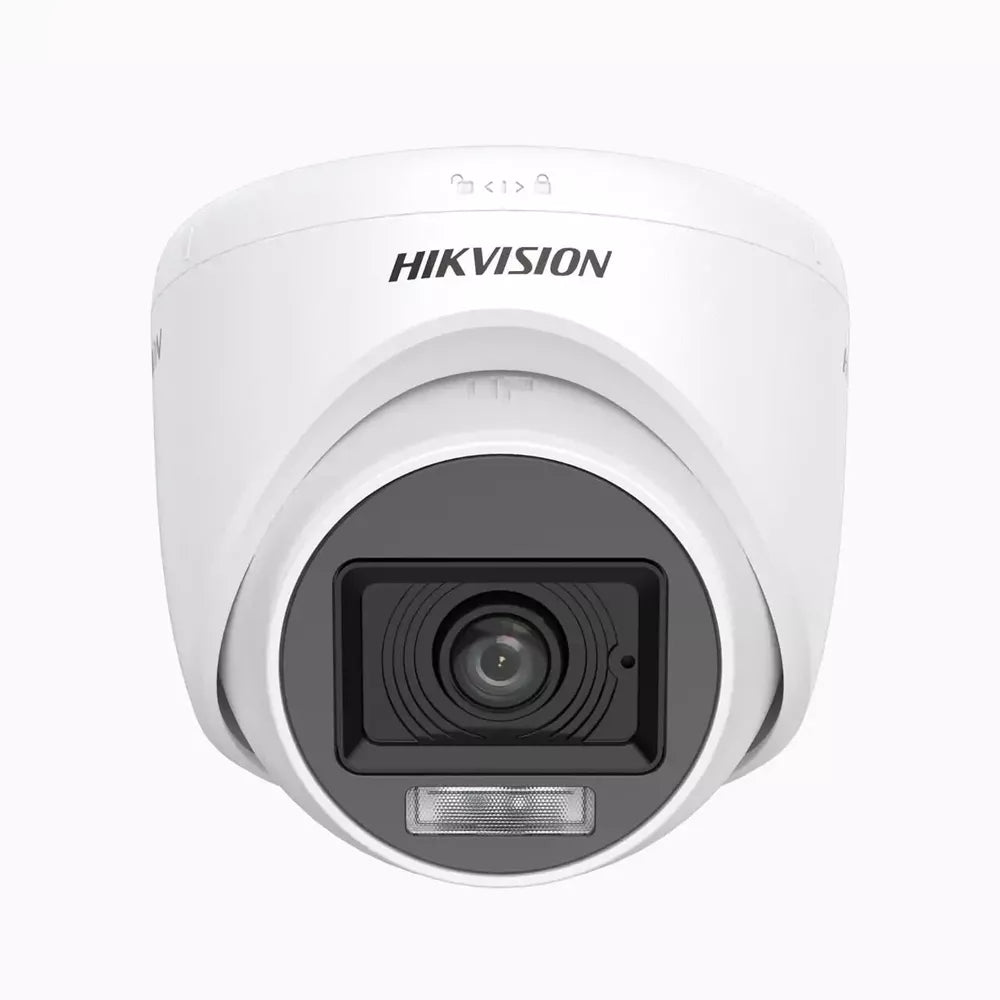

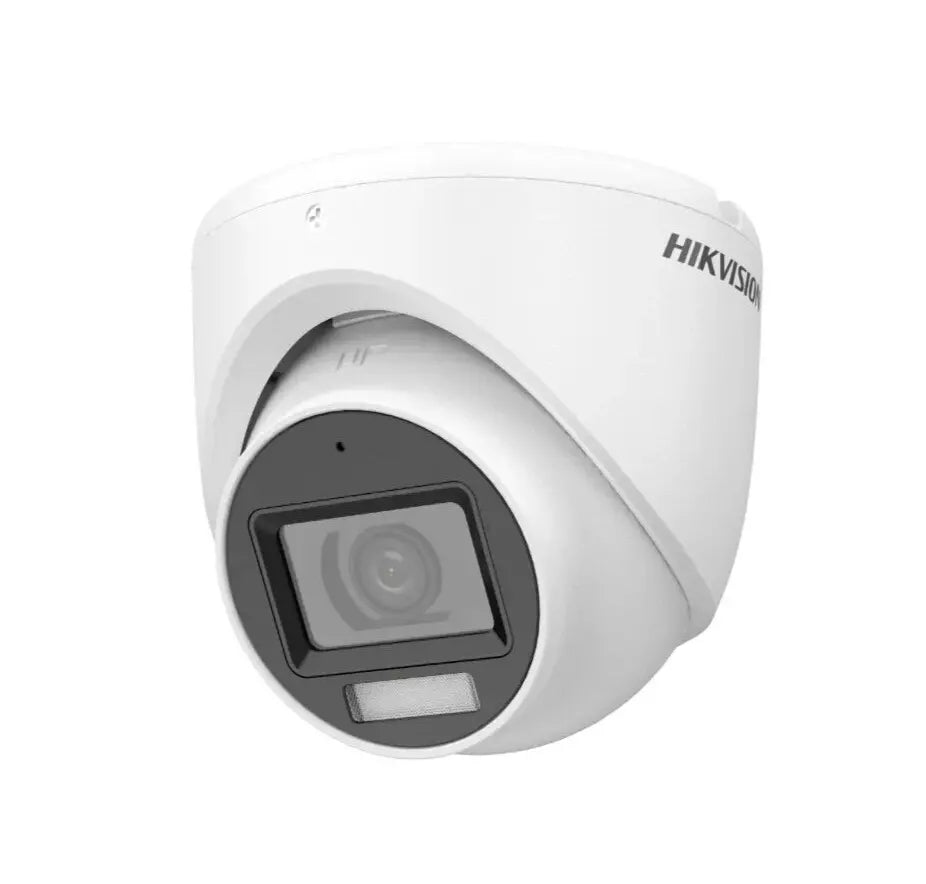

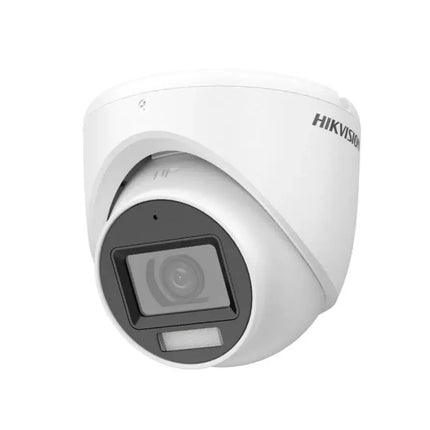

3K Smart Hybrid Light Audio Fixed Turret Camera

• High quality imaging with 3K, 2960 ? 1665 resolution
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 40 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS?
• Water and dust resistant (IP67)
• High quality audio with audio over coaxial cable, built-in mic
• Smart-Hybrid light, optimize your security with flexible lighting options

Specification
Camera
Image Sensor 3K CMOS
Max. Resolution 2960 (H) ? 1665 (V)
Min. Illumination 0.01 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day ? Night ICR
Angle Adjustment Pan: 0 to 360?, Tilt: 0 to 75?, Rotation: 0 to 360?
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm and 3.6 mm fixed focal lens
Focal Length ? FOV
2.8 mm, horizontal FOV: 104.9?, vertical FOV: 67.3?, diagonal FOV: 129.8?
3.6 mm, horizontal FOV: 81.3?, vertical FOV: 50.7?, diagonal FOV: 102.4?
Lens Mount M12
Illuminator
Supplement Light Type White Light,IR
Supplement Light Range
IR : Up to 40 m
White Light : Up to 20 m
Image Settings Brightness, Sharpness, Smart IR
Frame Rate
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
White Balance Auto/Manual
AGC Yes
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
Built-in Microphone Yes
General
Material
Body?Metal
Enclosure? Plastic
Dimension 97.9 mm ? ? 110 mm (3.85" ? ? 4.33")
Weight Approx. 340 g (0.75 lb.)
Operating Condition -40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply
12 VDC ? 25%
*You are recommended to use one power adapter to supply the power for one
camera.
Consumption Max. 3.3 W
