Data sheet PDF Product Description

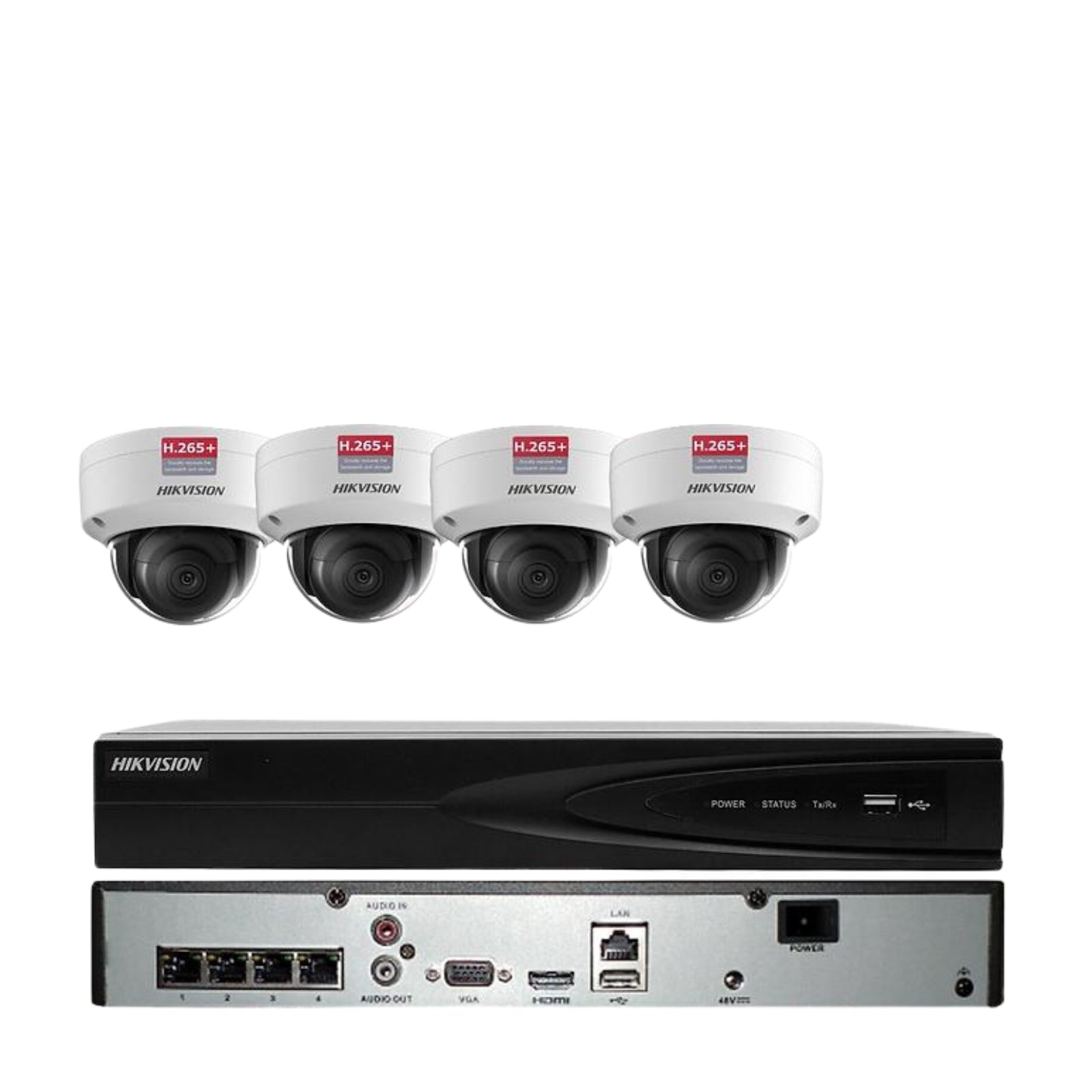

4 MP Outdoor WDR Fixed Dome Network Camera
High quality imaging with 4 MP resolution Efficient H.265+ compression technology Clear imaging against strong back light due to 120 dB true WDR technology -S: audio and alarm interface available Water and dust resistant (IP67) and vandal proof (IK10) Robust structure design with full metal materials Specification
Camera Image Sensor1/3" Progressive Scan CMOS Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR Shutter Speed1/3 s to 1/100,000 s Slow ShutterYes Wide Dynamic Range120dB Day & NightIR Cut Filter Angle AdjustmentPan: 0? to 355?, tilt: 0? to 75?, rotate: 0? to 355? Lens FocusFixed Lens Type2.8/4/6/8 mm FOV2.8 mm, horizontal FOV: 103?, vertical FOV: 58?, diagonal FOV: 123?,4 mm, horizontal FOV: 83?, vertical FOV: 45?, diagonal FOV: 99?,6 mm, horizontal FOV: 51?, vertical FOV: 29?, diagonal FOV: 58?,8 mm, horizontal FOV: 39?, vertical FOV: 22?, diagonal FOV: 45? ApertureF1.6 Lens MountM12 Aperture TypeFixed Illuminator IR RangeUp to 30 m Wavelength850nm Video Max. Resolution2688 ? 1520 Main Stream50Hz:25fps (2688 ? 1520, 2560 ? 1440, 2304 ? 1296, 1920 ? 1080, 1280 ? 720)
60Hz: 30fps (2688 ? 1520, 2560 ? 1440, 2304 ? 1296, 1920 ? 1080, 1280 ? 720)
Sub Stream50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240),60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240) Third Stream50Hz: 25fps (1280 ? 720, 640 ? 360, 352 ? 288),60Hz: 30fps (1280 ? 720, 640 ? 360, 352 ? 240) Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 Video Bit Rate32 Kbps to 16 Mbps H.264 TypeMain Profile/High Profile H.265 TypeMain Profile H.264+Main stream supports H.265+Main stream supports Scalable Video Coding (SVC)H.264 and H.265 encoding Audio Environment Noise FilteringYes Audio Sampling Rate8kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) Network Simultaneous Live ViewUp to 6 channels APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets User/HostUp to 32 users,3 levels: Administrator, Operator and User SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR ClientiVMS-4200, Hik-Connect, Hik-Central Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error Image Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S) Target CroppingNo DNR3D DNR Image EnhancementBLC/3D DNR/HLC Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser Interface Audio1 input (line in/mic in), 1 output (line out), terminal block, mono sound Alarm1 input, 1 output (max. 12 VDC, 30 mA), terminal block Video OutputNo On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB Hardware ResetYes Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port Event Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart EventLine crossing detection, intrusion detection, face detection General Firmware Version5.6.3 Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening Startup And Operating Conditions-30 ?C to +60 ?C (-22 ?F to +140 ?F), Humidity 95% or less (non-condensing) Power Supply12 VDC ? 25%, ? 5.5 mm coaxial power plug,PoE (802.3af, class 3) Power Consumption And Current12 VDC, 0.5 A, max. 6 W,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W Camera DimensionCamera: ? 111 ? 82.4 mm (? 4.4" ? 3.2"),Package: 134 ? 134 ? 108 mm (5.3" ? 5.3" ? 4.3") Camera WeightCamera: Approx. 610 g (1.3 lb.),With Package: Approx. 820 g (1.8 lb.) Approval ProtectionIK10, IP67
Data sheet PDF Product Description

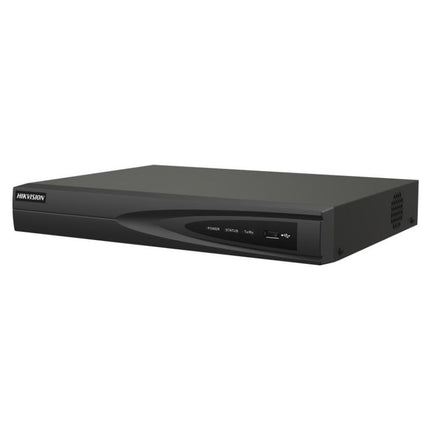

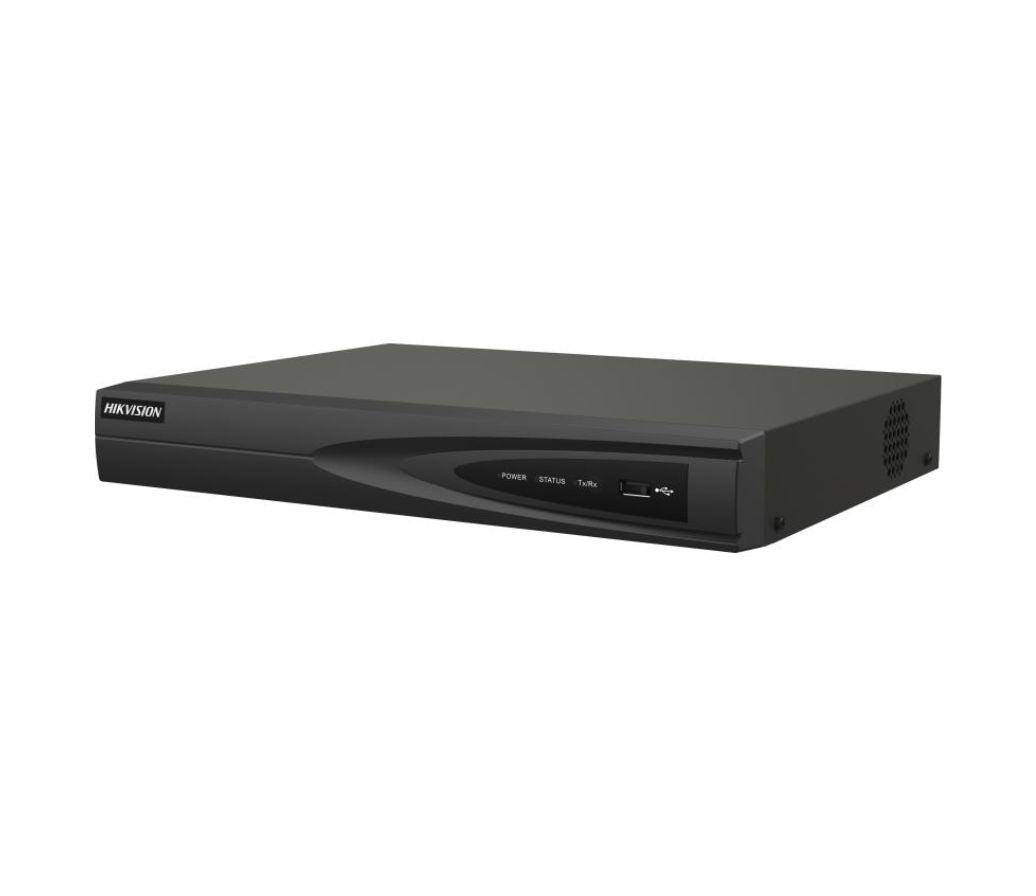

4ch 1U 4 PoE 4K NVR
Up to 4ch IP cameras can be connected Supports decoding H.265+/H.265/H.264+/H.264 video formats Up to 4K high-definition live view, storage and playback Up to 4ch @ 1080p decoding capacity Up to 40 Mbps high incoming bandwidth ensures IP cameras can be connected Simultaneous HDMI and VGA output of the same video stream 1 HDD for continuous video recording Plug & Play with 4p (PoE) interfaces Specification
Video And Audio IP Video Input4ch; 4ch HDMI OutputHDMI:,4K (3840 ? 2160)/30Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz,VGA: ,1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz, VGA OutputHDMI,VGA Incoming Bandwidth40 Mbps ,80 Mbps Audio Output1-ch, RCA (Linear, 1 K?) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1k?) Decoding Decoding FormatH.265+,H.265,H.264+,H.264,MPEG4 Decoding Capability1-ch @ 8 MP / 4ch @ 1080p Synchronous Playback4ch Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Network Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface PoE Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface;4ch Power? 50 W StandardIEEE 802.3 af/at Auxiliary Interface SATA1;1 SATA interface for 1HDD CapacityUp to 6TB capacity for each disk USB Interface2 ? USB 2.0 General Power Supply48 VDC,? 65 W Consumption? 10 W (without enabling PoE) Working Temperature-10 to +55? C (14 to 131? F) Working Humidity10 to 90 % Chassis1U Dimension (W ? D ? H)315 ? 240 ? 48 mm (12.4" ? 9.4" ? 1.9") Weight? 1 kg (2.2 lb)
