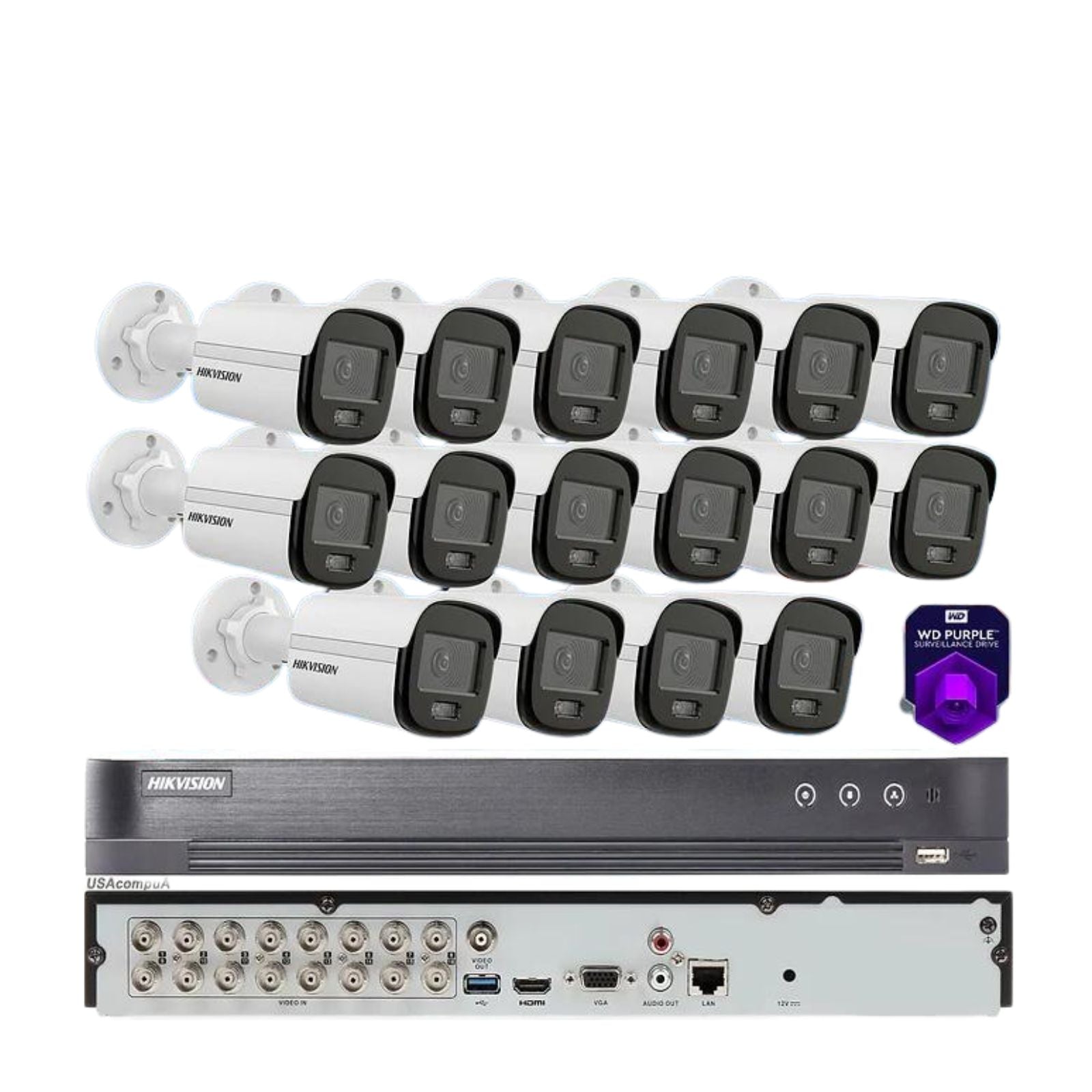

Hikvision 4K 16ch CCTV Security System 2MP Smart Hybrid Light Audio Mini Bullet

Data sheet PDF

Product Description

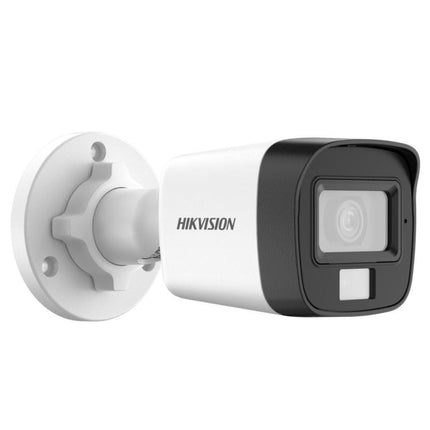

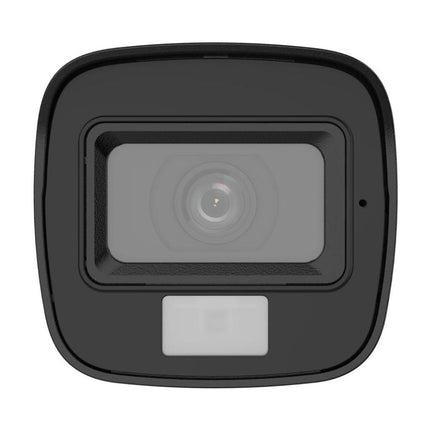

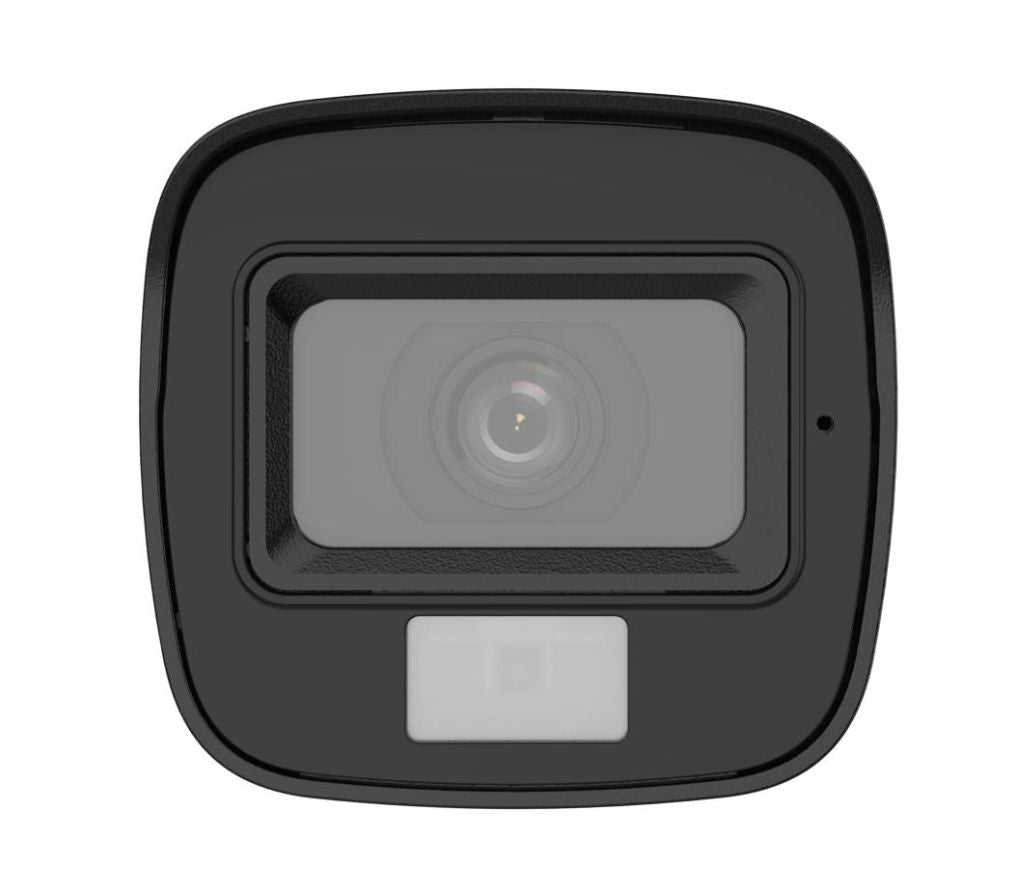

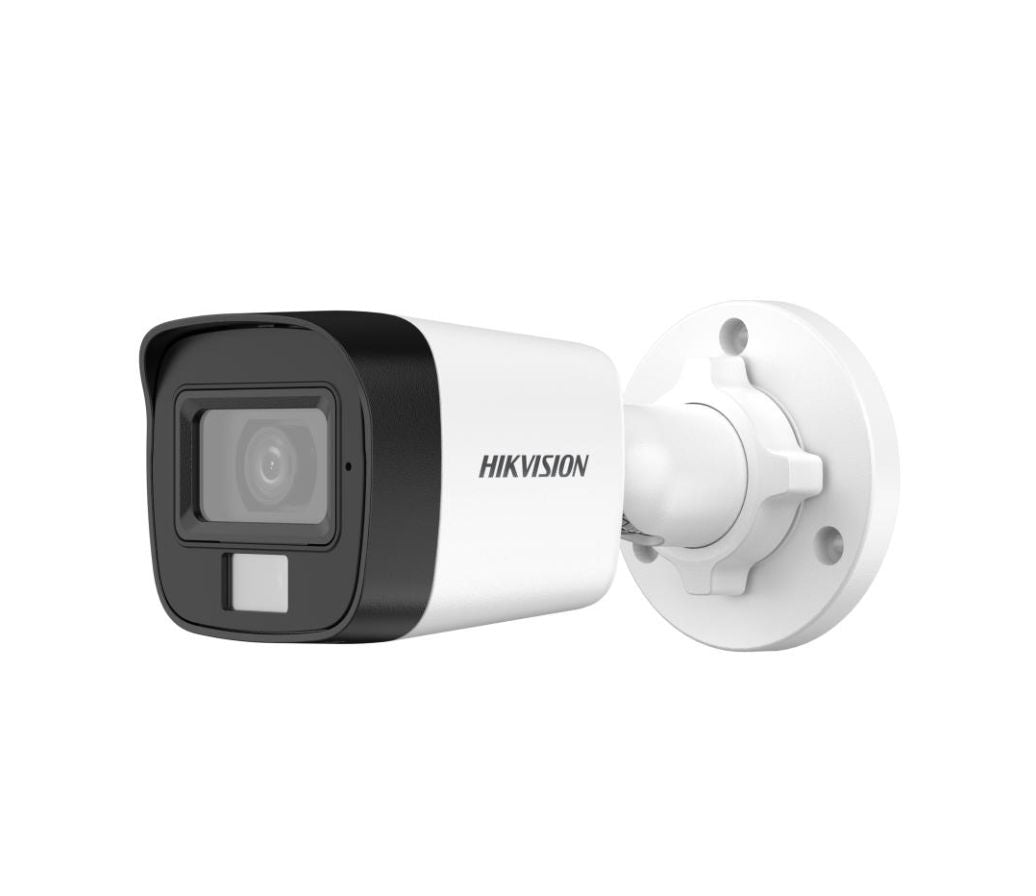

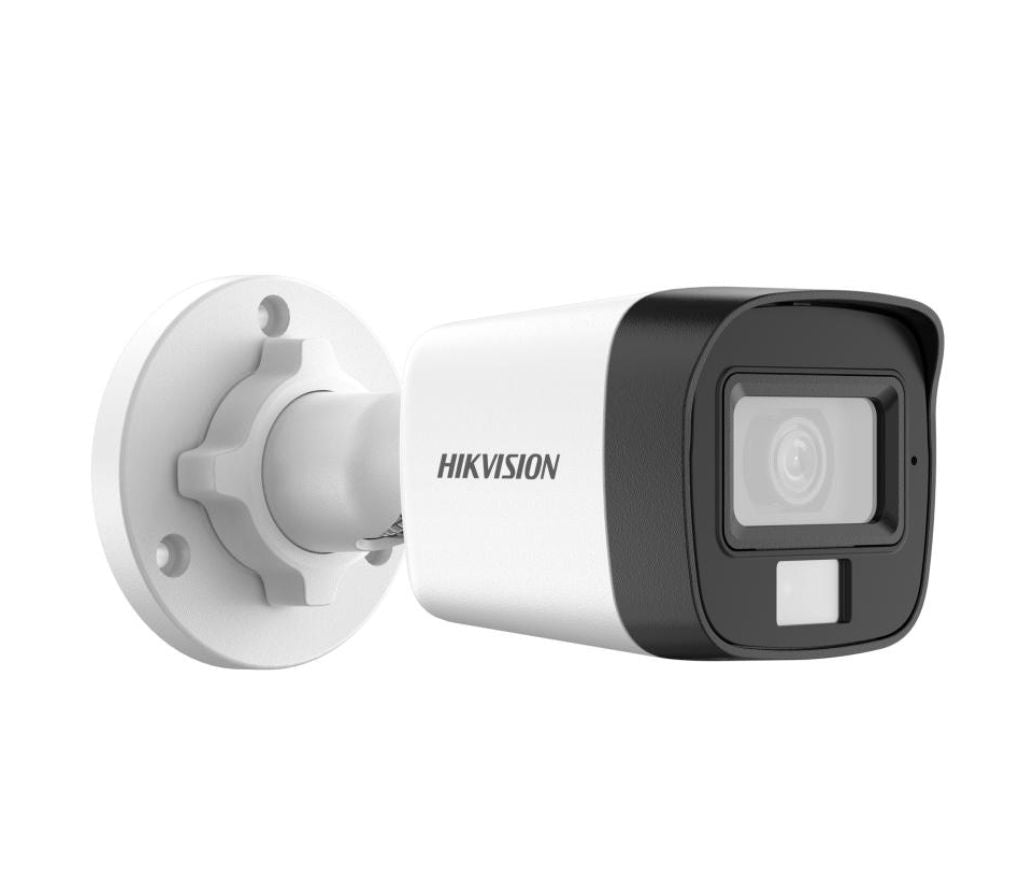

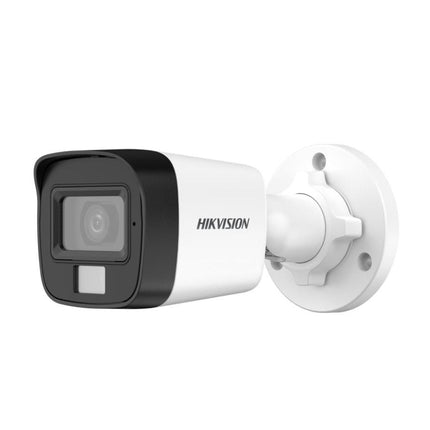

2MP Smart Hybrid Light Audio Fixed Mini Bullet Camera

• High quality imaging with 2 MP, 1920?1080 resolution
• 2.8 mm, fixed focal lens
• Up to 30 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS?
• Up to 20 m white light distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• Water and dust resistant (IP67)

Specification

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 180?, Rotation: 0 to 360?
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm, fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 101?, vertical FOV: 56?, diagonal FOV: 118?

  , horizontal FOV: 78?, vertical FOV: 42?, diagonal FOV: 92?

• Lens MountM12
• Illuminator
• Supplement Light TypeWhite Light;IR
• Supplement Light Range

  IR : Up to 30 m

  White Light : Up to 20 m

• Image
• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate

  TVI: 1080P @ 30 fps, 1080P @ 25 fps

  AHD: 1080P @ 30 fps, 1080P @ 25 fps

  CVI: 1080P @ 30 fps, 1080P @ 25 fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• White BalanceAuto/Manual
• AGCYes
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• General
• MaterialMetal
• Dimension138.8 mm ? 60.9 mm ? 57.9 mm (5.47" ? 2.4 " ? 2.3")
• WeightApprox. 266 g (0.59 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ? 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 3.3 W
• Approval
• ProtectionIP67

Data sheet PDF

Product Description

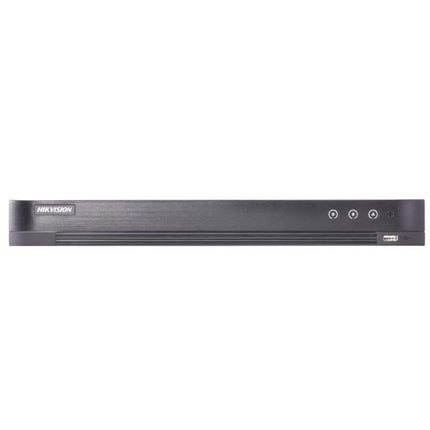

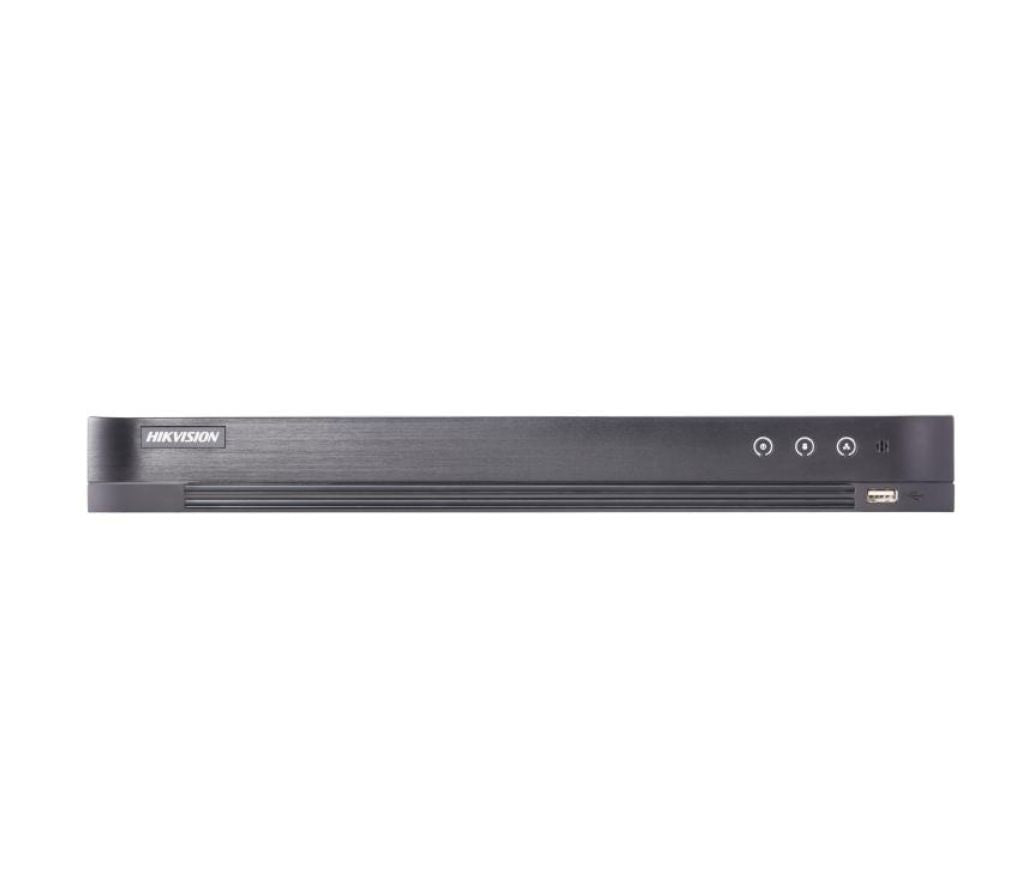

16ch 1080p 1U H.265 DVR

• 16chs and 2 HDDs 1U DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively ("Hybrid")
• Up to 24 network cameras can be connected

Specification

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionWhen 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
• Frame RateMain stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
• Video Bit Rate32 Kbps to 6 Mbps
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bit Rate64 Kbps
• Video And Audio
• IP Video Input8ch (up to 24ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input16ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
• AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
• Synchronous Playback16ch
• HDTVI Input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1/2 of DS-7208HQHI-K2, and for channel 1/2/3/4 of DS-7216HQHI-K2.,
• VGA/HDMI OutputVGA: 1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz,HDMI: 1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?),
• Network
• Remote Connections128
• Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
• Network Interface1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,
• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 10 TB capacity for each disk
• Alarm In/OutN/A
• USB InterfaceFront panel: 1 ? USB 2.0,Rear panel: 1 ? USB 3.0,
• Serial InterfaceRS-485 (half-duplex)
• General
• Power Supply12 VDC
• Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
• Working Humidity10% to 90%
• Dimensions (W ? D ? H)380 ? 320 ? 48 mm (15.0 ? 12.6 ? 1.9 inch)
• Weights (Without HDD)? 2 kg (4.4 lb)
• Consumption (Without HDD)? 25 W
