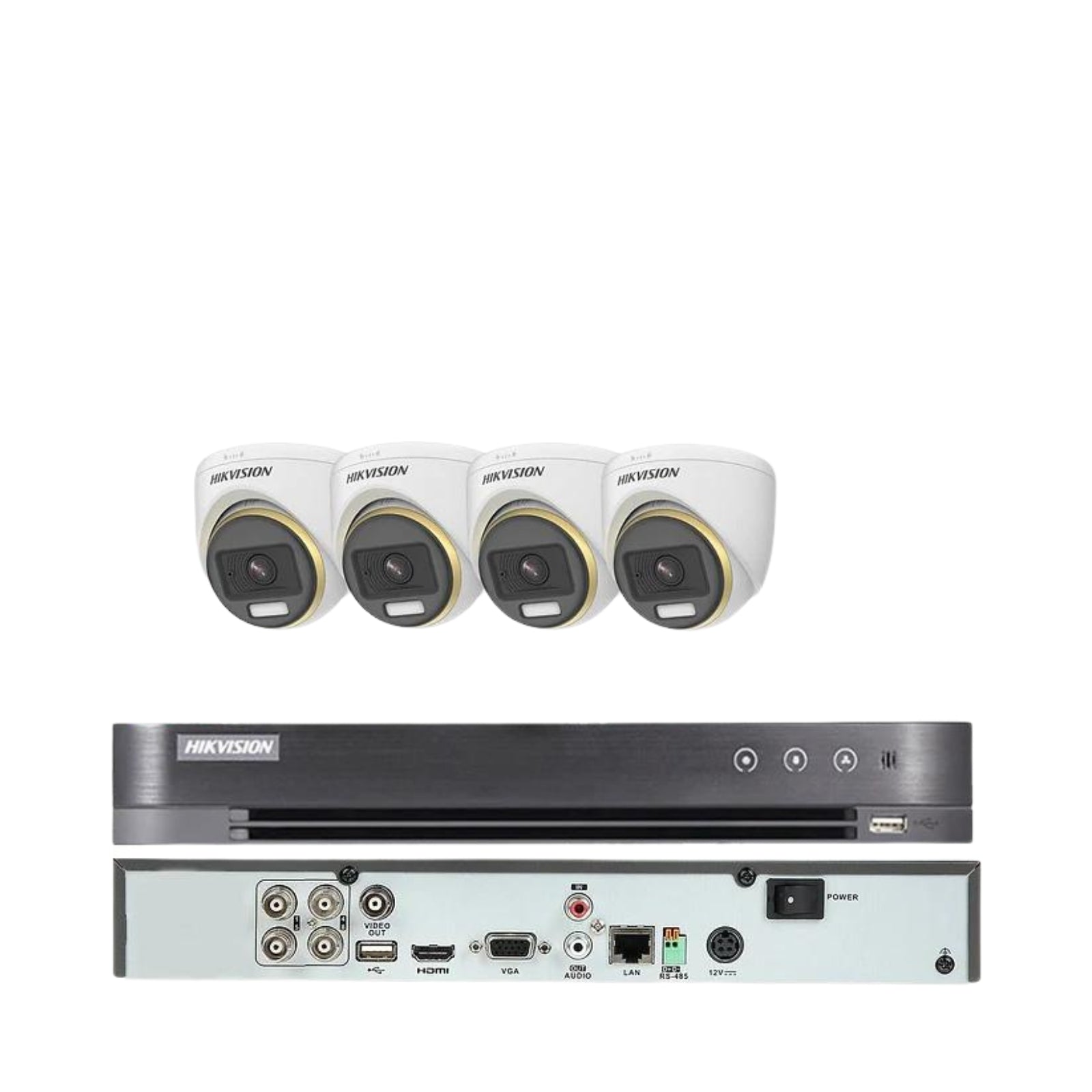

Hikvision 4K 4CH CCTV Security Camera System W/4 2MP ColorVu HD Turret

Data sheet PDF

Product Description

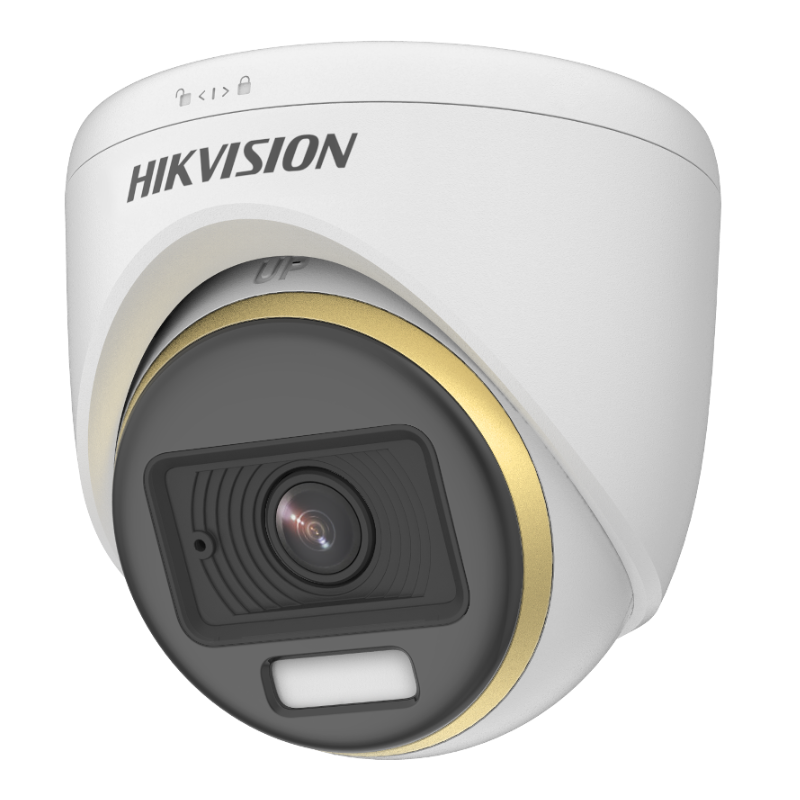

3k/5MP ColorVu Audio Fixed Turret Camera

• High quality imaging with 3k/5MP,
• 24/7 color imaging with F1.0 aperture
• 2.8 mm, fixed focal lens
• Up to 20 m white light distance for bright night imaging
• Water and dust resistant (IP67)
• High quality audio with audio over coaxial cable, built-in mic

Specification

• Camera
• Image Sensor3k/5MP CMOS
• Signal SystemPAL/NTSC
• Resolution2960 (H) ? 1665 (V)
• Frame Rate

  TVI: 3k/5MP@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps

  AHD: 5 MP@20fps, 4 MP@25fps/30fps

  CVI: 4 MP@25fps/30fps

  CVBS: PAL/NTSC

• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens2.8 mm, fixed focal lens
• Field Of View

  2.8 mm, horizontal FOV: 102?, vertical FOV: 56?, diagonal FOV: 122?

  , horizontal FOV: 80?, vertical FOV: 45?, diagonal FOV: 96?

• Lens MountM12
• Light AlarmSolid Light Alarm (White Light)
• Day & Night24/7 Color Imaging
• WDR (Wide Dynamic Range)Digital WDR
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 75?, Rotation: 0? to 360?
• Image
• White LightAuto/Off
• Image ModeSTD/HIGH-SAT/HIGHLIGHT
• AGCYes
• Day/Night ModeColor
• White BalanceAuto/Outdoor/Global/Manual
• AE (Auto Exposure) ModeBLC;HLC;Global;HLS;DWDR
• Noise Reduction2D DNR
• LanguageEnglish
• FunctionDefective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• Audio InBuilt-in mic
• General
• Operating Conditions-40?C to 60?C (-40?F to 140?F), Humidity: 90% or less (non-condensing)
• Power Supply

  12 VDC ? 25%,

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 2.5 W
• Protection LevelIP67
• MaterialMetal
• White Light RangeUp to 20 m
• CommunicationHIKVISION-C
• Dimension? 85.1 mm ? 77.62 mm (? 3.35" ? 3.05")
• WeightApprox. 328 g (0.72 lb.)

Data sheet PDF

Product Description

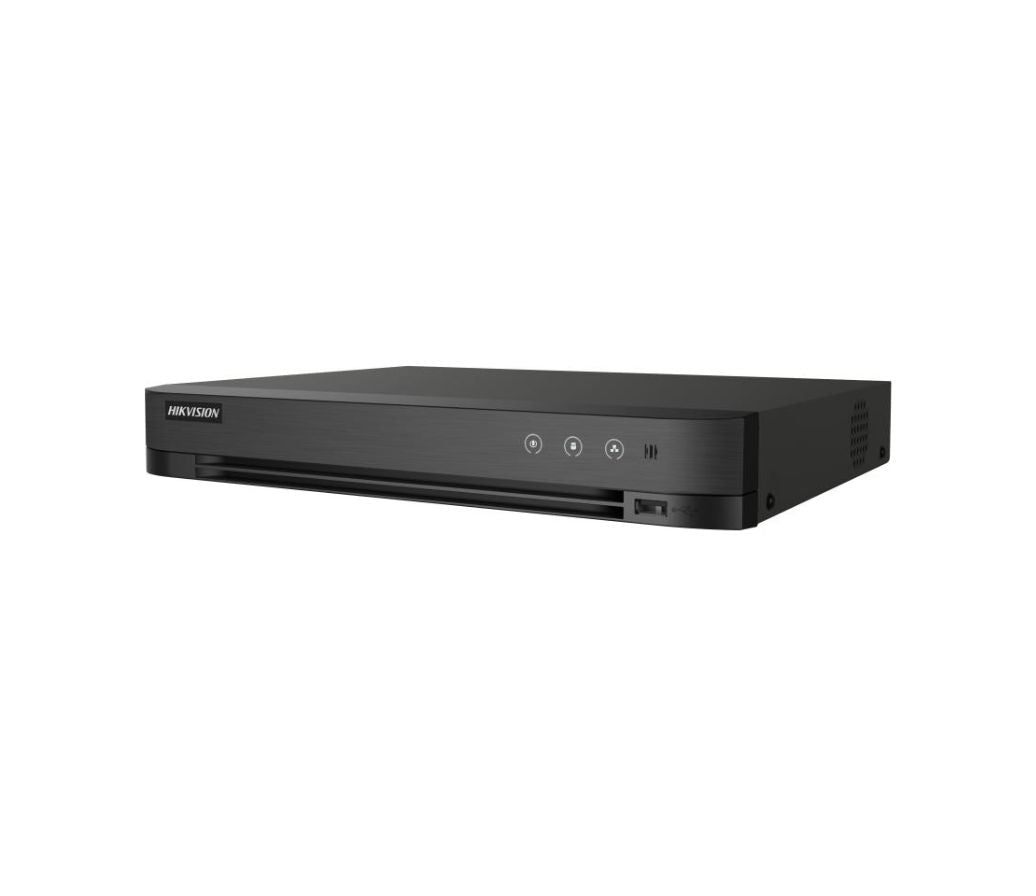

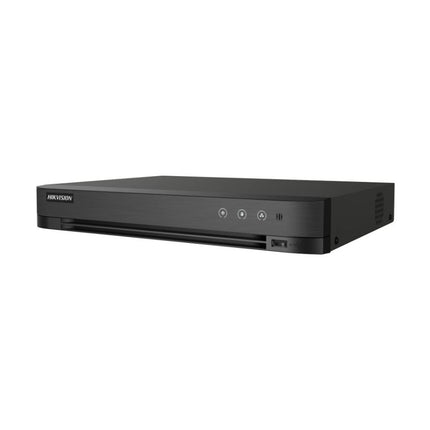

8ch 1080p 1U H.265 DVR

• 8chs and 1 HDD 1U DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively ("Hybrid")
• Up to 12 network cameras can be connected

Specification

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionWhen 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
• Frame RateMain stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• Video Bit Rate32 Kbps to 6 Mbps
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bit Rate64 Kbps
• Video And Audio
• IP Video Input4ch (up to 12-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input8ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
• AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
• Synchronous Playback8ch
• HDTVI Input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.,
• VGA/HDMI Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
• Network
• Remote Connections64
• Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each disk
• Alarm In/OutN/A
• USB Interface2 ? USB 2.0
• Serial InterfaceRS-485 (half-duplex)
• General
• Power Supply12 VDC
• Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
• Working Humidity10% to 90%
• Dimensions (W ? D ? H)315 ? 242 ? 45 mm (12.4 ? 9.5 ? 1.8 inch)
• Weights (Without HDD)? 1.78 kg (3.9 lb)
• Consumption (Without HDD)? 7.5 W
