Data sheet PDF Product Description

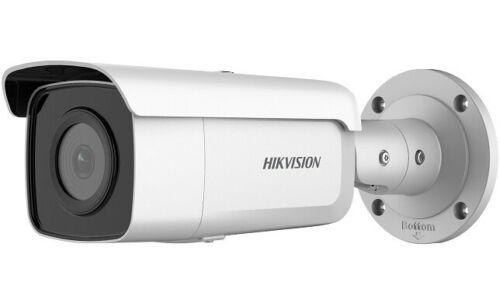

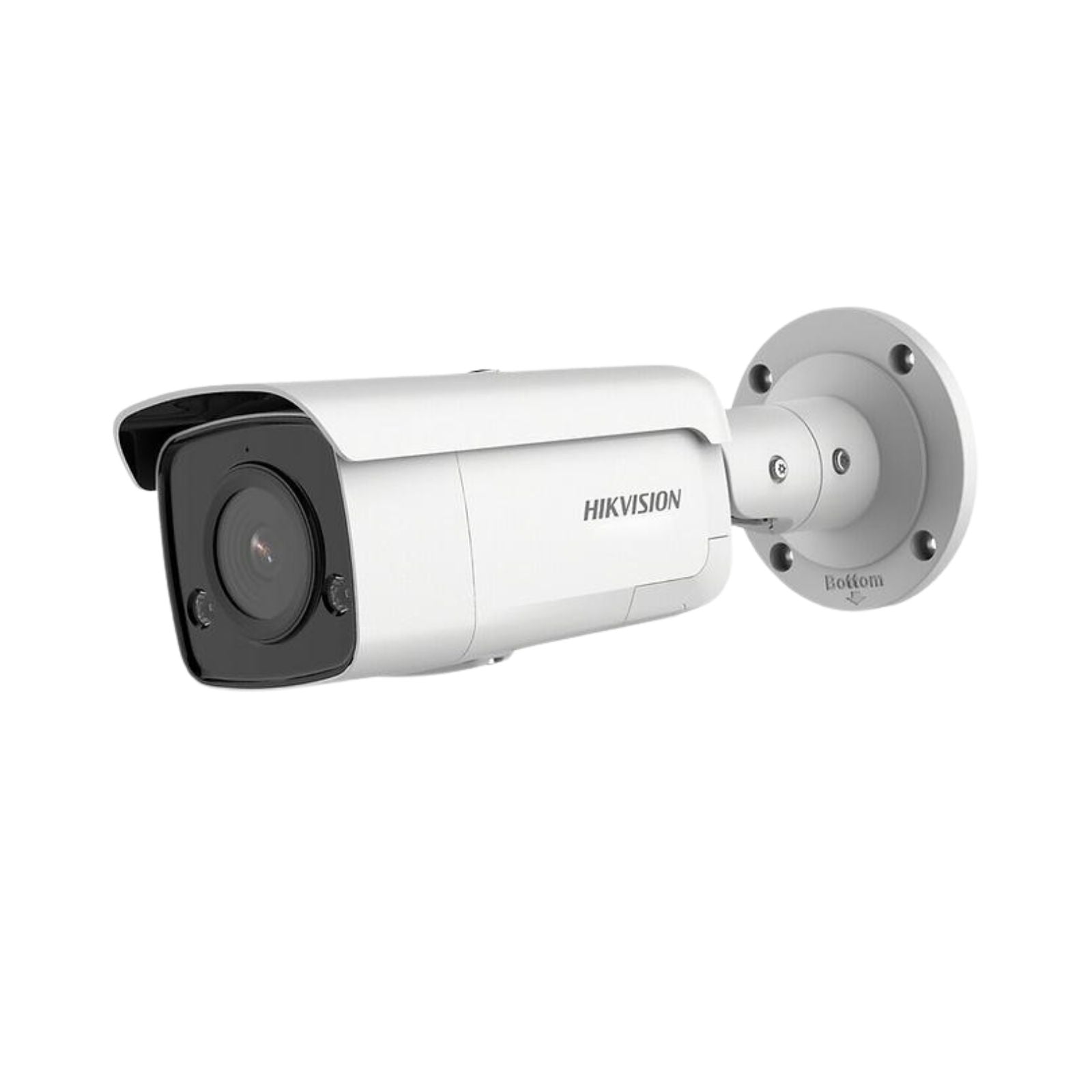

4K AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
High quality imaging with 8 MP resolution Excellent low-light performance with powered-by-DarkFighter technology Clear imaging against strong back light due to 120 dB true WDR technology Efficient H.265+ compression technology Focus on human and vehicle targets classification Active strobe light and audio alarm to warn intruders off Provides real-time security via built-in two-way audio Water and dust resistant (IP67) Specification
Camera
Lens
DORI
Illuminator
Video
Audio
Network
Interface
Event
Deep Learning Function
General
Approval
Camera Image Sensor1/1.8" Progressive Scan CMOS Max. Resolution3840 ? 2160 Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Shutter Time1/3 s to 1/100,000 s Day & NightIR cut filter Angle AdjustmentPan: 0? to 360?, tilt: 0? to 90?, rotate: 0? to 360? Lens Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV2.8 mm, horizontal FOV 110?, vertical FOV 58?, diagonal FOV 134?
4 mm, horizontal FOV 88?, vertical FOV 50?, diagonal FOV 100?
6 mm, horizontal FOV 59?, vertical FOV 34?, diagonal FOV 67?
Lens MountM12 Iris TypeFixed ApertureF1.6 DORI DORI2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 9 m
4 mm: D: 99 m, O: 39 m, R: 20 m, I: 10 m
6 mm: D: 140 m, O: 55 m, R: 28 m, I: 14 m
Illuminator Supplement Light TypeIR Supplement Light RangeUp to 60 m Smart Supplement LightYes IR Wavelength850 nm Video Main Stream50 Hz:
25 fps (3840 ? 2160, 3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)
60 Hz:
24 fps (3840 ? 2160)
30 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)
Sub-Stream50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
Third Stream50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps H.264 TypeBaseline Profile/Main Profile/High Profile H.265 TypeMain Profile Bit Rate ControlCBR/VBR Scalable Video Coding (SVC)H.264 and H.265 encoding Region Of Interest (ROI)1 fixed region for main stream and sub-stream Audio Audio TypeMono sound Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise FilteringYes Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets Simultaneous Live ViewUp to 6 channels APIOpen Network Video Interface ( Profile S, Profile G, Profile T), ISAPI, SDK, ISUP User/HostUp to 32 users
3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect Web BrowserPlug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Image Parameters SwitchYes Image SettingsMirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Day/Night SwitchDay, Night, Auto, Schedule Wide Dynamic Range (WDR)120 dB SNR? 52 dB Image EnhancementBLC, HLC, 3D DNR Privacy Mask4 regions of privacy mask Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In MicrophoneYes Built-In SpeakerPower: 2 W. Max. sound pressure level: 10 cm: 97 dB. Audio1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 2.2K?, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium
AlarmVisual alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset KeyYes Event Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection LinkageUpload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, white light flashing Deep Learning Function Face CaptureYes General Power12 VDC ? 25%, 1.17 A, max. 14 W, ?5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.4 A to 0.3 A, max. 17 W
Dimension286.7 mm ? 93.3 mm ? 91.2 mm (11.3" ? 3.7" ? 3.6") Package Dimension386 mm ? 156 mm ? 155 mm (15.2" ? 7.5" ? 7.1") WeightApprox. 1130 g (2.5 lb.) With Package WeightApprox. 1654 g (3.6 lb.) Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing) Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing) Language33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, th
