APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
ClientiVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR)120 dB
SNR? 52 dB

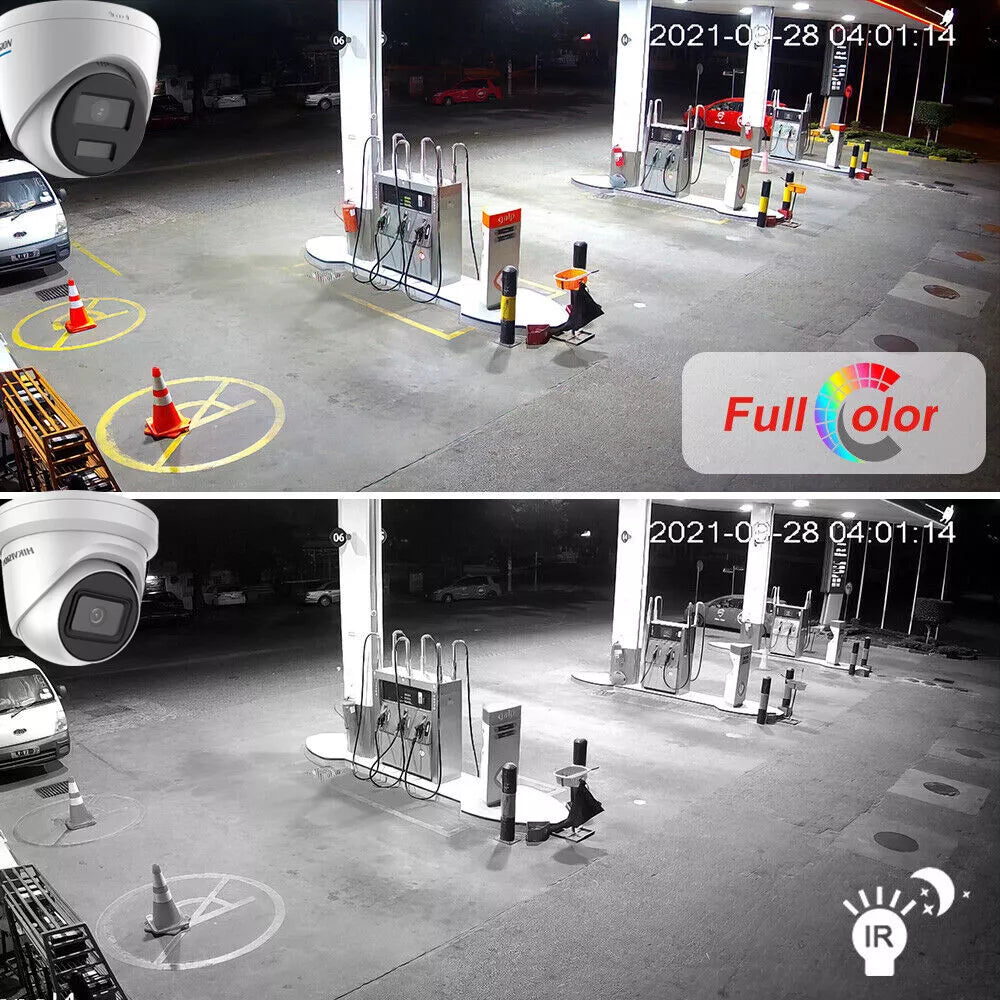

Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask4 programmable polygon privacy masks
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-In Microphone-U: Yes
Reset Key-F: Yes
Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture
General
Power
12 VDC ? 25%, 0.4 A, max. 5 W,?5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
MaterialMetal & Plastic
Dimension
?109.9 mm ? 103.6 mm (?4.3 ? 4.1\")"
Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
Weight
-L: Approx. 380 g (0.8 lb.); -LUF: Approx. 420 g (0.9 lb.)
With Package Weight
-L: Approx. 620 g (1.4 lb.); -LUF: Approx. 650 g (1.4 lb.)
Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

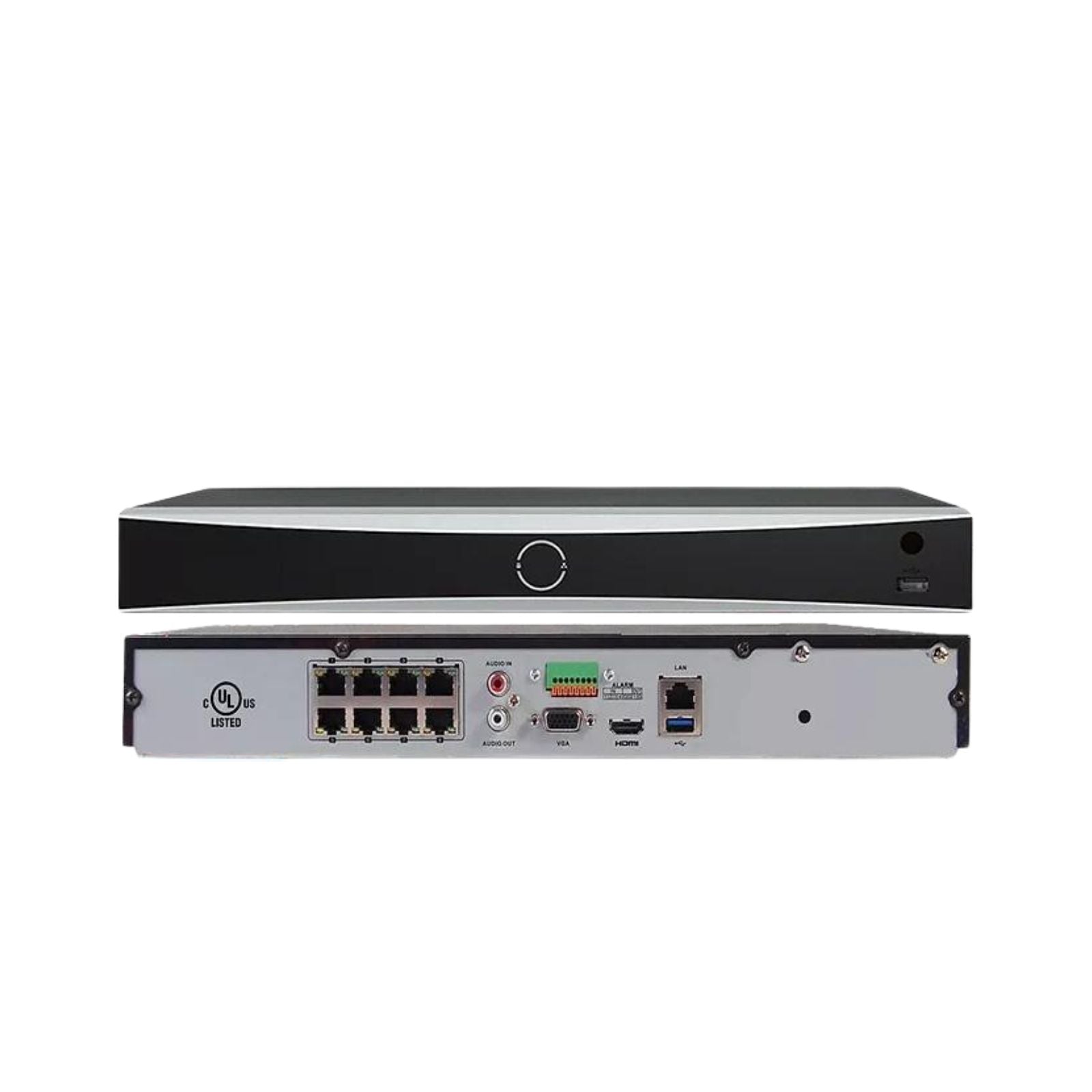

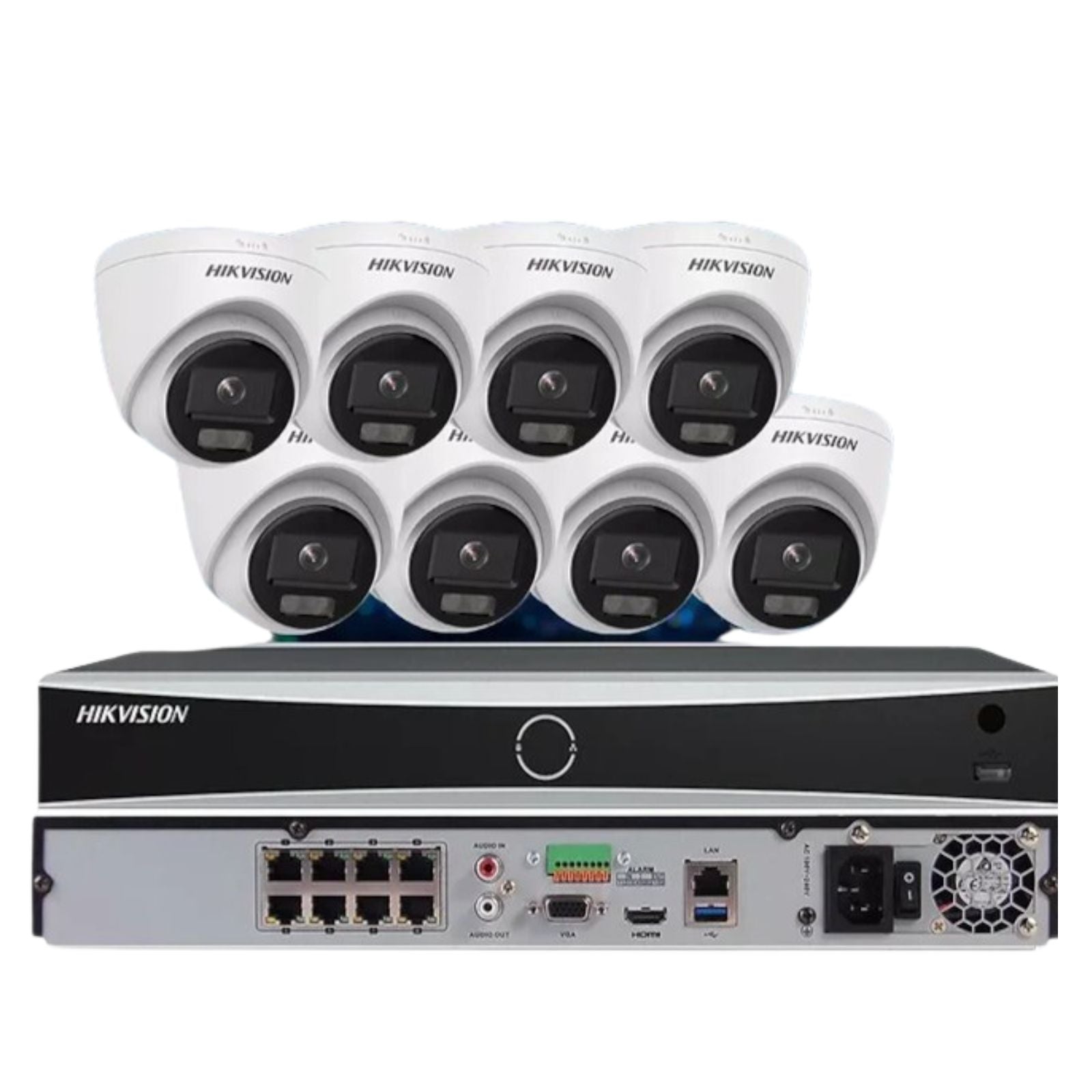

Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
Up to 80 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs
Specification
Intelligent Analytics
Facial Recognition
Motion Detection 2.0
Perimeter Protection
Throwing Objects From Building
Video And Audio
Decoding
Network
PoE
Auxiliary Interface
General
Certification
Intelligent Analytics
AI By DeviceFacial recognition, perimeter protection, motion detection 2.0
AI By CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Facial Recognition
Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ? 4 MB, total capacity ? 1 GB)
Facial Detection And Analytics Performance1-ch, 8 MP
Face Picture Comparison4-ch
Motion Detection 2.0
By Device1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;4-ch, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm;All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By CameraAll channels
Perimeter Protection
By Device1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
