Product Description

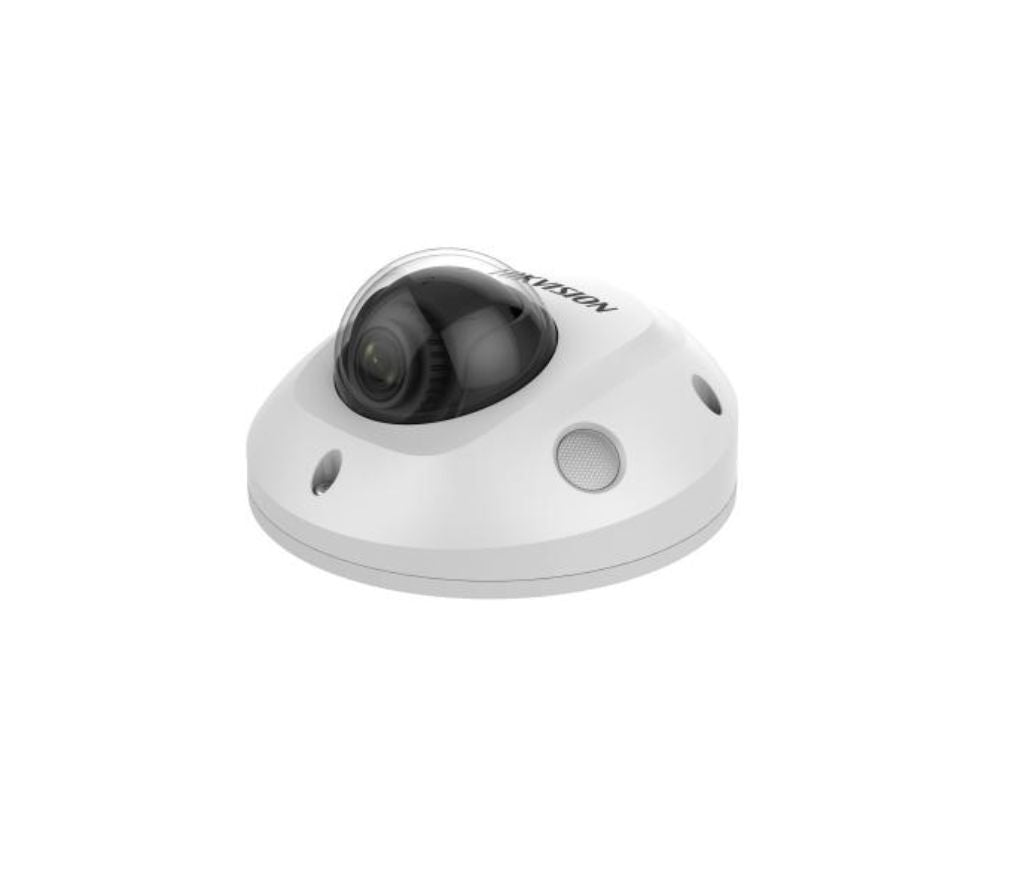

4 MP Outdoor WDR Fixed Mini Dome Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP66) and vandal proof (IK08)
• -W: Wi-Fi connection
• -S: audio and alarm interface available
• Built-in microphone for real-time audio security
• Mini size suitable for limited space

• Camera
• Image Sensor1/3" Progressive Scan CMOS
• Min. IlluminationColor: 0.018 lux @(F1.6, AGC ON), 0 lux with IR on
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Day & NightIR Cut Filter
• Angle AdjustmentPan: -30? to 30?, tilt: 0? to 75?, rotate: 0? to 360?
• Lens
• Lens Type2.8, 4, 6 mm
• FOV

  2.8 mm, horizontal FOV: 98?, vertical FOV: 55?, diagonal FOV: 114?

  4 mm, horizontal FOV: 78?, vertical FOV: 42?, diagonal FOV: 93?

  6 mm, horizontal FOV: 48?, vertical FOV: 27?, diagonal FOV: 54?

• ApertureF1.6
• Lens MountM12
• Illuminator
• IR RangeUp to 10 m
• Wavelength850 nm
• Video
• Max. Resolution2688 ? 1520
• Main Stream

  50Hz: 25 fps (2688 ? 1520, 2560 ? 1440, 2304 ? 1296, 1920 ? 1080, 1280 ? 720)

  60Hz: 30 fps (2688 ? 1520, 2560 ? 1440, 2304 ? 1296, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50Hz: 25 fps (640 ? 480, 640 ? 360, 320 ? 240)

  60Hz: 30 fps (640 ? 480, 640 ? 360, 320 ? 240)

• Third Stream

  50Hz: 25 fps (1280 ? 720, 640 ? 360, 352 ? 288)

  60Hz: 30 fps (1280 ? 720, 640 ? 360, 352 ? 240)

• Video Compression

  Main stream: H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeMain Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Scalable Video Coding (SVC)Support H.264 and H.265 encoding
• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate16 kHz, 32kHz, 44.1kHz, 48kHz
• Audio CompressionG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
• Network
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• Network StorageSupport MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
• Client

  Wired network: Hik-Connect, iVMS-4200, Hik-Central

  Wi-Fi: iVMS-4200, Hik-Central

  *Wi-Fi connection with Hik-Connect directly is not possible.

• Web Browser

  Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

  Plug-in free live view: Chrome 45.0+, Firefox 52.0+

• Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
• Wi-Fi
• Encryption Mode-W: WPA, WPA2
• Wi-Fi Protocol-W: IEEE 802.11b/g/n
• Frequency Range-W: 2.412 GHz to 2.4835 GHz
• Channel Bandwidth-W: 20 MHz
• Transfer Rate

  -W:

  11b: 11 Mbps

  11g: 54 Mbps

  11n: up to 150 Mbps

• Wireless Range-W: Up to 50 m (The performance varies based on actual environment)
• Image
• Day/Night SwitchAuto/Schedule/Day/Night/Triggered by Alarm In (-S model)
• DNR3D DNR
• Image EnhancementBLC/3D DNR/HLC
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
• Interface
• Audio

  -S:

  2 inputs: line in, or mic in (built-in microphone)

  1 output: line out, mono sound, terminal block

• Alarm

  -S:

  1 input: alarm in

  1 output: alarm out (max. 12 VDC, 30 mA), terminal block

• On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Event
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart EventLine crossing detection, intrusion detection, face detection
• Face DetectionYes
• General
• Linkage Method

  Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email

  Trigger notification: HTTP, ISAPI, alarm output , Email

• Firmware VersionV5.6.5
• General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions-30 ?C to +60 ?C (-22 ?F to +140 ?F), humidity 95% or less (non-condensing)
• Power Supply

  12 VDC ? 25%

  PoE (802.3af, class 3)

• Power Consumption And Current

  12 VDC, 0.7 A, max. 8.5 W, ?5.5mm coaxial plug power

  PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W

• Camera Dimension?120 mm ? 67.4 mm (?4.7" ? 2.7")
• Camera WeightCamera: approx. 400 g (0.9 lb.)
• Approval
• ProtectionIngress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)
