Product Description

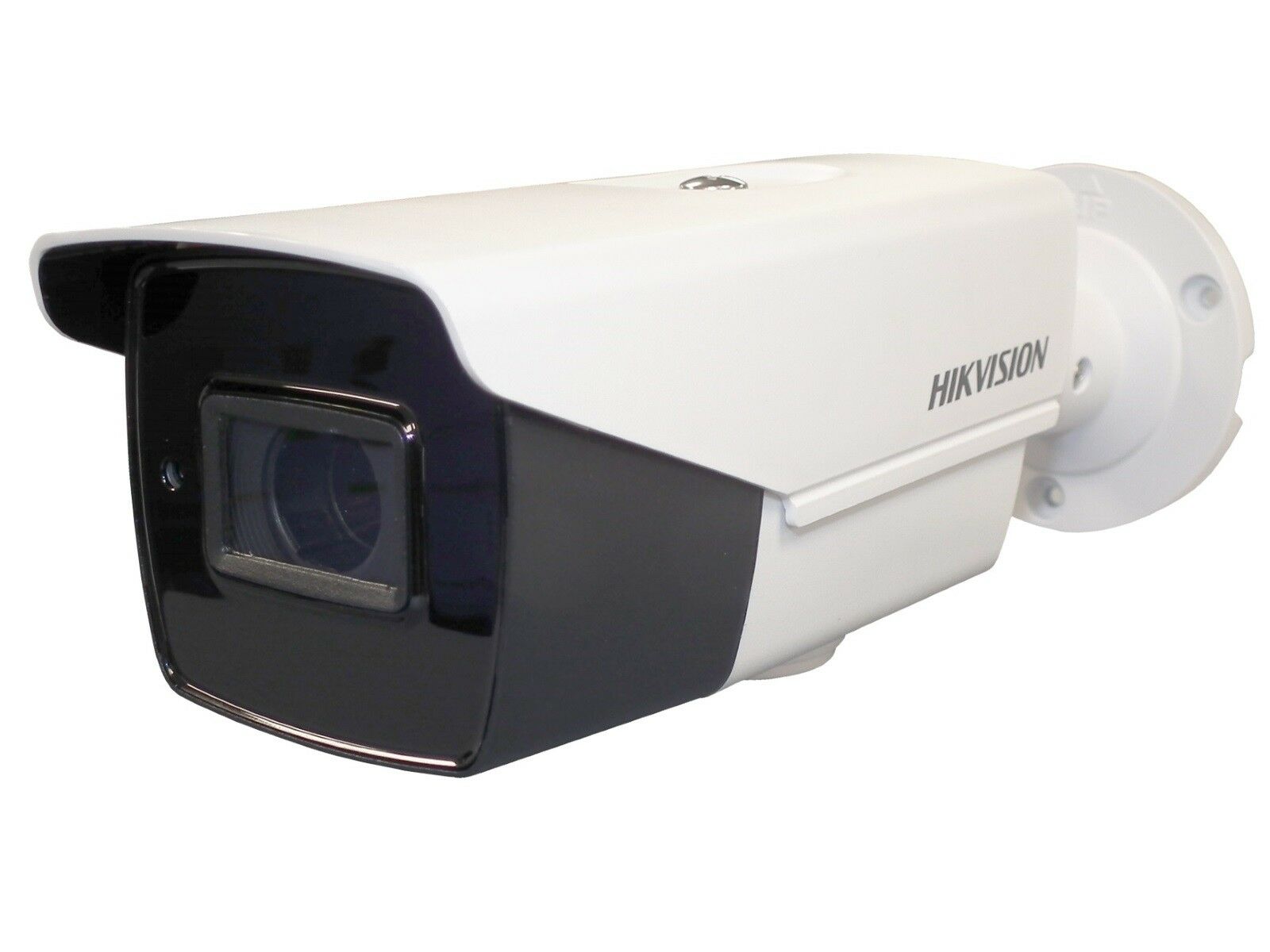

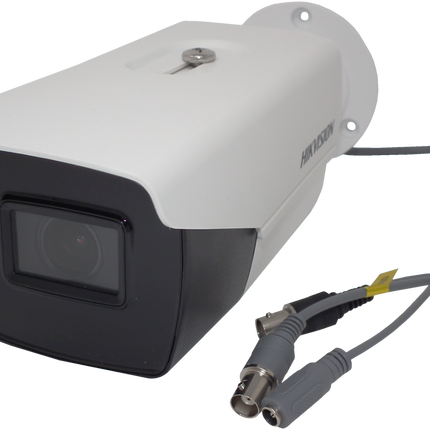

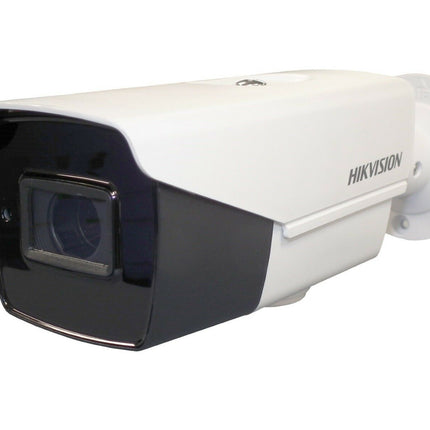

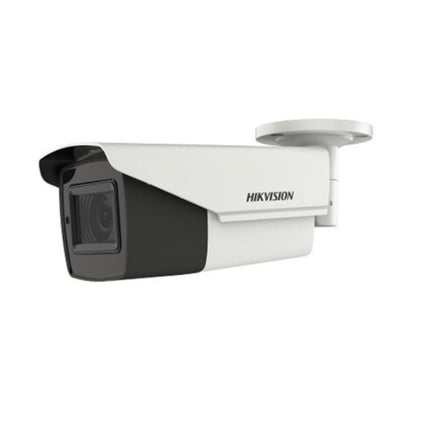

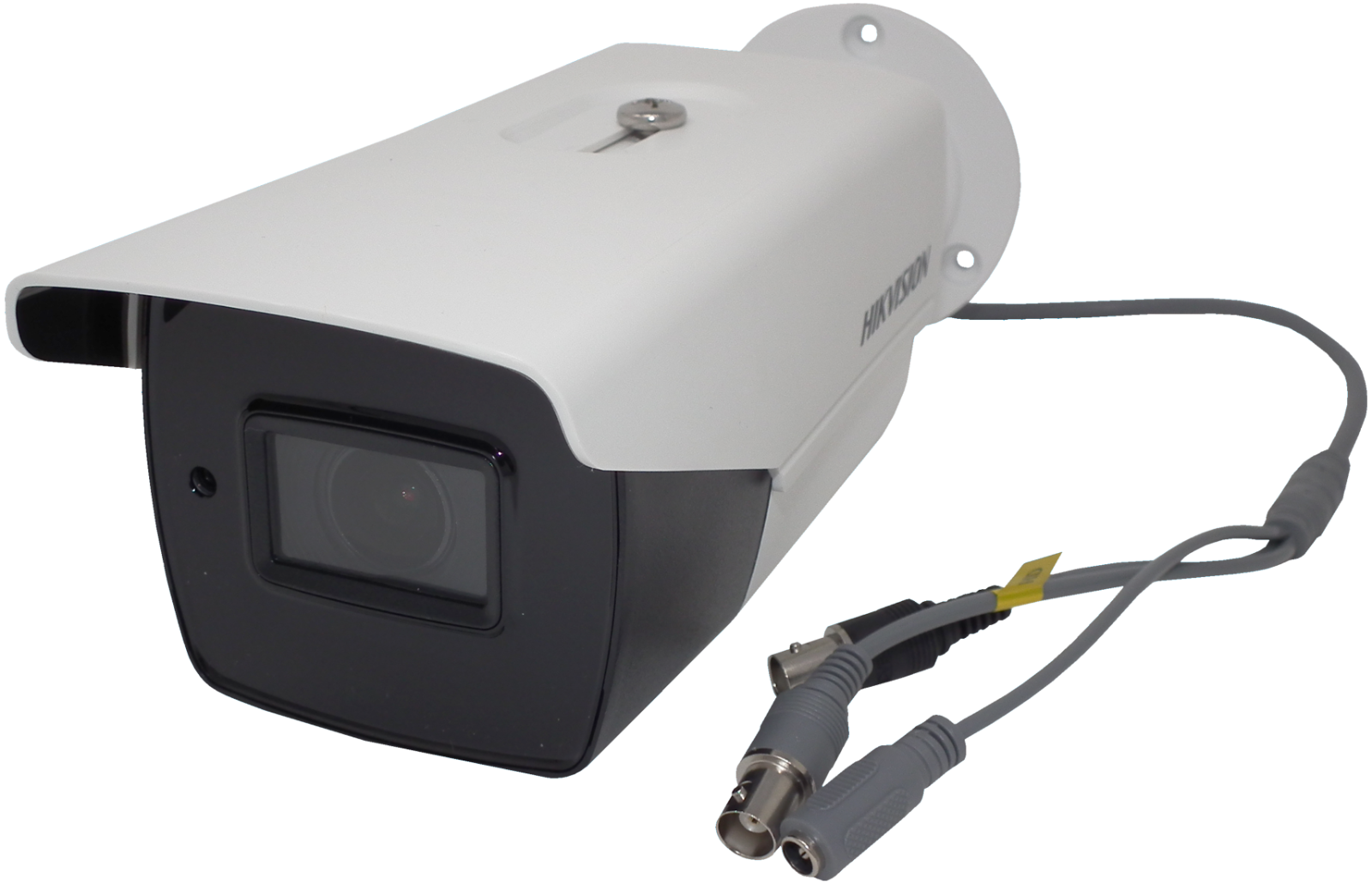

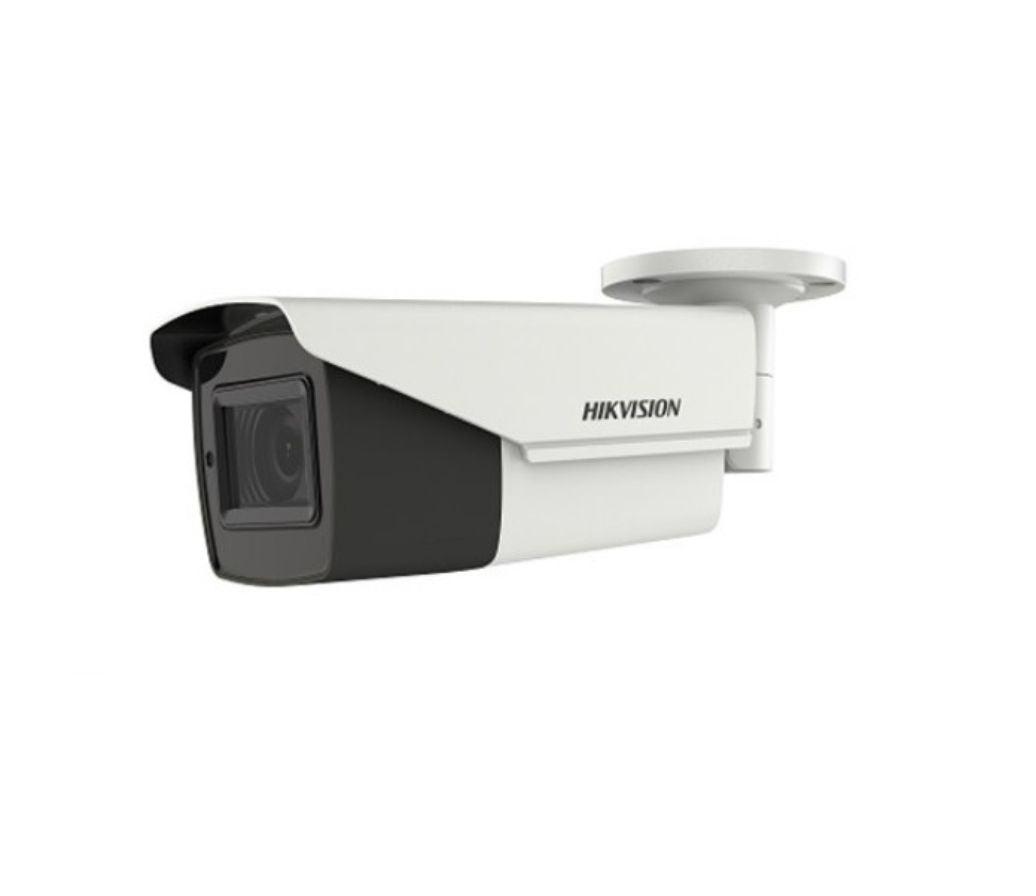

5 MP Motorized Varifocal Bullet Camera

• 5 MP bullet camera
• 2.7 mm to 13.5 mm motorized varifocal lens
• Up to 40 m IR distance for bright night imaging
• Water and dust resistant (IP67)

Specification

• Camera
• Image Sensor5 MP CMOS image sensor
• Max. Resolution2560 (H) ? 1944 (V)
• Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 360?; Tilt: 0? to 90?; Rotate: 0? to 360?
• Lens
• Lens Type2.7 mm to 13.5 mm motorized vari-focal lens
• Focal Length & FOV95.7? to 29.1?
• Lens Mount? 14
• Image
• Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR
• Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps,NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)DWDR
• Image EnhancementBLC
• White BalanceATW/MWB
• AGCSupport
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• General
• MaterialFront cover: Metal,Main body: Plastic
• Dimension84.5 mm ? 92 mm ? 255.1 mm (3.33" ? 3.62" ? 10")
• WeightDS-2CE16H0T-IT3ZF: Approx. 665 g (1.47 lb.),DS-2CE16H0T-AIT3ZF: Approx. 705 g (1.55 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
• Power Supply12 VDC ?15%, 24 VAC ?15%
• ConsumptionDS-2CE16H0T-IT3ZF: Max. 6.3 W ,DS-2CE16H0T-AIT3ZF: Max. 8.9 W
• IR RangeUp to 40 m
• Approval
• ProtectionIP67
