Product Description

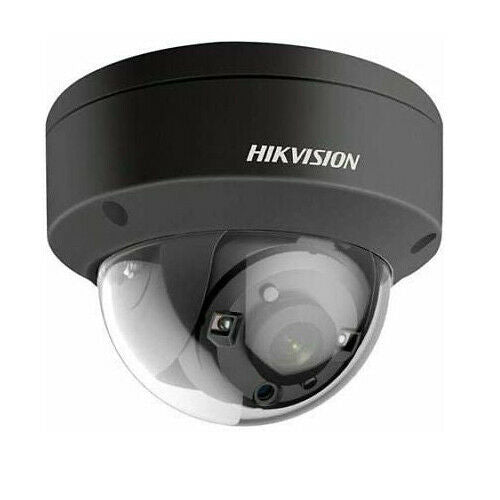

5 MP Vandal PoC Fixed Dome Camera

• 5 MP high performance dome camera
• Strong night performance, capturing images in ultra-low light down to 0.008 lux
• EXIR 2.0: advanced infrared technology with 20 m IR distance
• Water and dust resistant (IP67) and vandal proof (IK10)
• Transmits both HD video and power over the same coaxial cable.

Specification

• Camera
• Image Sensor5 MP CMOS image sensor
• Signal SystemPAL/NTSC
• Frame Rate

  2560 ? 1944@20fps, 2560 ? 1944@12.5fps

  2560? 1440@30fps, 2560? 1440@25fps (default)

  1920?1080@30fps, 1920?1080@25fps

  * Under the PoC mode, 2560 ? 1944@12.5fps is not available.

• Resolution2560 (H) ? 1944 (V)
• Min. IlluminationColor: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Lens2.8 mm , 6 mm fixed focal lens
• Horizontal Field Of View91? (2.8 mm), 70? (), 45? (6 mm)
• Lens MountM12
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 355?; Tilt:0? to 75?; Rotate: 0? to 355?
• Menu
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceATW/MWB
• BLC (Backlight Compensation)Support
• LanguageEnglish, Chinese
• FunctionsBrightness, Sharpness, DNR , Mirror, Smart IR
• Interface
• Video Output1 HD analog output
• General
• Operating Condition?-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• Power Supply12 V DC ?25%/PoC.af
• Power ConsumptionMax. 4.5 W
• Protection LevelIP67, IK10
• MaterialMetal
• IR RangeUp to 20 m
• CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)

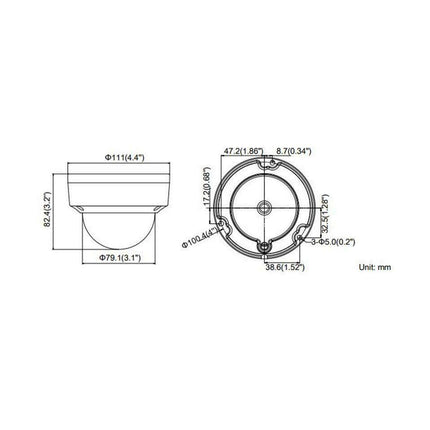

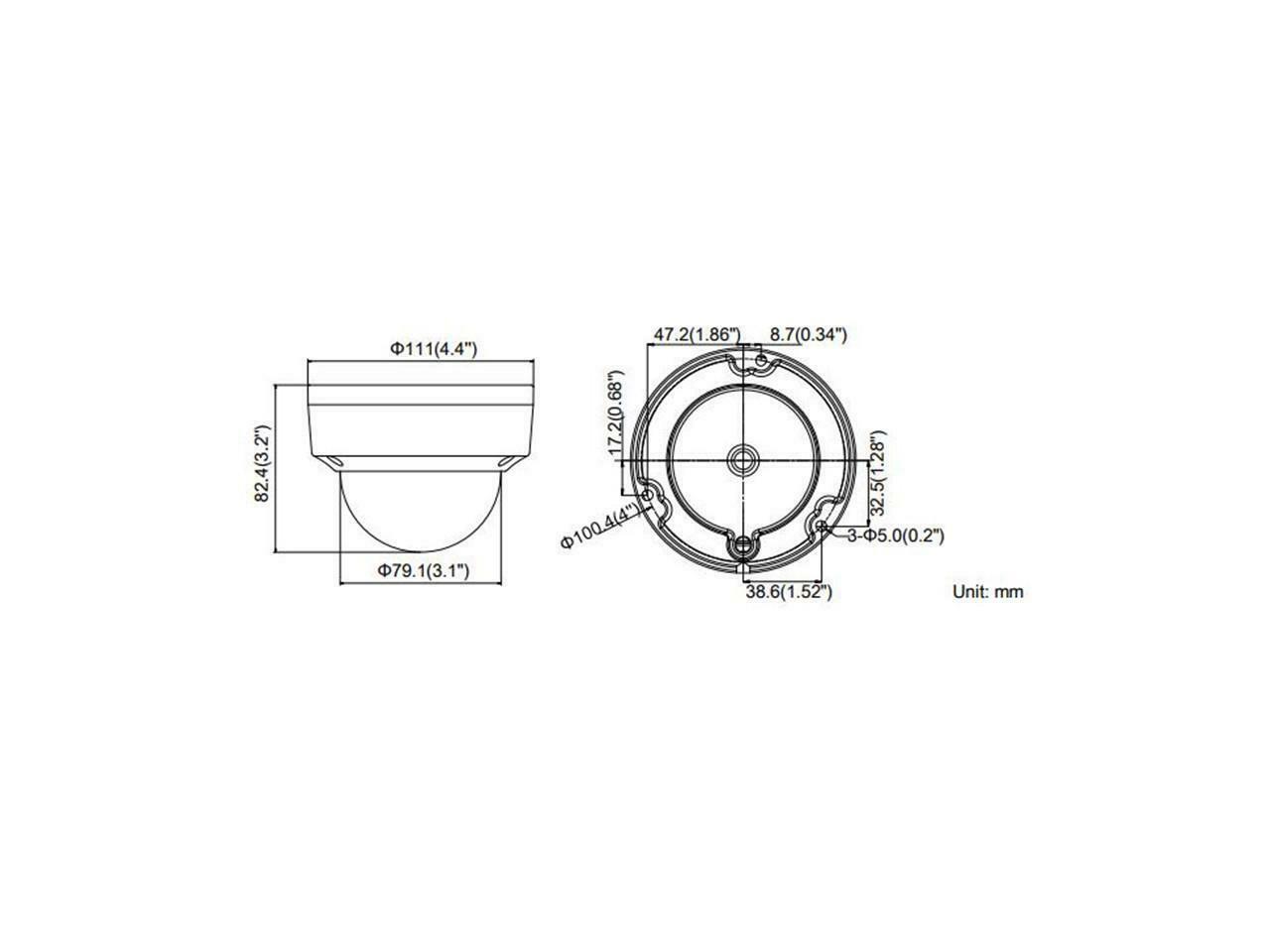

• Dimensions? 111 mm ? 82.4 mm (? 4.4" ? 3.2")
• WeightApprox. 350 g (0.77 lb.)
