Product Description

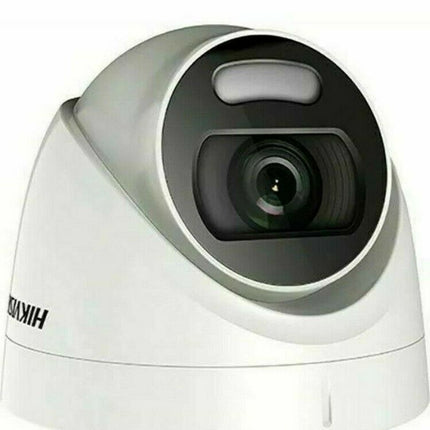

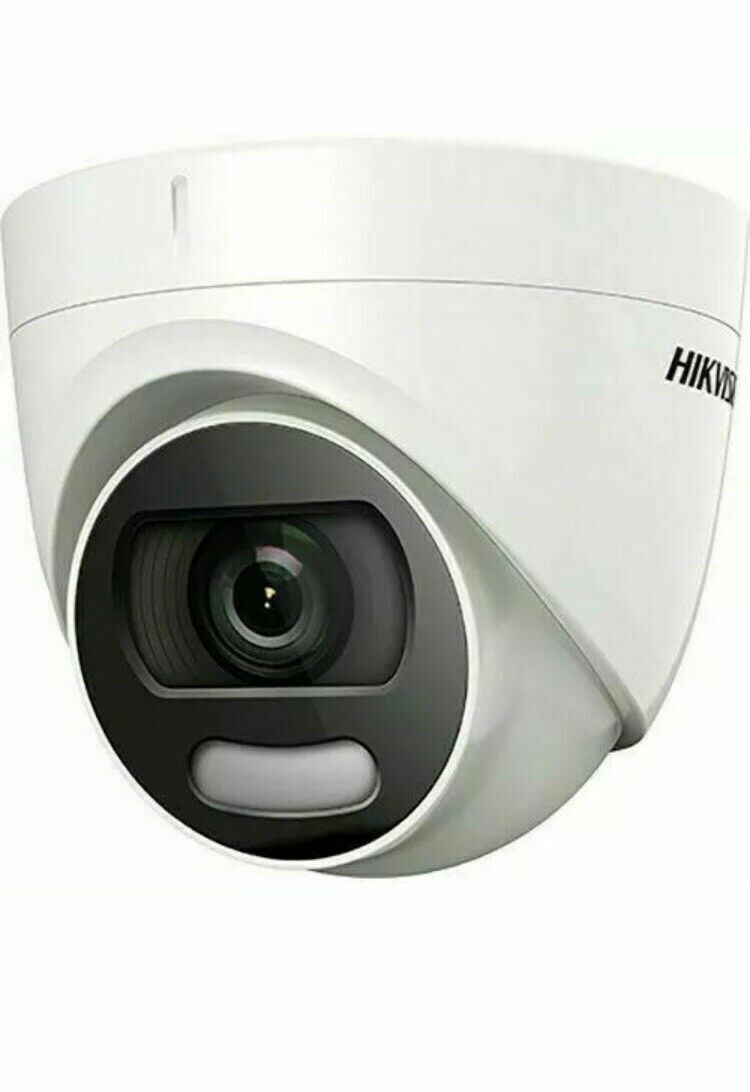

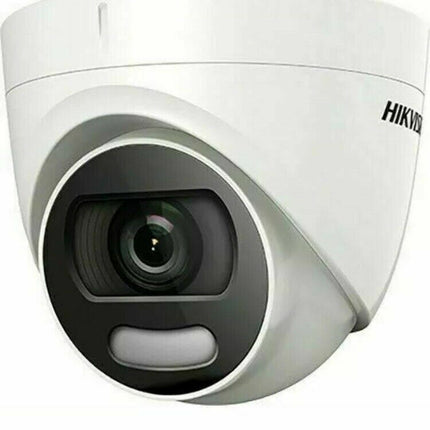

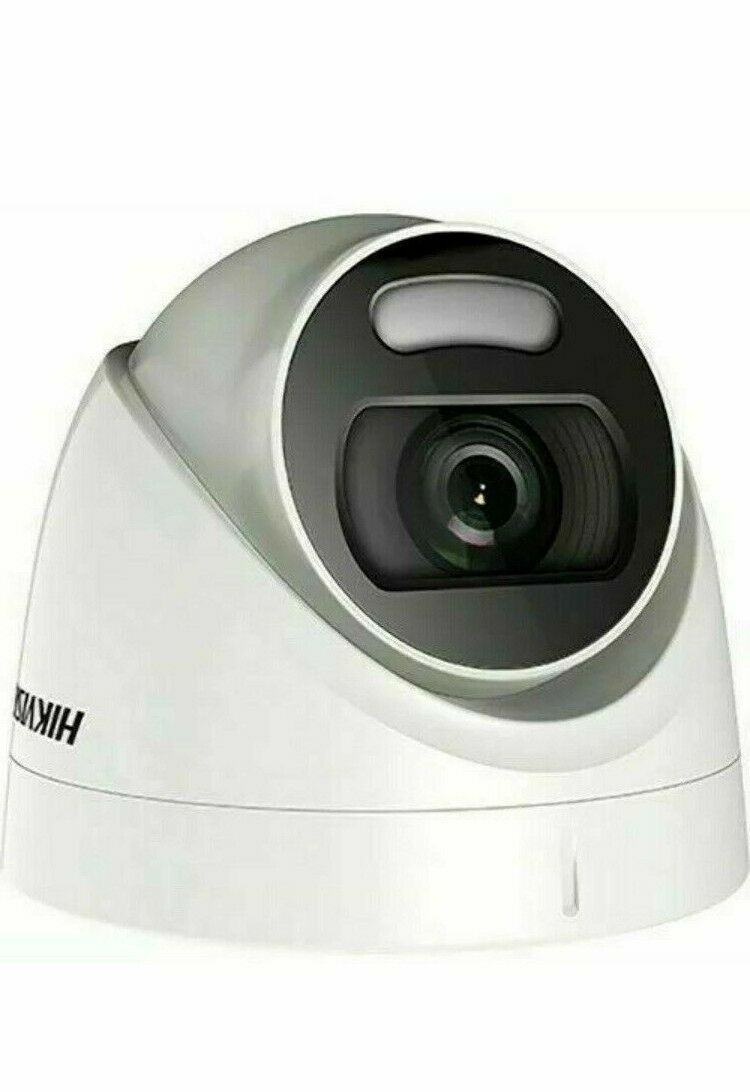

5 MP ColorVu Fixed Turret Camera

• 5 MP full time color turret camera
• 24/7 full color imaging
• 2.8 mm fixed focal lens
• Warm supplemental light with 20 m range
• Clear imaging even against strong back lighting due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

Specification

• Camera
• Image Sensor5 MP CMOS
• Max. Resolution2560 (H) ? 1944 (V)
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & NightColor
• Angle AdjustmentPan: 0? to 360?; Tilt: 0? to 75?; Rotate: 0? to 360?
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm fixed lens
• Focal Length & FOV2.8 mm, horizontal FOV: 99.7?, vertical FOV: 72?, diagonal FOV: 139.8?
• Lens MountM16
• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 20m
• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Mirror, Smart Light, AGC
• Frame Rate

  TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps

  CVI: 4MP@30fps, 4MP@25fps

  AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps

  CVBS: PAL/NTSC

• Day/Night ModeColor
• Wide Dynamic Range (WDR)?130 dB
• Image EnhancementBLC, HLC
• White BalanceAuto/Manual
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• General
• MaterialMain body: Metal, Enclosure: Plastic
• Dimension? 109.82 mm ? 85.56 mm (4.32" ? 3.37")
• WeightApprox. 350 g ( 0.77 lb.)
• Operating Condition-40? C to 60? C (-40? F to 140? F), Humidity 90% or less (no condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power

  12 VDC ? 25%, Max. 3.5 W

  *You are recommended to use one power adapter to supply the power for one camera.

• Approval
• ProtectionIP67
