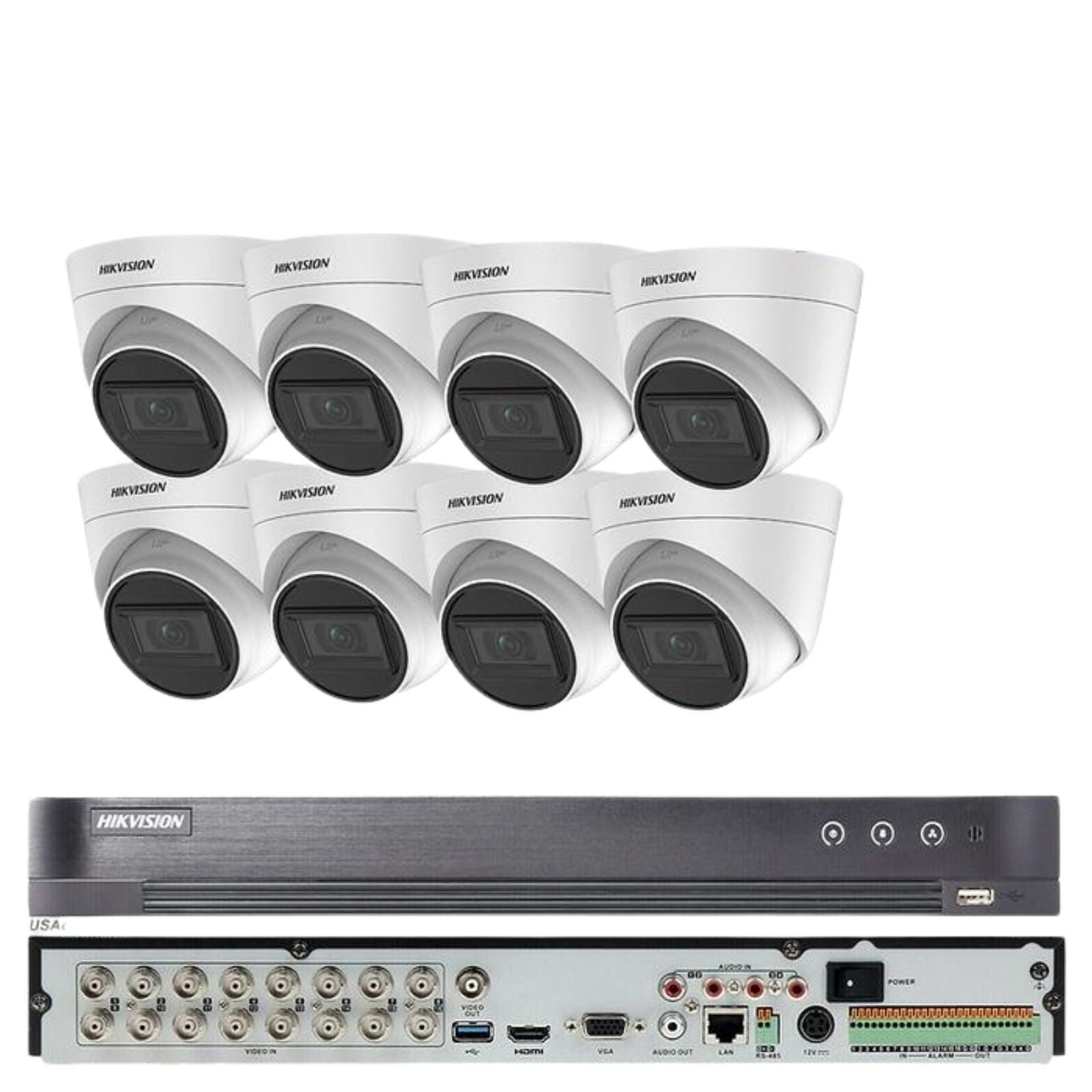

Hikvision 5MP DS-2CE76H0T-IT3F 16CH CCTV Security Camera System 4K Outdoor KIT

Hikvision 5MP DS-2CE76H0T-IT3F 16CH CCTV Security Camera System 4K Outdoor KIT

Product form

3-4 Business Days  Mid weeks
Monday to Friday we offer same day handling if the product is on stock and exceptions on holidays.

Weekends
We offer no deliveries in the weekends.

International
Depending on where you’re located, we offer next day delivery. Check status on this link

$627.47 $591.95

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on all orders
      • No hassle returns, 30 days return

      Data sheet PDF

      Product Description

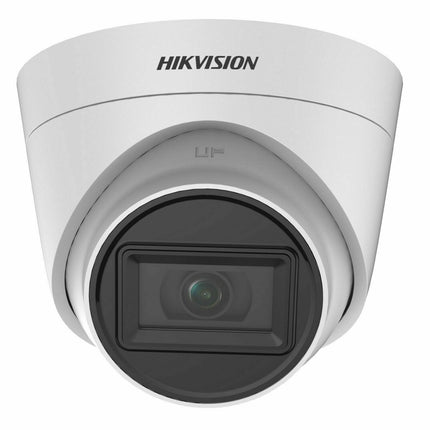

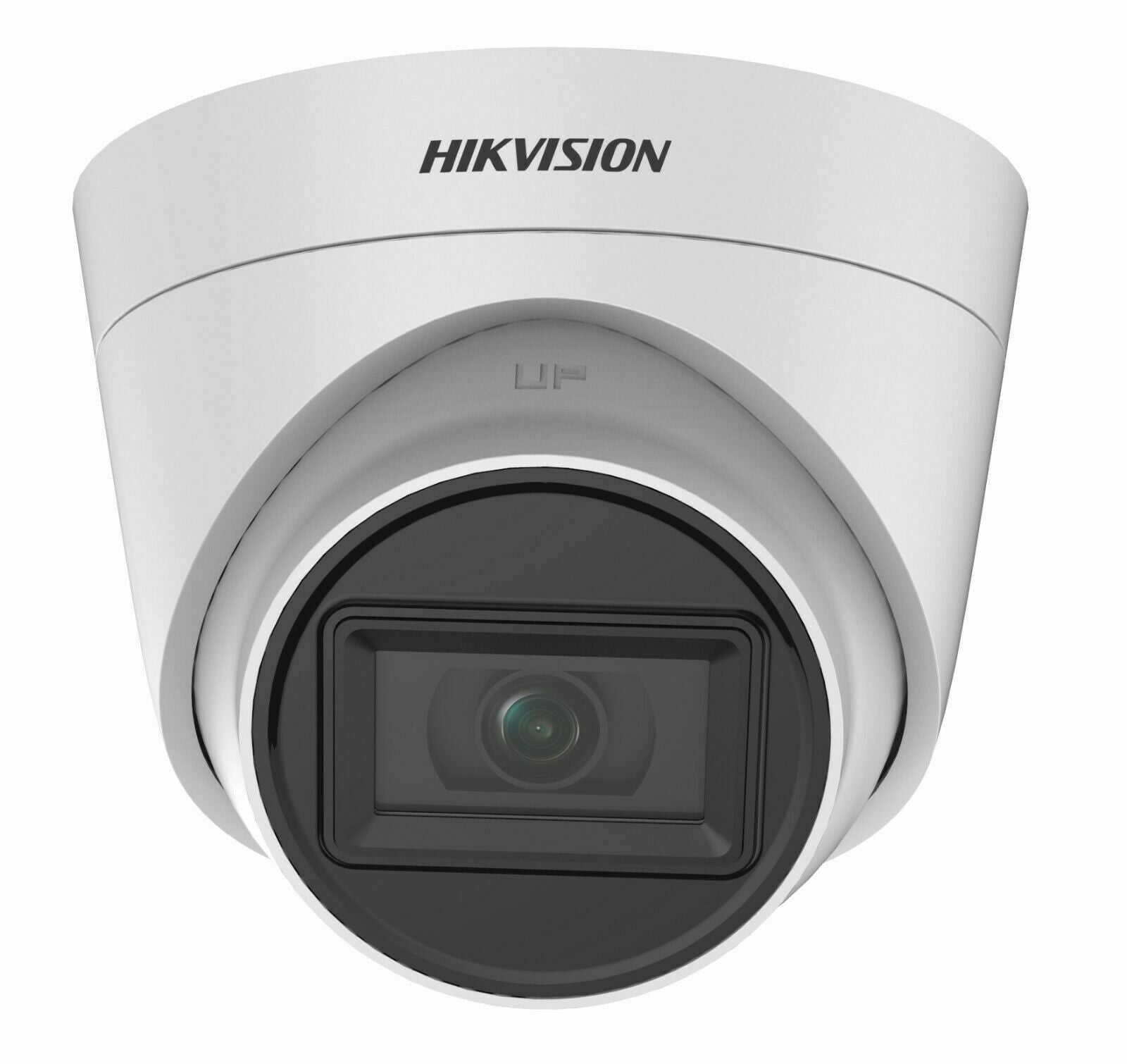

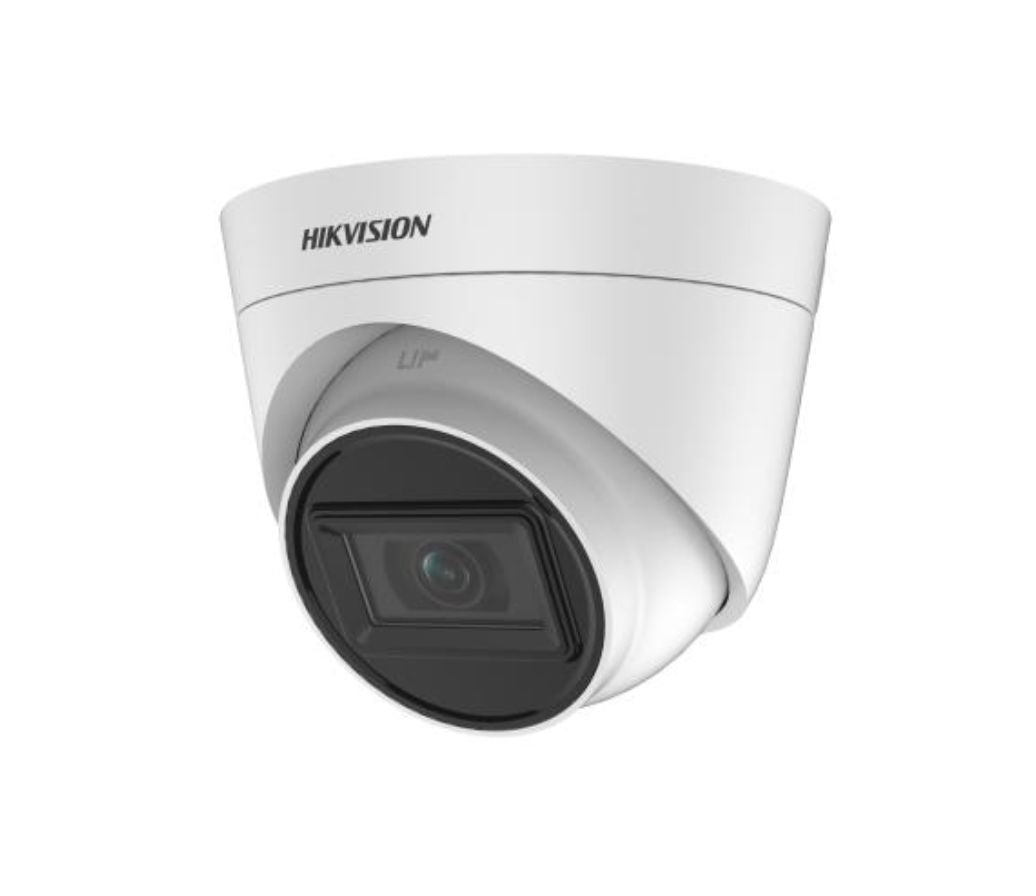

      5 MP Fixed Turret Camera

      • 5 MP turret camera
      • EXIR 2.0: advanced infrared technology with 40 m IR distance
      • Water and dust resistant (IP67)
      • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

      Specification

        • Camera
        • Image Sensor5 MP CMOS image sensor
        • Max. Resolution2560 (H) ? 1944 (V)
        • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
        • Shutter Time

          PAL: 1/25 s to 1/50, 000 s

          NTSC: 1/30 s to 1/50, 000 s

        • Day & NightICR
        • Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 75?, Rotation 0 to 360?
        • Signal SystemPAL/NTSC
        • Lens
        • Lens Type2.8 mm, , 6 mm, 8 mm, 12 mm ???? lens
        • Focal Length & FOV

          2.8 mm, horizontal FOV: 85?, vertical FOV: 63?, diagonal FOV: 110?

          , horizontal FOV: 80?, vertical FOV: 63?, diagonal FOV:105?

          6 mm, horizontal FOV: 57?, vertical FOV: 43?, diagonal FOV: 72?

          8 mm, horizontal FOV: 41?, vertical FOV: 31?, diagonal FOV: 52?

          12 mm, horizontal FOV: 26?, vertical FOV: 19?, diagonal FOV: 32?

        • Lens MountM12
        • Image
        • Image Parameters SwitchSTD/HIGH-SAT
        • Image SettingsBrightness, Sharpness, Mirror, Smart IR
        • Frame Rate

          TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

          AHD: 5M@20fps, 4M@30fps, 4M@25fps

          CVI: 4M@30fps, 4M@25fps

          CVBS: PAL/NTSC

        • Day/Night ModeAuto/Color/BW (Black and White)
        • Wide Dynamic Range (WDR)Digital WDR
        • Image EnhancementBLC, HLC
        • White BalanceATW/MANUAL
        • AGCSupport
        • Interface
        • Video OutputSwitchable TVI/AHD/CVI/CVBS
        • General
        • Material

          Front Cover: Plastic

          Main Body: Metal

        • Dimension? 109.82 mm ? 91.03 mm (? 4.32" ? 3.6")
        • WeightApprox. 303 g (0.67 lb.)
        • Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
        • CommunicationHIKVISION-C
        • LanguageEnglish
        • Power Supply12 VDC ?25%
        • Consumption

          Max. 4.3 W

        • IR RangeUp to 40 m
        • Approval
        • ProtectionIP67

      Data sheet PDF

      Product Description

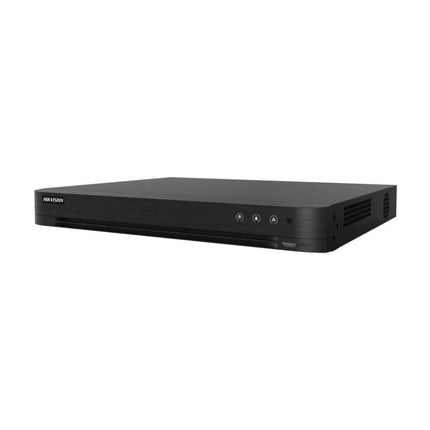

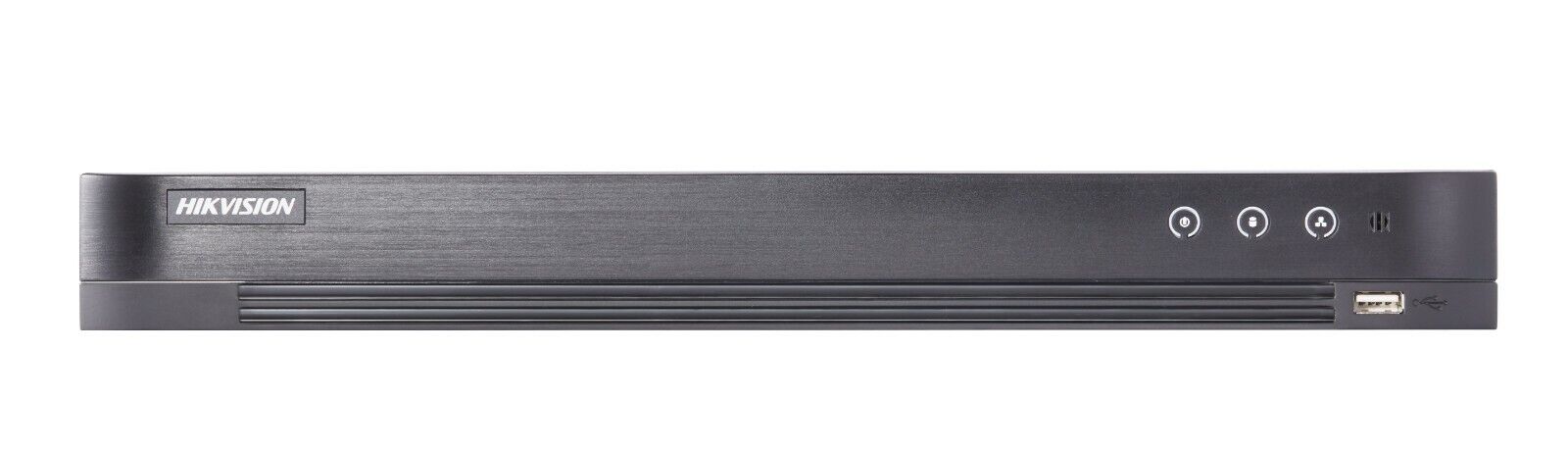

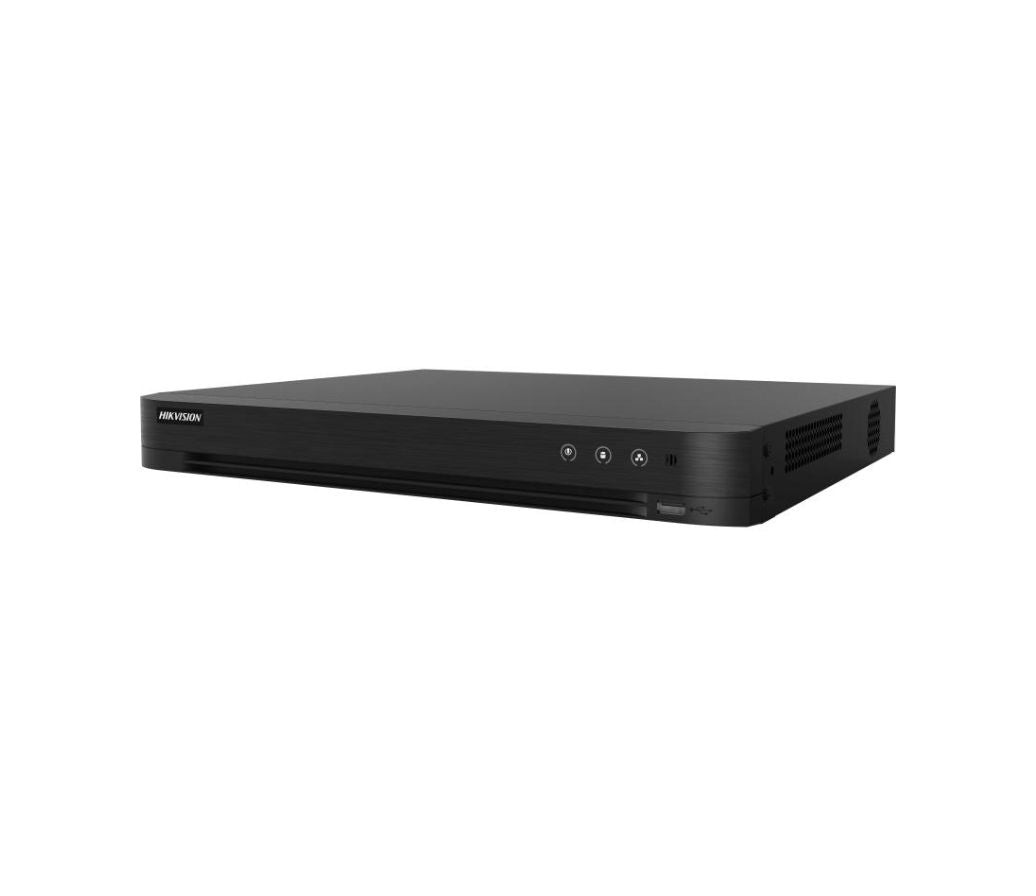

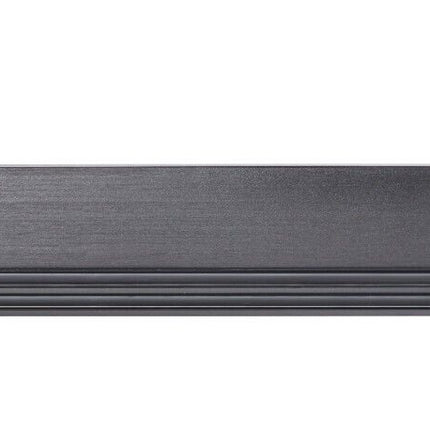

      16ch 5 MP 1U H.265 AcuSense DVR

      • Deep learning-based motion detection 2.0 for all analog channels
      • Deep learning-based perimeter protection
      • Efficient H.265 pro+ compression technology
      • Up to 8 MP@8 fps/5 MP@12 fps encoding capability
      • "Hybrid" video inputs
      • Up to 32ch IP camera inputs (up to 8 MP)

      Specification

        • Motion Detection 2.0
        • Human/Vehicle Analysis

          Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

          it can classify human and vehicle, and extremely reduce false alarms caused by objects

          like leaves and lights;

          Quick search by object or event type is supported;

        • Perimeter Protection
        • Human/Vehicle AnalysisUp to 4ch
        • Facial Detection
        • Facial Detection And CaptureFace picture detection, face picture search
        • Recording
        • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
        • Encoding Resolution8 MP/5 MP/3k/5MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
        • Frame Rate

          Main stream:

          8 MP@8 fps/3k/5MP@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

          1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

          Sub-stream:

          WD1/4CIF/CIF@25 fps (P)/30 fps (N)

        • Video Bitrate32 Kbps to 10 Mbps
        • Dual-StreamSupport
        • Stream TypeVideo, Video & Audio
        • Audio CompressionG.711u
        • Audio Bitrate64 Kbps
        • Video And Audio
        • IP Video Input

          8ch (up to 24ch)

          Enhanced IP mode on: 16ch (up to 32ch), each up to 4 Mbps

          Up to 8 MP resolution

          Support H.265+/H.265/H.264+/H.264 IP cameras

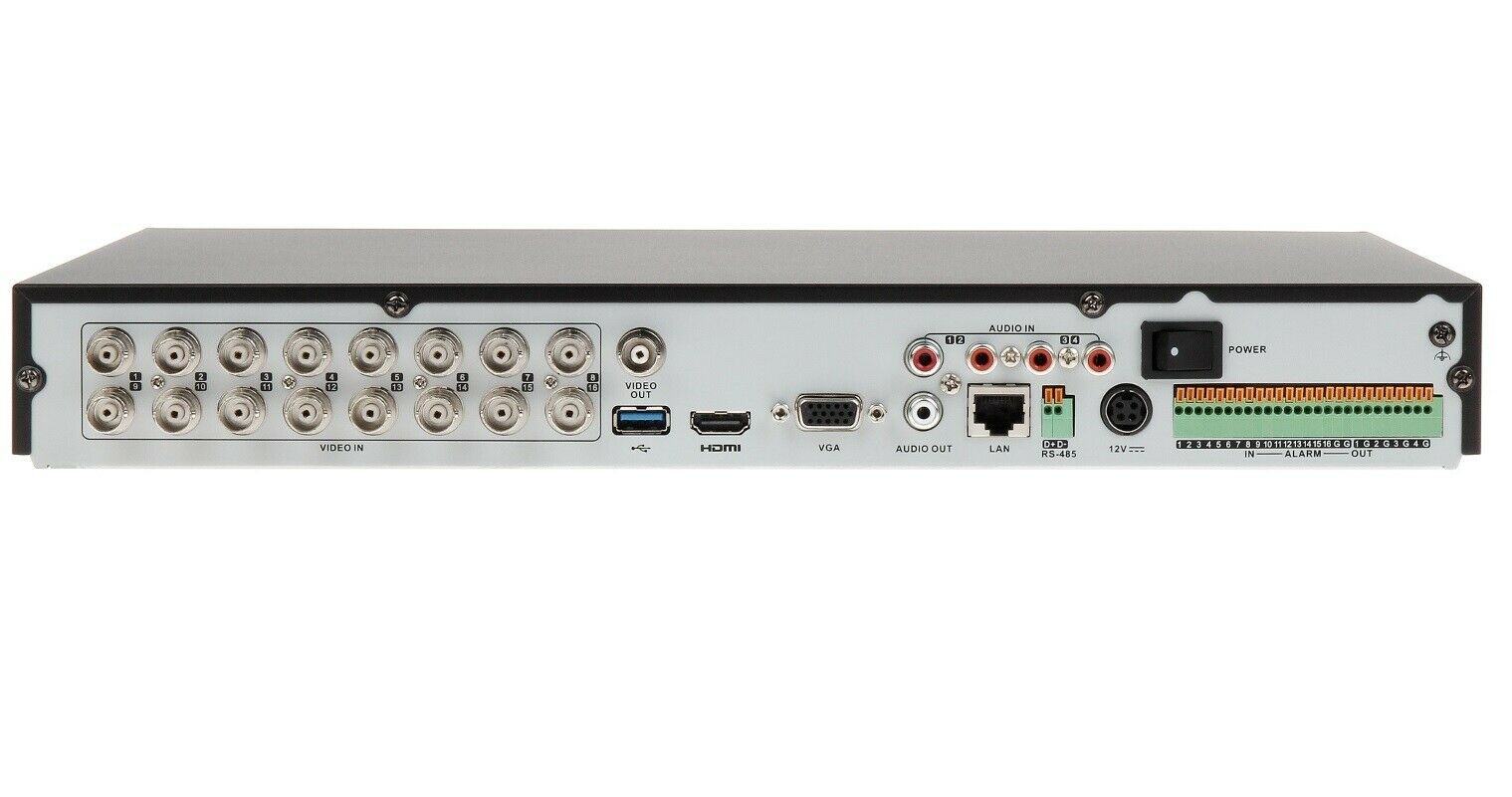

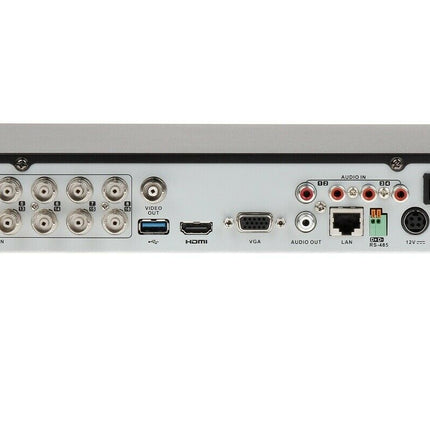

        • Analog Video Input

          16ch

          BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection

        • HDMI Output

          1-ch, 4K (3840 ? 2160)/30Hz,

          2K (2560 ? 1440)/60Hz,

          1920 ? 1080/60Hz,

          1280 ? 1024/60Hz,

          1280 ? 720/60Hz

          HDMI/VGA simultaneous output

        • VGA Output

          1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz

          HDMI/VGA simultaneous output

        • CVBS InputPAL/NTSC
        • CVBS Output

          1-ch, BNC (1.0 Vp-p, 75 ?),

          resolution: PAL: 704 ? 576, NTSC: 704 ? 480

        • Synchronous Playback16ch
        • HDTVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 3k/5MP(2960 x 1665)@20 fps, 5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
        • AHD Input5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
        • HDCVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 5 MP(2592 ? 1944)@20 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
        • Audio Output1-ch, RCA (Linear, 1 K?)
        • Audio Input

          1-ch (up to 16ch is optional), RCA (2.0 Vpp,1 K?)

          16ch via coaxial cable

        • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the audio input)
        • Network
        • Total Bandwidth128Mbps
        • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
        • Remote Connection128
        • Network Interface

          1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

        • Wi-FiWi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
        • Auxiliary Interface
        • SATA2 SATA interfaces
        • CapacityUp to 10 TB capacity for each disk
        • Serial InterfaceRS-485 (half-duplex)
        • USB Interface

          Front panel: 1 ? USB 2.0

          Rear panel: 1 ? USB 3.0

        • Alarm In/OutN/A (optional to support)
        • General
        • Power Supply12 VDC, 5 A
        • Consumption? 19 W
        • Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
        • Working Humidity10% to 90%
        • Dimension (W ? D ? H)380 ? 320 ? 48 mm (15.0 ? 12.6 ? 1.9 inch)
        • Weight? 2.1 kg (4.6 lb)
