Data sheet PDF Product Description

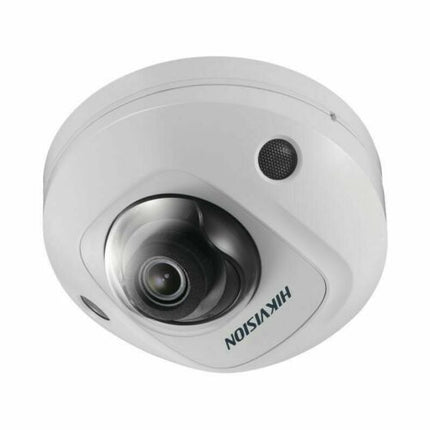

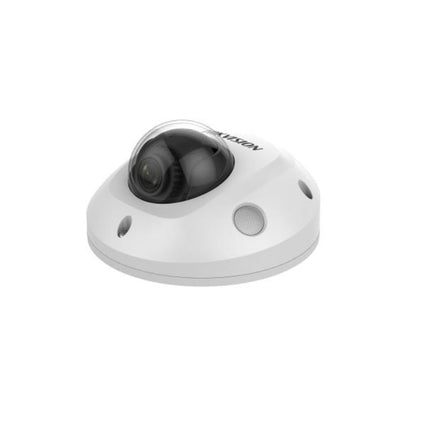

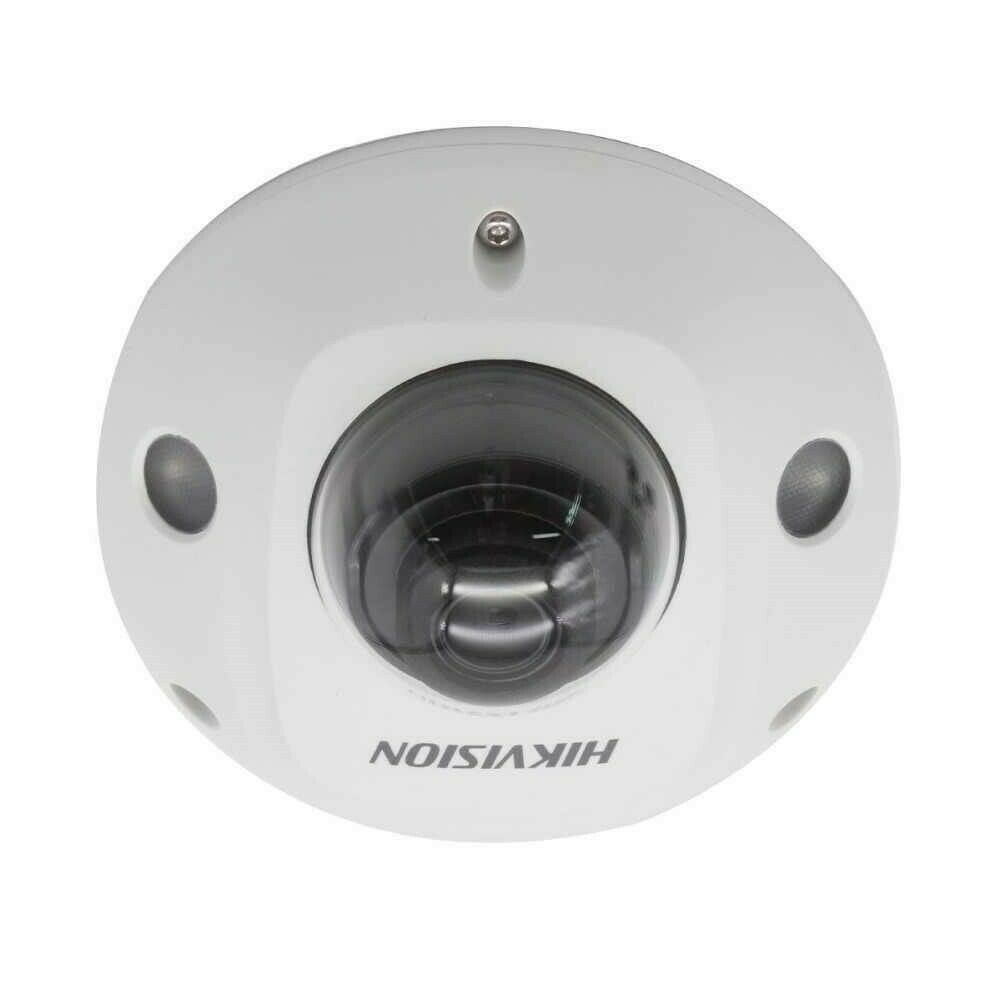

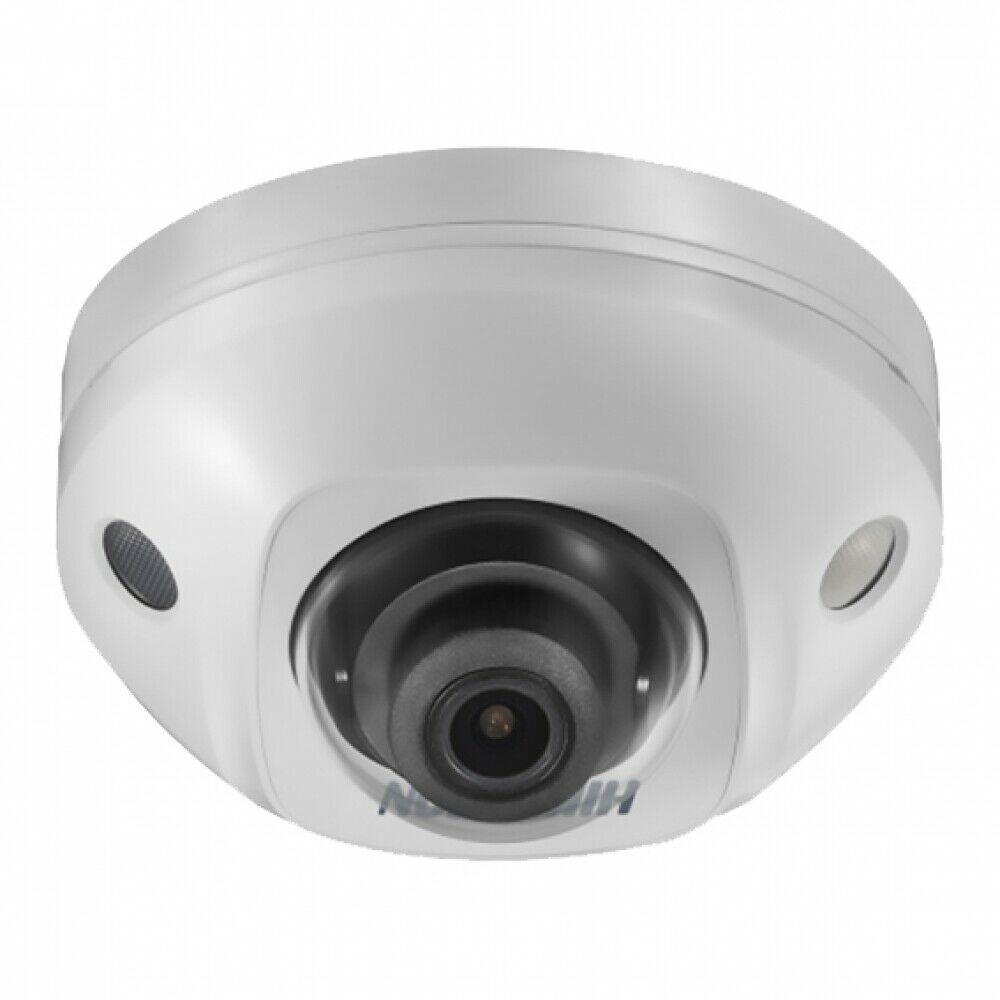

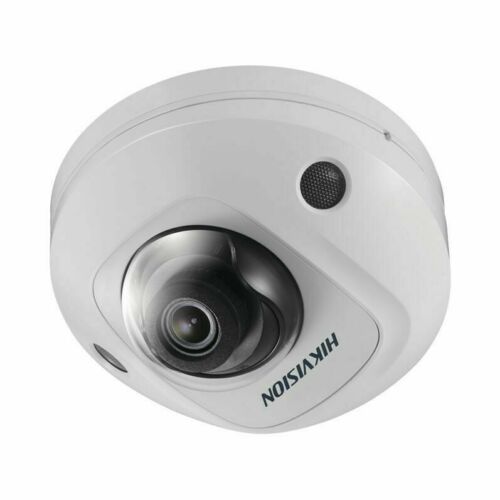

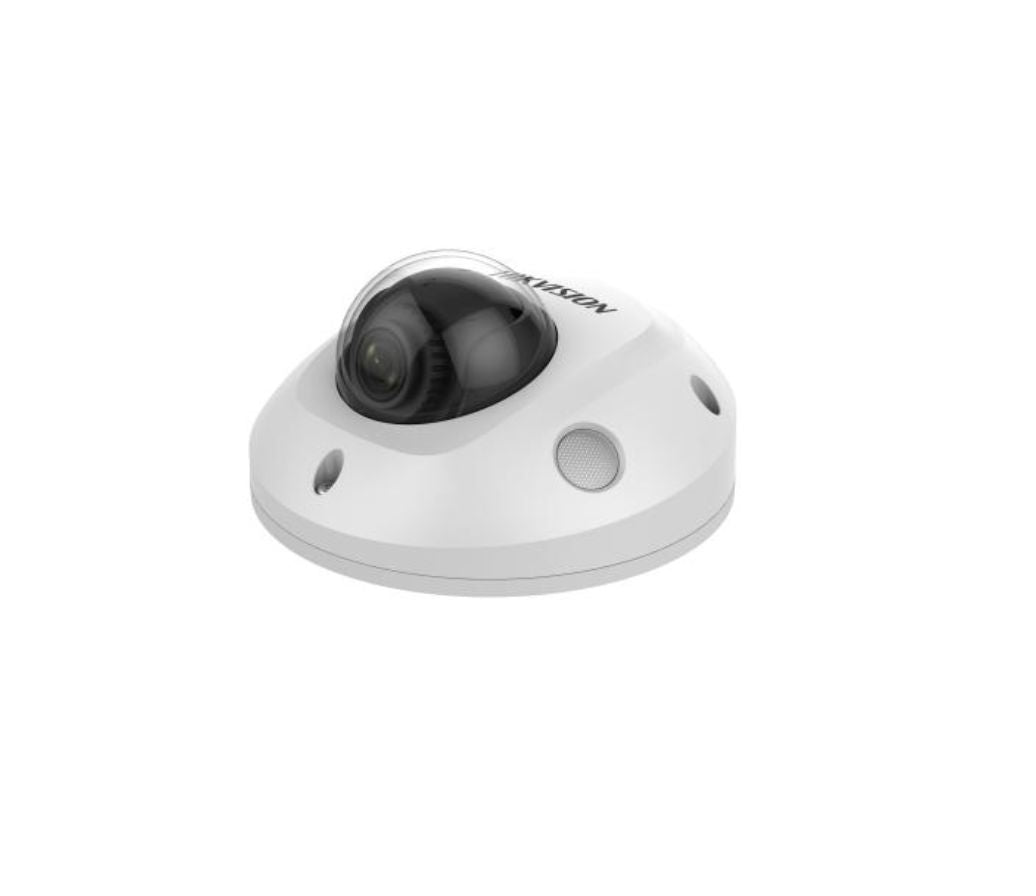

6 MP Outdoor WDR Fixed Mini Dome Network Camera
High quality imaging with 6 MP resolution Efficient H.265+ compression technology Clear imaging against strong back light due to 120 dB true WDR technology Water and dust resistant (IP66) and vandal proof (IK08) -W: Wi-Fi connection -S: audio and alarm interface available Built-in microphone for real-time audio security Mini size suitable for limited space Specification
Camera Image Sensor1/2.9" Progressive Scan CMOS Min. IlluminationColor: 0.028 lux @(F2.0, AGC ON), 0 lux with IR on Shutter Speed1/3 s to 1/100,000 s Slow ShutterYes Wide Dynamic Range120 dB Day & NightIR Cut Filter Angle AdjustmentPan: -30? to 30?, tilt: 0? to 75?, rotate: 0? to 360? Lens Lens Type2.8, 4, 6 mm FOV2.8 mm, horizontal FOV: 97?, vertical FOV: 67?, diagonal fov: 121?
4 mm, horizontal FOV: 78?, vertical FOV: 53?, diagonal FOV: 98?
6 mm, horizontal FOV: 60?, vertical FOV: 41?, diagonal FOV: 76?
ApertureF2.0 Lens MountM12 Illuminator IR RangeUp to 10 m Wavelength850 nm Video Max. Resolution3072 ? 2048 Main Stream50Hz: 20 fps (3072 ? 2048, 3072 ? 1728, 2944 ? 1656)
25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)
60Hz: 20 fps (3072 ? 2048, 3072 ? 1728, 2944 ? 1656)
30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)
Sub-Stream50Hz: 25 fps (640 ? 480, 640 ? 360, 320 ? 240)
60Hz: 30 fps (640 ? 480, 640 ? 360, 320 ? 240)
Third Stream50Hz: 25 fps (1280 ? 720, 640 ? 360, 352 ? 288)
60Hz: 30 fps (1280 ? 720, 640 ? 360, 352 ? 240)
Video CompressionMain stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps H.264 TypeMain Profile/High Profile H.265 TypeMain Profile H.264+Main stream supports H.265+Main stream supports Scalable Video Coding (SVC)Support H.264 and H.265 encoding Audio Environment Noise FilteringYes Audio Sampling Rate16 kHz, 32kHz, 44.1kHz, 48kHz Audio CompressionG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) Network Simultaneous Live ViewUp to 6 channels APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS User/HostUp to 32 users. 3 levels: administrator, operator and user SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 Network StorageSupport Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR ClientWired network: Hik-Connect, iVMS-4200, Hik-Central
Wi-Fi: iVMS-4200, Hik-Central
*Wi-Fi connection with Hik-Connect directly is not possible.
Web BrowserPlug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local Service: Chrome 41.0+, Firefox 30.0+
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login Wi-Fi Encryption Mode-W: WPA, WPA2 Wi-Fi Protocol-W: IEEE 802.11b/g/n Frequency Range-W: 2.412 GHz to 2.4835 GHz Channel Bandwidth-W: 20 MHz Transfer Rate-W:
11b: 11 Mbps
11g: 54 Mbps
11n: up to 150 Mbps
Wireless Range-W: Up to 50 m (The performance varies based on actual environment) Image Day/Night SwitchAuto/Schedule/Day/Night/Triggered by Alarm In (-S) Image EnhancementBLC/3D DNR/HLC Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser Interface Audio-S:
2 inputs: line in or mic in (built-in microphone)
1 output: line out, mono sound, terminal block
Alarm-S:
1 input: alarm in
1 output: alarm out (max. 12 VDC, 30 mA), terminal block
On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB Hardware ResetYes Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port Event Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart EventLine crossing detection, intrusion detection, face detection Face DetectionYes General Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email Firmware VersionV5.6.5 Web Client Language32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening Startup And Operating Conditions-30 ?C to +60 ?C (-22 ?F to +140 ?F), humidity 95% or less (non-condensing) Power Supply12 VDC ? 25%
PoE (802.3af, class 3)
Power Consumption And Current12 VDC, 0.7 A, max. 8.5 W, ? 5.5mm coaxial plug power
PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W

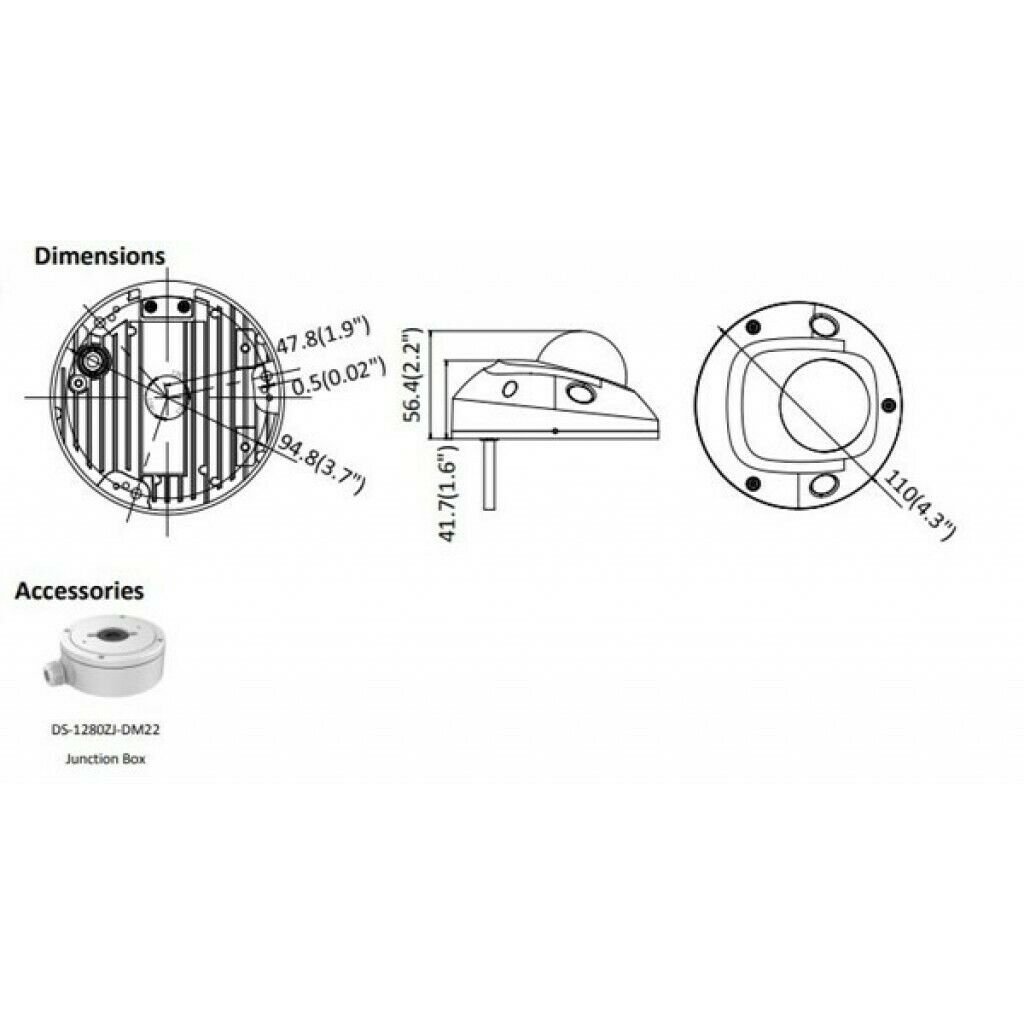

Camera Dimension?120 mm ? 67.4 mm (?4.7" ? 2.7") Camera WeightCamera: approx. 400 g (0.9 lb.) Approval ProtectionIngress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)
