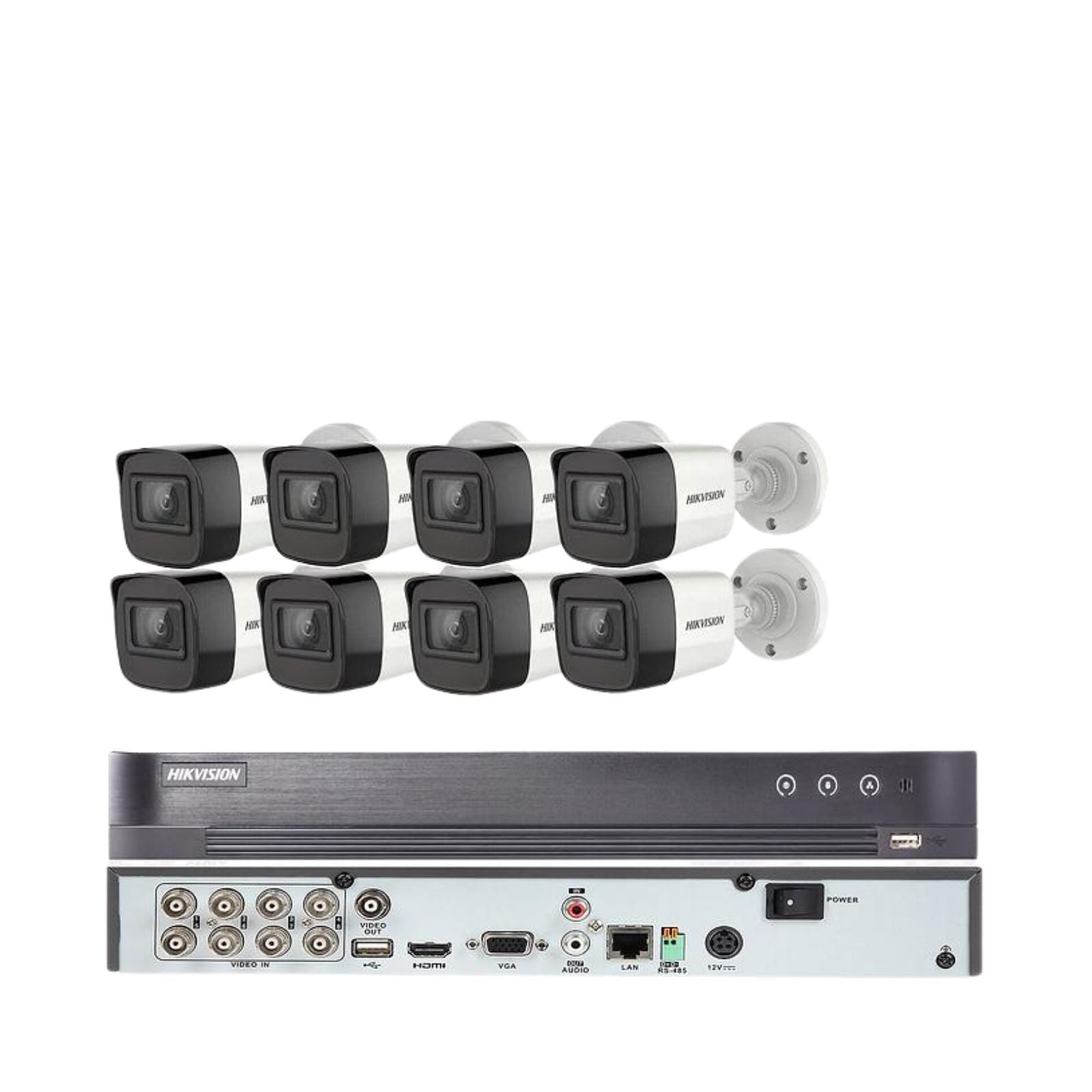

Hikvision 8Ch Security System CCTV KIT HDD 5MP Camera 4K DVR

Hikvision 8Ch Security System CCTV KIT HDD 5MP Camera 4K DVR

Product form

1 in stock 3-4 Business Days  Mid weeks
Monday to Friday we offer same day handling if the product is on stock and exceptions on holidays.

Weekends
We offer no deliveries in the weekends.

International
Depending on where you’re located, we offer next day delivery. Check status on this link

$342.07 $310.97

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on all orders
      • No hassle returns, 30 days return

      Data sheet PDF

      Product Description

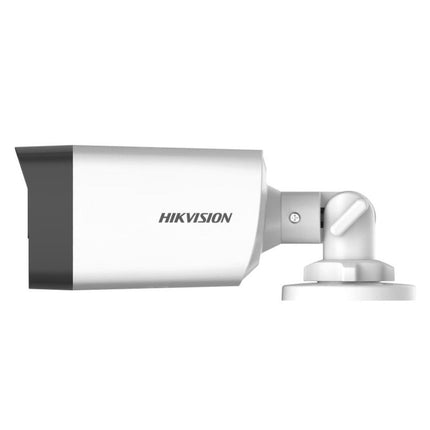

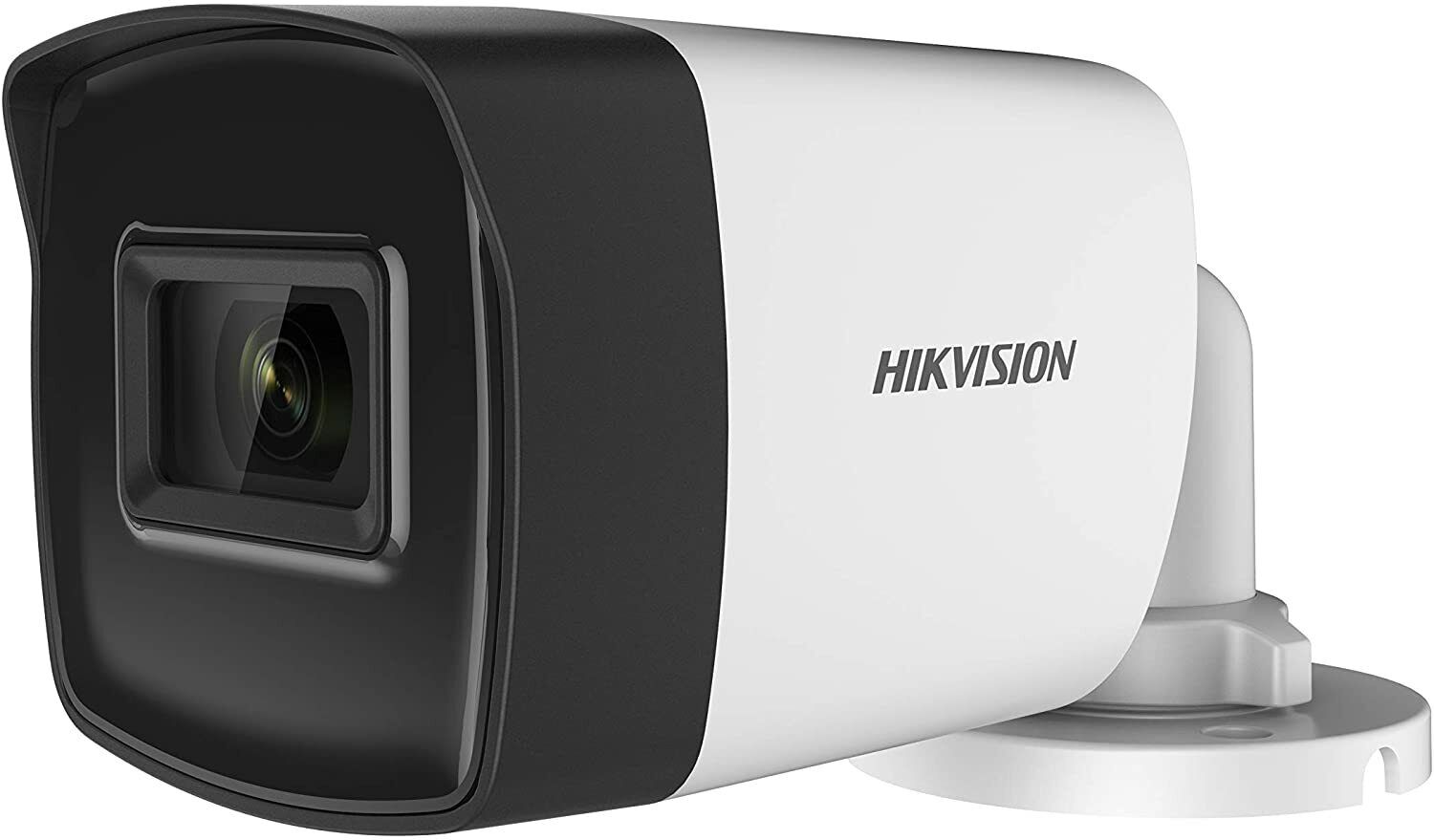

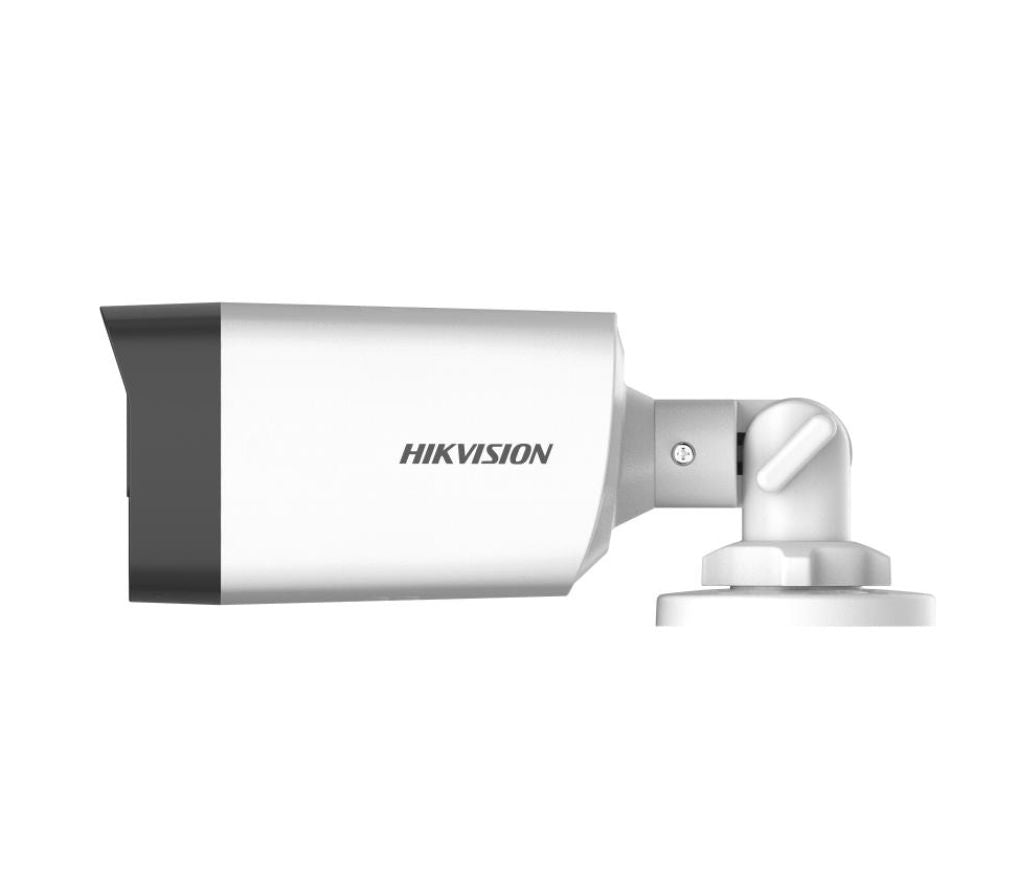

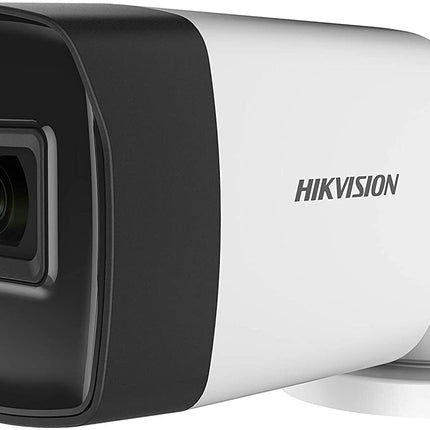

      5 MP Fixed Bullet Camera

      • High quality imaging with 5 MP, 2560 ? 1944 resolution
      • 2.8 mm, , 6 mm, 8mm, 12mm fixed focal lens
      • Up to 40 m IR distance for bright night imaging
      • Water and dust resistant (IP67)

      Specification

        • Camera
        • Image Sensor5 MP CMOS
        • Max. Resolution2560 (H) ? 1944 (V)
        • Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
        • Shutter Time

          PAL: 1/25 s to 1/50, 000 s

          NTSC: 1/30 s to 1/50, 000 s

        • Day & NightICR
        • Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 180?, Rotation 0 to 360?
        • Signal SystemPAL/NTSC
        • Lens
        • Lens Type2.8 mm, , 6 mm, 8 mm, 12 mm fixed lens
        • Focal Length & FOV

          2.8 mm, horizontal FOV: 85?, vertical FOV: 63?, diagonal FOV:110?

          , horizontal FOV: 80?, vertical FOV: 63?, diagonal FOV:105?

          6 mm, horizontal FOV: 57?, vertical FOV: 43?, diagonal FOV:72?

          8 mm, horizontal FOV: 41?, vertical FOV: 31?, diagonal FOV:52?

          12 mm, horizontal FOV: 26?, vertical FOV: 19?, diagonal FOV:32?

        • Lens MountM12
        • Image
        • Image Parameters SwitchSTD/HIGH-SAT
        • Image SettingsBrightness, Sharpness, Mirror, Smart IR
        • Frame Rate

          TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

          AHD: 5M@20fps, 4M@30fps, 4M@25fps

          CVI: 4M@30fps, 4M@25fps

          CVBS: PAL/NTSC

        • Day/Night ModeAuto/Color/BW (Black and White)
        • Wide Dynamic Range (WDR)Digital WDR
        • Image EnhancementDWDR/BLC/HLC/Global
        • Noise ReductionYes
        • White BalanceAuto/Manual
        • AGCSupport
        • Interface
        • Video OutputTVI/AHD/CVI/CVBS
        • General
        • Material

          Front Cover: Metal

          Main Body: Plastic

        • Dimension78.9 mm ? 75.4 mm ? 216.6 mm (3.10" ? 2.97" ? 8.53")
        • WeightApprox. 330 g (0.73 lb.)
        • Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
        • CommunicationHIKVISION-C
        • LanguageEnglish
        • Power Supply12 VDC ? 25%
        • Consumption

          Max. 4.3 W

        • IR RangeUp to 40 m
        • Approval
        • ProtectionIP67

      Data sheet PDF

      Product Description

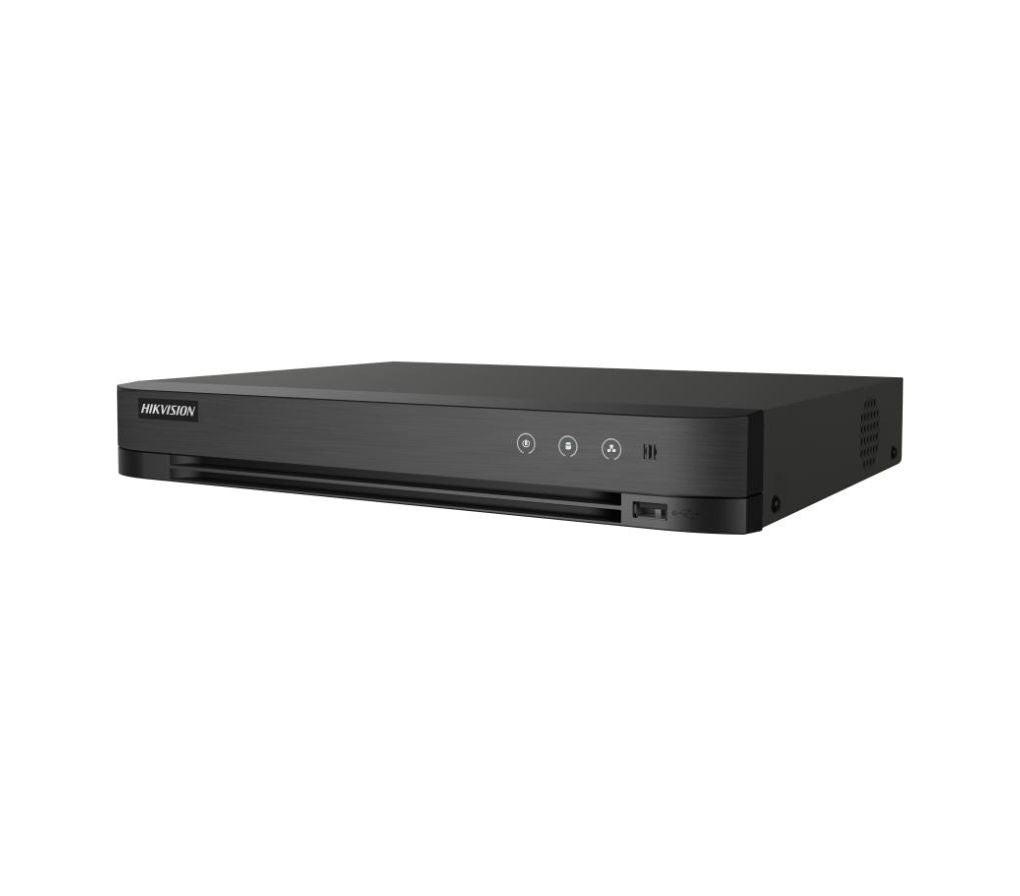

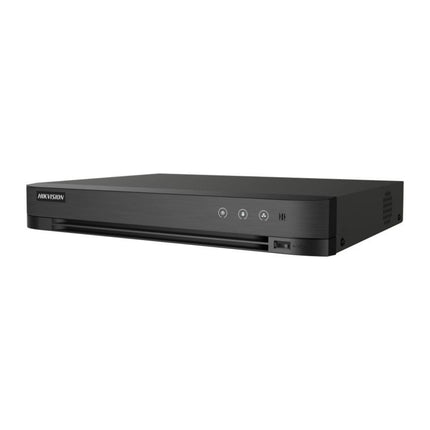

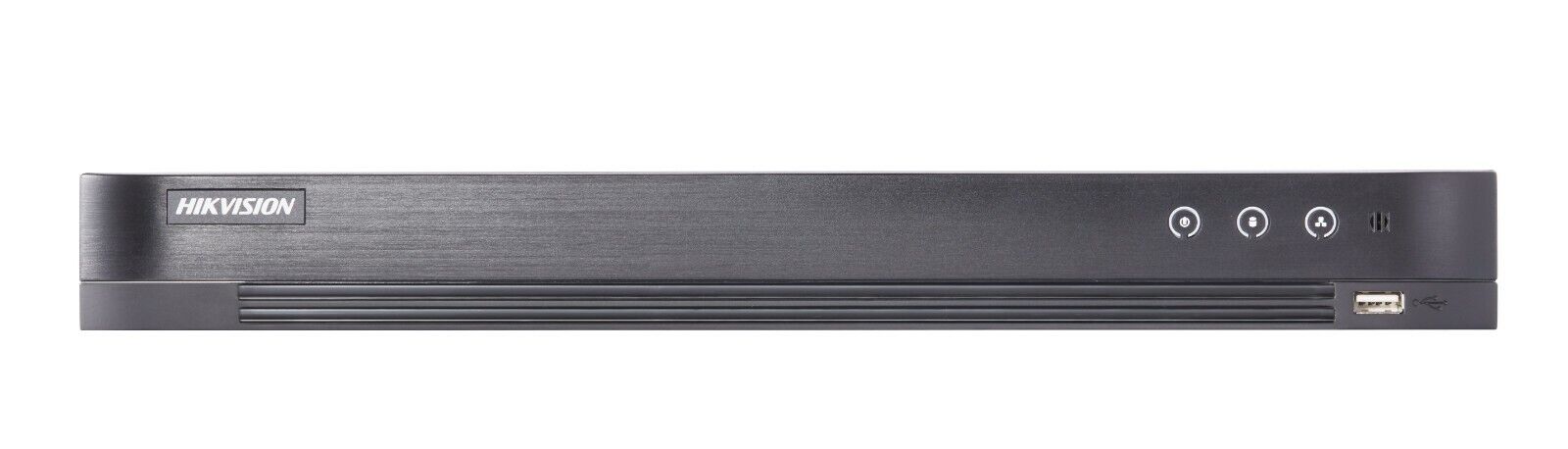

      8ch 5 MP 1U H.265 AcuSense DVR

      • 8chs and 1 HDD 1U AcuSense DVR
      • False alarm reduction by human and vehicle target classification based on deep learning
      • Efficient H.265 pro+ compression technology
      • Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
      • 5 signals input adaptively ("Hybrid")
      • Up to 16 network cameras can be connected.




      Specification

      • Motion Detection 2.0
      • Human/Vehicle Analysis

        Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

        Quick search by object or event type is supported;

      • Perimeter Protection
      • Human/Vehicle AnalysisUp to 4ch
      • Facial Detection
      • Facial Detection And CaptureFace picture detection, face picture search
      • Recording
      • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
      • Encoding Resolution8 MP/5 MP/3k/5MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
      • Frame Rate

        Main stream:

        8 MP@8 fps/3k/5MP@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

        1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

        Sub-stream:

        WD1/4CIF/CIF@25 fps (P)/30 fps (N)

      • Video Bitrate32 Kbps to 10 Mbps
      • Dual-StreamSupport
      • Stream TypeVideo, Video & Audio
      • Audio CompressionG.711u
      • Audio Bitrate64 Kbps
      • Video And Audio
      • IP Video Input

        4ch (up to 12-ch)

        Up to 8 MP resolution

        Enhanced IP mode on:

        8ch (up to 16ch), each up to 4 Mbps

        ;Support H.265+/H.265/H.264+/H.264 IP cameras

      • Analog Video Input8ch;BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
      • HDMI Output

        1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz,

        1920 ? 1080/60Hz,

        1280 ? 1024/60Hz,

        1280 ? 720/60Hz

        HDMI/VGA simultaneous output

      • CVBS InputPAL/NTSC
      • CVBS Output

        1-ch, BNC (1.0 Vp-p, 75 ?),

        resolution: PAL: 704 ? 576, NTSC: 704 ? 480

      • Synchronous Playback8ch
      • HDTVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 3k/5MP(2960 x 1665)@20 fps, 5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
      • AHD Input5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
      • VGA Output

        1-ch, 1920 ? 1080/60Hz,

        1280 ? 1024/60Hz,

        1280 ? 720/60Hz

      • HDCVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 5 MP(2592 ? 1944)@20 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
      • Audio Output1-ch, RCA (Linear, 1 K?)
      • Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)
      • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
      • Network
      • Total Bandwidth128Mbps
      • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
      • Remote Connection64
      • Network Interface

        1,RJ45 10M/100M/1000M self-adaptive

        Ethernet interface

      • Auxiliary Interface
      • SATA1 SATA interface
      • CapacityUp to 10 TB capacity for each disk
      • Serial InterfaceRS-485 (half-duplex)
      • USB Interface

        1 ? USB 2.0?

        1 ? USB 3.0

      • Alarm In/OutN/A
      • General
      • Power Supply12 VDC
      • Consumption? 10 W
      • Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
      • Working Humidity10% to 90%
      • Dimension (W ? D ? H)315 ? 242 ? 45 mm (12.4 ? 9.5 ? 1.8 inch)
      • Weight? 2 kg (4.4 lb)
