Data sheet PDF

Product Description

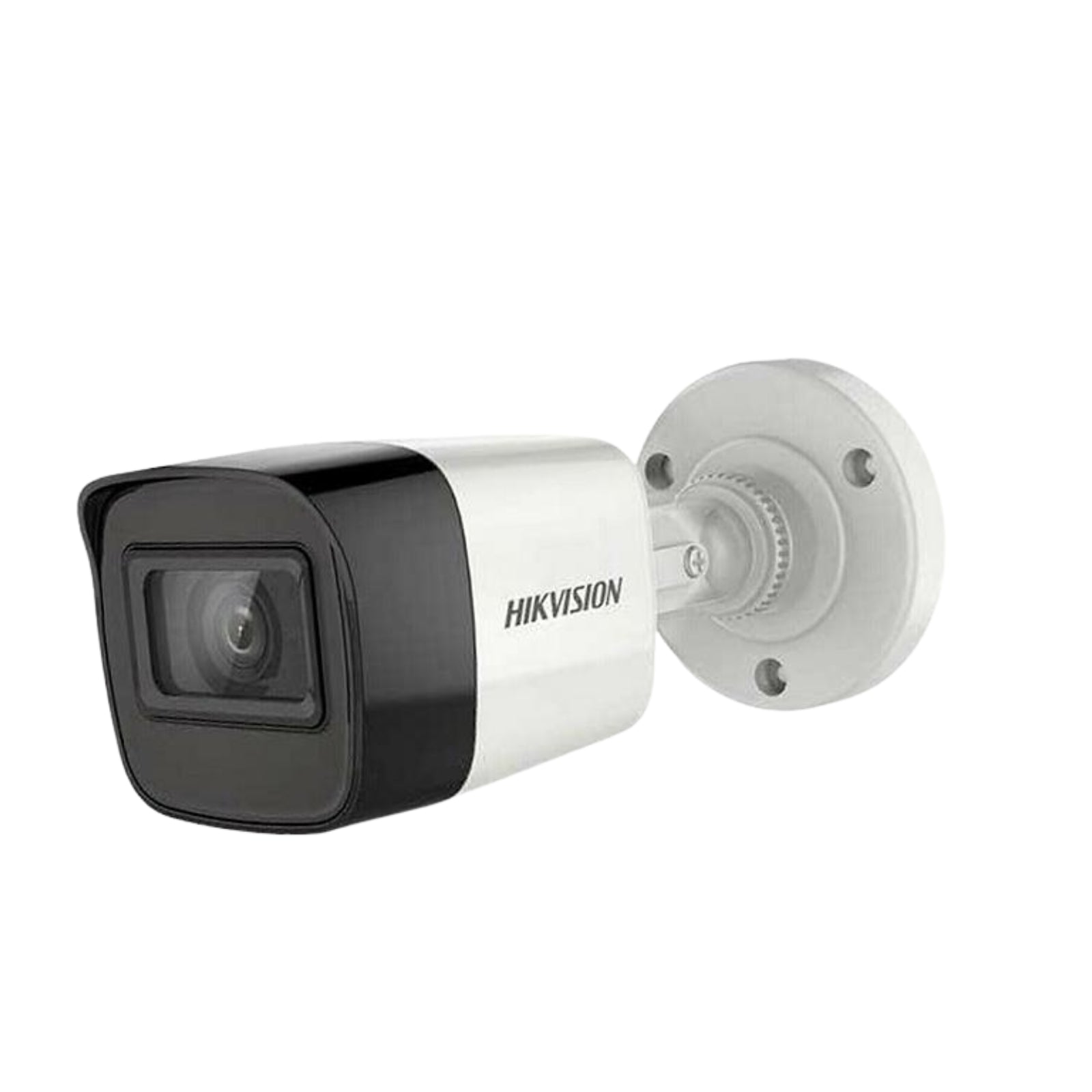

4K Fixed Mini Bullet Camera

• 8 MP bullet camera
• EXIR 2.0: advanced infrared technology with 30 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)



Specification

• Camera
• Min. IlluminationColor: 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
• Image Sensor8.29 megapixel progressive scan CMOS
• Max. Resolution3840 (H) ? 2160 (V)
• Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0? to 360?, Tilt:0? to 180?, Rotate: 0? to 360?
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm, , 6 mm fixed lens
• Focal Length & FOVHorizontal FOV: 102.2? (2.8 mm), 79? (), 50.8? (6 mm)
• Lens MountM16
• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• Image
• Image SettingsBrightness;Sharpness;Smart IR;AGC
• Frame Rate

  TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

  CVI: 8MP@12.5fps, 8MP@15fps

  AHD: 8M@12.5fps, 8M@15fps

  CVBS: 960H P/N

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC;HLC
• Noise Reduction2D DNR
• White BalanceAuto/Manual
• Interface
• Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS
• General
• Power

  12 VDC ?25%

  *You are recommended to use one power adapter to supply the power for one camera.

  Max. 5.3 W

• MaterialMetal

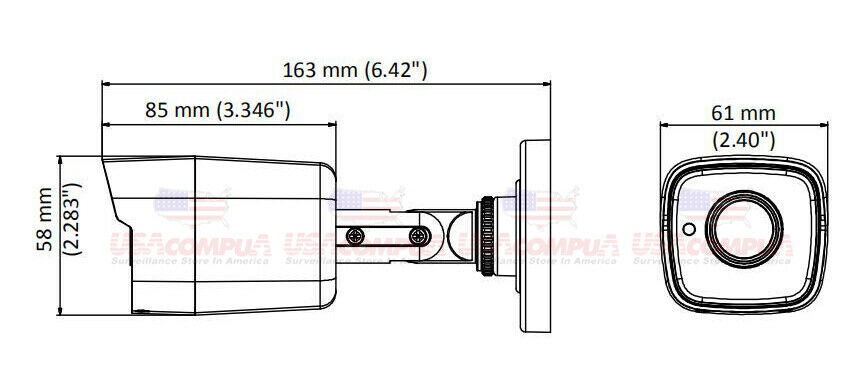

• Dimension58 mm ? 61 mm ? 159.8 mm (2.28"" ? 2.40"" ? 6.42"")
• WeightApprox. 345 g (0.76 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Approval
• ProtectionIP67
