Data sheet PDF Product Description

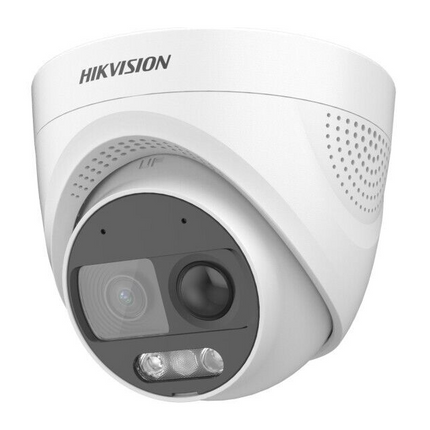

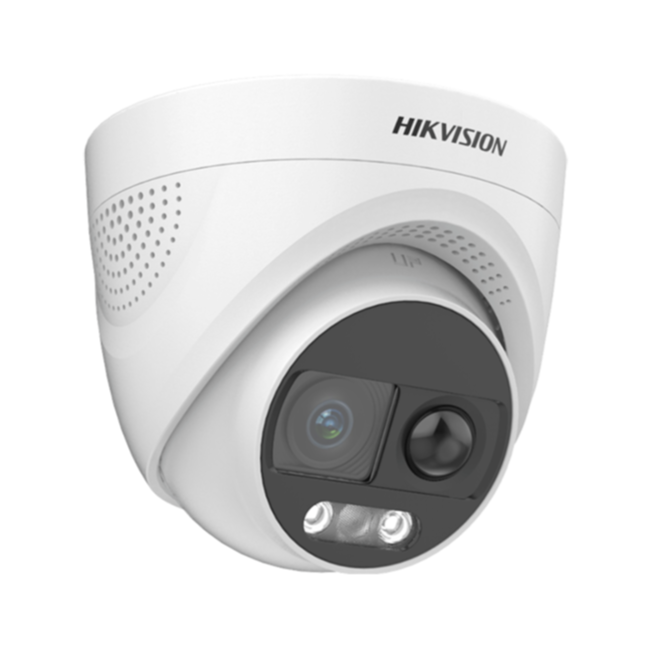

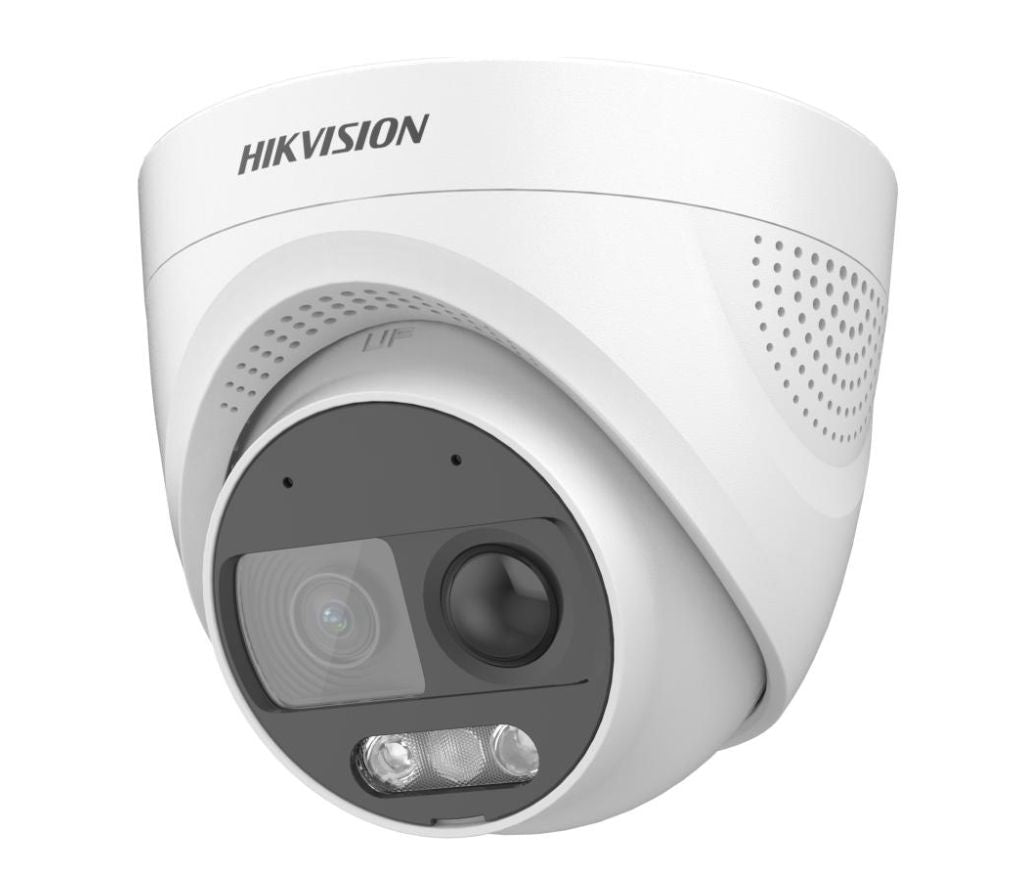

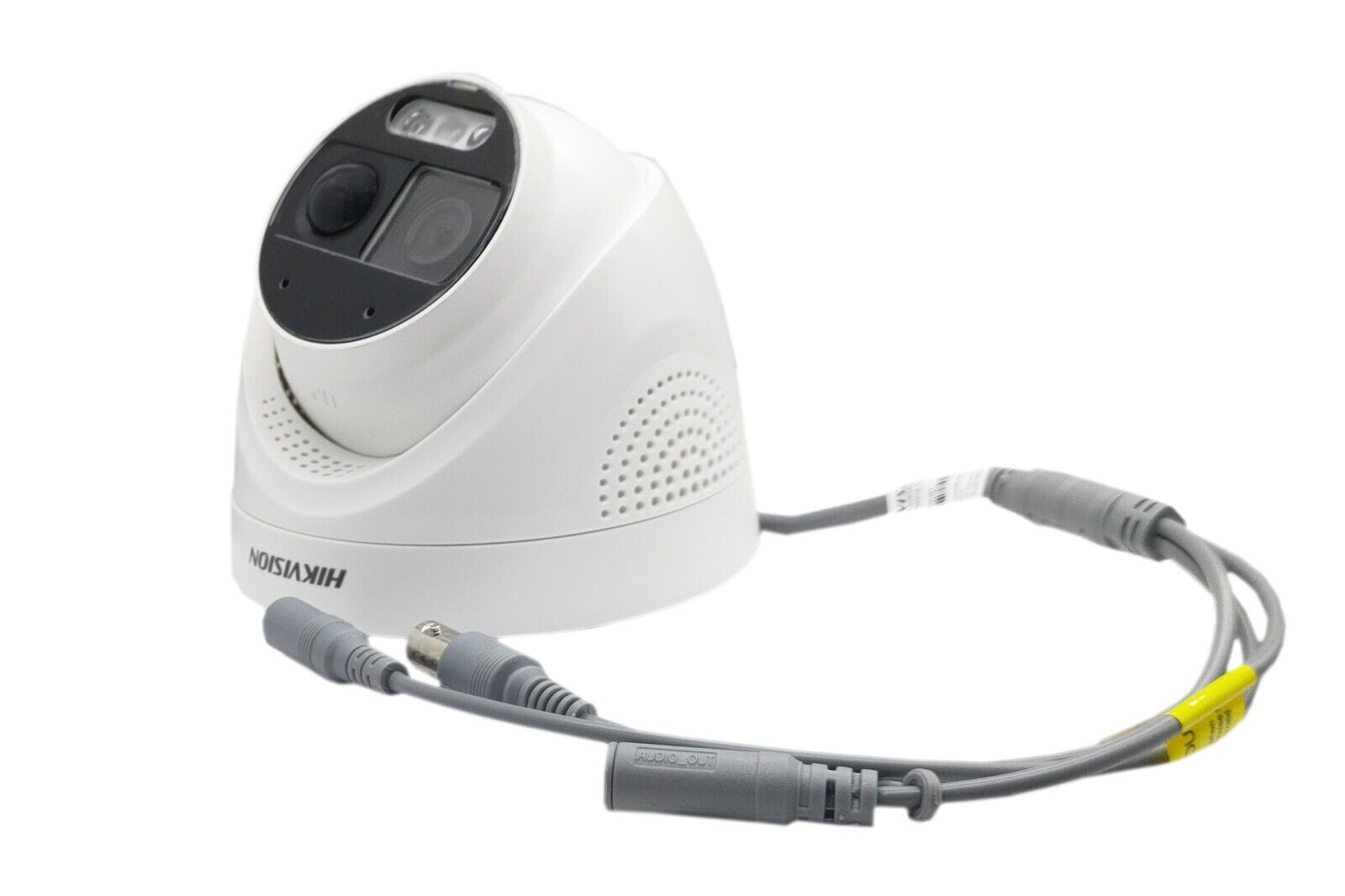

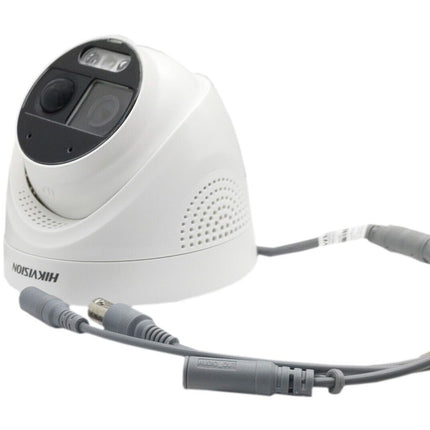

2 MP ColorVu PIR Siren Audio Fixed Turret Camera
High quality imaging with 2 MP, 1920 ? 1080 resolution 24/7 color imaging with F1.0 aperture Clear imaging against strong back light due to 130 dB true WDR technology 3D DNR technology delivers clean and sharp images 2.8 mm, fixed focal lens Up to 20 m white light distance for bright night imaging Detects human body through heat-sensitive passive infrared (PIR) Active strobe light and audio alarm to warn intruders off High quality audio with audio over coaxial cable, built-in mic, and built-in speaker Water and dust resistant (IP67) Specification
Camera Image Sensor1/2.8" Progressive Scan CMOS Max. Resolution3840 ? 2160 Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR Shutter Time1/3 s to 1/100,000 s Day & NightIR cut filter Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360? Lens Lens TypeFixed focal lens, 2.8 and 4 mm optional Focal Length & FOV2.8 mm, horizontal FOV 108?, vertical FOV 60?, diagonal FOV 127?
4 mm, horizontal FOV 86?, vertical FOV 46?, diagonal FOV 102?
Lens MountM12 Iris TypeFixed ApertureF2.0 DORI DORI2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m
4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m
Illuminator Supplement Light TypeIR Supplement Light RangeUp to 30 m Smart Supplement LightYes IR Wavelength850 nm Video Main Stream50 Hz:
12.5 fps (3840 ? 2160),
20 fps (2592 ? 1944),
25 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)
60 Hz:
15 fps (3840 ? 2160),
20 fps (2592 ? 1944),
30 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)
Sub-Stream50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
Video CompressionMain stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps H.264 TypeBaseline Profile/Main Profile/High Profile H.265 TypeMain Profile Bit Rate ControlCBR/VBR Region Of Interest (ROI)1 fixed region for main stream Audio Audio TypeMono sound Environment Noise FilteringYes Audio Sampling Rate8 kHz/16 kHz Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) Network SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address) Simultaneous Live ViewUp to 6 channels APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP User/HostUp to 32 users. 3 user levels: administrator, operator and user ClientiVMS-4200, Hik-Connect Web BrowserPlug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Image Wide Dynamic Range (WDR)120 dB SNR? 52 dB Day/Night SwitchDay, Night, Auto, Schedule Image EnhancementBLC, HLC, 3D DNR Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser. Privacy Mask4 regions of privacy mask Interface Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB Built-In MicrophoneYes Reset KeyYes Event Basic EventMotion detection , video tampering alarm, exception LinkageUpload to memory card, notify surveillance center, trigger recording, trigger capture General Power12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
MaterialMetal & Plastic Dimension?110 mm ? 85.3 mm (?4.3" ? 3.4") Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6") WeightApprox. 340 g (0.7 lb.) With Package WeightApprox. 550 g (1.2 lb.) Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing) Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing) LanguageEnglish, Ukrainian General FunctionAnti-flicker, heartbeat, mirror, password protection, password reset via e-mail Approval EMCFCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
SafetyUL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
EnvironmentCE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)
