Product Description

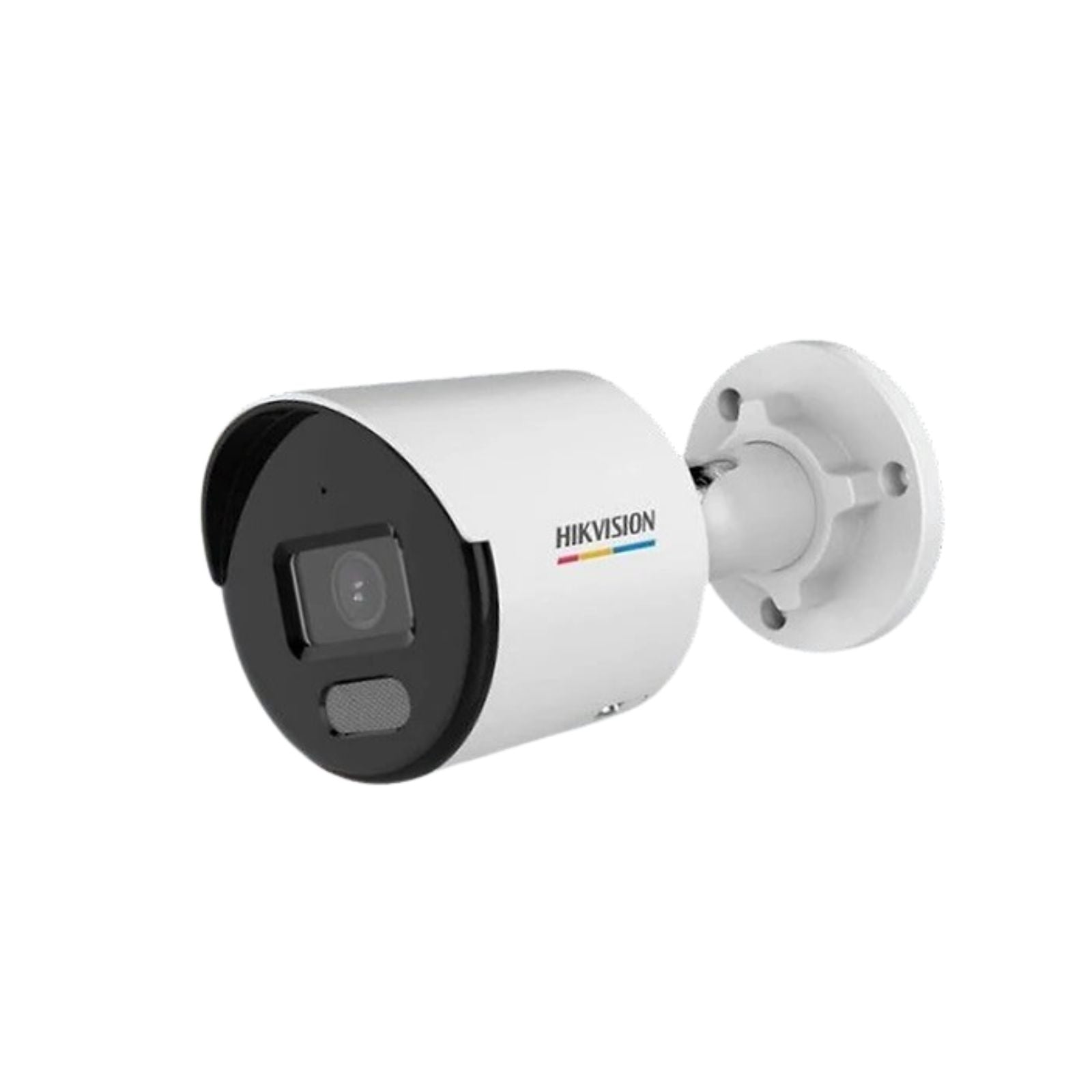

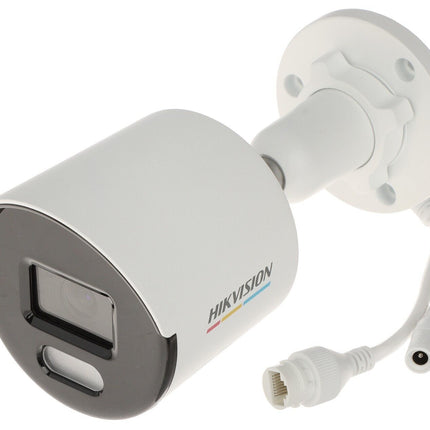

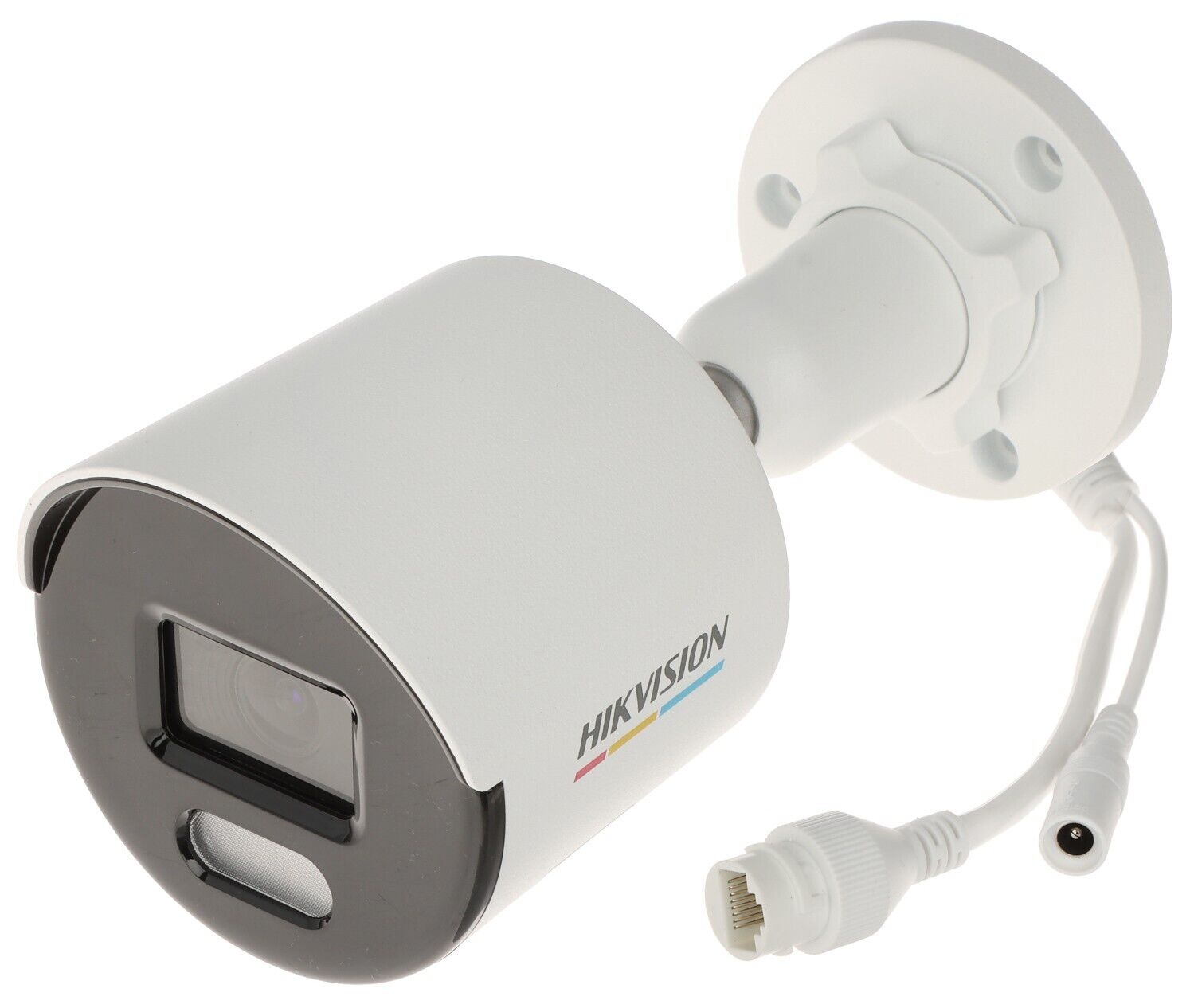

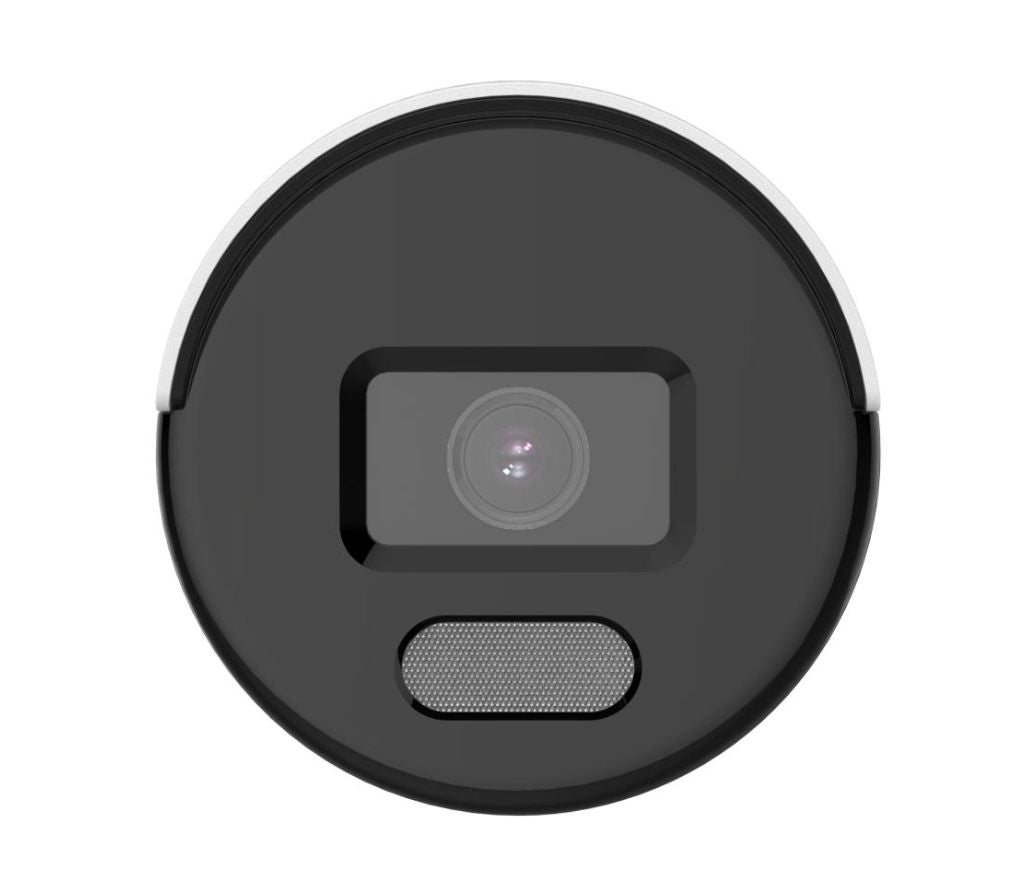

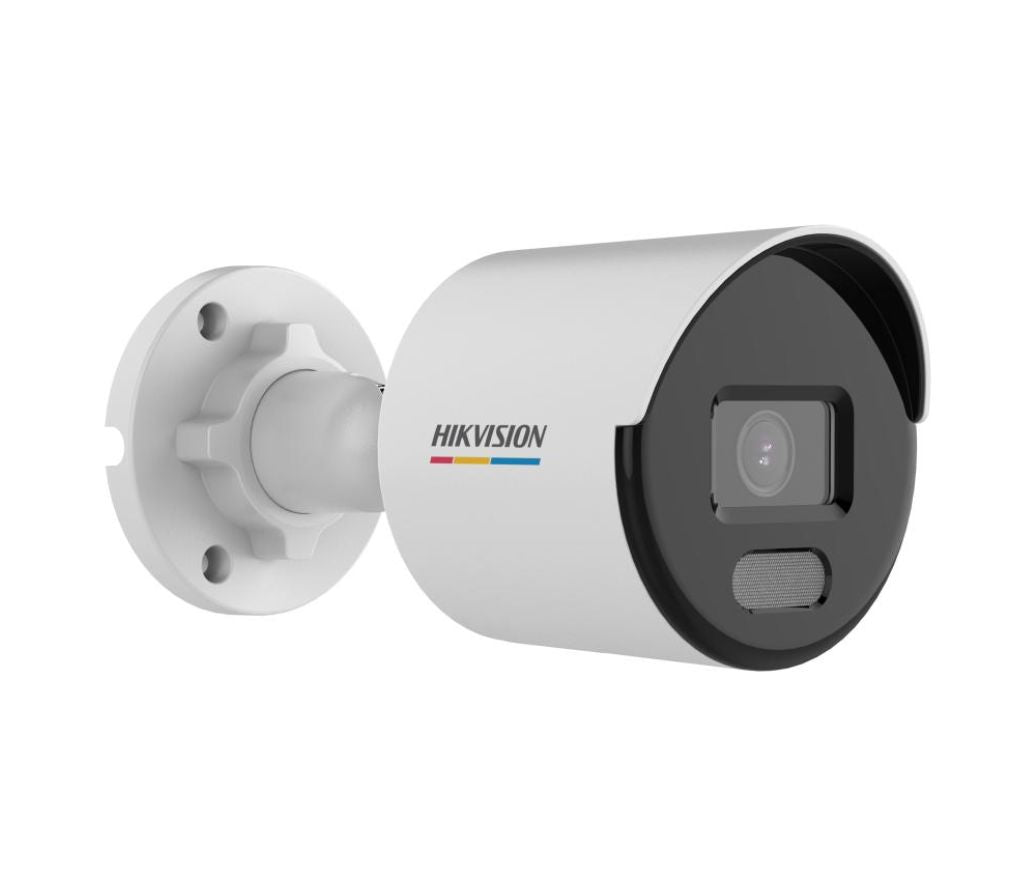

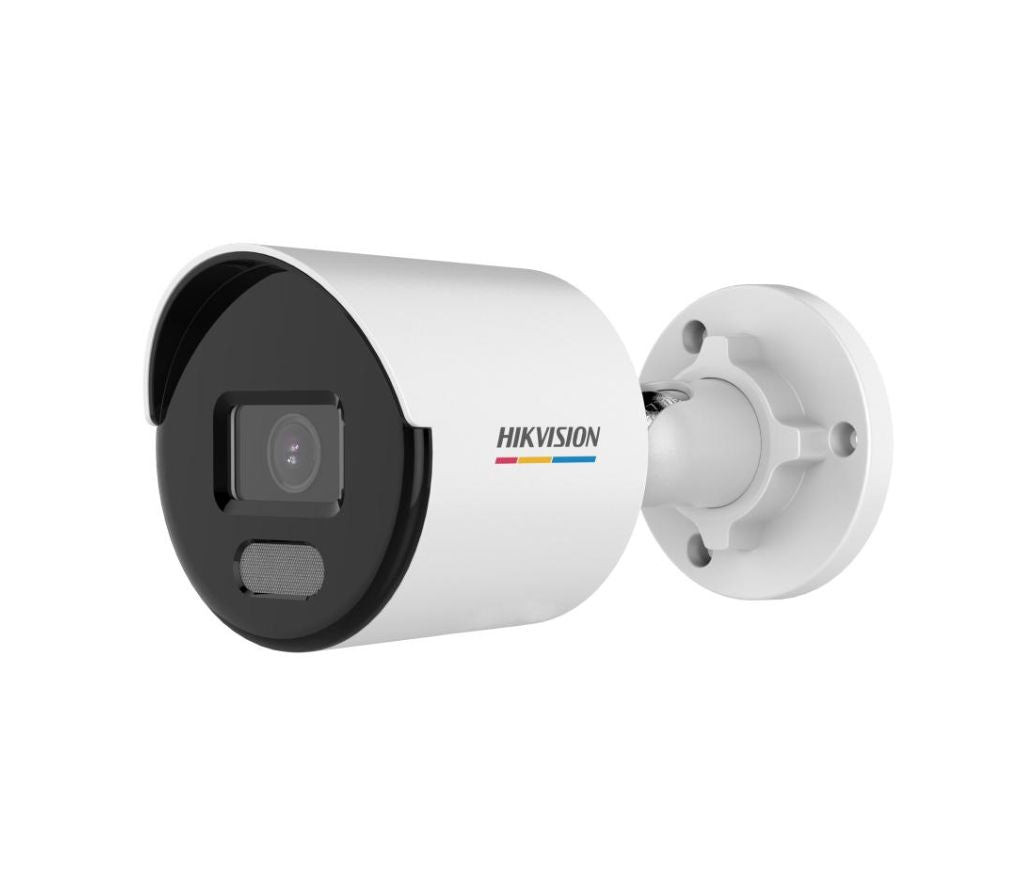

4 MP ColorVu Fixed Bullet Network Camera

• High quality imaging with 4 MP resolution
• Excellent low-light performance
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)
• 24/7 colorful imaging

Specification

• Camera
• Image Sensor1/3" Progressive Scan CMOS
• Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
• Shutter Speed1/3 s to 1/100, 000 s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Angle AdjustmentPan: 0? to 360?, tilt: 0? to 90?, rotate: 0? to 360?
• Lens
• Focal Length & FOV

  2.8 mm, horizontal FOV 96.5?, vertical FOV 50.8?, diagonal FOV 113.9?

  4 mm, horizontal FOV 75.8?, vertical FOV 40.8?, diagonal FOV 89.1?

• Lens MountM12
• FocusFixed
• ApertureF1.0
• DORI
• DORI

  2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m

  4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m

• Illuminator
• Smart Supplement LightYes
• White Light RangeUp to 30 m
• Video
• Max. Resolution2560 ? 1440
• Main Stream

  50 Hz:

  20 fps (2560 ? 1440),

  25 fps (1920 ? 1080, 1280 ? 720)

  60 Hz:

  20 fps (2560 ? 1440),

  30 fps (1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Region Of Interest (ROI)1 fixed region for main stream
• Audio
• Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate-UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate-UF: 8 kHz/16 kHz
• Environment Noise Filtering-UF: Yes
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, 3D DNR
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
• Built-In Microphone-UF: Yes
• Hardware Reset-UF: Yes
• Event
• Basic EventMotion detection, video tampering alarm, exception
• General
• Linkage MethodUpload to FTP/memory card (-UF), notify surveillance center, send email, trigger recording (-UF), trigger capture
• Camera MaterialAluminum alloy body
• Camera Dimension?76.6 mm ? 164.4 mm (?3" ? 6.5")
• Package Dimension234 mm ? 120 mm ? 117 mm (9.2" ? 4.7" ? 4.6")
• Camera WeightApprox. 430 g (0.95 lb.)
• With Package WeightApprox. 648 g (1.42 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
• Web Client LanguageEnglish, Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware VersionV5.5.122
• Power Consumption And Current

  12 VDC, 0.4 A, max. 5 W

  PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W

• Power Supply

  12 VDC ? 25%

  PoE: 802.3af, Class 3

• Power Interface?5.5 mm coaxial power plug
• Approval
• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• ProtectionIP67 (IEC 60529-2013)
