Data sheet PDF Product Description

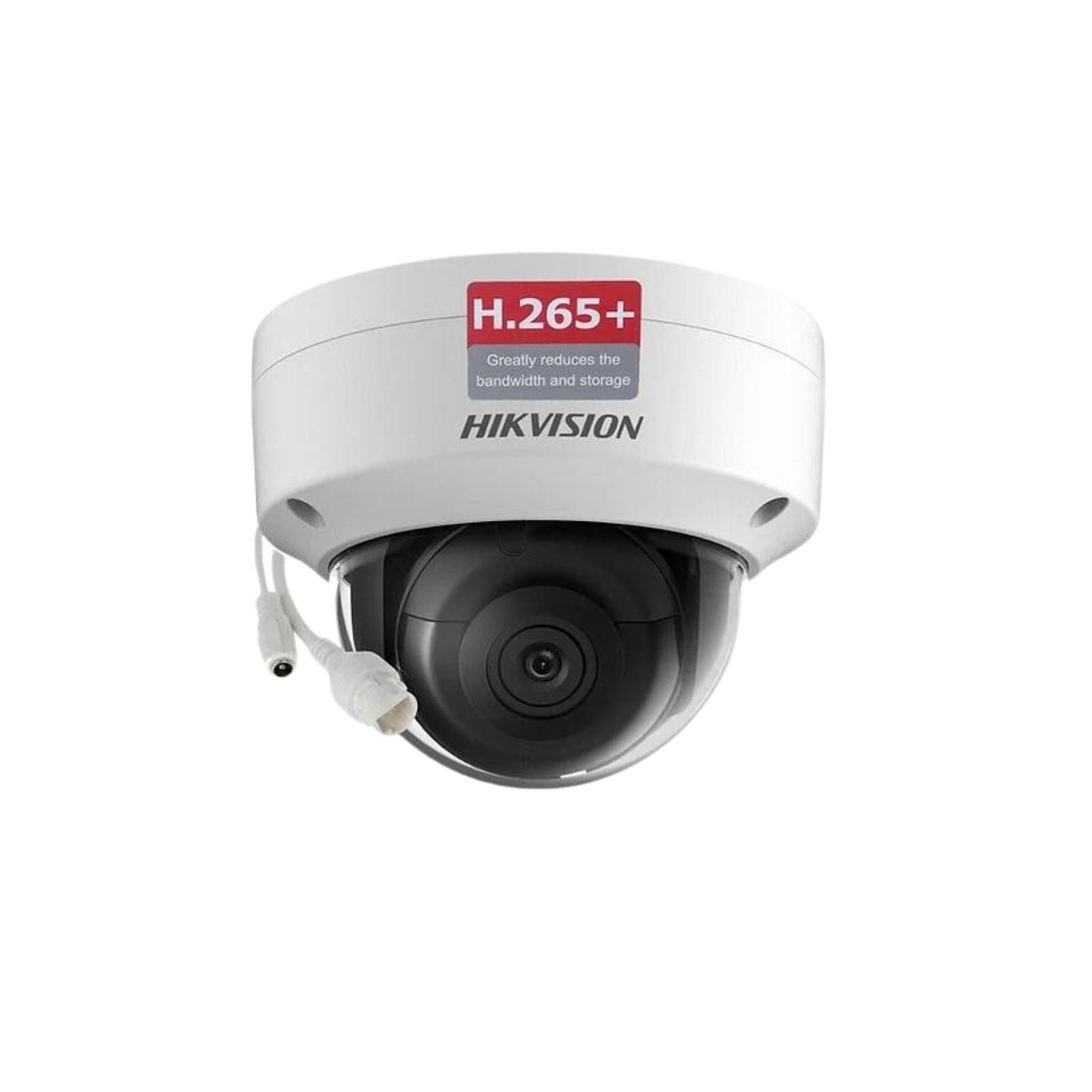

2 MP Outdoor WDR Fixed Dome Network Camera
High quality imaging with 2 MP resolution Efficient H.265+ compression technology Clear imaging against strong back light due to 120 dB true WDR technology -S: audio and alarm interface available Water and dust resistant (IP67) and vandal proof (IK10) Robust structure design with full metal materials Specification
Camera Image Sensor1/2.8" Progressive Scan CMOS Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR Shutter Speed1/3 s to 1/100,000 s Slow ShutterYes Wide Dynamic Range120dB Day & NightIR Cut Filter Angle AdjustmentPan: 0? to 355?, tilt: 0? to 75?, rotate: 0? to 355? Lens FocusFixed Lens Type2.8/4/6/8 mm FOV2.8 mm, horizontal FOV: 114?, vertical FOV: 62?, diagonal FOV: 135?,4 mm, horizontal FOV: 86?, vertical FOV: 46?, diagonal FOV: 102?,6 mm, horizontal FOV: 54?, vertical FOV: 30?, diagonal FOV: 62?,8 mm, horizontal FOV: 43?, vertical FOV: 23?, diagonal FOV: 50? ApertureF2.0 Lens MountM12 Aperture TypeFixed Illuminator IR RangeUp to 30 m Wavelength850nm Video Max. Resolution1920 ? 1080 Main Stream50Hz: 25fps (1920 ? 1080, 1280 ? 960, 1280 ? 720),60Hz: 30fps (1920 ? 1080, 1280 ? 960, 1280 ? 720) Sub Stream50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240),60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240) Third Stream50Hz: 25fps (1920 ? 1080, 1280 ? 720, 640 ? 360, 352 ? 288),60Hz: 30fps (1920 ? 1080, 1280 ? 720, 640 ? 360, 352 ? 240) Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 Video Bit Rate32 Kbps to 16 Mbps H.264 TypeMain Profile/High Profile H.265 TypeMain Profile H.264+Main stream supports H.265+Main stream supports Scalable Video Coding (SVC)H.264 and H.265 encoding Audio Environment Noise FilteringYes Audio Sampling Rate8kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio CompressionG722.1/G.711/G726/MP2L2/PCM/MP3 Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) Network Simultaneous Live ViewUp to 6 channels APIONVIF (PROFILE S, PROFILE G), ISAPI ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket, WebSockets User/HostUp to 32 users,3 levels: Administrator, Operator and User Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR ClientiVMS-4200, Hik-Connect, Hik-Central Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error Image Day/Night SwitchDay/Night/Auto/Schedule/Triggered by alarm in (-S) Target CroppingNo DNR3D DNR Image EnhancementBLC/3D DNR/HLC Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser Interface Audio1 input (line in/mic in), 1 output (line out), terminal block, mono sound Alarm1 input, 1 output (max. 12 VDC, 30 mA), terminal block Video OutputNo On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB Hardware ResetYes Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port Event Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart EventLine crossing detection, intrusion detection, face detection Face DetectionYes General Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email Firmware Version5.6.3 Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening Startup And Operating Conditions-30 ?C to +60 ?C (-22 ?F to +140 ?F), Humidity 95% or less (non-condensing) Power Supply12 VDC ? 25%, ? 5.5 mm coaxial power plug,PoE (802.3af, class 3) Power Consumption And Current12 VDC, 0.5 A, max. 6 W,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W Camera DimensionCamera: ? 111 ? 82.4 mm (? 4.4" ? 3.2"),Package: 134 ? 134 ? 108 mm (5.3" ? 5.3" ? 4.3") Camera WeightCamera: Approx. 610 g (1.3 lb.),With Package: Approx. 820 g (1.8 lb.) Approval ProtectionIK10, IP67
