Product Description

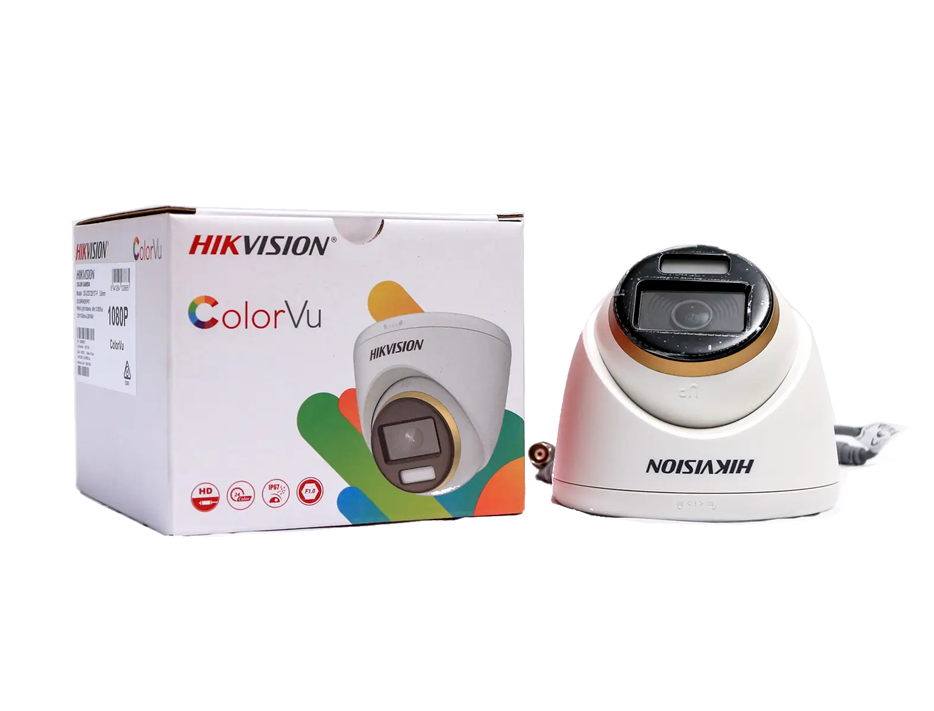

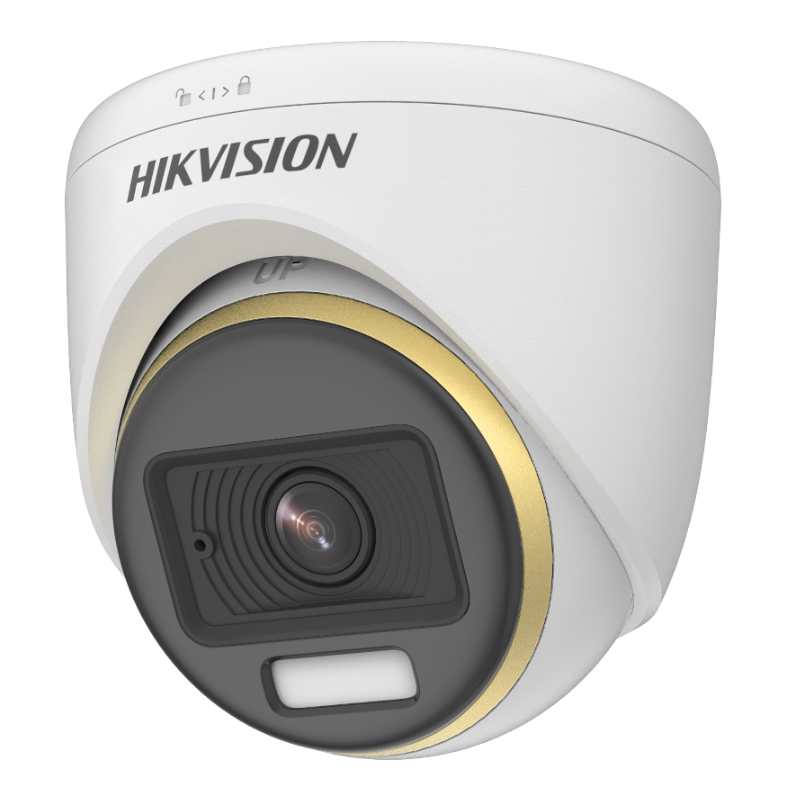

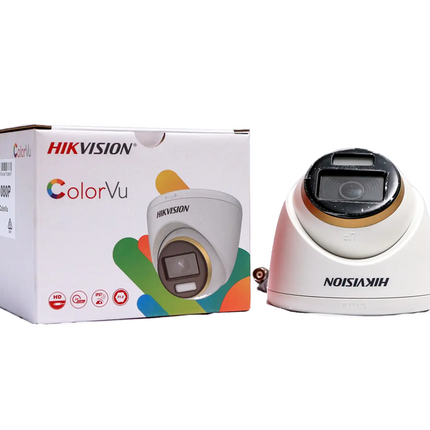

3k/5MP ColorVu Audio Fixed Turret Camera

• High quality imaging with 3k/5MP,
• 24/7 color imaging with F1.0 aperture
• 2.8 mm, fixed focal lens
• Up to 20 m white light distance for bright night imaging
• Water and dust resistant (IP67)
• High quality audio with audio over coaxial cable, built-in mic

Specification

• Camera
• Image Sensor3k/5MP CMOS
• Signal SystemPAL/NTSC
• Resolution2960 (H) ? 1665 (V)
• Frame Rate

  TVI: 3k/5MP@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps

  AHD: 5 MP@20fps, 4 MP@25fps/30fps

  CVI: 4 MP@25fps/30fps

  CVBS: PAL/NTSC

• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens2.8 mm, fixed focal lens
• Field Of View

  2.8 mm, horizontal FOV: 102?, vertical FOV: 56?, diagonal FOV: 122?

  , horizontal FOV: 80?, vertical FOV: 45?, diagonal FOV: 96?

• Lens MountM12
• Light AlarmSolid Light Alarm (White Light)
• Day & Night24/7 Color Imaging
• WDR (Wide Dynamic Range)Digital WDR
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 75?, Rotation: 0? to 360?
• Image
• White LightAuto/Off
• Image ModeSTD/HIGH-SAT/HIGHLIGHT
• AGCYes
• Day/Night ModeColor
• White BalanceAuto/Outdoor/Global/Manual
• AE (Auto Exposure) ModeBLC;HLC;Global;HLS;DWDR
• Noise Reduction2D DNR
• LanguageEnglish
• FunctionDefective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• Audio InBuilt-in mic
• General
• Operating Conditions-40?C to 60?C (-40?F to 140?F), Humidity: 90% or less (non-condensing)
• Power Supply

  12 VDC ? 25%,

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 2.5 W
• Protection LevelIP67
• MaterialMetal
• White Light RangeUp to 20 m
• CommunicationHIKVISION-C
• Dimension? 85.1 mm ? 77.62 mm (? 3.35" ? 3.05")
• WeightApprox. 328 g (0.72 lb.)
