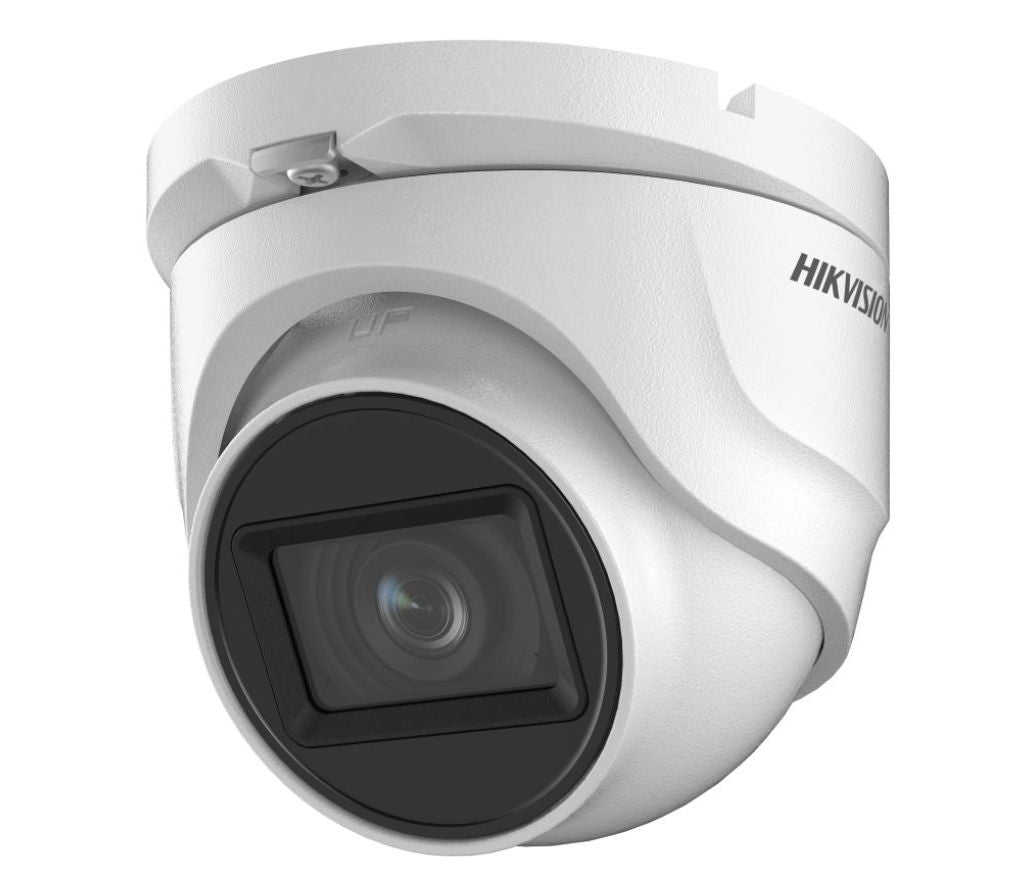

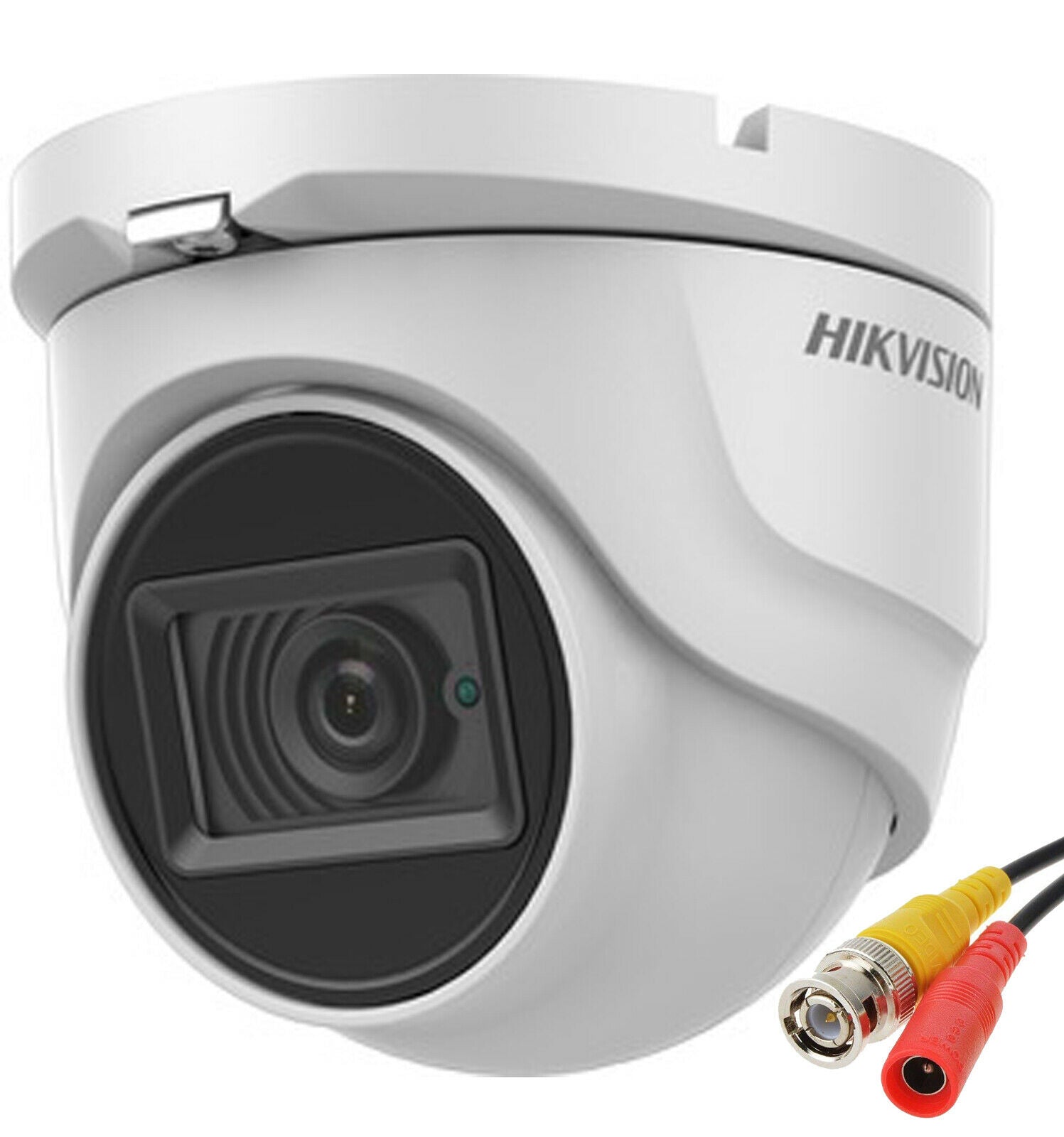

HIKVISION DS-2CE76U1T-ITMF 4K ANALOG TURBO HD EXIR 4-in-1 2.8 mm Lens MINI-DOME
HIKVISION DS-2CE76U1T-ITMF 4K ANALOG TURBO HD EXIR 4-in-1 2.8 mm Lens MINI-DOME
Available in stock (105)
Description
Description
HIKVISION DS-2CE76U1T-ITMF 4K ANALOG TURBO HD EXIR 4-in-1 2.8 mm Lens MINI-DOME
This listing includes:
-  (1) ANALOG CAMERA: DS-2CE76U1T-ITMF
DS-2CE76U1T-ITMF  view data sheet
4K Fixed Turret Camera
- 8 MP turret camera
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
4K Fixed Turret Camera
- 8 MP turret camera
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specification
- Camera
- Image Sensor8.29 megapixel progressive scan CMOS
- Max. Resolution3840 (H) ? 2160 (V)
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0? to 360?, Tilt:0? to 75?, Rotate: 0? to 360?
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, , 6 mm fixed focal lens
- Focal Length & FOVHorizontal FOV: 102.2? (2.8 mm), 79? (), 50.8? (6 mm)
- Lens MountM16
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- Image
- Image SettingsBrightness;Sharpness;AGC
- Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 8M@12.5fps, 8M@15fps
CVBS: 960H P/N
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC;HLC
- Noise Reduction2D DNR
- White BalanceAuto/Manual
- Interface

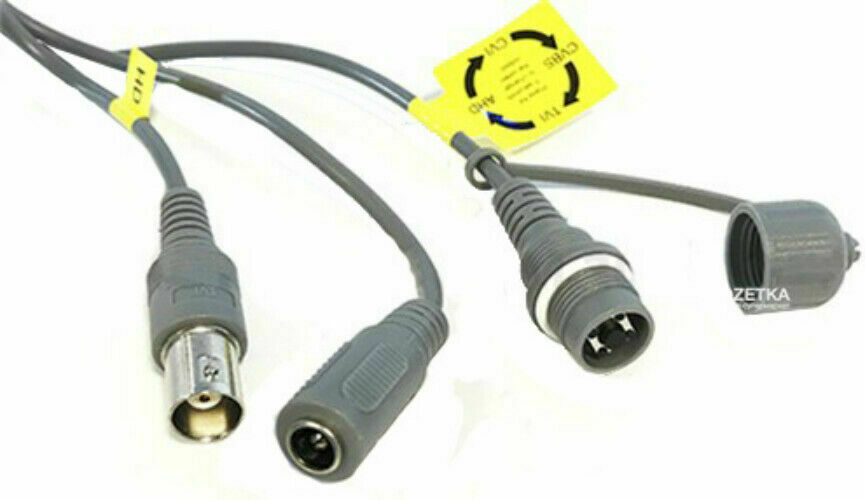

- Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS
- General
- Power
12 VDC ?25%, max. 5.3 W
*You are recommended to use one power adapter to supply the power for one camera.
- MaterialMetal

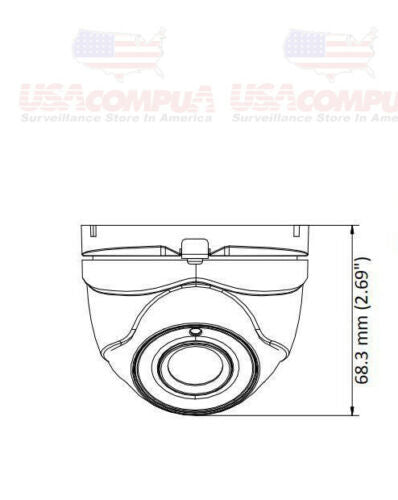

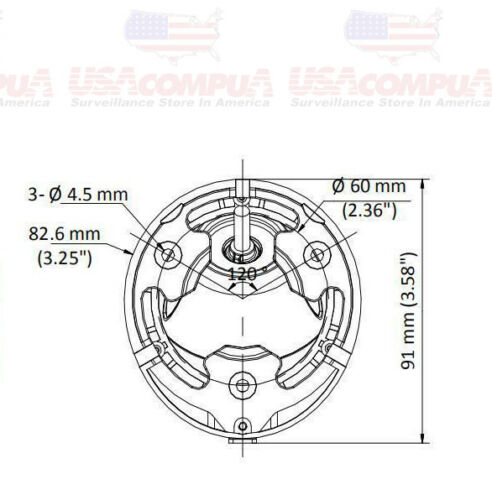

- Dimension90 mm ? 79.37 mm (3.54" ? 3.12" )
- WeightApprox. 310 g (0.68 lb.)
- Operating Condition
-40 ?C to 60 ?C (-40 ?F to 140 ?F)
Humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Approval
- ProtectionIP67
