Data sheet PDF Product Description

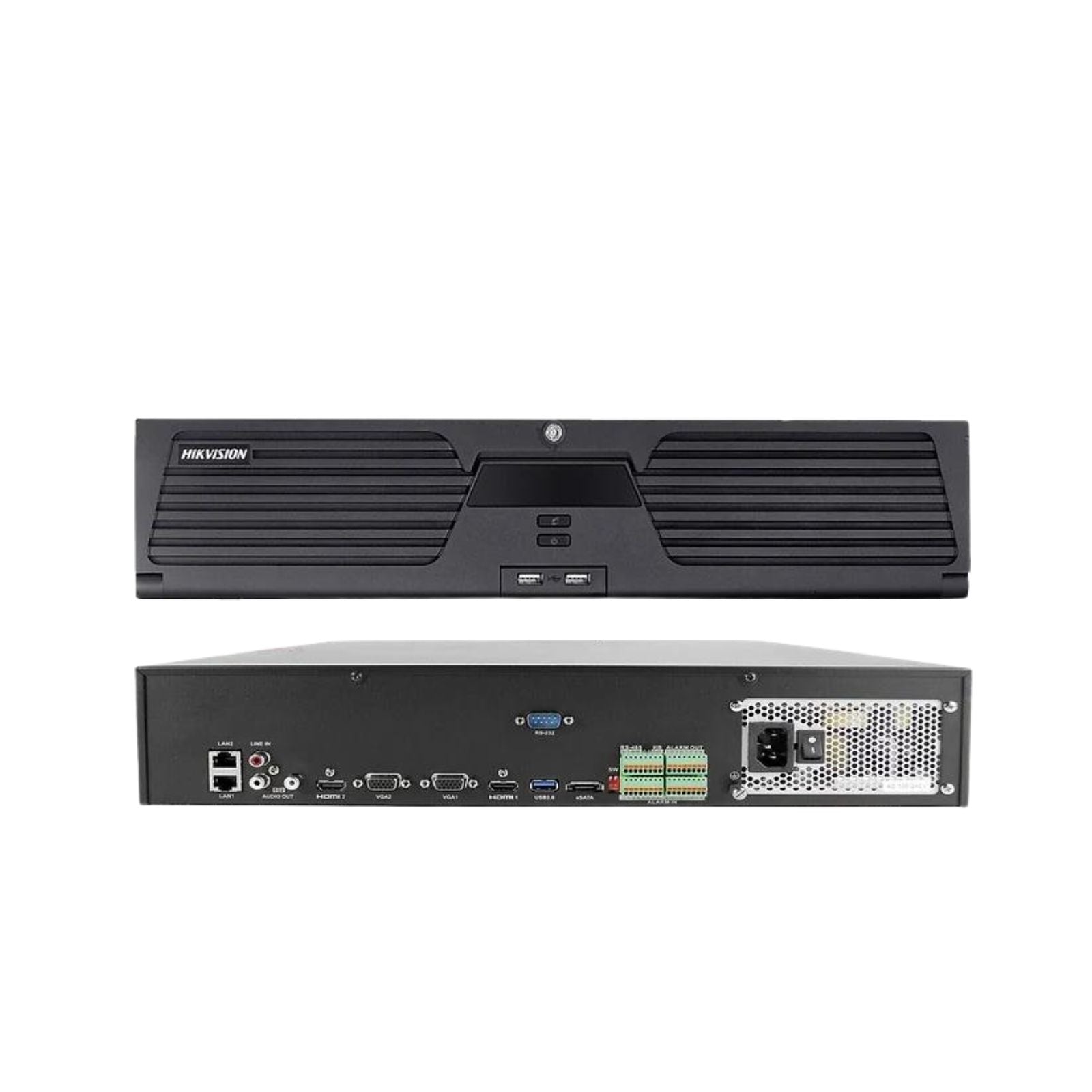

64ch 3U 4K NVR
Up to 64ch IP camera inputs Up to 2-ch@32 MP/2-ch@24 MP/4ch@12 MP/8ch@8 MP/16ch@4 MP/32ch@1080p decoding capacity Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera Advanced streaming technology enables smooth live view in poor network conditions Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks Specification
Video And Audio IP Video Input64ch Incoming Bandwidth400 Mbps Outgoing Bandwidth400 Mbps HDMI 1 Output8K (7680 ? 4320)/30 Hz, 4K (3840 ? 2160)/60 Hz, 4K (3840 ? 2160)/30 Hz, 2K (2560 ? 1440)/60 Hz, 1920 ? 1080/60 Hz, 1600 ? 1200/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz, 1024 ? 768/60 Hz HDMI 2 Output4K (3840 ? 2160)/60 Hz, 4K (3840 ? 2160)/30 Hz, 2K (2560 ? 1440)/60 Hz, 1920 ? 1080/60 Hz, 1600 ? 1200/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz, 1024 ? 768/60 Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz, 1024 ? 768/60 Hz VGA 2 Output1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz, 1024 ? 768/60 Hz Video Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480 Audio Input1-ch, RCA (2.0 Vp-p, 1 K?) Audio Output2-ch, RCA (Linear, 1 K?) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input) Decoding Decoding FormatH.265+/H.265/H.264+/H.264 Recording Resolution32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback16ch Decoding Capability2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM Network Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface RAID RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10 Auxiliary Interface Serial Interface1 RS-485 (full-duplex), 1 RS-232 SATA16 SATA interfaces supporting hot-plug ESATA1 eSATA interface CapacityUp to 16 TB capacity for each disk Alarm In/Out16/9 USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 2 ? USB 3.0 Ctrl 12VControllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
DC 12V12 VDC, 1 A power output General Power Supply100 to 240 VAC, 50 to 60 Hz Consumption? 50 W (without HDD) Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F) Working Humidity10% to 90% Chassis3U chassis Dimension (W ? D ? H)445 ? 496 ? 150 mm (17.5" ? 19.5" ? 5.9") Weight? 12.5 kg (without HDD, 27.6 lb.) Certification Obtained CertificationCE, FCC CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
