Product Description

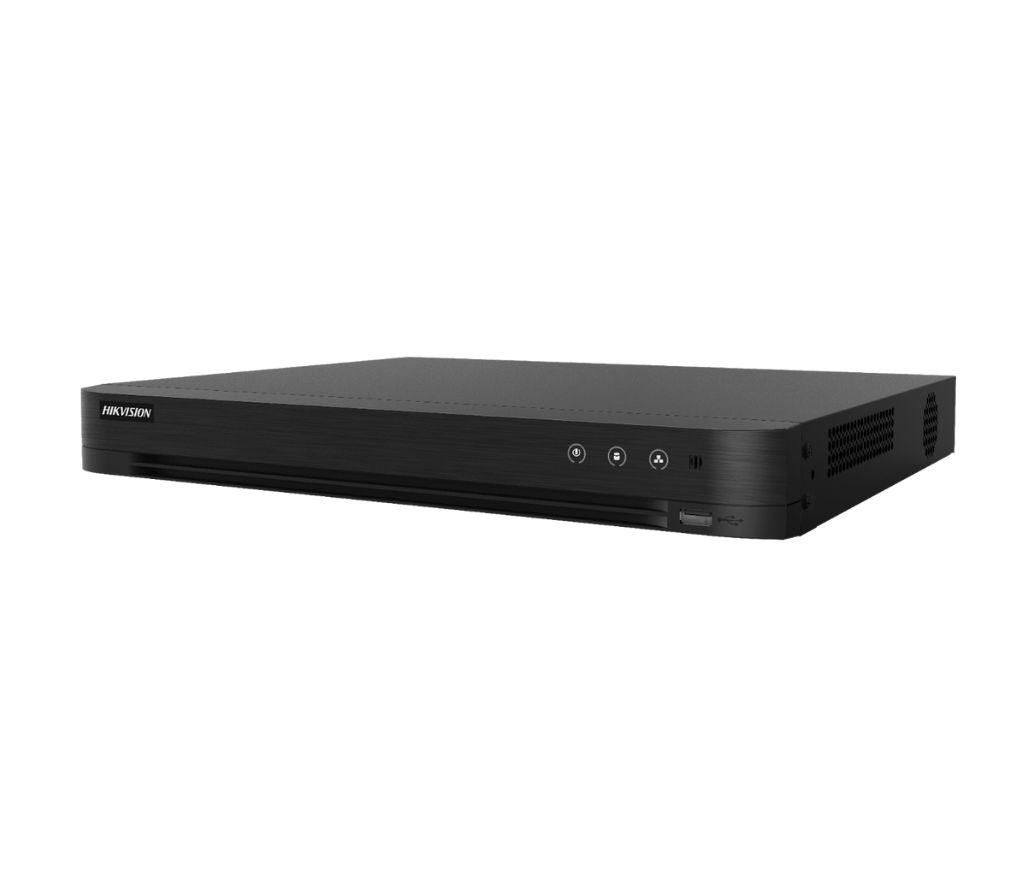

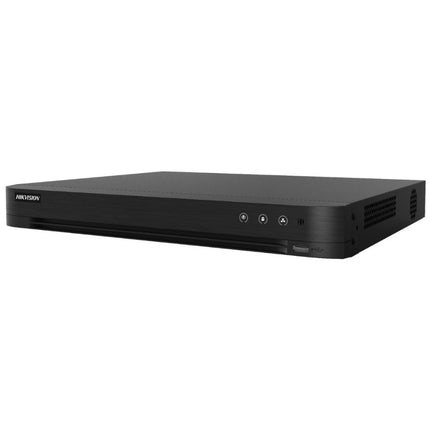

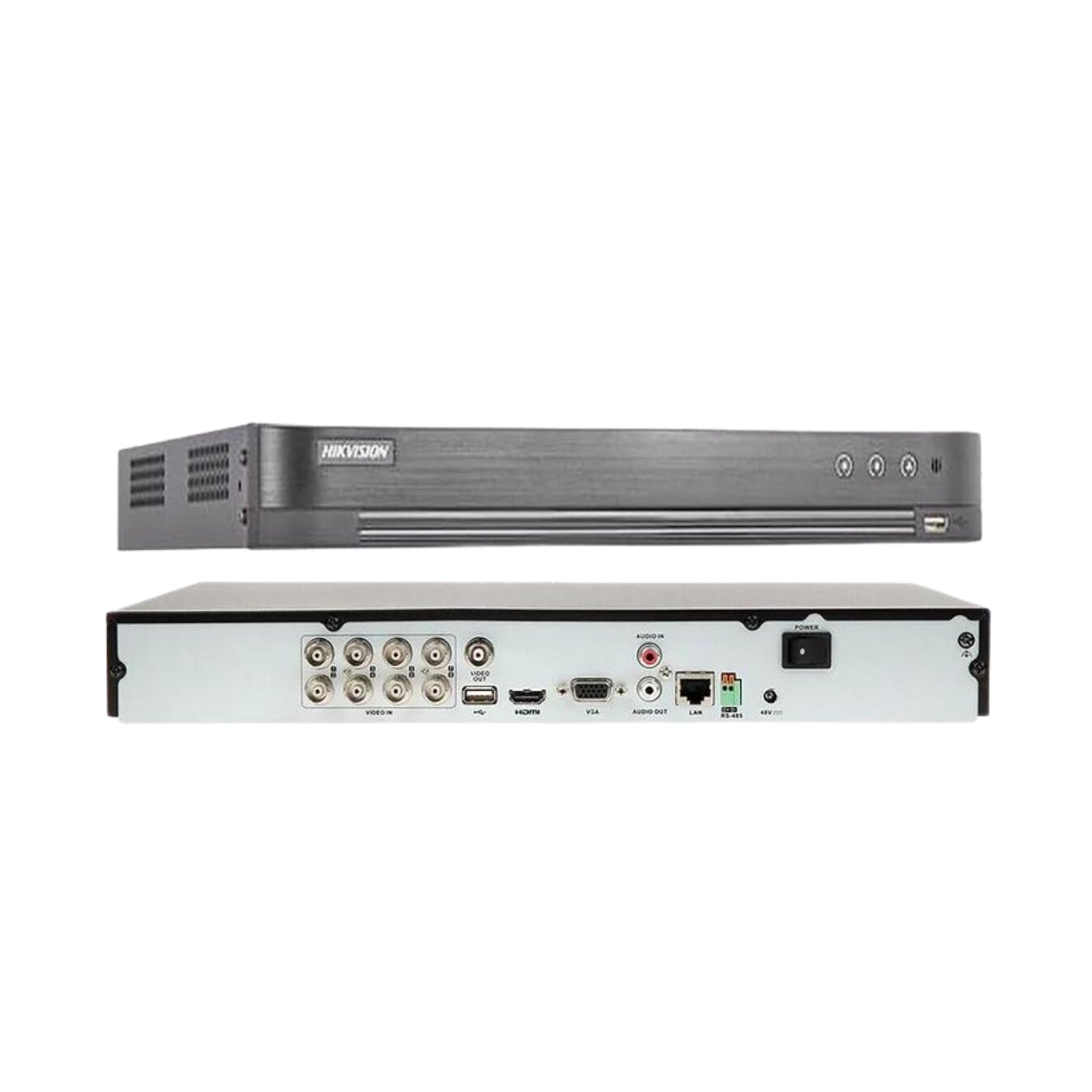

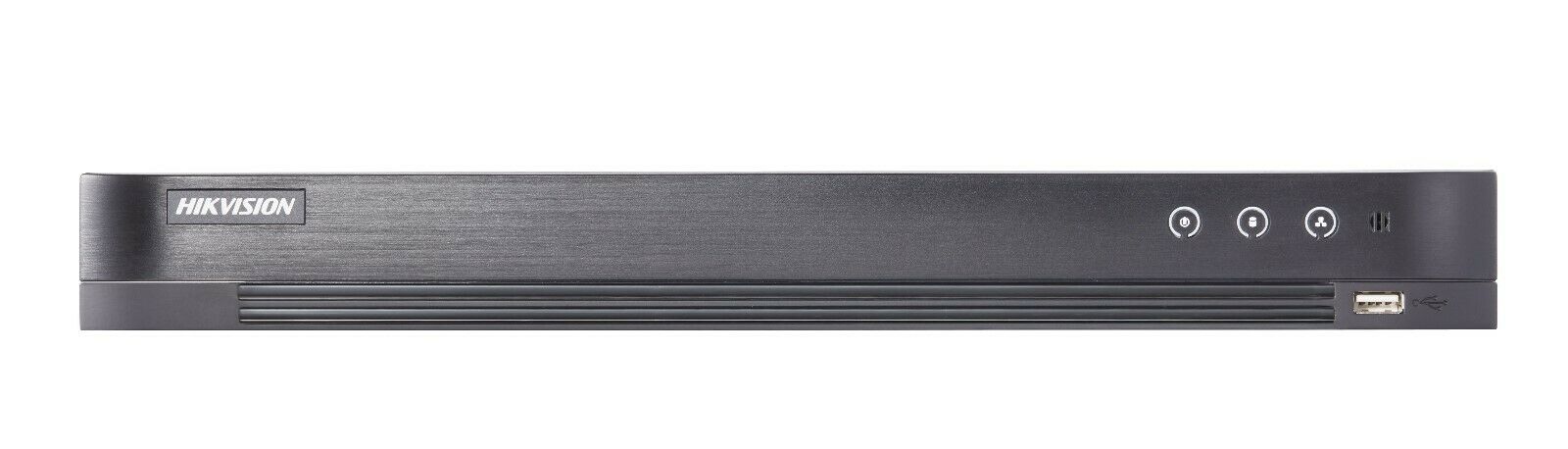

8ch 1080p 1U H.265 AcuSense DVR

• 8chs and 1 HDD 1U AcuSense DVR
• False alarm reduction through human and vehicle target classification based on deep learning
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively ("Hybrid")
• Up to 12 network cameras can be connected.

Specification

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Perimeter Protection
• Human/Vehicle AnalysisUp to 4ch
• Facial Detection
• Facial Detection And CaptureFace picture detection, face picture search
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  3k/5MP lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3k/5MP lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 3k/5MP stream access: 3k/5MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3k/5MP lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 6 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Video And Audio
• IP Video Input

  2-ch (up to 10-ch)

  Up to 6 MP resolution

  Enhanced IP mode on:

  4ch (up to 12-ch), each up to 4 Mbps

  Support H.265+/H.265/H.264+/H.264 IP cameras

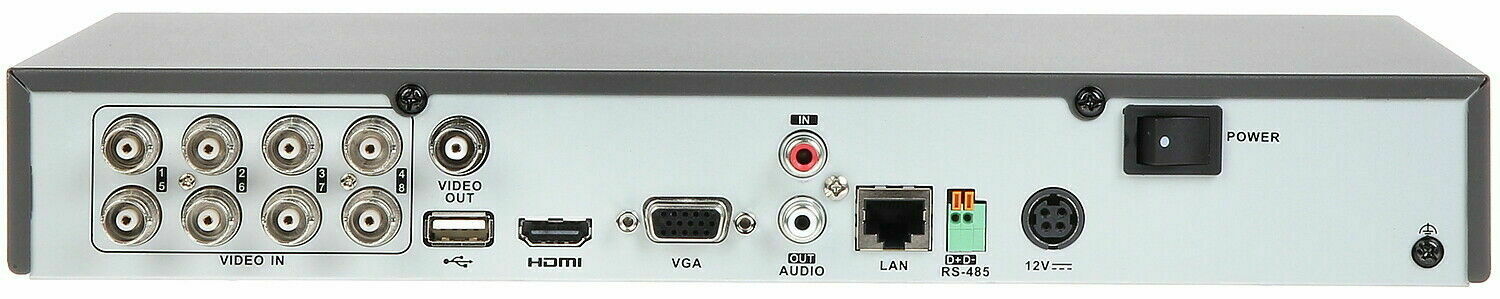

• Analog Video Input8ch;BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
• HDMI Output

  1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz,

  HDMI/VGA simultaneous output

• CVBS InputPAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 ?),

  resolution: PAL: 704 ? 576, NTSC: 704 ? 480

• Synchronous Playback8ch
• HDTVI Input3k/5MP(2960 x 1665)@20 fps, 5 MP(2560 ? 1944)@20 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2592 ? 1944)@20 fps,4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
• HDCVI Input5 MP(2592 ? 1944)@20 fps,4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Audio Output1-ch, RCA (Linear, 1 K?)
• Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)?8ch via coaxial cable
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
• Network
• Total Bandwidth96 Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
• Remote Connection64
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB Interface2 ? USB 2.0
• Alarm In/OutN/A
• General
• Power Supply12 VDC
• Consumption? 18 W
• Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)315 ? 242 ? 45 mm (12.4 ? 9.5 ? 1.8 inch)
• Weight? 1.78 kg (3.9 lb)
