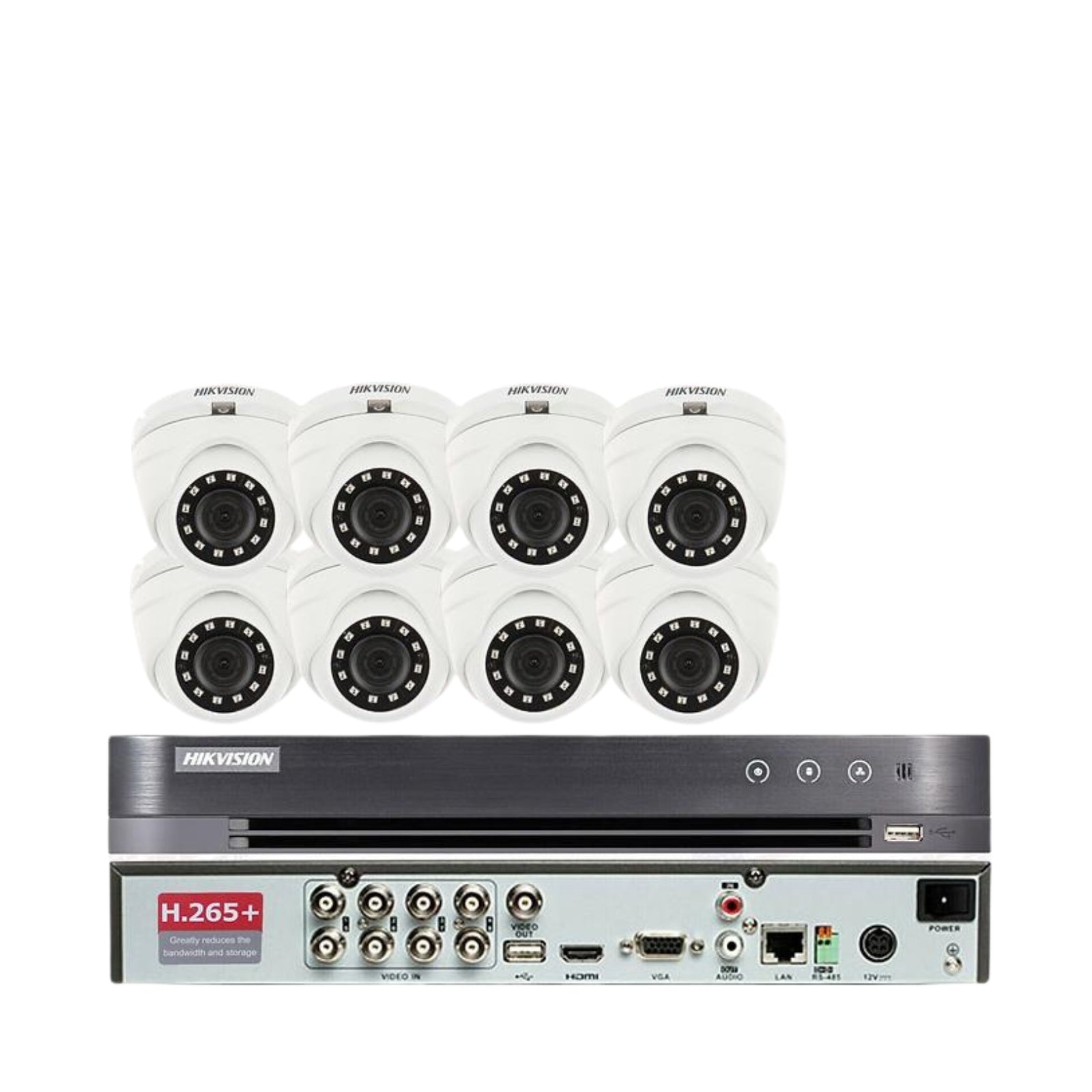

HIKVISION KIT DS- 7208HGHI-F1 1080P H264+ 1TB 8 CAMERAS VANDAL PROOF HD DOME
HIKVISION KIT DS- 7208HGHI-F1 1080P H264+ 1TB 8 CAMERAS VANDAL PROOF HD DOME
Hurry up, only 8 items left in stock.
Description
Description
HIKVISION KIT DS- 7208HGHI-F1 1080P H264+ 1TB 8 CAMERAS VANDAL PROOF HD DOME
This listing includes:
-  CAMERA QUANTITY (DS-2CE56D0T-IRMF): 2;3;4;5;6;7;8
- HARD DRIVE OPTION FOR RECORDER DS-7208HGHI-K1: NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB
- 2 MP turret camera
- Smart IR: up to 25 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- "Hybrid" video input
- Audio via coaxial cable
- Up to 10-ch IP camera input (up to 5 MP)
- Up to 1080p Lite@15 fps encoding capability
- Max. 1200 m for 720p HDTVI signal
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description

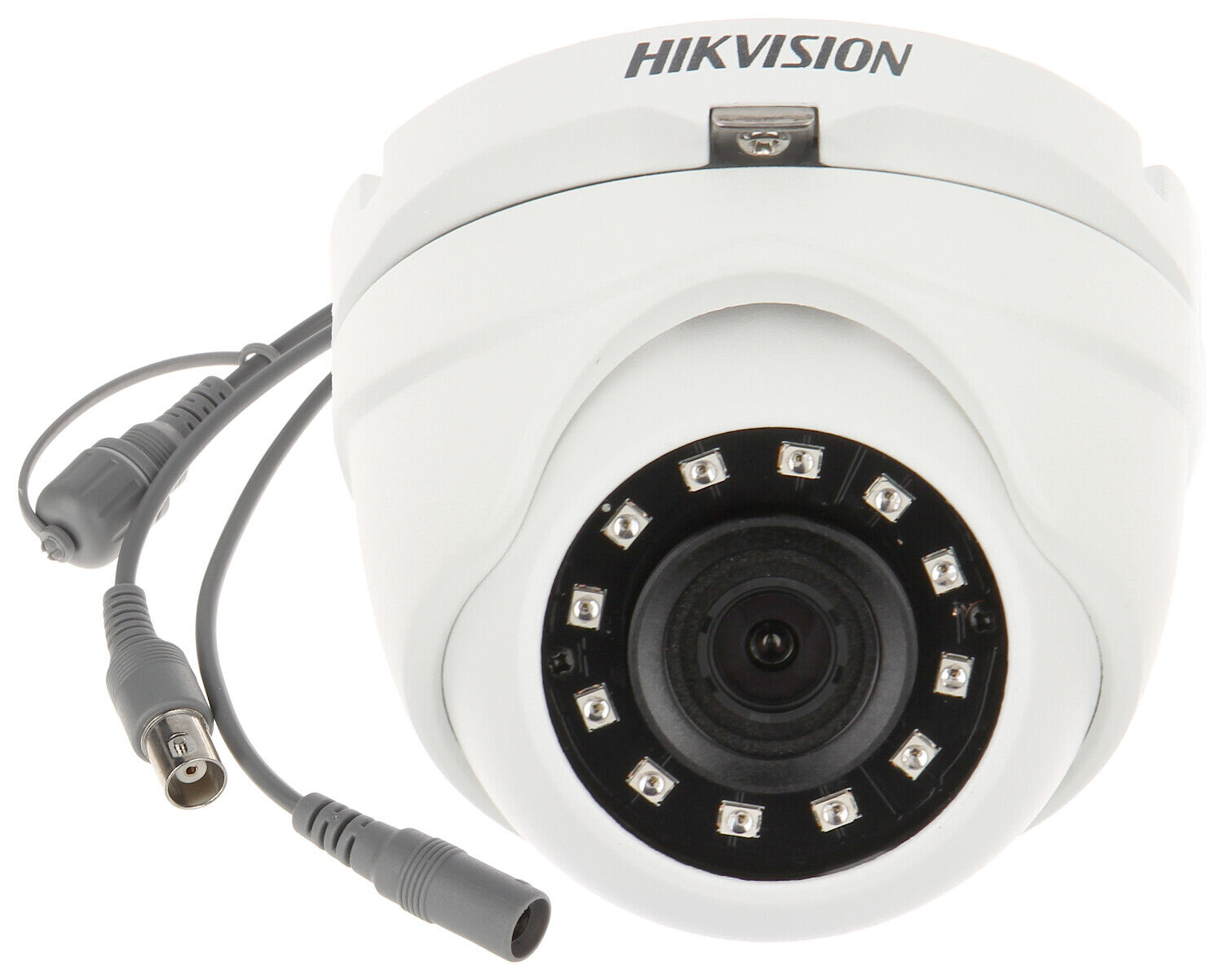

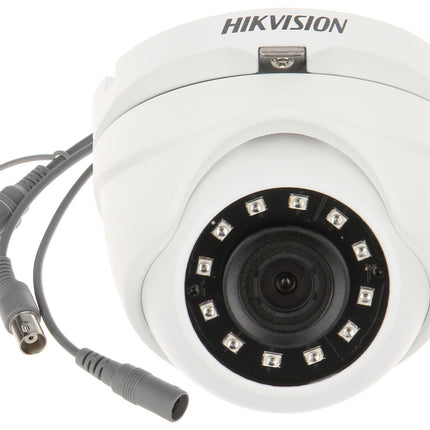

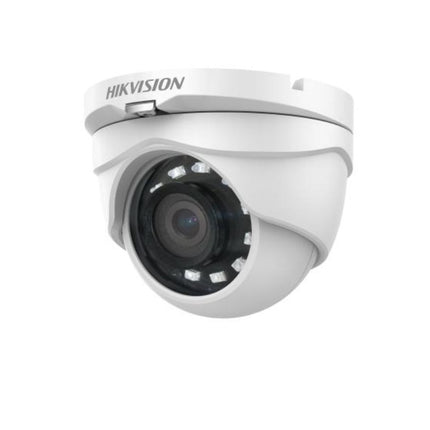

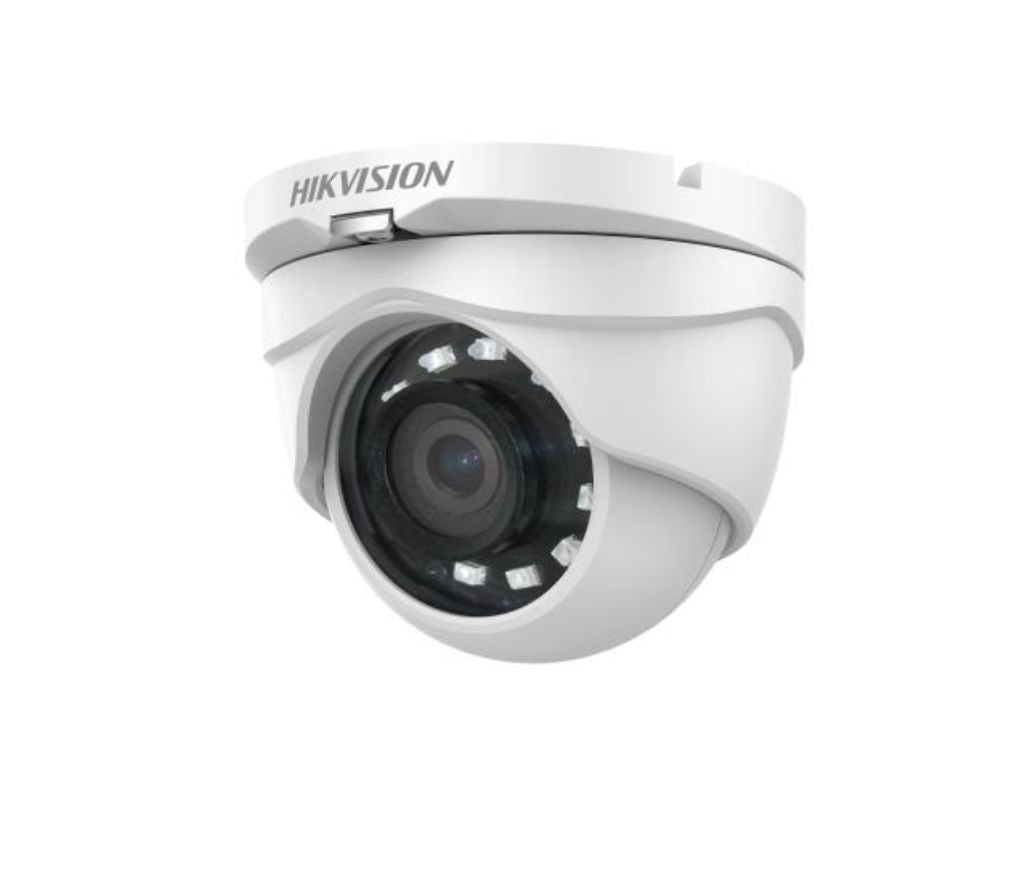

2 MP Fixed Turret Camera
- 2 MP turret camera
- Smart IR: up to 25 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Specification
- Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) ? 1080 (V)
- Min. Illumination0.01Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 75?, Rotation: 0 to 360?
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, , 6 mm fixed lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 101?, vertical FOV: 60?, diagonal FOV: 122?
, horizontal FOV: 79.6?, vertical FOV: 43.5?, diagonal FOV: 93.7?
6 mm, horizontal FOV: 51.9?, vertical FOV: 30?, diagonal FOV: 58.8?
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Smart IR
- Frame RateTVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC, HLC
- White BalanceAuto/Manual
- AGCYes
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- MaterialMetal

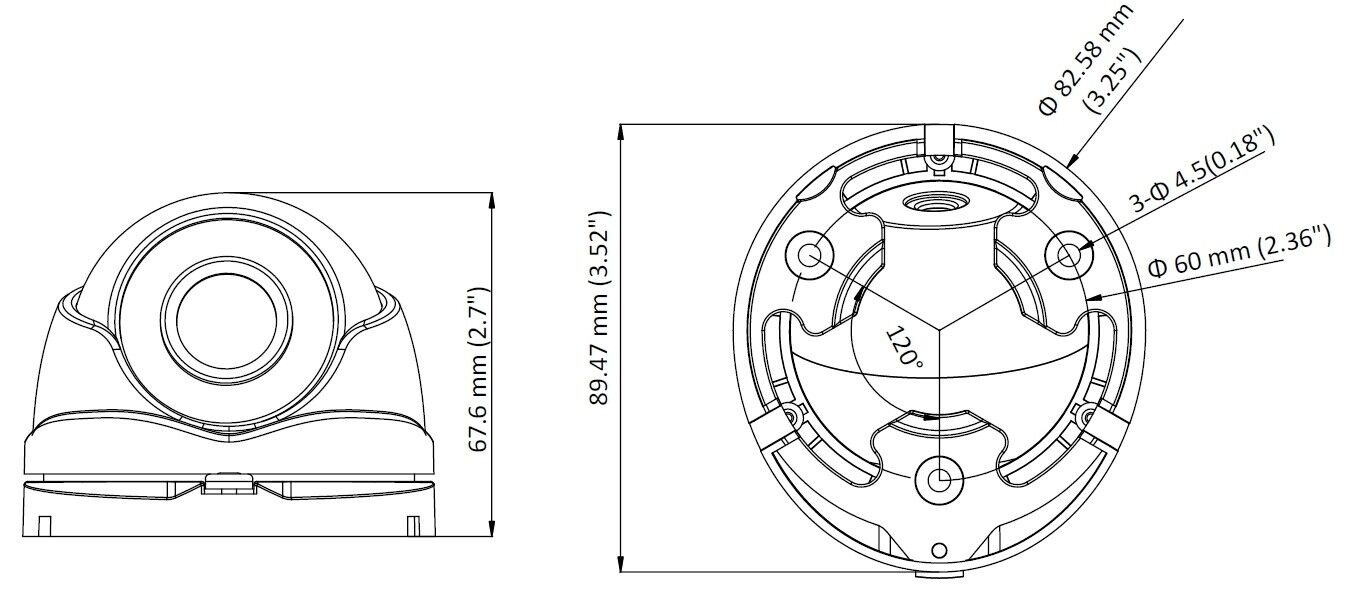

- Dimension89.47 mm ? 67.6 mm (3.52" ? 2.70")
- WeightApprox. 250 g (0.55 lb.)
- Operating Condition?-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply12 VDC ? 25%
- ConsumptionMax. 3 W
- IR RangeUp to 25 m
- Approval
- ProtectionIP67
Data sheet PDF

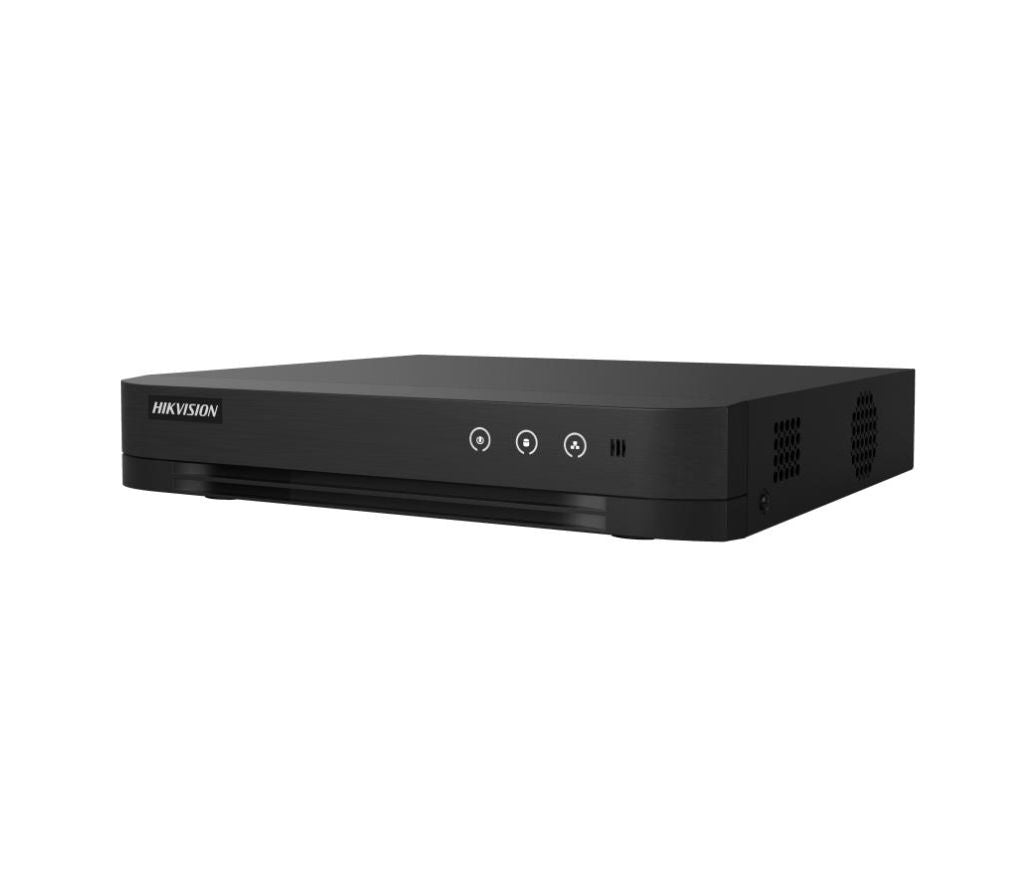

Product Description

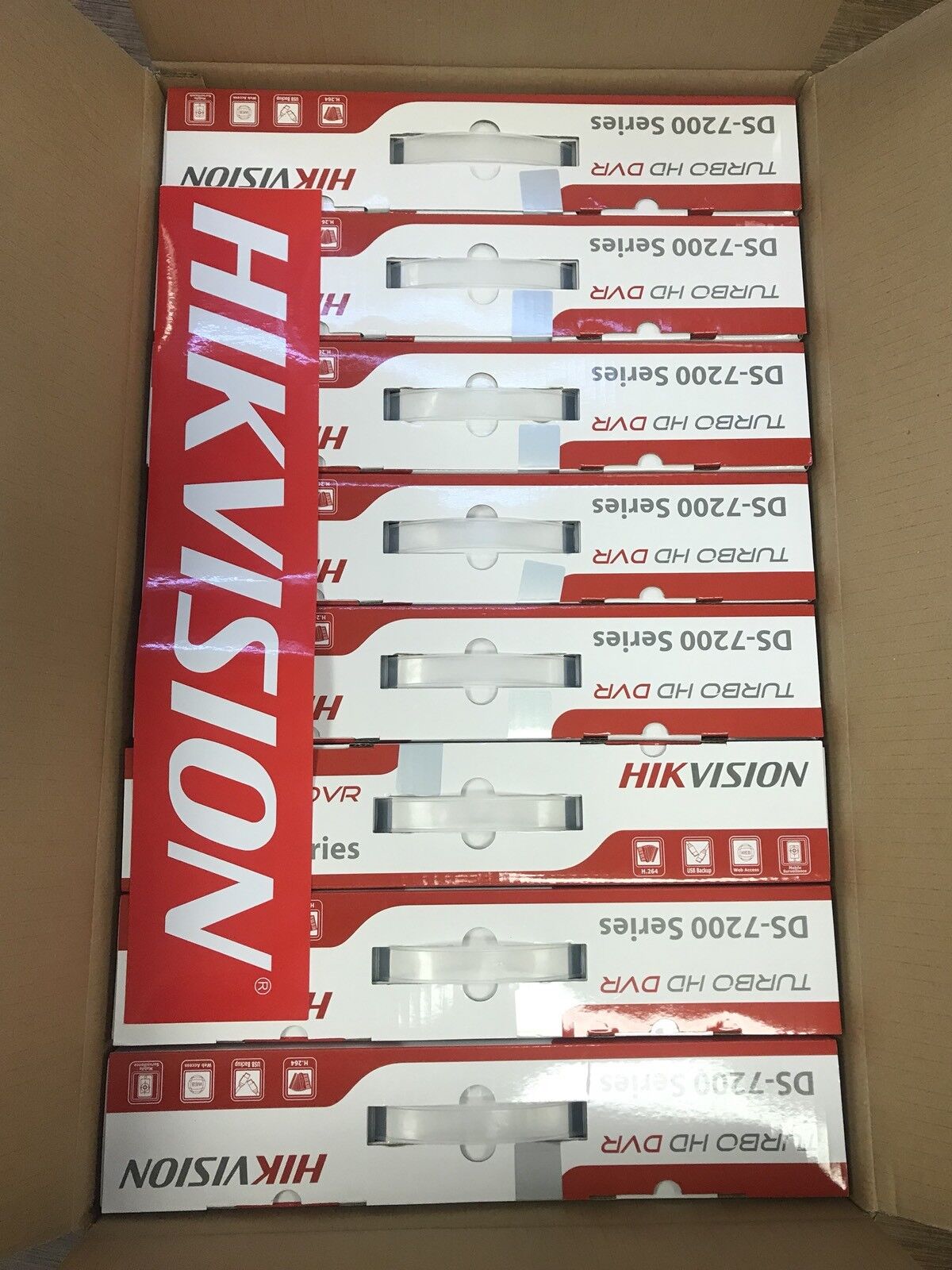

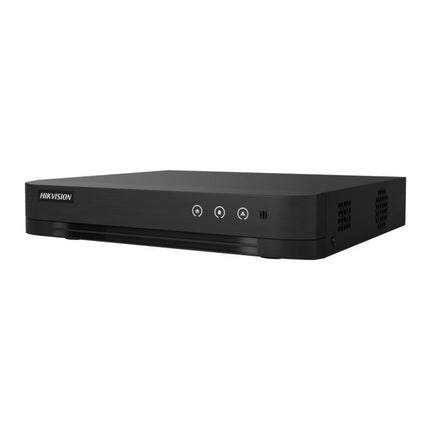

8ch 1080p Lite 1U H.265 DVR
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- "Hybrid" video input
- Audio via coaxial cable
- Up to 10-ch IP camera input (up to 5 MP)
- Up to 1080p Lite@15 fps encoding capability
- Max. 1200 m for 720p HDTVI signal
Specification
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
For 1080p and 720p stream access CIF/QVGA@15 fps
For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 4 Mbps
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
- IP Video Input
2-ch (up to 10-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
8ch
BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
- HDTVI Input1080p25, 1080p30, 720p25, 720p30
- AHD Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputSupport
- HDMI Output
1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
- VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Input
1-ch RCA (2.0 Vp-p, 1 K?)
8ch via coaxial cable
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way AudioReuse the first audio input
- Synchronous Playback8ch
- Network
- Remote Connection64
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP?, HTTPS
- Total Bandwidth72 Mbps
- Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

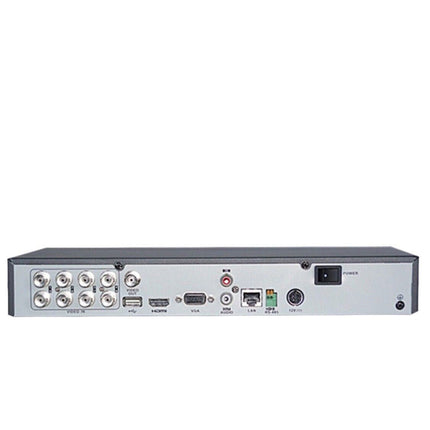

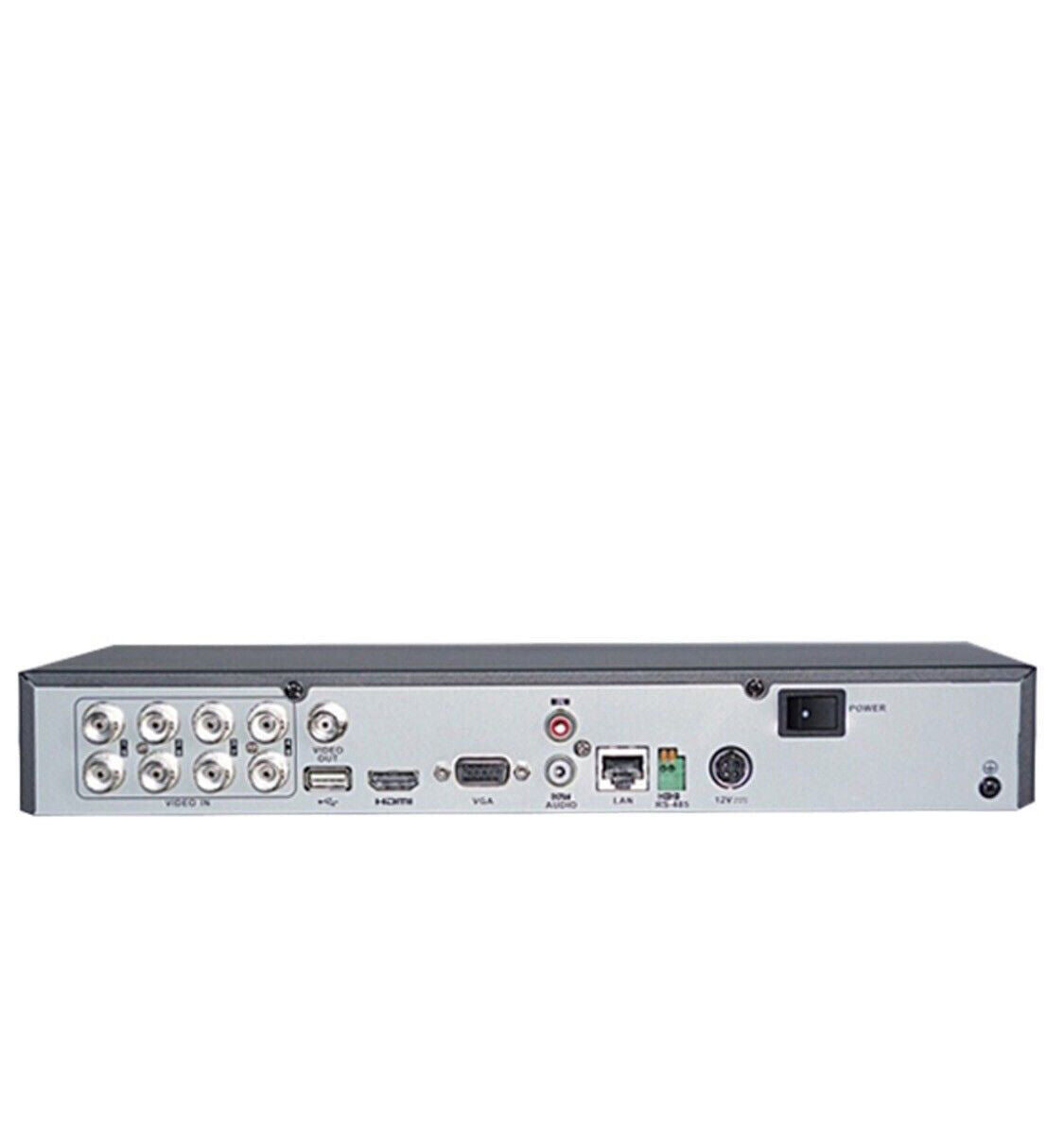

- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 4 TB capacity for each disk
- USB InterfaceRear panel: 2 ? USB 2.0
- Alarm In/OutN/A
- General
- Power Supply12 VDC, 1.5 A
- Consumption? 17 W (without HDD)
- Working Temperature-10 ?C to 55 ?C (14 ?F to +31 ?F)
- Working Humidity10% to 90%
- Dimension (W ? D ? H)260 ? 222 ? 45 mm (10.2 ? 8.7 ? 1.8 inch)
- Weight? 1 kg (without HDD, 2.2 lb.)
