Data sheet PDF Product Description

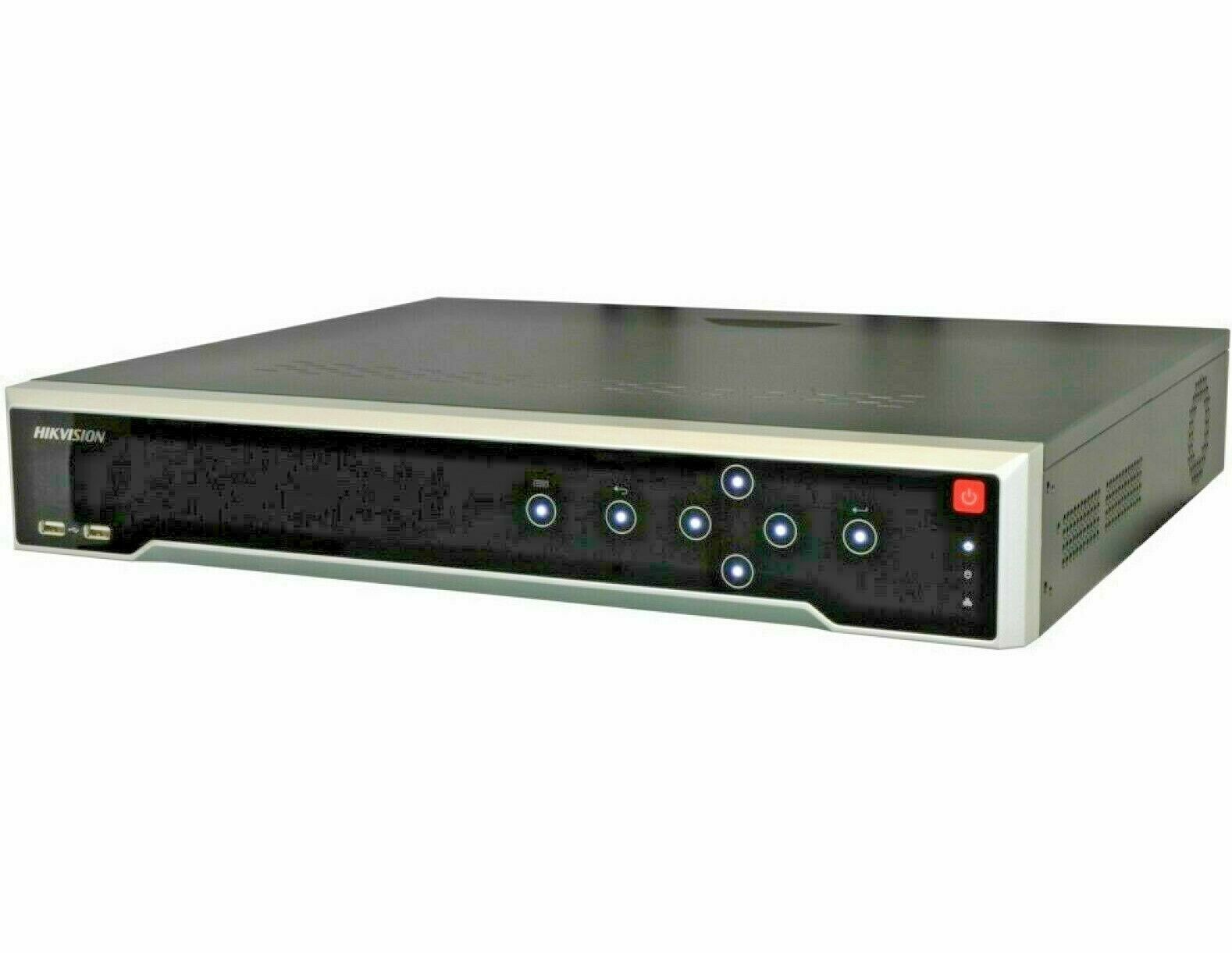

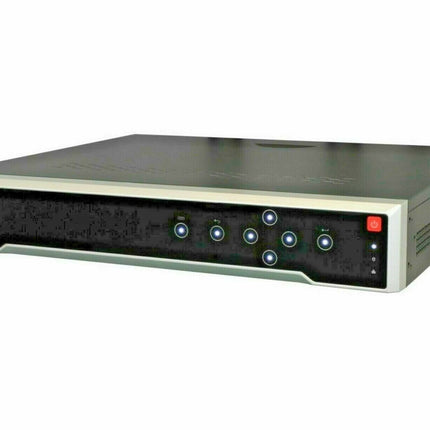

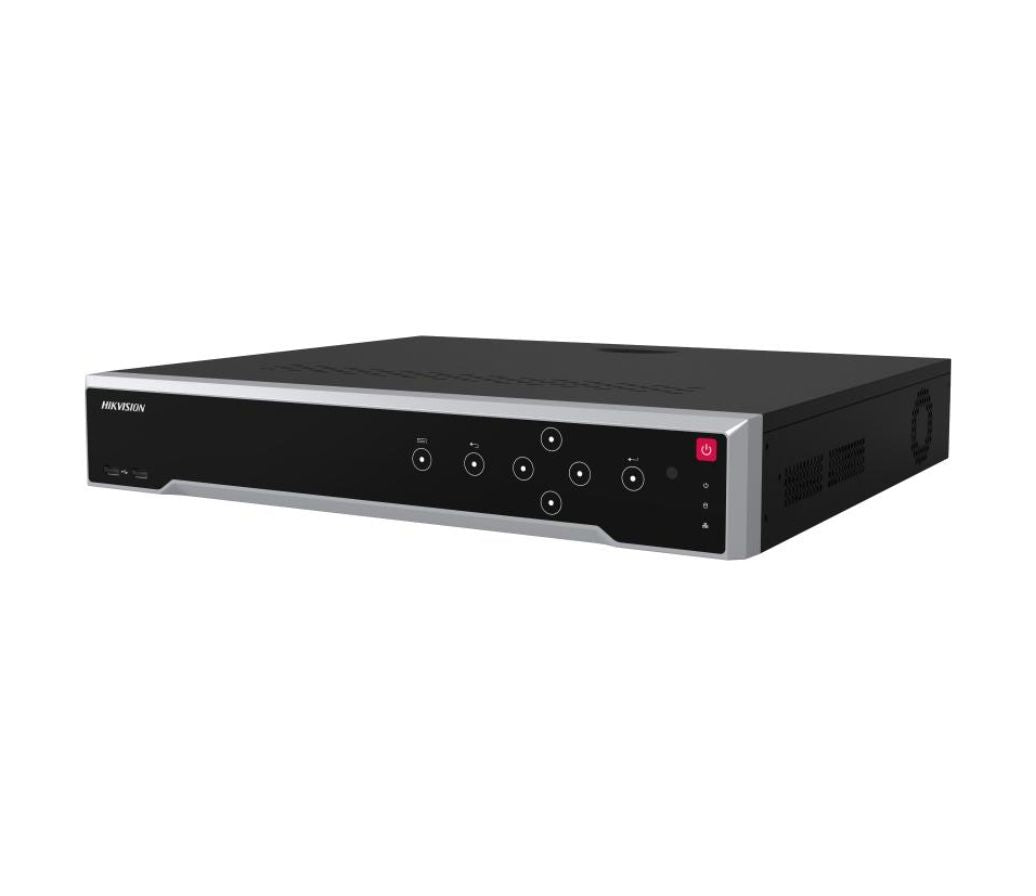

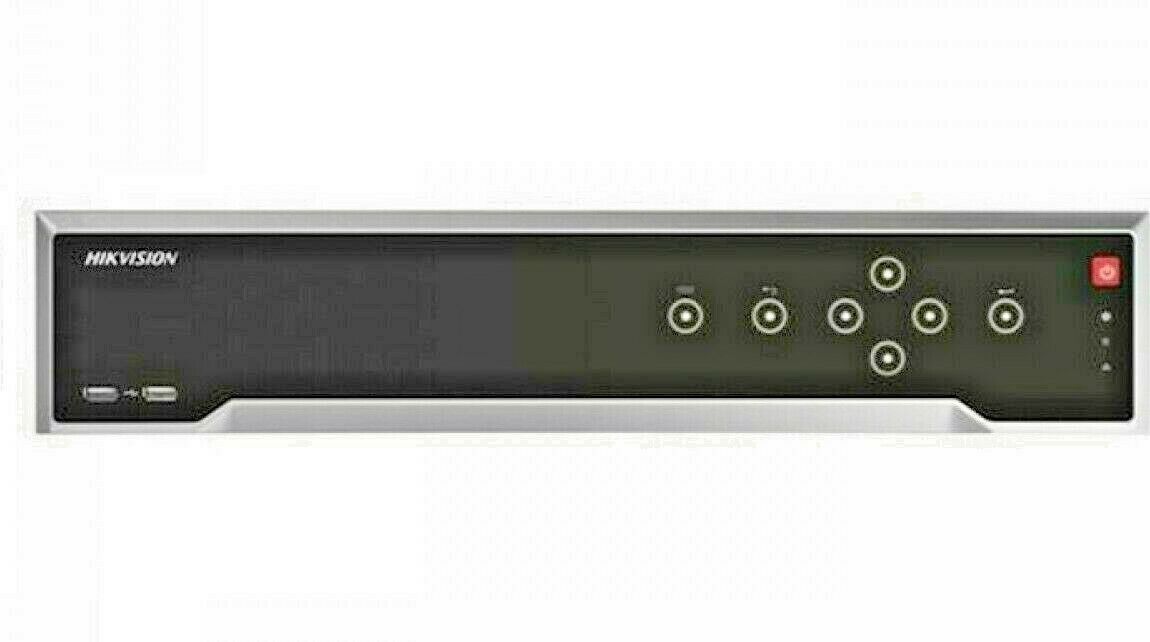

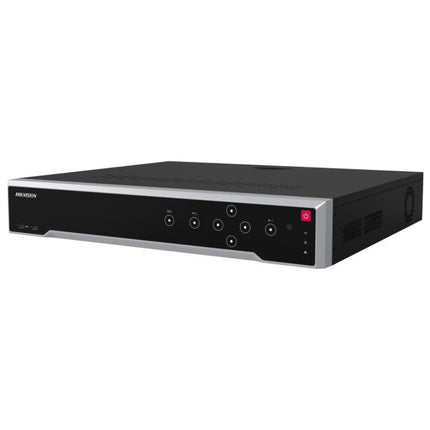

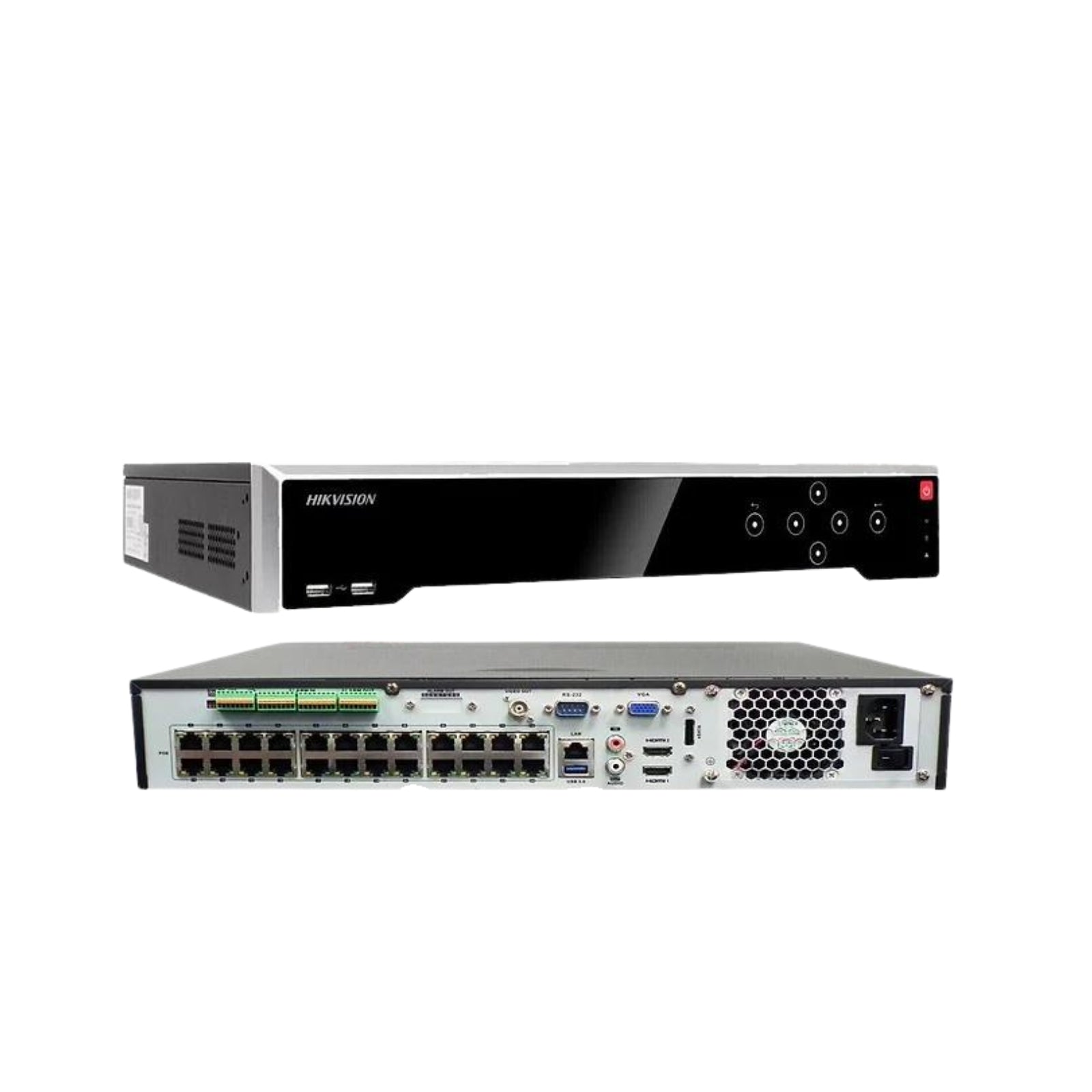

32ch 1.5U 24 PoE 4K NVR
Up to 32ch IP cameras can be connected Up to 2-ch @ 12 MP/16ch @ 1080p decoding capacity 2 HDMI and 1 VGA interfaces: HDMI interfaces support independent video output 4 HDDs for continuous video recording Plug & Play with 24p (PoE) interfaces Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition) Advanced streaming technology enables smooth live view and data self-correction in poor network conditions Supports dual-stream recording to save time and bandwidth
Specification
Video And Audio
Decoding
Network
PoE
Auxiliary Interface
General
Certification
Video And Audio IP Video Input32ch
Up to 12 MP resolution;32ch,Up to 12 MP resolution
HDMI 1 Output4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz HDMI 2 Output1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz Outgoing Bandwidth256 Mbps VGA Output1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480 Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output Incoming Bandwidth320 Mbps Audio Output1-ch, RCA (Linear, 1 K?) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input) Decoding Dual-Stream RecordingSupport Stream TypeVideo, Video & Audio Audio CompressionG.711ulaw/G.711alaw/G.722/G.726 Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4 Decoding Capability16ch@1080p;2-ch@12 MP (20 fps)/4ch@8 MP (30 fps)/8ch@4 MP (30 fps)/16ch@1080p (30 fps) Synchronous Playback16ch Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF /DCIF/ 2CIF/CIF/QCIF ;12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF Network Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS Remote Connection128 Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface PoE Interface24 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces;24, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power? 210 W StandardIEEE 802.3 af/at Auxiliary Interface SATA4 SATA interfaces ESATA1 eSATA interface CapacityUp to 10 TB capacity for each disk Serial Interface1 RS-485 (half-duplex), 1 RS-232 USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0 Alarm In/Out16/4 (16/8 optional) General Power Supply100 to 240 VAC, 50 to 60 Hz Consumption? 20 W (without HDD and PoE off) Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F) Working Humidity10% to 90% Dimension (W ? D ? H)445 ? 400 ? 75 mm ( 17.5"? 15.7" ? 3.0") Weight? 5 kg (11 lb) (without HDD) Certification FCCPart 15 Subpart B, ANSI C63.4-2014 CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
