Data sheet PDF Product Description

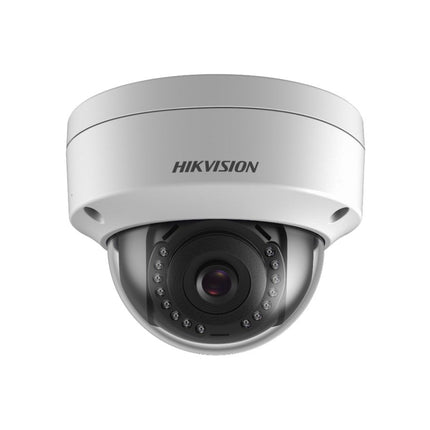

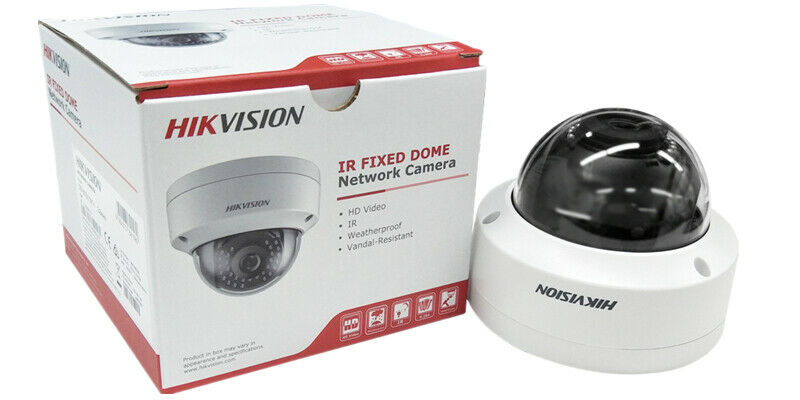

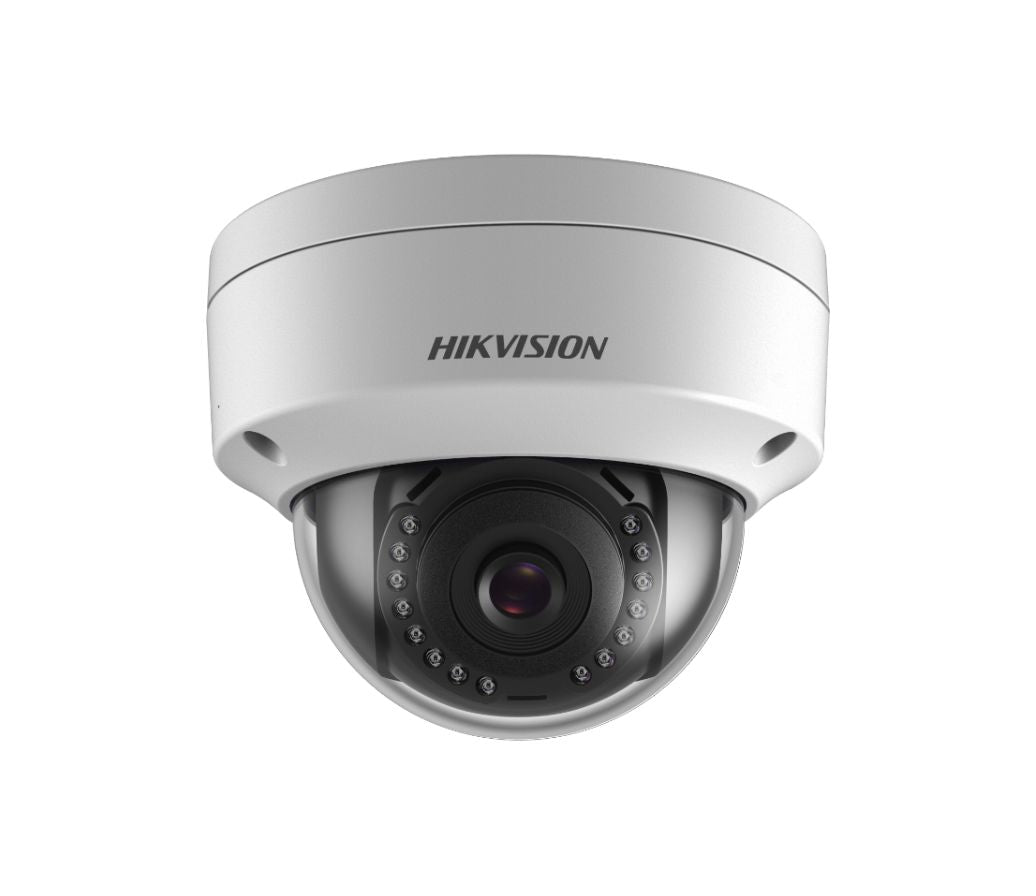

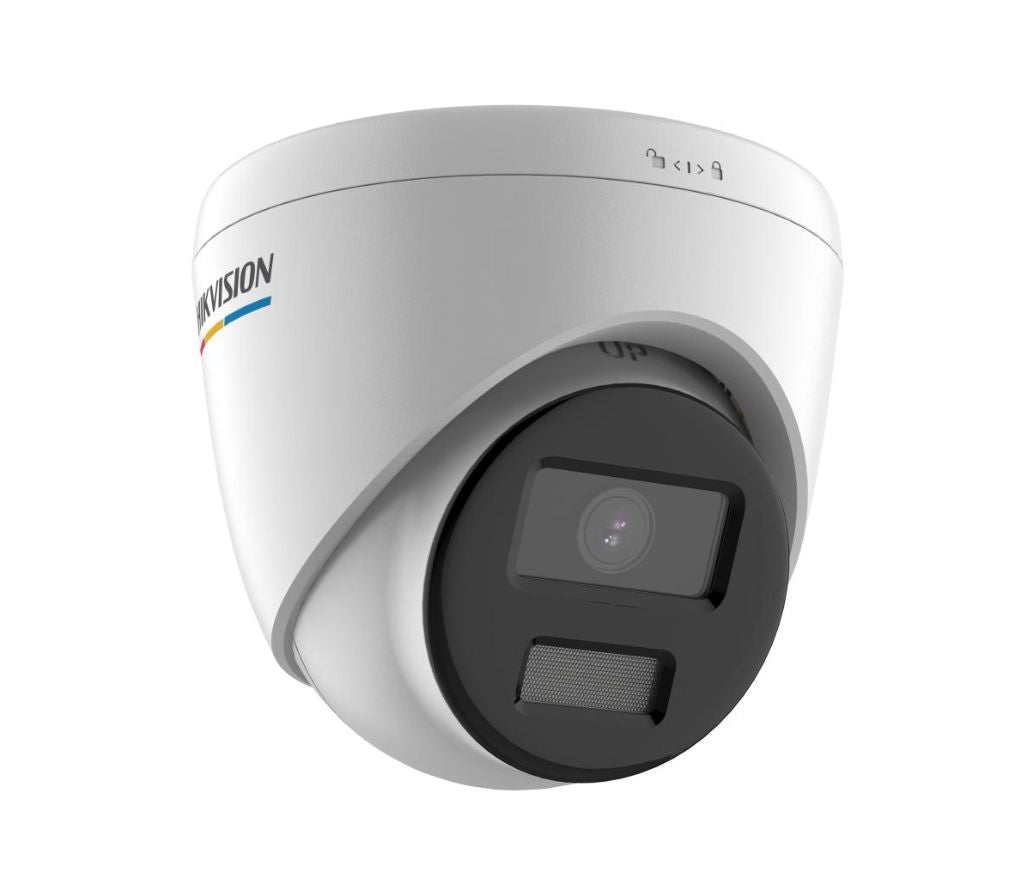

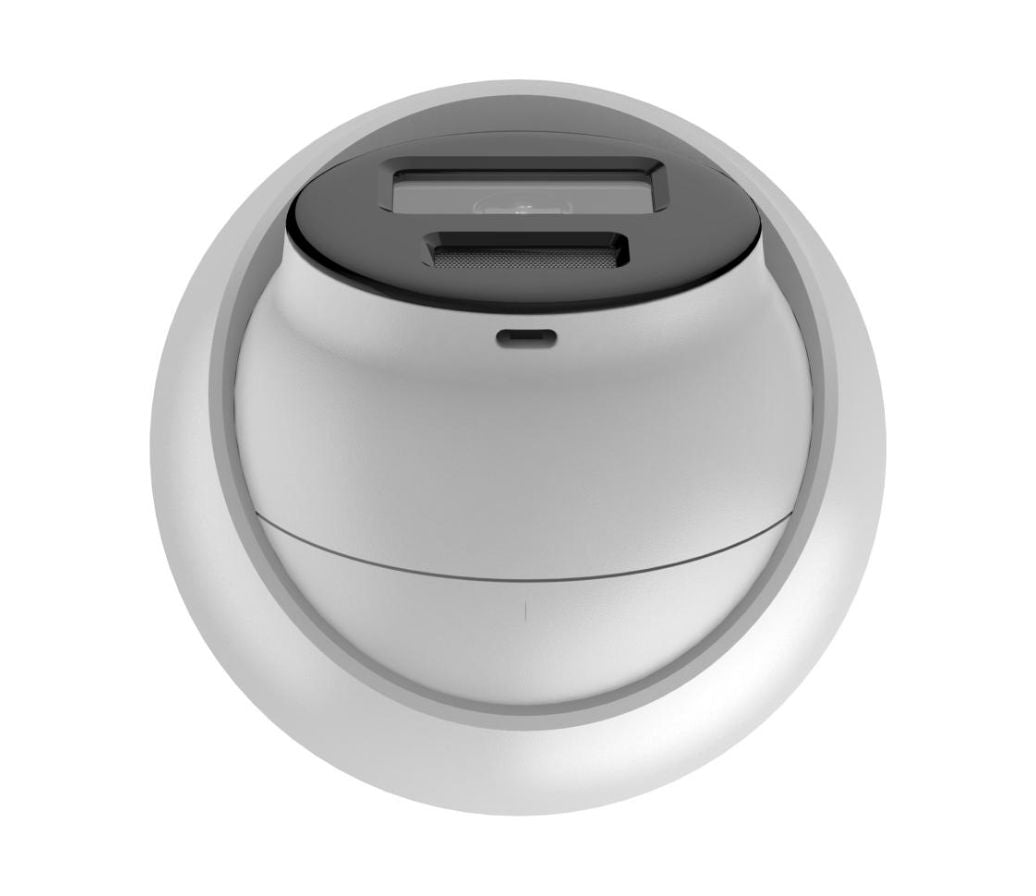

2 MP Fixed Dome Network Camera
High quality imaging with 2 MP resolution Efficient H.265+ compression technology Clear imaging even with strong back lighting due to DWDR technology Water and dust resistant (IP67), vandal proof (IK10) EXIR 2.0: advanced infrared technology with long IR range Specification
Camera Image Sensor1/2.8" progressive scan CMOS Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON) Shutter Speed1/3 s to 1/100, 000 s Slow ShutterYes Day &NightIR cut filter Wide Dynamic RangeDigital WDR Angle AdjustmentPan: 0? to 355?, tilt: 0? to 70? DNR3D DNR Lens Lens2.8 mm, 4 mm, 6 mm Auto-IrisNo ApertureF2.0 FocusNo FOV2.8 horizontal FOV 114?, vertical FOV 62?, diagonal FOV 135?,4 mm, horizontal FOV 86?, vertical FOV 46?, diagonal FOV 102?,6 mm, horizontal FOV 54?, vertical FOV 30?, diagonal FOV 62? Lens MountM12 Illuminator IR RangeUp to 30 m Wavelength850 nm Video Max. Resolution1920 ? 1080 Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG H.264 TypeBaseline Profile/Main Profile/High Profile H.265 TypeMain Profile Video Bit Rate32 Kbps to 8 Mbps Smart Feature-Set Region Of Interest1 fixed region for main stream and sub-stream Image Image EnhancementBLC, 3D DNR Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night SwitchAuto, scheduled Main Stream Max. Frame Rate50Hz: 25fps (1920 ? 1080, 1280 ? 960, 1280 ? 720),60Hz: 30fps (1920 ? 1080, 1280 ? 960, 1280 ? 720) Sub-Stream Max. Frame Rate50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240),60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240) Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour APIONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live ViewUp to 6 channels User/HostUp to 32 users,3 levels: Administrator, Operator, and User ClientiVMS-4200, Hik-Connect, iVMS-5200 Web BrowserIIE7+, Chrome18-42, Firefox5.0+, Safari5.02+ Alarm TriggerMotion detection, video tampering alarm, illegal login Interface Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port Compression Standard H.264+Main stream supports H.265+Main stream supports General Firmware Version5.5.2 General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark Startup And Operating Conditions-30 ?C to 50 ?C (-22 ?F to 122 ?F), humidity: 95% or less (non-condensing) Power Supply12 VDC ? 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3) MaterialMetal & Plastic DimensionsCamera: ? 111 mm ? 82.4 mm ( 4.4" ? 3.2"),With package: 134 mm ? 134 mm ? 108 mm (5.3" ? 5.3" ? 4.3") WeightCamera: Approx. 410 g (0.9 lb.),With package: Approx. 610 g (1.3 lb.) Power Consumption And Current12 VDC, 0.4 A, Max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W Interface ProtectionIP67, IK10,TVS 2000V lightning protection, surge protection and voltage transient protection
Data sheet PDF Product Description

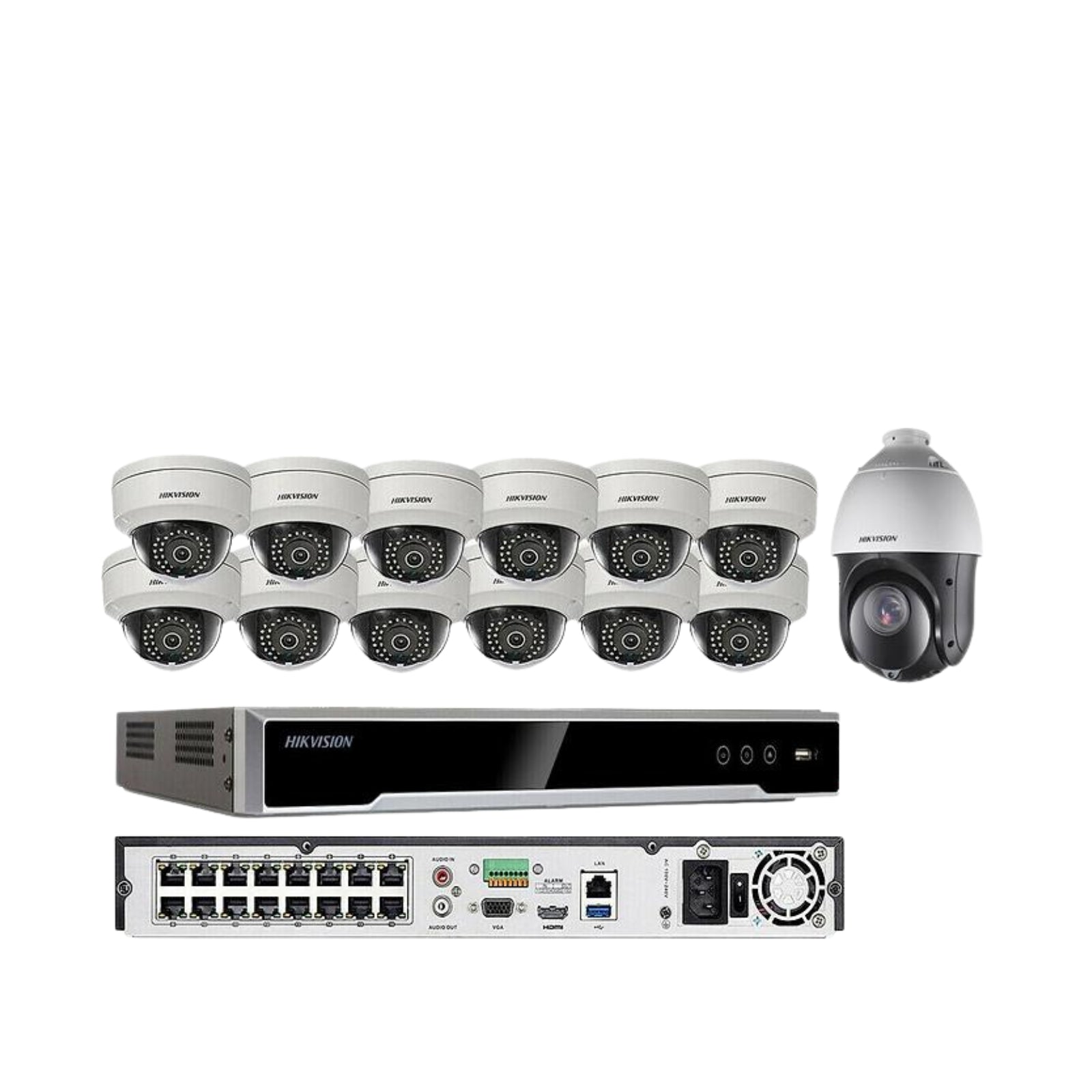

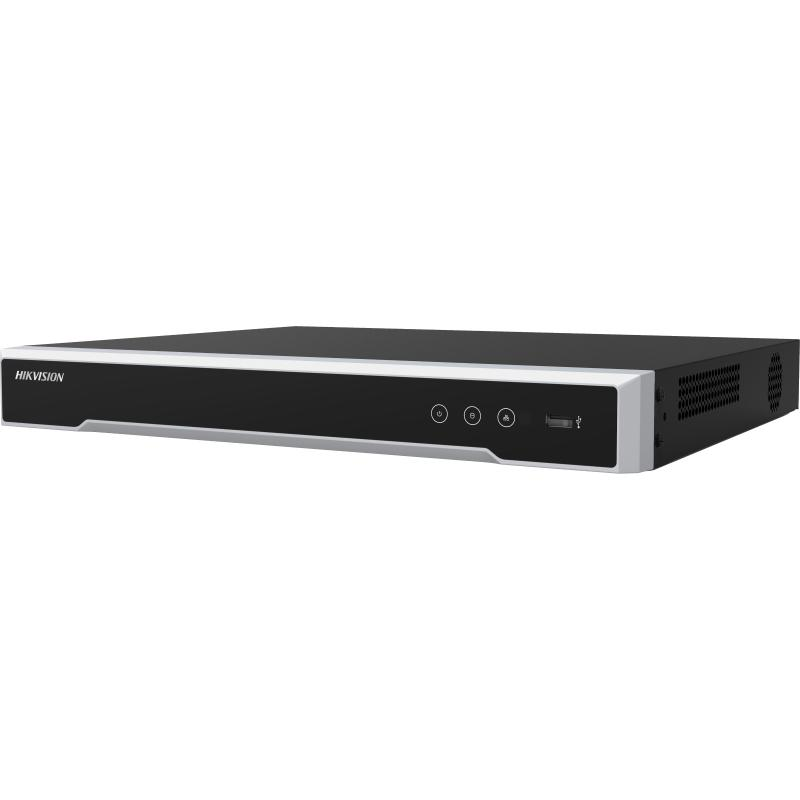

16ch 1U 16 PoE 4K NVR
Up to 16ch IP camera inputs H.265+/H.265/H.264+/H.264 video formats Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity Up to 160 Mbps incoming bandwidth Specification
Motion Detection 2.0 Human/Vehicle Analysis4 Video And Audio IP Video Input16ch HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz VGA Output1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz Video Output ModeHDMI/VGA simultaneous output Incoming Bandwidth160 Mbps Outgoing Bandwidth80 Mbps Audio Output1-ch, RCA (Linear, 1 K?) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?) Decoding Decoding FormatH.265+,H.265,H.264+,H.264 Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) Synchronous Playback16ch Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Network Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface PoE Interface16ch;16, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power? 150W StandardIEEE 802.3 af/at Auxiliary Interface SATA2 SATA interfaces CapacityUp to 8TB capacity for each disk USB Interface2 ? USB 2.0 General Power Supply100-240V?, 50/60Hz, 3.2A MAX Consumption? 15W Working Temperature-10 to +55? C (+14 to +131? F) Working Humidity10 to 90 % Chassis1U chassis Dimension (W ? D ? H)385 ? 315 ? 52 mm (15.2"? 12.4" ? 2.0") Weight? 2.6 kg (5.7 lb)
