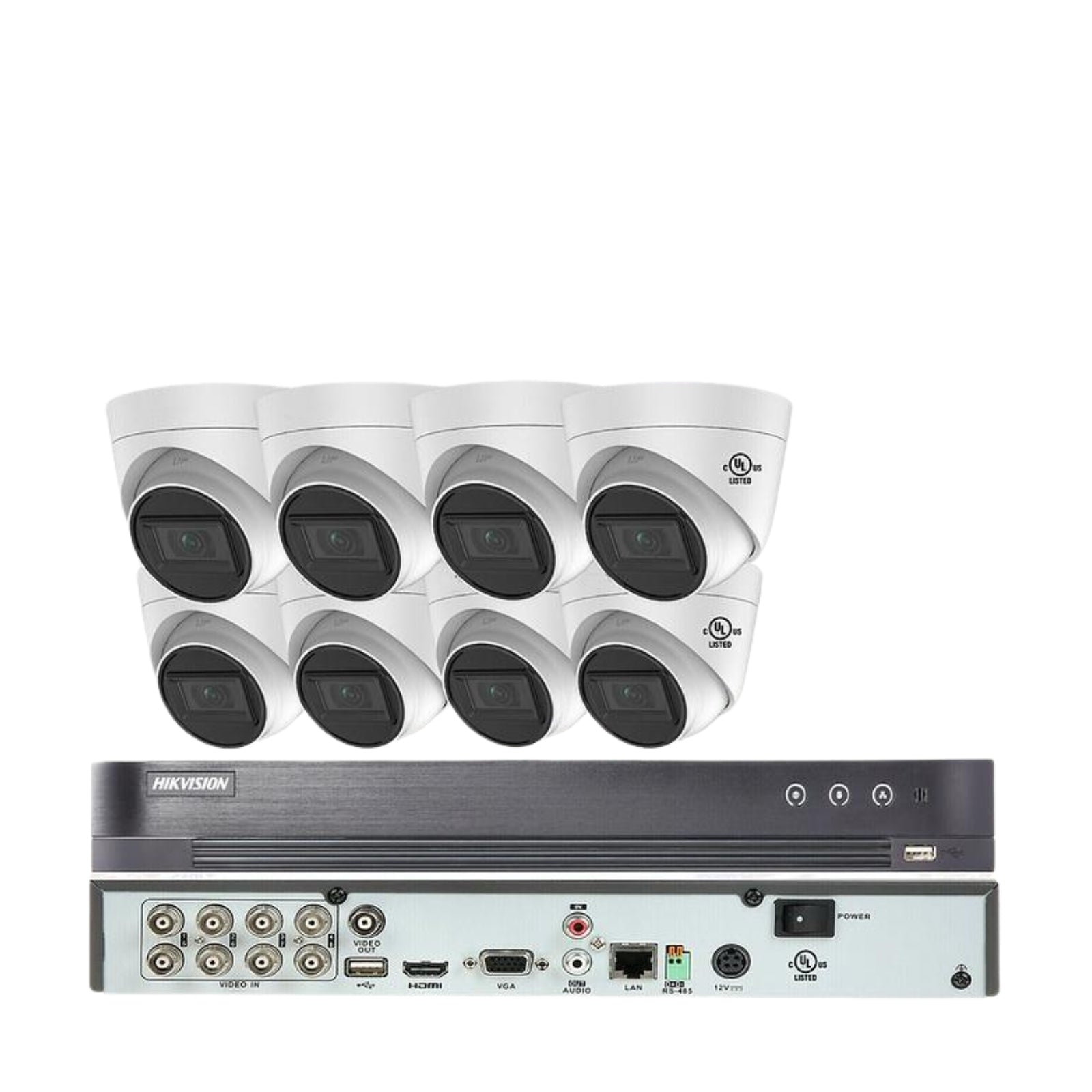

HIKVISION Security Camera System 4K CCTV Kit 8CH Turbo HD TURRET 8MP (2021)

HIKVISION Security Camera System 4K CCTV Kit 8CH Turbo HD TURRET 8MP (2021)

Product form

1 in stock 3-4 Business Days  Mid weeks
Monday to Friday we offer same day handling if the product is on stock and exceptions on holidays.

Weekends
We offer no deliveries in the weekends.

International
Depending on where you’re located, we offer next day delivery. Check status on this link

$510.27 $485.97

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on all orders
      • No hassle returns, 30 days return

      Data sheet PDF

      Product Description

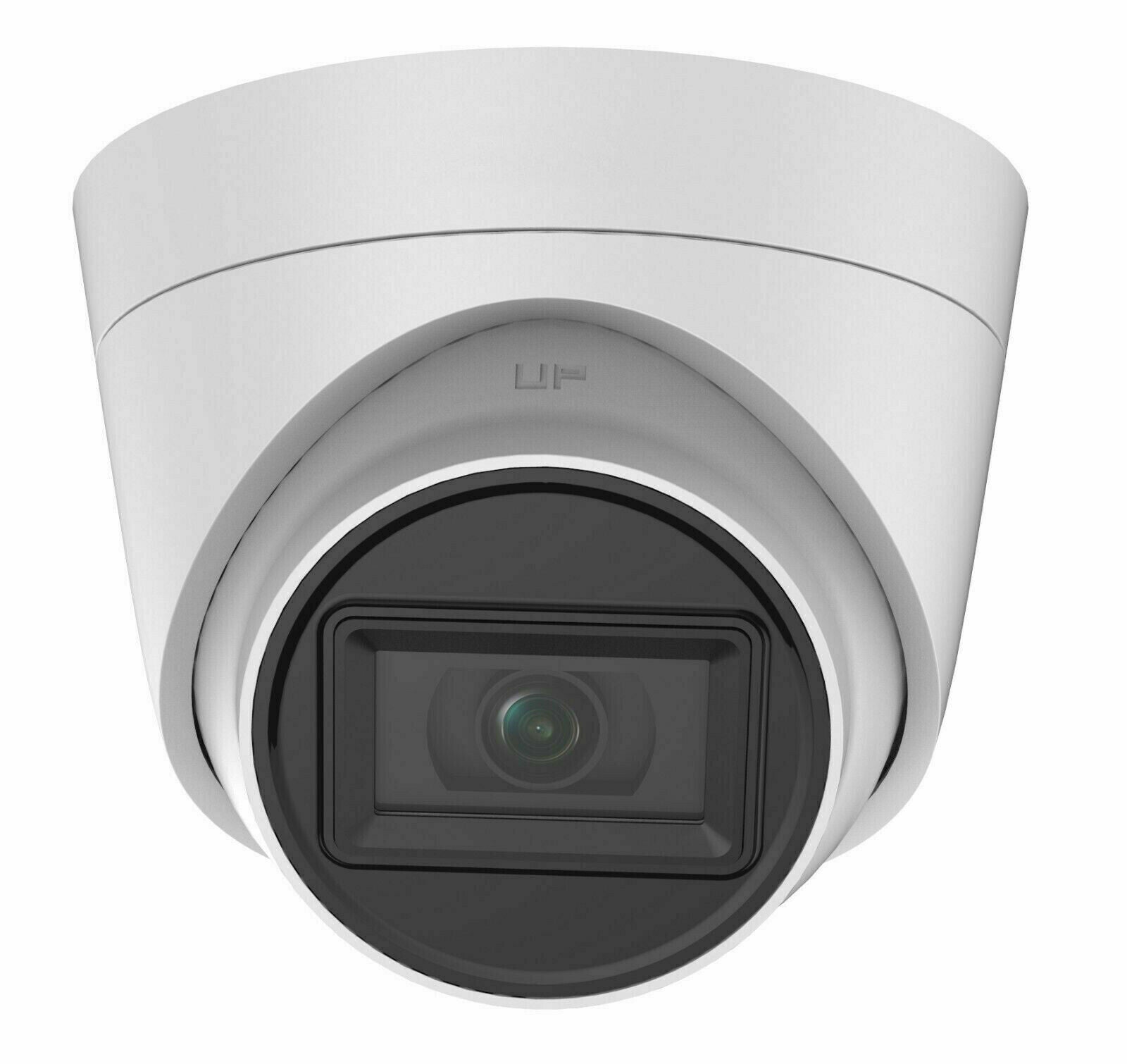

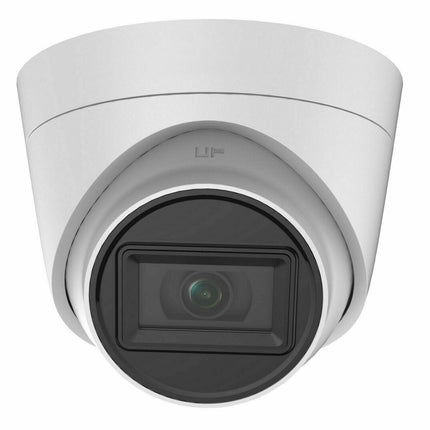

      5 MP Audio Fixed Turret Camera

      • 5 MP, 2560 ? 1944 resolution
      • Digital WDR
      • 2.8 mm, , 6 mm fixed focal lens
      • Smart IR, up to 40 m IR distance
      • Audio over coaxial cable, built-in mic
      • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
      • IP67

      Specification

        • Camera
        • Image Sensor5 MP CMOS
        • Max. Resolution2560 (H) ? 1944 (V)
        • Min. Illumination0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
        • Shutter Time

          PAL: 1/25 s to 1/50, 000 s

          NTSC: 1/30 s to 1/50, 000 s

        • Day & NightICR
        • Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 75?,Rotation 0 to 360?
        • Signal SystemPAL/NTSC
        • Lens
        • Lens Type2.8 mm, , 6 mm fixed lens
        • Focal Length & FOV

          2.8 mm, horizontal FOV: 85.5?,vertical FOV: 63.7?, diagonal FOV: 110.7?

          , horizontal FOV: 80.1?, vertical FOV: 63.7?, diagonal FOV: 105.9?

          6 mm, horizontal FOV: 57.1?, vertical FOV: 43.1?, diagonal FOV: 72.5?

        • Lens MountM12
        • Image
        • Image Parameters SwitchSTD/HIGH-SAT
        • Image SettingsBrightness, Sharpness, Mirror, Smart IR
        • Frame Rate

          TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

          CVI: 4MP@30fps, 4MP@25fps

          AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps

          CVBS: PAL/NTSC

        • Day/Night ModeAuto/Color/BW (Black and White)
        • Wide Dynamic Range (WDR)Digital WDR
        • White BalanceATW/MANUAL
        • AGCSupport
        • Interface
        • Video OutputSwitchable TVI/AHD/CVI/CVBS
        • General
        • Material

          Enclosure: Plastic

          Main Body: Metal

        • Dimension? 109.82 mm ? 91.03 mm (? 4.32" ? 3.6")
        • WeightApprox. 300 g (0.66 lb.)
        • Operating Condition-40? C to 60? C (-40? F to 140? F), Humidity 90% or less (no condensation)
        • CommunicationHIKVISION-C
        • LanguageEnglish
        • Power Supply

          12 VDC ? 25%

          *You are recommended to use one power adapter to supply the power for one camera.

        • Consumption

          Max. 3.7 W

        • IR RangeUp to 40 m
        • Approval
        • ProtectionIP67

      Data sheet PDF

      Product Description

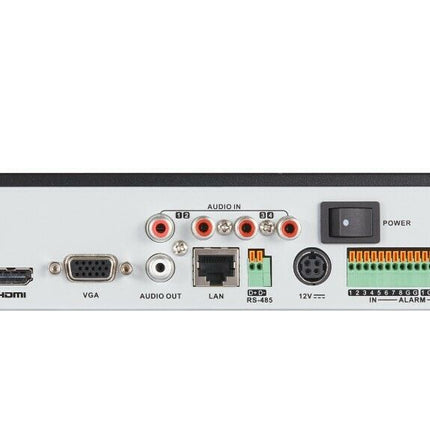

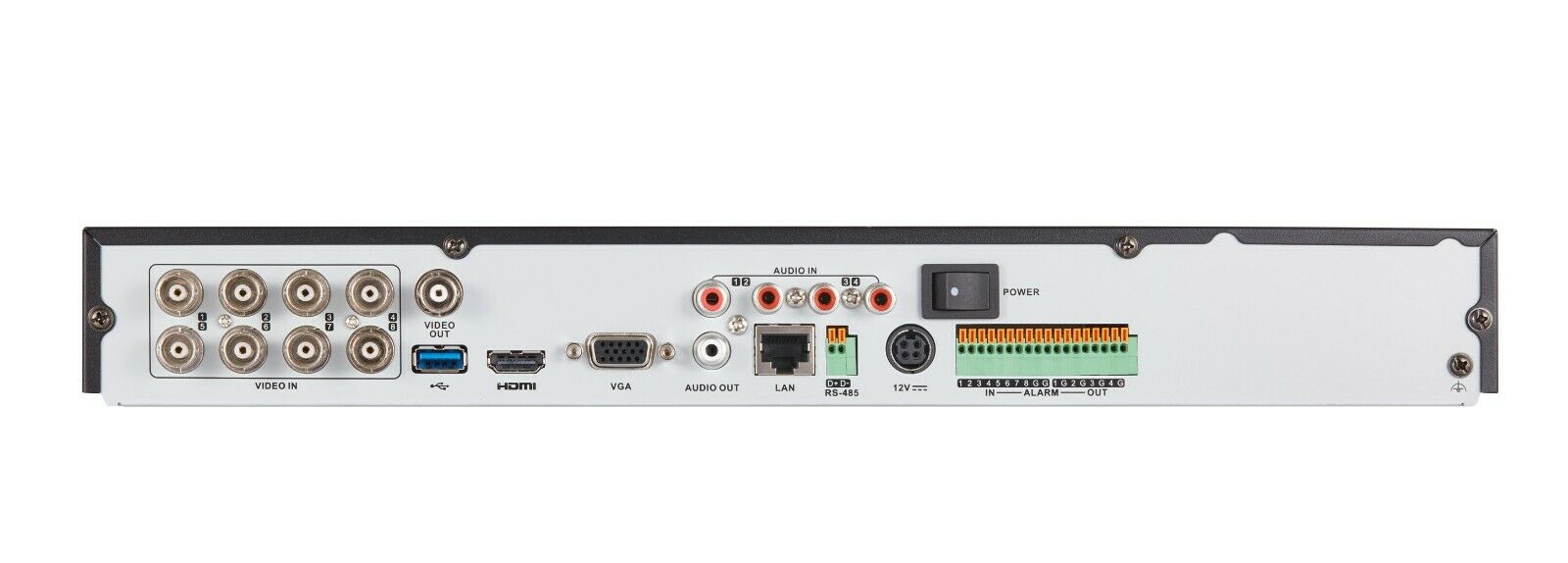

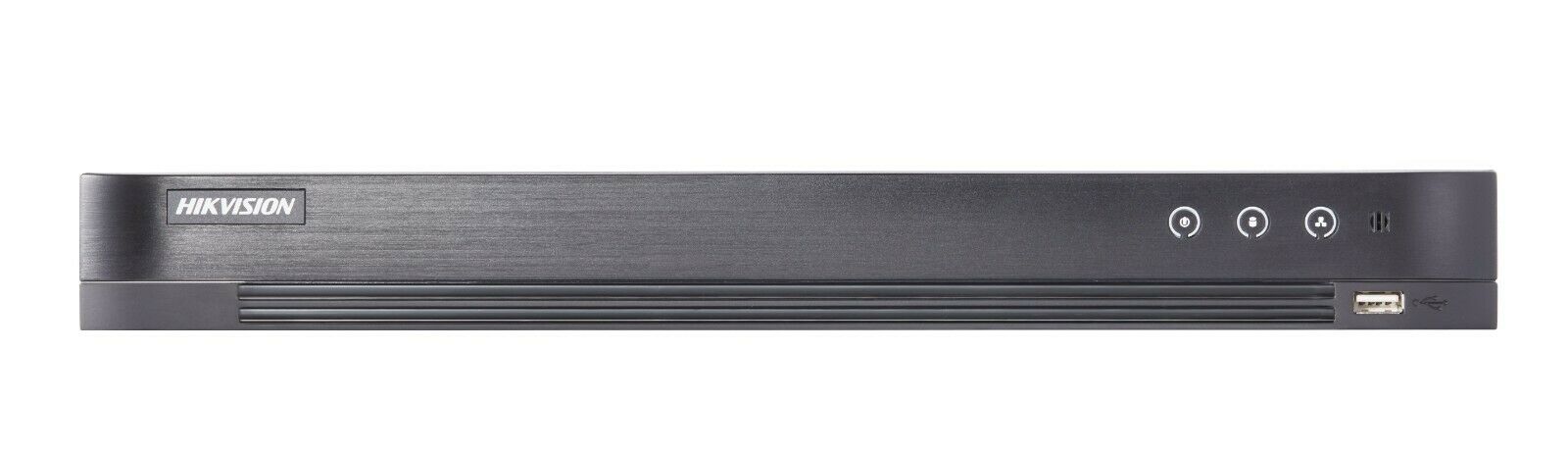

      8ch 5MP 1U H.265 AcuSense POC DVR

      • Transmits both HDTVI video and power over the same coaxial cable
      • 8chs and 2 HDD 1U DVR
      • Efficient H.265 pro+ compression technology
      • Encoding ability up to 8MP @8 fps ?5 MP @ 12 fps
      • 5 signals input adaptively ("Hybrid")
      • Up to 16 network cameras can be connected

      Specification

        • Motion Detection 2.0
        • Human/Vehicle Analysis

          Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

          Quick search by object or event type is supported;

        • Perimeter Protection
        • Line Crossing Detection/Intrusion DetectionUp to 4ch
        • Facial Detection
        • Facial Detection And CaptureFace picture detection, face picture search
        • Recording
        • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
        • Encoding Resolution8 MP/5 MP/3k/5MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
        • Frame Rate

          Main stream:

          8 MP@8 fps/3k/5MP@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

          1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

          Sub-stream:

          WD1/4CIF/CIF@25 fps (P)/30 fps (N)

        • Video Bitrate32 Kbps to 10 Mbps
        • Dual-StreamSupport
        • Stream TypeVideo, Video & Audio
        • Audio CompressionG.711u
        • Audio Bitrate64 Kbps
        • Video And Audio
        • IP Video Input

          4ch (up to 12-ch)

          Enhanced IP mode on: 8ch (up to 16ch), each up to 4 Mbps

          Up to 8 MP resolution

          Support H.265+/H.265/H.264+/H.264 IP cameras

        • Analog Video Input

          8ch;

          BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection

        • PoC Camera Input

          Support Hikvision PoC camera

        • HDMI Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
        • CVBS InputPAL/NTSC
        • CVBS Output

          1-ch, BNC (1.0 Vp-p, 75 ?),

          resolution: PAL: 704 ? 576, NTSC: 704 ? 480

        • Synchronous Playback8ch
        • HDTVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 3k/5MP(2960 x 1665)@20 fps, 5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
        • AHD Input5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
        • VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
        • HDCVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 5 MP(2592 ? 1944)@20 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
        • Video Output ModeHDMI/VGA simultaneous output
        • Audio Output1-ch, RCA (Linear, 1 K?)
        • Audio Input

          4ch, RCA (2.0 Vp-p, 1 K?)

          4ch via coaxial cable

        • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the audio input)
        • Network
        • Total Bandwidth128 Mbps
        • Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
        • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
        • Remote Connection64
        • Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
        • Auxiliary Interface
        • SATA2 SATA interfaces
        • CapacityUp to 10 TB capacity for each disk
        • Serial InterfaceRS-485 (half-duplex)
        • USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 2.0
        • Alarm In/Out8/4
        • General
        • Power Supply48 VDC, 2.5 A
        • Consumption? 15 W (without HDD)
        • Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
        • Working Humidity10% to 90%
        • Dimension (W ? D ? H)380 ? 320 ? 48 mm (15.0 ? 12.6 ? 1.9 inch)
        • Weight? 3.4 kg (without HDD, 7.5 lb.)
