Data sheet PDF Product Description

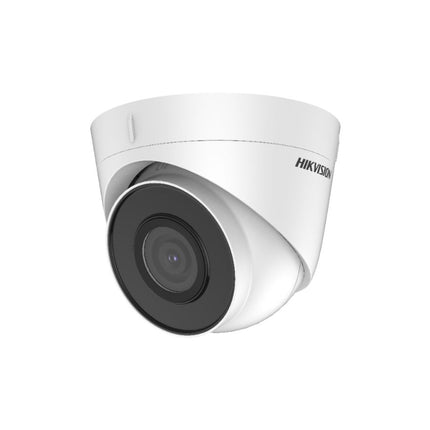

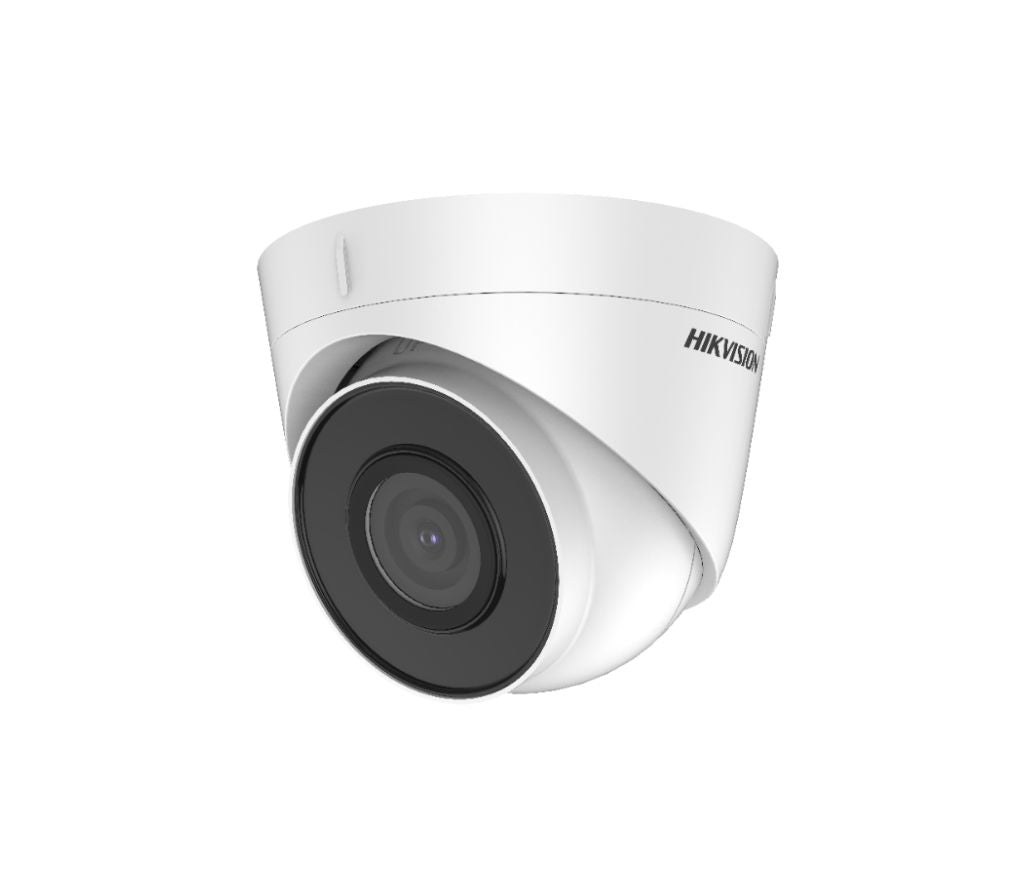

2 MP Fixed Turret Network Camera
High quality imaging with 2 MP resolution Efficient H.265+ compression technology Clear imaging even with strong back lighting due to DWDR technology Water and dust resistant (IP67) EXIR 2.0: advanced infrared technology with long IR range Enhanced safety with discreet and economical built-in microphone (IP 66) Specification
Camera Image Sensor1/2.8" progressive scan CMOS Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON) Shutter Speed1/3 s to 1/100, 000 s Slow ShutterYes Day &NightIR cut filter Wide Dynamic RangeDigital WDR Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotation: 0? to 360? DNR3D DNR Lens Lens2.8 mm, 4 mm, 6 mm Auto-IrisNo ApertureF2.0 FocusNo FOV2.8 mm, horizontal FOV 114.5?, vertical FOV 62?, diagonal FOV 135.5?,4 mm, horizontal FOV 86?, vertical FOV 46?, diagonal FOV 102?,6 mm, horizontal FOV 54?, vertical FOV 30?, diagonal FOV 62? Lens MountM12 Illuminator IR RangeUp to 30 m Wavelength850 nm Video Max. Resolution1920 ? 1080 Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG H.264 TypeBaseline Profile/Main Profile/High Profile H.265 TypeMain Profile Video Bit Rate32 Kbps to 8 Mbps Smart Feature-Set Region Of Interest1 fixed region for main stream and sub-stream Image Image EnhancementBLC, 3D DNR Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night SwitchAuto, scheduled Main Stream Max. Frame Rate50Hz: 25fps (1920 ? 1080, 1280 ? 960, 1280 ? 720),60Hz: 30fps (1920 ? 1080, 1280 ? 960, 1280 ? 720) Sub-Stream Max. Frame Rate50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240),60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240) Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour APIONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live ViewUp to 6 channels User/HostUp to 32 users,3 levels: Administrator, Operator and User ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ Alarm TriggerMotion detection, video tampering alarm, illegal login Interface Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port Compression Standard H.264+Main stream supports H.265+Main stream supports General Firmware Version5.5.2 General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark Startup And Operating Conditions-30 ?C to 50 ?C (-22 ?F to 122 ?F), humidity: 95% or less (non-condensing) Power Supply12 VDC ? 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3) MaterialMetal & Plastic DimensionsCamera: ? 110 mm ? 93.2 mm ( 4.3" ? 3.7"),With package: 150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6") WeightCamera: approx. 360 g (0.8 lb.),With package: approx. 610 g (1.3 lb.) Power Consumption And Current12 VDC, 0.4 A, max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W Interface ProtectionIP67
Data sheet PDF Product Description

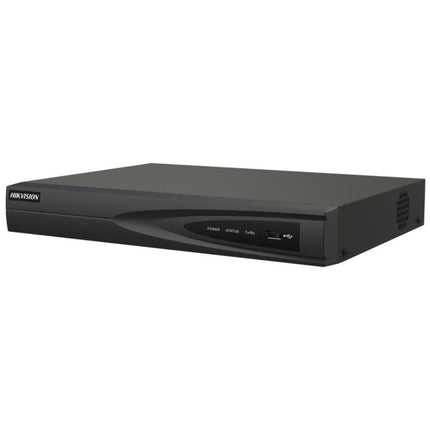

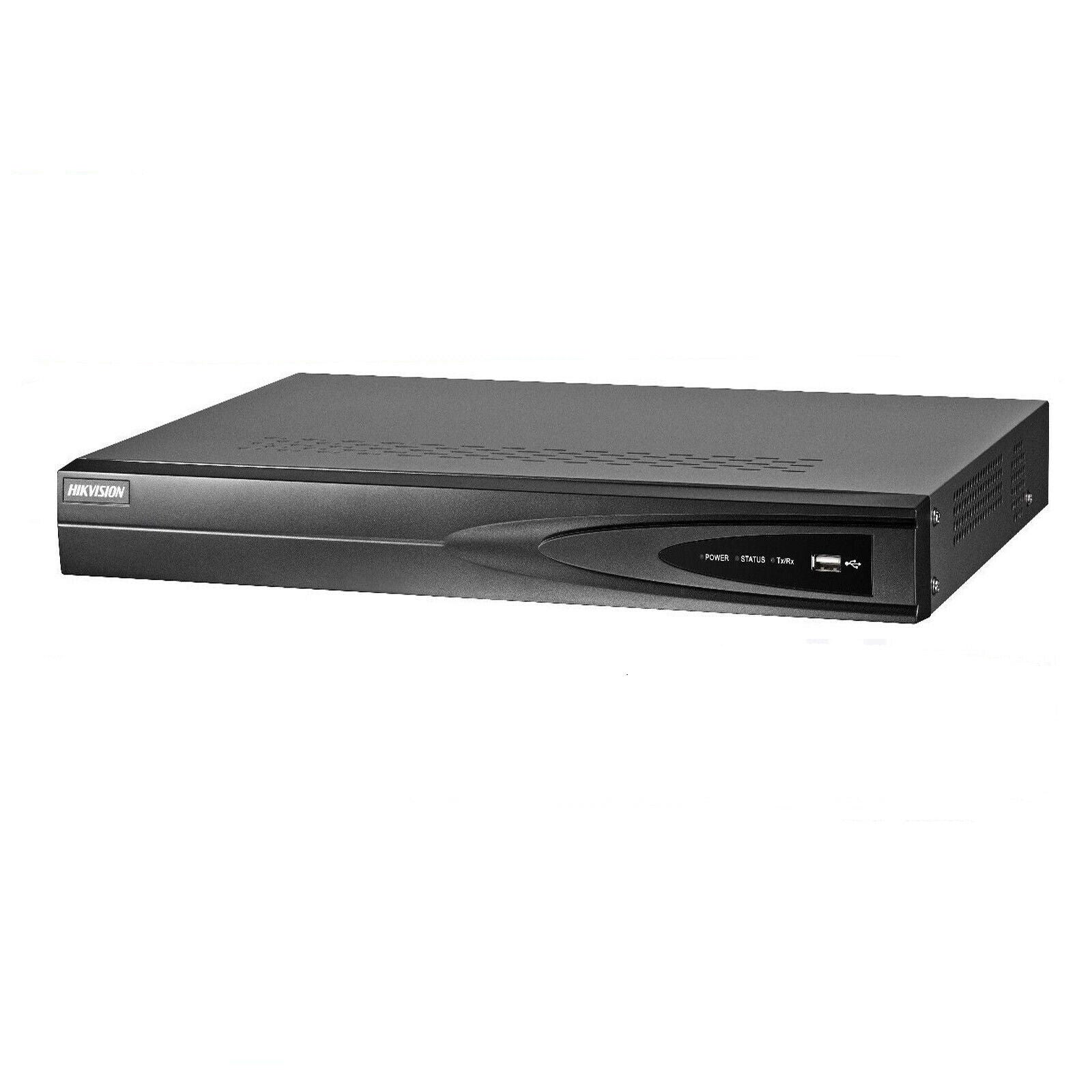

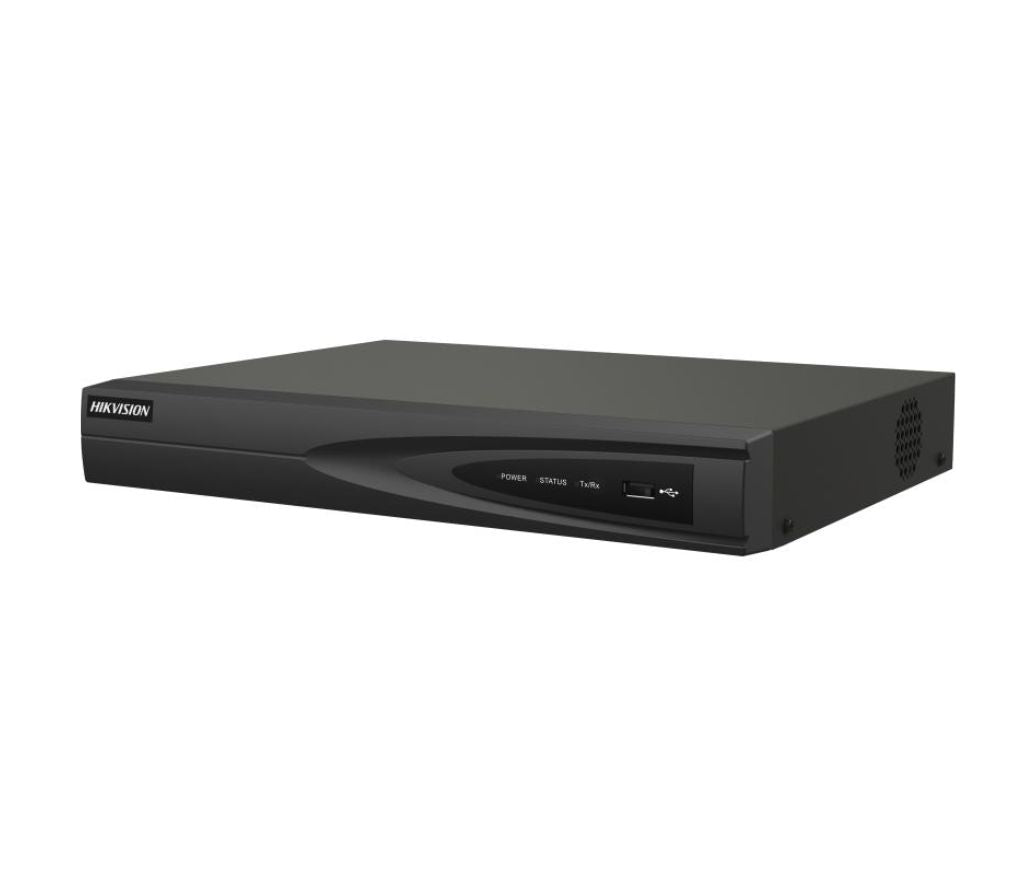

4ch 1U 4 PoE 4K NVR
Up to 4ch IP camera inputs H.265+/H.265/H.264+/H.264 video formats Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity Up to 40 Mbps incoming bandwidth Specification
Motion Detection 2.0 Human/Vehicle Analysis1-ch;4ch Recording Stream TypeVideo, Video & Audio Audio CompressionG.711ulaw/G.711alaw/G.722/G.726 Video And Audio IP Video Input4ch Incoming Bandwidth40 Mbps Outgoing Bandwidth80 Mbps HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K?4096x2160?/30Hz?4K (3840?2160) /30Hz, 2K?2560?1440?/60Hz?1920?1080/60Hz?1600?1200/60Hz?1280?1024/60Hz?1280?720/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K (3840 ? 2160)/30Hz, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K?4096x2160?/30Hz?4K (3840?2160) /30Hz, 2K?2560?1440?/60Hz?1920?1080/60Hz?1600?1200/60Hz?1280?1024/60Hz?1280?720/60Hz ,HDMI/VGA simultaneous output, VGA Output1-ch, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz ;HDMI/VGA simultaneous output,;1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz;1-ch, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz ;,HDMI/VGA simultaneous output, Video Output ModeHDMI/VGA simultaneous output Audio Output1-ch, RCA (Linear, 1 K?) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?) Decoding Decoding FormatH.265+,H.265,H.264+,H.264 Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) Synchronous Playback4ch Network Remote Connection32 Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface PoE Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power? 50 W StandardIEEE 802.3 af/at Auxiliary Interface SATA1 SATA interface CapacityUp to 8 TB capacity for each disk USB Interface2 ? USB 2.0 Alarm In/OutN/A (4/1 is optional) General Power Supply48 VDC, 1.35 A Consumption? 10 W (without HDD, and PoE off) Working Temperature-10 to +55? C (+14 to +131? F) Working Humidity10% to 90% Dimension (W ? D ? H)320 ? 240 ? 48 mm (12.4" ? 9.4" ? 1.9") Weight? 1 kg (without HDD, 2.2 lb.) Certification FCCPart 15 Subpart B, ANSI C63.4-2014 CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
