Data sheet PDF

Product Description

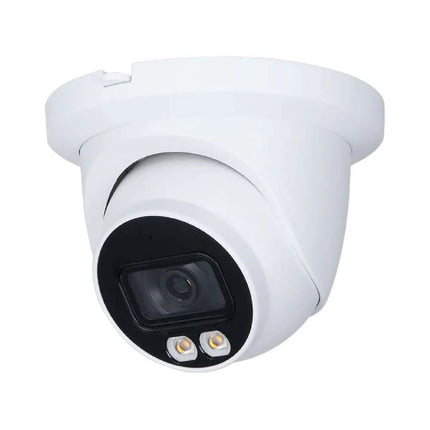

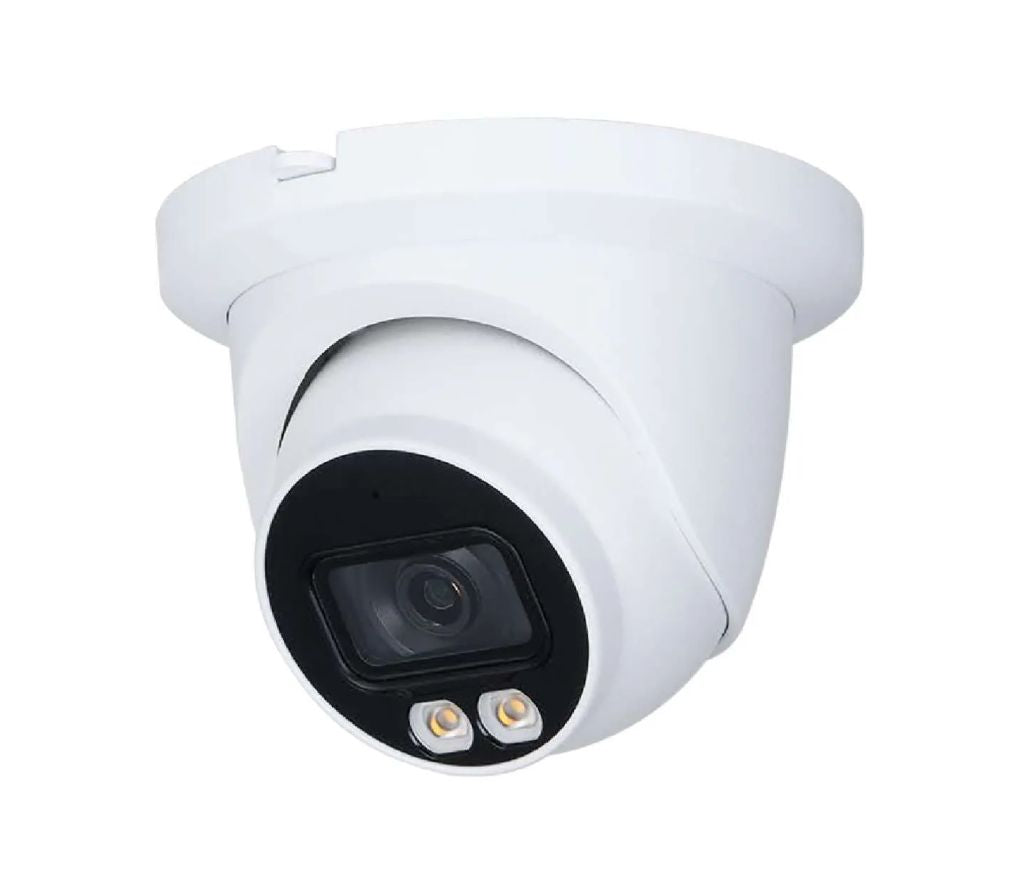

4MP Full-color Warm LED Fixed Security Camera HNC3I349TM-ASN1/28

? Housing: Turret
? Resolution: 4MP
? Lens: 2.8mm Fixed
? Night Vision: Full Time Color, LED, Starlight
? WDR: True WDR
? Water Resistance Rating : IP67
? NDAA Compliant: No
? VCA Features: Basic VCA, Human / Vehicle Classification
? Hardware Features: Built-in Mic, POE, SD Card

4MP Full-color Security Camera Features

• 4MP, 1/2.7? CMOS image sensor, low illuminance, high image definition,
• Outputs Maximum resolution is 4MP (2688 x 1520 pixels) at 30 frames per second.
• H.265 codec, high compression rate, ultra-low bit rate,
• Built-in Warm LED, maximum LEDs distance: 30m,98ft.
• Region of Interest (ROI), SMART H.264 /H.265, flexible coding, adaptable to a wide range of bandwidth and storage conditions.
• Rotation mode, True WDR, 3D DNR, HLC, BLC, and digital watermarking are all features that can be used in a variety of monitoring scenarios.
• Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
• Abnormality detection for Motion detection, video tampering, scene changing or switching, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection,
• Micro SD card support up to 256 GB, built-in microphone
• 12V DC/PoE power support
• IP67 protection
• SMD Plus also known as SMD+

What is Full-Color and Why does it Important?
? Detecting crimes such as theft, vandalism, trespassing, and other criminalities are difficult, especially during nighttime or low-light conditions.

? Diamond series Full-Color technology provides an effective true color solution for a wide range of applications, including commercial, educational, residential, factory, and retail environments.

? Full-Color Technology solves several issues:

• A. Protection of people and property.
• B. Human and vehicle detection that really works highly effective during nighttime or low-light situations.
• C. Efficient forensic data collection through brighter monitoring.
• D. False alarm reduction through AI.

Where need Full-color Security Camera?

Suitable for a Wide Range of Applications
Several Full-Color cameras are available to accommodate various lighting circumstances and requirements. The white-light LED variant provides a true-color image independent of illumination circumstances in full darkness. Non-LED variants are a wonderful option for applications with low ambient light and where the lack of additional lighting is preferred. We also provide entire form factors to meet the needs of a wide range of applications.

This 4MP Full-color IP Security Camera works with: Diamond Networking Video Recorder (NVR)
