Product Description

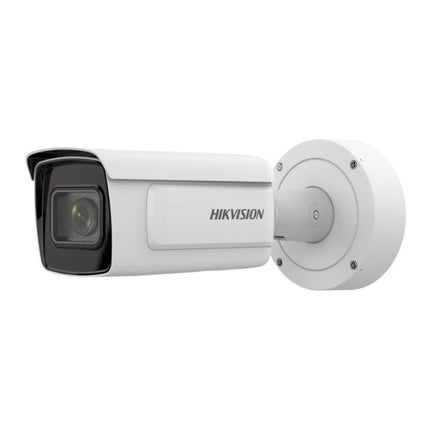

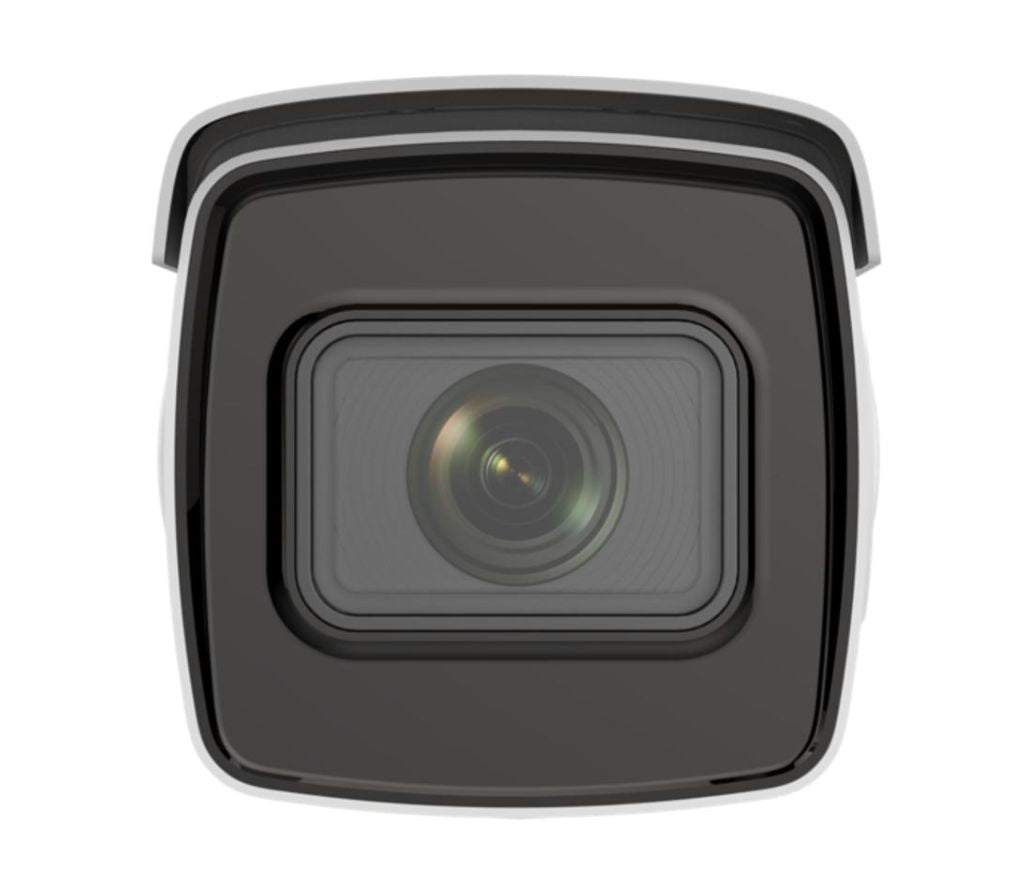

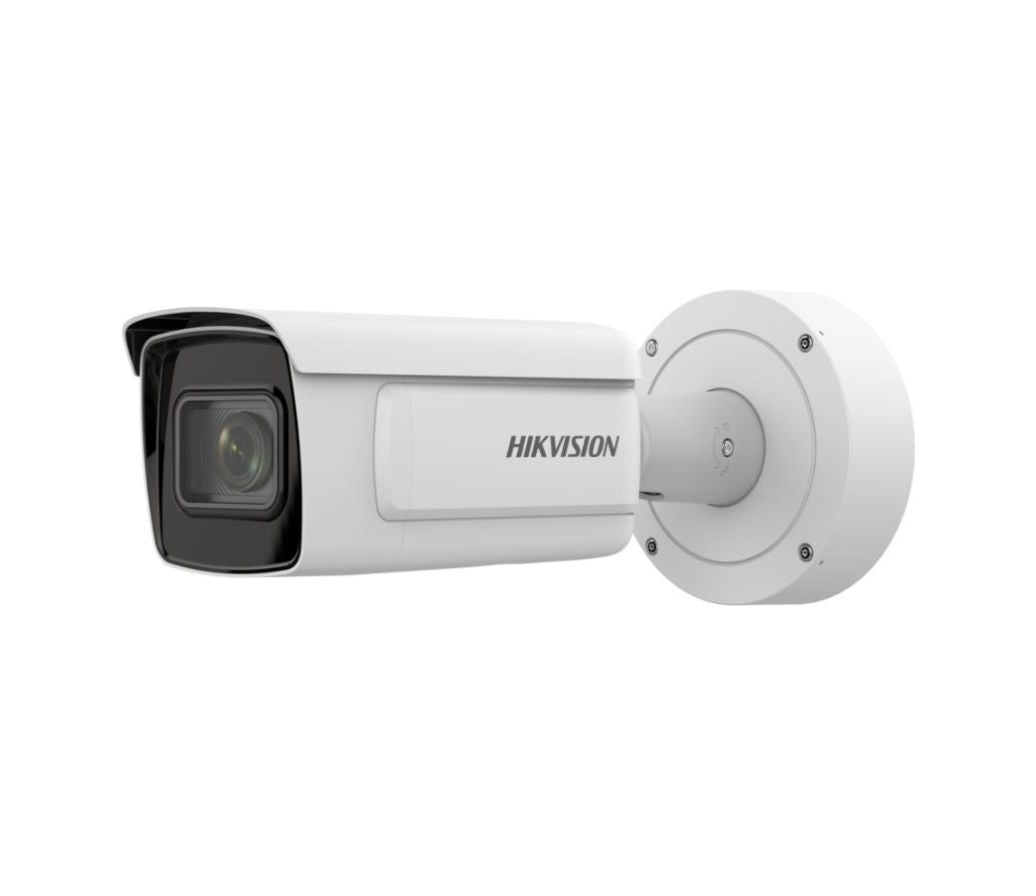

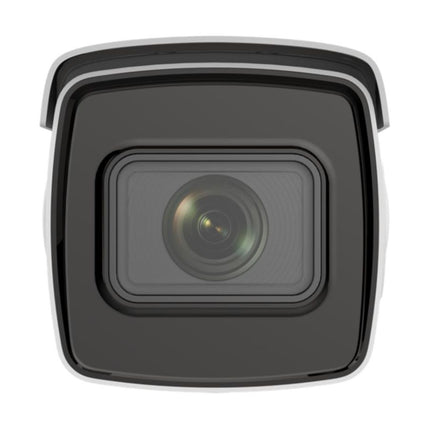

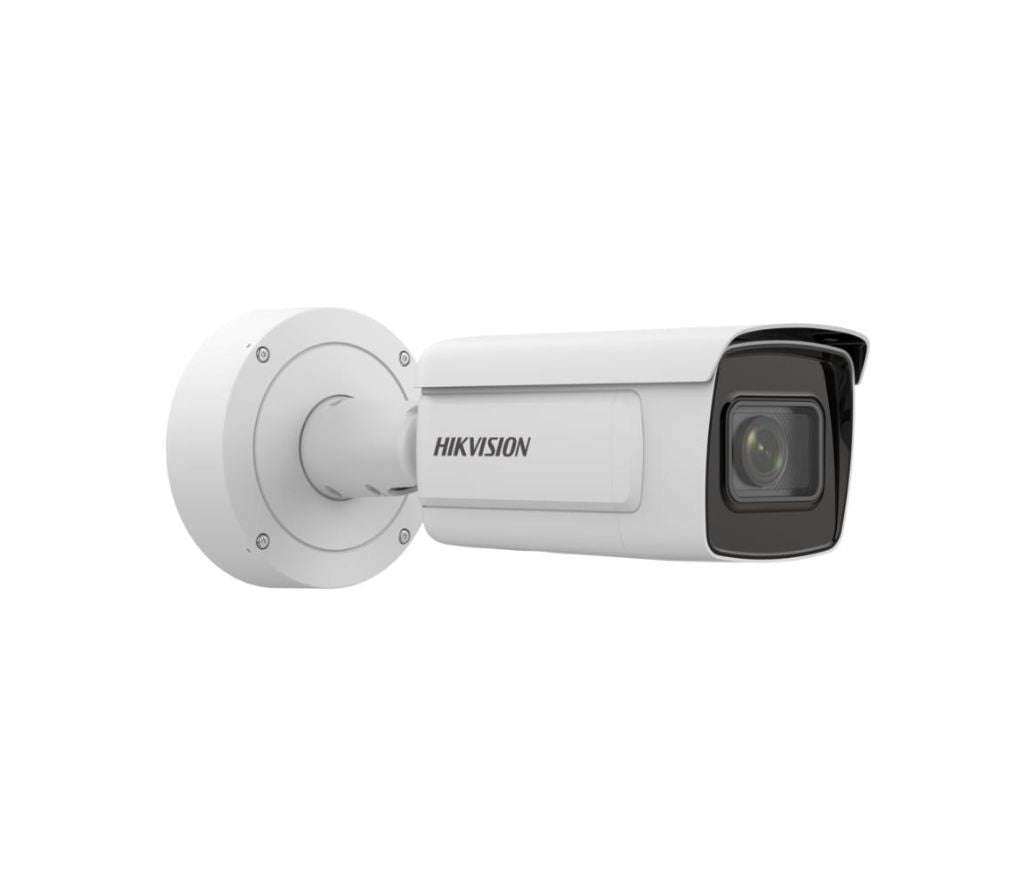

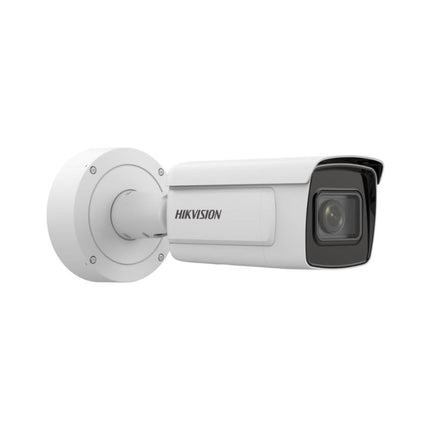

12MP DeepinView Moto Varifocal Bullet Camera

• High quality imaging with 12 MP resolution
• Clear imaging against strong back light due to DWDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• Advanced streaming technology that enables smooth live view and data self-correcting in poor network
• 5 streams and up to 5 custom streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)









Specification

Camera

Lens

Illuminator

Video

Audio

Network


Interface

Event

Deep Learning Function

General

Approval

• Camera
• Image Sensor1/1.7" Progressive Scan CMOS
• Max. Resolution4000 ? 3000
• Min. IlluminationColor: 0.009 Lux @ (F1.2, AGC ON); B/W: 0.0009 Lux @ (F1.2, AGC ON)
• Shutter Time1 s to 1/100,000 s
• Day & NightIR cut filter
• Lens
• FocusAuto, semi-auto, manual
• Focal Length & FOV

  2.8 to 12 mm, horizontal FOV: 96.2? to 36.4?, vertical FOV: 69.3? to 27.2?, diagonal FOV: 129.4? to 45.5?

  8 to 32 mm, horizontal FOV: 40.2? to 14.4?, vertical FOV: 29.6? to 10.8?, diagonal FOV: 51.47? to 17.8?

• Aperture

  2.8 to 12 mm: F1.2 to F2.5

  8 to 32 mm: F1.7 to F1.73

• Lens MountIntegrated
• Illuminator
• Supplement Light Range

  2.8 to 12 mm: 50 m

  8 to 32 mm: 100 m

• IR Wavelength850 nm
• Smart Supplement LightYes
• Video
• Main Stream

  50 Hz: 25 fps (4096 ? 2160, 3840 ? 2160, 3072 ? 1728, 2560 ? 1440, 1920 ? 1080, 1280 x 720)

  60 Hz: 30 fps (4096 ? 2160, 3840 ? 2160, 3072 ? 1728, 2560 ? 1440, 1920 ? 1080, 1280 ? 720)

  50 Hz: 20 fps (4000 ? 3000)

  60 Hz: 20 fps (4000 ? 3000)

• Sub-Stream

  50 Hz: 25 fps (704 ? 576, 640 ? 480)

  60 Hz: 30 fps (704 ? 480, 640 ? 480)

• Third Stream

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 720, 704 ? 576, 640 ? 480)

  60 Hz: 30 fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480)

• Fourth Stream

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 720, 704 ? 576, 640 ? 480)

  60 Hz: 30 fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480)

• Fifth Stream

  50 Hz: 25 fps (704 ? 576, 640 ? 480)

  60 Hz: 30 fps (704 ? 480, 640 ? 480)

• Custom Stream

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 720, 704 ? 576, 640 ? 480)

  60 Hz: 30 fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream:H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)4 fixed regions for each stream
• Target CroppingYes
• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/32 Kbps (PCM)/8 to 320 Kbps (MP3)
• Audio TypeMono sound
• Network
• Simultaneous Live ViewUp to 20 channels
• APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Smooth StreamingYes
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
• Network Storage

  NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE8+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

  Local service: Chrome 41.0+, Firefox 30.0+

• Image
• Wide Dynamic Range (WDR)Digital WDR
• Day/Night SwitchDay, Night, Auto, Schedule, Alarm Trigger
• Picture OverlayLOGO picture can be overlaid on video with 128 ? 128 24 bit bmp format
• Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
• Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR?52 dB
• Interface
• Alarm2 input, 2 outputs (max. 24 VDC, 1 A)
• Audio

  -IZHY:

  1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 K?, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 ?, interface type: non-equilibrium, mono sound

• RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Video Output1 Vp-p Composite Output (75?/CVBS) (For debugging only)
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Reset KeyYes
• Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• Power OutputWith -Y: 12 VDC, max. 100 mA (supported by all power supply types)
• Event
