Product Description

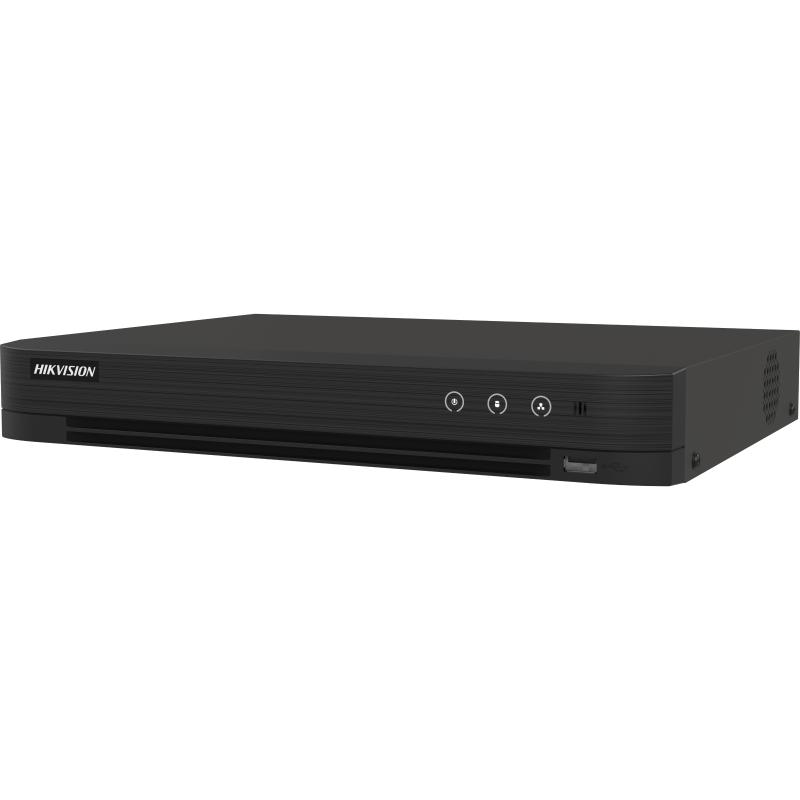

4-ch 1080p 1U H.265 AcuSense DVR

• 4 channels and 1 HDD 1U AcuSense DVR
• False alarm reduction through human and vehicle target classification based on deep learning
• Efficient H.265 pro+ compression technology
• Encoding ability up to 3K/5M Lite @ 12 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 6 network cameras can be connected.

Specification
Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights;
Quick search by object or event type is supported;
Perimeter Protection
Human/Vehicle Analysis Up to 2-ch
Facial Detection
Facial Detection and Capture Face picture detection, face picture search
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
When 1080p Lite mode is not enabled:
4 MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF
Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25
fps (P)/30 fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30
fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps
(N)
Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 6 Mbps
Dual-stream Support
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Video and Audio
IP Video Input
1-ch (up to 5-ch?
Up to 6 MP resolution
Enhanced IP mode on:
2-ch (up to 6-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 4-ch;BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
HDMI Output
1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz,
HDMI/VGA simultaneous output
CVBS Input PAL/NTSC
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 ?),
resolution: PAL: 704 ? 576, NTSC: 704 ? 480
Synchronous playback 4-ch
HDTVI Input
4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps,
720p@25 fps *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHIM1/S, for channel 1/2 of iDS-7208HQHI-M1/S, and for channel 1/2/3/4 of iDS7216HQHI-M1/S.
AHD Input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
VGA Output 1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
HDCVI Input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
Audio Output 1-ch, RCA (Linear, 1 K?)
Audio Input 1-ch, RCA (2.0 Vp-p, 1 K?),4-ch via coaxial cable
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
Network
Total Bandwidth 72 Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,
ONVIF
Remote Connection 32
Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 10 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
USB Interface 2 ? USB 2.0
Alarm In/Out N/A
General
Power Supply 12 VDC, 1.5A
Consumption ? 18 W
Working Temperature -10 ?C to +55 ?C (+14 ?F to +131 ?F)
Working Humidity 10% to 90%
Dimension (W ? D ? H) 315 ? 242 ? 45 mm (12.4 ? 9.5 ? 1.8 inch)
Weight ? 1.16 kg (2.6 lb)
