Data sheet PDF

Product Description

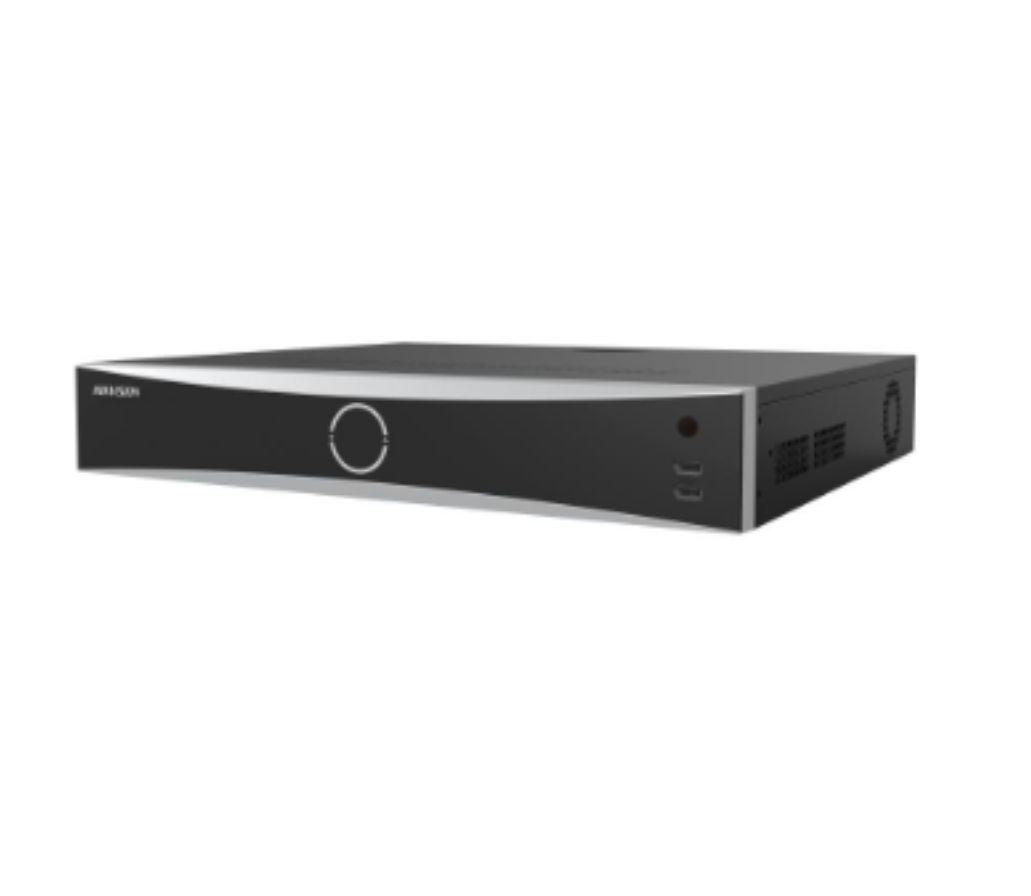

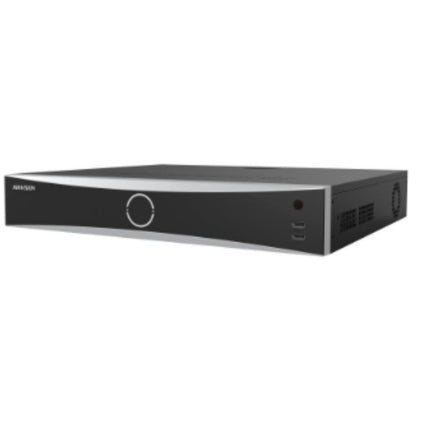

32-ch 1.5U 16 PoE 4K DeepinMind NVR

• H.265+/H.265/H.264+/H.264 video formats
• Intelligent analytics based on deep learning algorithm
• Up to 16-ch perimeter protection
• Up to 8-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture
• Up to 8-ch video structuralization
• Up to 32-ch IP cameras can be connected
• Up to 16-ch 1080p decoding capability

Specification

• Facial Recognition

• Perimeter Protection

• Video Structuralization

• Video And Audio

• Decoding

• Network

• PoE

• Auxiliary Interface

• General

• Certification

• Facial Recognition
• Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
• Face Picture Library

  Up to 16 face picture libraries, with up to 100,000 face pictures in total

  (each picture ? 4 MB, total capacity ? 20 GB)

• Facial Detection And Analytics Performance8-ch 8 MP human face capture (HD network camera, up to 8 MP, H.264/H.265)
• Face Picture Comparison16-ch face pictures comparison alarm

• Perimeter Protection
• Human/Vehicle AnalysisUp to 16-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

• Video Structuralization
• Structured AnalysisUp to 8-ch 2 MP (HD network camera, up to 8 MP, H.264/H.265) live video structuralization analysis
• Face Picture LibraryUp to 16 face picture libraries, with up to 100,000 face pictures in total
• Face Picture Comparison8-ch face picture comparison alarm

• Video And Audio
• IP Video Input32-ch?Up to 12 MP resolution
• Incoming Bandwidth320 Mbps
• Outgoing Bandwidth256 Mbps
• HDMI 1 Output4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• HDMI 2 Output1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• VGA Output1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz, HDMI1/VGA Simultaneous Output
• Video Output ModeHDMI/VGA independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)

• Decoding
• Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
• Decoding Capability16-ch@1080p (30 fps)
• Synchronous Playback16-ch
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF

• Network
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
• Remote Connection128
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• PoE
• Interface16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
• Power? 200 W
• StandardIEEE 802.3 af/at

• Auxiliary Interface
• SATA4 SATA interfaces
• ESATA1 eSATA interface
• CapacityUp to 10 TB capacity for each HDD
• Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
• USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
• Alarm In/Out16/8

• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption? 30 W
• Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
• Working Humidity10 to 90 %
• Chassis19-inch rack-mounted 1.5U chassis
• Dimension (W ? D ? H)445 ? 400 ?71 mm ( 17.5"? 15.7" ? 2.8")
• Weight? 5 kg (11 lb)

• Certification
• Obtained CertificationCE, FCC, UL, CB, WEEE, BIS, IC, RCM, KC, LOA
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
