Product Description

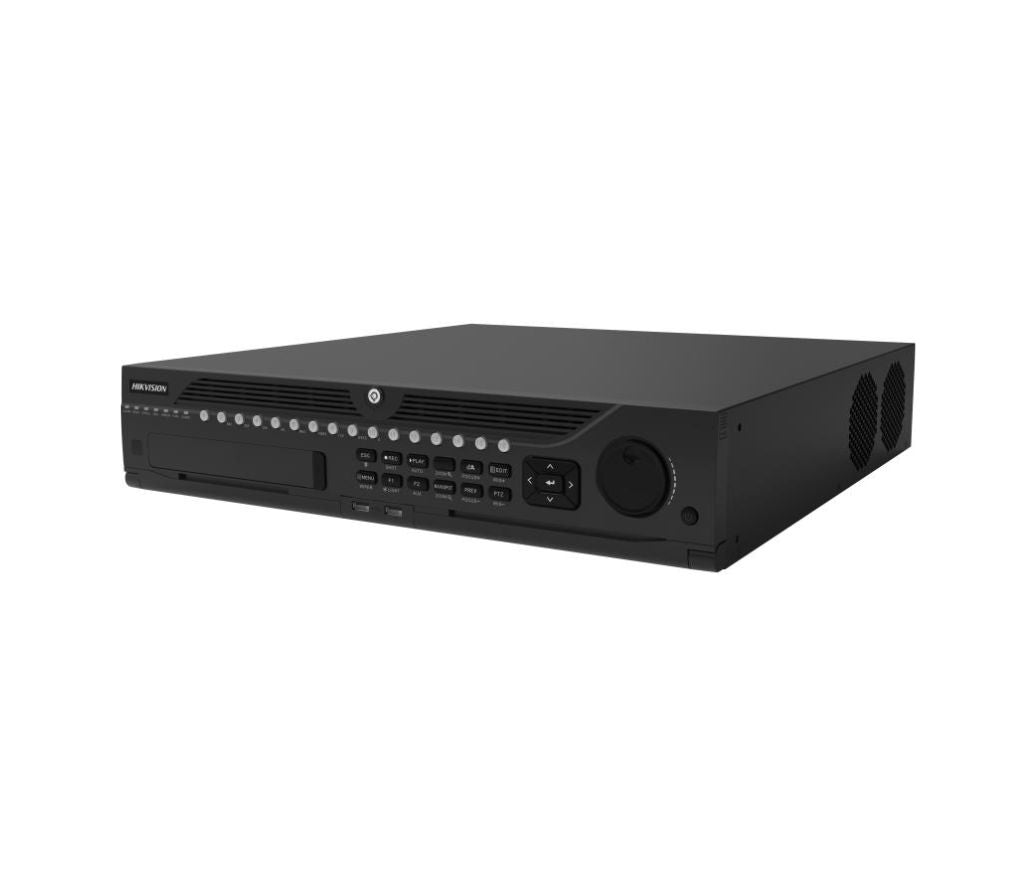

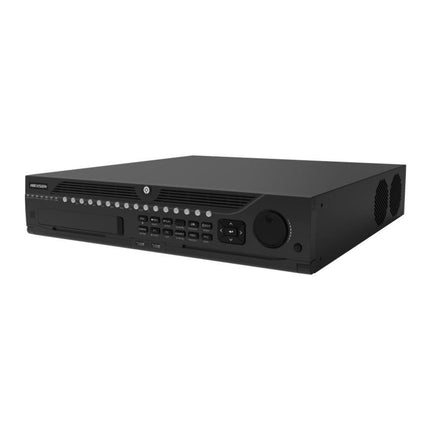

32ch 5MP 2U H.265 AcuSense DVR

• Deep learning-based perimeter protection
• Deep learning-based motion detection 2.0 for all analog channels
• Up to 64ch network camera inputs
• Up to 32ch analog camera inputs and 8 SATA interfaces
• "Hybrid" video inputs
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
• Up to 8 MP@8 fps/5 MP@12 fps encoding capability

Specification

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Perimeter Protection
• Human/Vehicle AnalysisUp to 16ch, for channel 1/2/3/4/9/10/11/12/17/18/19/20/25/26/27/28 only
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution8 MP/3k/5MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate

  Main stream:

  8 MP@8 fps/3k/5MP@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 10 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Video And Audio
• IP Video Input

  32ch (up to 64ch);

  Up to 12 MP resolution;

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input32ch;BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
• Incoming Bandwidth320 Mbps
• Outgoing Bandwidth256 Mbps
• HDTVI Input8 MP, 3k/5MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
• AHD Input5 MP, 4 MP, 720p25, 720p30, 1080p25, 1080p30
• CVBS InputPAL/NTSC
• HDCVI Input4 MP, 720p25, 720p30, 1080p25, 1080p30
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
• HDMI 1 Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• HDMI 2 Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
• Audio Input16ch, RCA (2.0 Vp-p, 1 K?)
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (independent)
• Synchronous Playback16ch
• Network
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF, SNMP
• Remote Connection128
• Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
• Auxiliary Interface
• SATA8 SATA interfaces
• ESATASupport
• CapacityUp to 12 TB capacity for each disk
• Serial InterfaceRS-232, RS-485 (full-duplex), Keyboard
• USB InterfaceFront panel: 2 ? USB 2.0,Rear panel: 1 ? USB 3.0,
• Alarm In/Out16/8
• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption? 55 W (without HDD)
• Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)445 ? 465 ? 88 mm (17.5 ? 18.3 ? 3.5 inch)
• Weight? 9 kg (without HDD, 19.8 lb.)
