Product Description

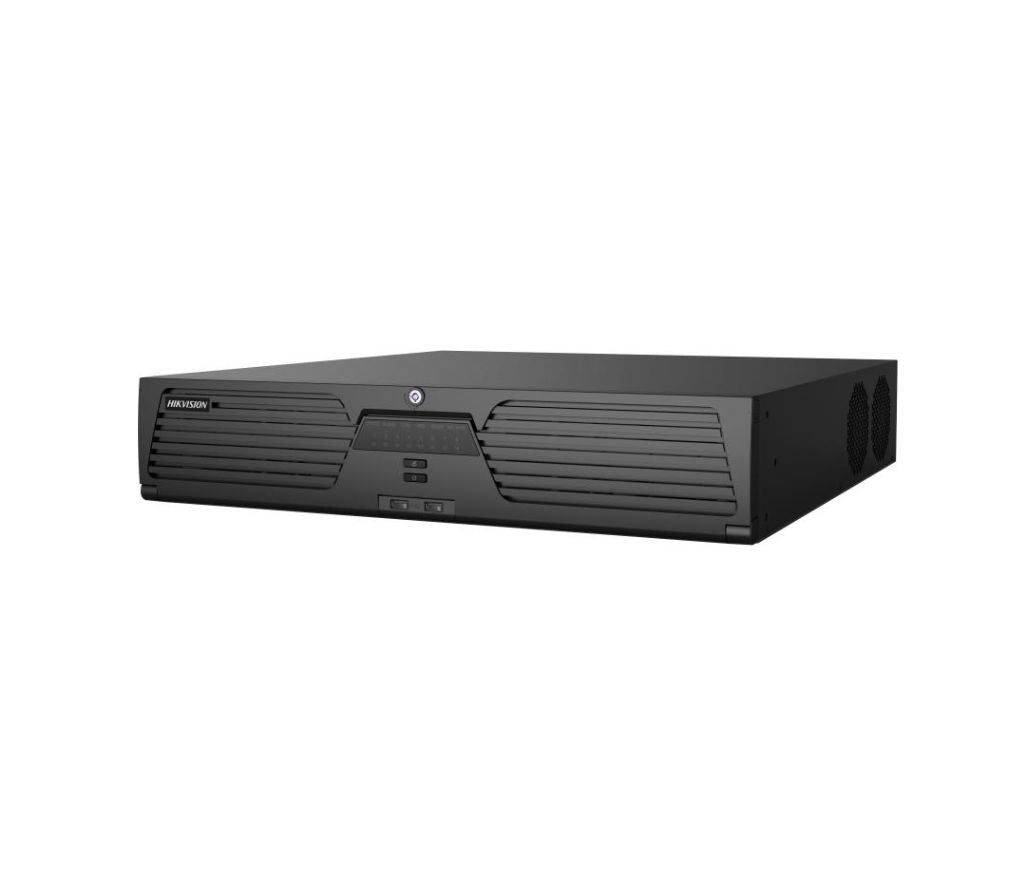

32ch 2U 4K DeepinMind NVR

• H.265+/H.265/H.264+/H.264 video formats
• Up to 32ch IP cameras can be connected
• 8 HDD can be used for continuous video recording
• Intelligent analytics based on deep learning algorithm
• Up to 16ch perimeter protection
• Up to 8ch facial recognition for video stream, or up to 16ch facial recognition for face picture
• Up to 4ch video structuralization
• Up to 16ch 1080p decoding capability

Specification

• Facial Recognition
• Facial Detection And Analytics8ch human face capture (HD network camera, up to 4 MP, H.264/H.265) ;Search by picture is supported
• Face Picture Library32 libraries?100, 000 pictures
• Face Picture Comparison

  16ch face pictures comparison alarm,

  Alarm linkage actions: recording, audio warning, notify surveillance center, send email

• Perimeter Protection
• Human/Vehicle AnalysisUp to 16ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
• Video And Audio
• IP Video Input32ch
• HDMI 1 Output

  VGA1: 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz

  HDMI1: 4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz

• HDMI 2 Output1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
• Incoming Bandwidth320 Mbps/256 Mbps;12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF /2CIF/CIF/QCIF
• Incoming Bandwidth (RAID Mode)200 Mbps/200 Mbps
• Audio Output2-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)
• Decoding
• Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
• Decoding Capability16ch @ 1080p
• Synchronous Playback16ch
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF
• Network
• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• RAID
• RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
• Auxiliary Interface
• SATA8 SATA interfaces
• ESATA1 eSATA interface
• CapacityUp to 10 TB capacity for each HDD
• Serial InterfaceRS-232; RS-485; Keyboard
• USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
• Alarm In/Out16/4 (16/8 is optional)
• General
• Power Supply? 200 W;100 to 240 VAC, 50 to 60 Hz
• Consumption? 70 W
• Working Temperature-10 to +55? C (+14 to +131? F)
• Working Humidity10 to 90%
• Dimension (W ? D ? H)445 ? 465 ? 88 mm (17.5"? 18.3" ? 3.5")
• Weight? 10 kg (22 lb)
