Technical Specifications

Data sheet PDF

Product Description

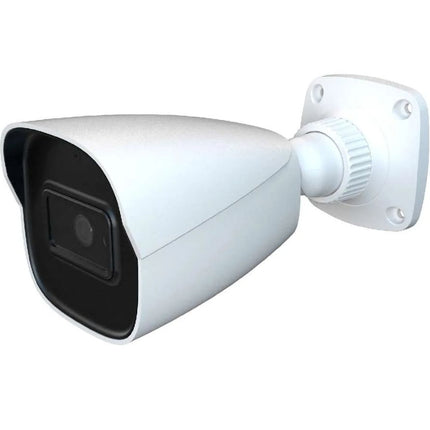

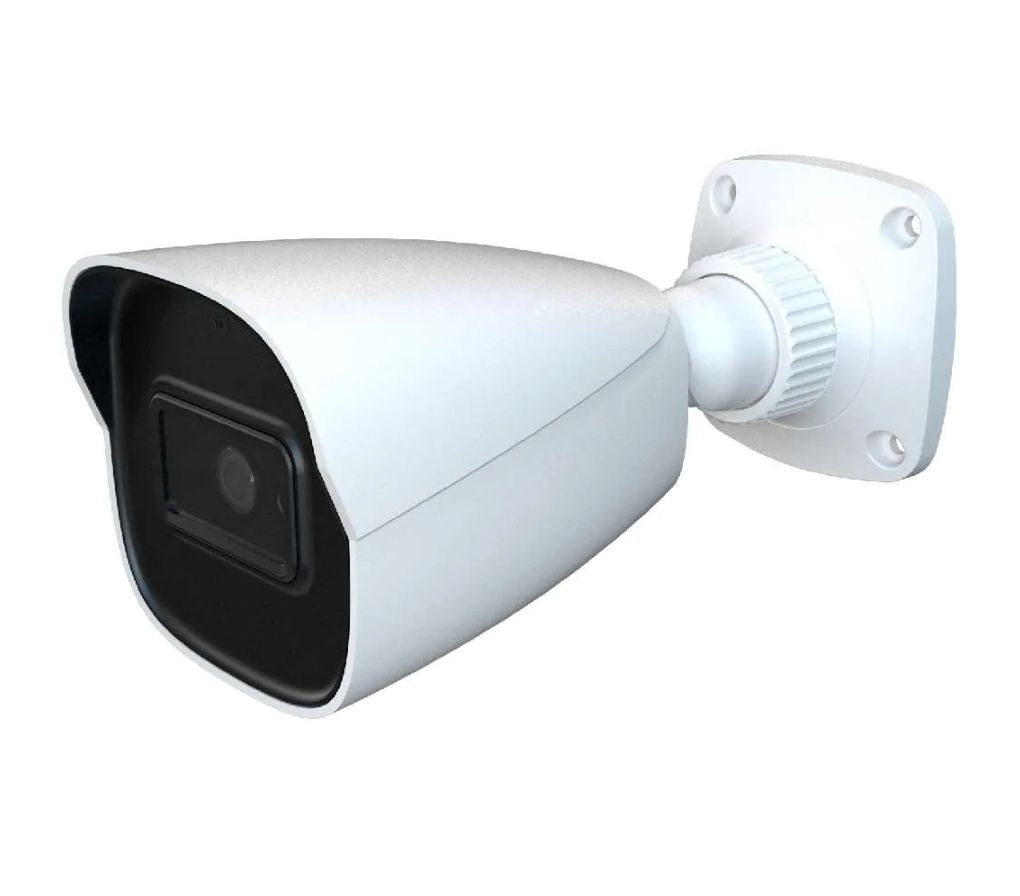

IP-5IR4S41-28 || Titanium, IPC, 4MP, Bullet, 2.8mm Fixed

? Housing: Bullet
? Resolution: 4MP
? Lens Category: 2.8mm Fixed
? Night Vision: Infrared / IR
? WDR: True WDR
? Water Resistance Rating : IP67
? NDAA Compliant: Yes
? VCA Features: Basic VCA
? Hardware Features: Audio In, POE, SD Card


  • SPECIFICATIONS

  • 4MP Water-proof Bullet IP Camera IP-5IR4S41/28 Features:

    • H.265 /H.264/MJPEG coding
    • Max.resolution: MP ( 2560 1440)
    • ICR auto switch, true day/night vision
    • 3D DNR, WDR, HLC, BLC, smart IR, etc.
    • ROI coding
    • 20~30m IR night view distance
    • Built-in micro SD card slot, up to 256GB
    • DC12V/PoE power supply
    • IP 67 ingress protection
    • Support three streams
    • Support remote monitoring by smartphones & tablet PCs
    • with iOS and Android OS
    • Intelligent analytics

    General:

    • Power Supply: DC12V/PoE
    • Operating Environment: ? 30 ?C ~ 60 ?C (-22?F~140?F);Humidity: less than 95 % (non-condensing)
    • Storage Environment: ? 30 ?C ~ 65?C (-22?F~149?F), Humidity: less than 95 % (non-condensing)
    • Dimensions (mm): 167.5 ? 74.5 ? 74.5
    • Weight (net): Approx. 0.38KG
    • Installation: Ceiling mounting; Wall mounting
    • Power Consumption: < 5W
    • Certificate: CE, FCC
    • Environmental Protection: Compiles with Directive EU RoHS, WEEE(2012/19/EU), directive 94/62/EC, and REACH(EC1907/2006)
  • This 4MP Water-proof Bullet IP Camera IP-5IR4S41/28 is highly recommended to work with:

    • Network Recorders ? Titanium NVRs

      Weight 1.234587 lbs
      Dimensions 9.0944931 ? 4.0551203 ? 4.2519708 in
