Data sheet PDF

Product Description

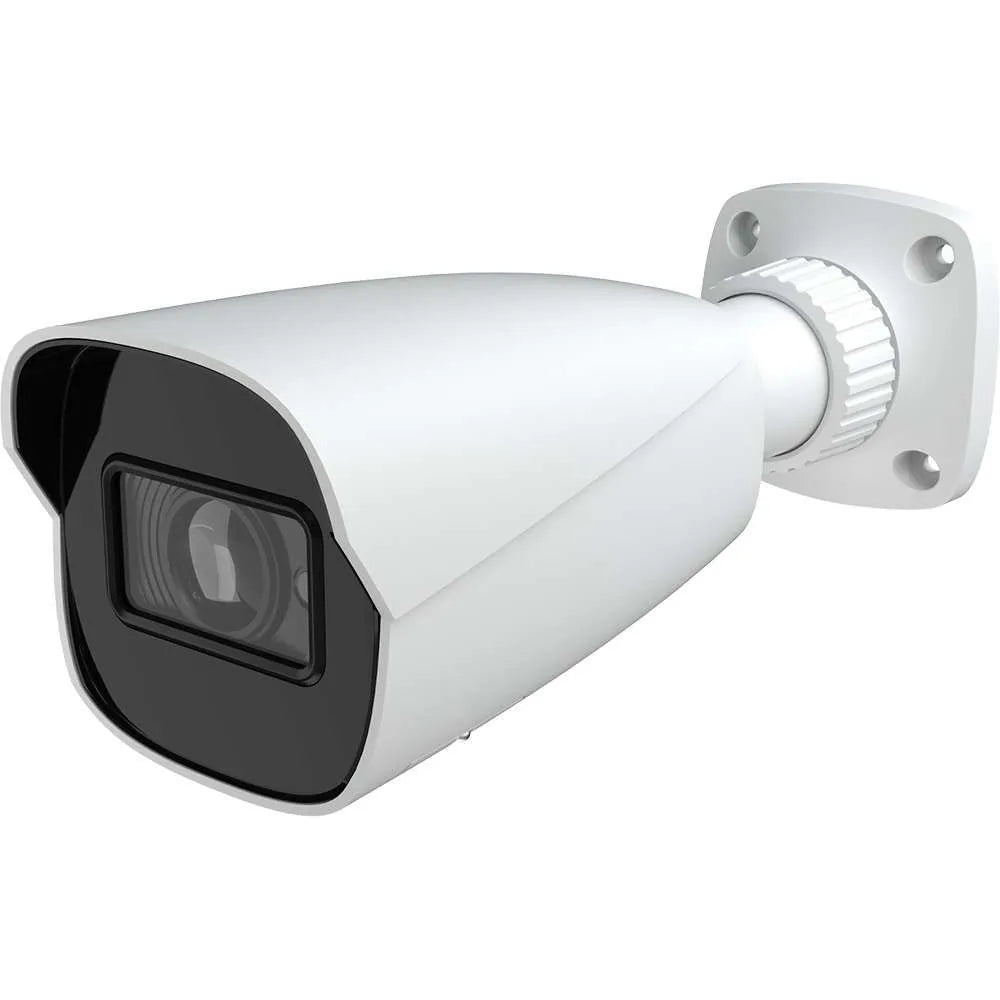

IP-5IR8S3B1-28 || Titanium, IPC, 4K / 8MP, Bullet, 2.8mm Fixed

? Housing: Bullet
? Resolution: 4K / 8MP
? Lens Category: 2.8mm Fixed
? Night Vision: Infrared / IR
? WDR: True WDR
? Water Resistance Rating : IP67
? NDAA Compliant: Yes
? VCA Features: Basic VCA
? Hardware Features: Audio In, POE, SD Card

Specifications

8MP Bullet Fixed IP Camera Titanium IP-5IR8S3B1/28 Features:

• H.265+/H.265/H.264+/H.264/MJPEG coding
• Max. resolution: 8MP ( 3840 ? 2160 )
• ICR auto switch, true day/night vision
• 3D DNR, True WDR, HLC, BLC, smart IR, and ROI coding
• 20~30m IR night view distance
• 1CH audio input
• Built-in micro SD card slot, up to 256GB
• DC12V/PoE power supply
• Support three streams
• IP 67
• Support mobile surveillance by smartphones with iOS and Android OS
• Intelligent analytics

Functions:

• Online Connection: Support simultaneous monitoring for up to 10 users; Support multi-stream real-time transmission
• Network Protocol: UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS
• Interface Protocol: ONVIF
• Storage: Network remote storage; micro SD card storage
• Smart Alarm: Motion detection; SD card error; SD card full
• Intelligent Analytics: Scene change, video blur detection, video color cast detection, line crossing detection, intrusion detection
• General function: Watermark, IP address filtering, video mask, heartbeat, password protection, corridor pattern, etc.

General:

• Power Supply: DC12V/PoE
• Power Consumption: < 7W
• Storage Conditions: ? 30 ?C ~ 65?C (-22?F~149?F), Humidity: less than 95 % (non-condensing)
• Operating Conditions: ? 30 ?C ~ 60 ?C (-22?F~140?F), Humidity: less than 95 % (non-condensing)
• Dimensions (mm): 167.5 x 745 x 74.5
• Weight (net): Approx. 0.44KG
• Installation: Ceiling mounting; Wall mounting
• Certificate: CE, FCC
• Environmental Protection: Complies with Directive EU RoHS, WEEE(2012/19/EU), directive 94/62/EC, and REACH(EC1907/2006)

This 8MP Bullet Fixed IP Camera Titanium IP-5IR8S3B1/28 is highly recommended to work with:

Network Recorders ? Titanium NVRs

Weight	1.25002 lbs
Dimensions	9.0944931 ? 4.0551203 ? 4.2519708 in
