IPC2122LR3-PF28M-D-NB
IPC2122LR3-PF28M-D-NB
Available in stock (113)
Description
Description
IPC2124LR3-PF28M-D

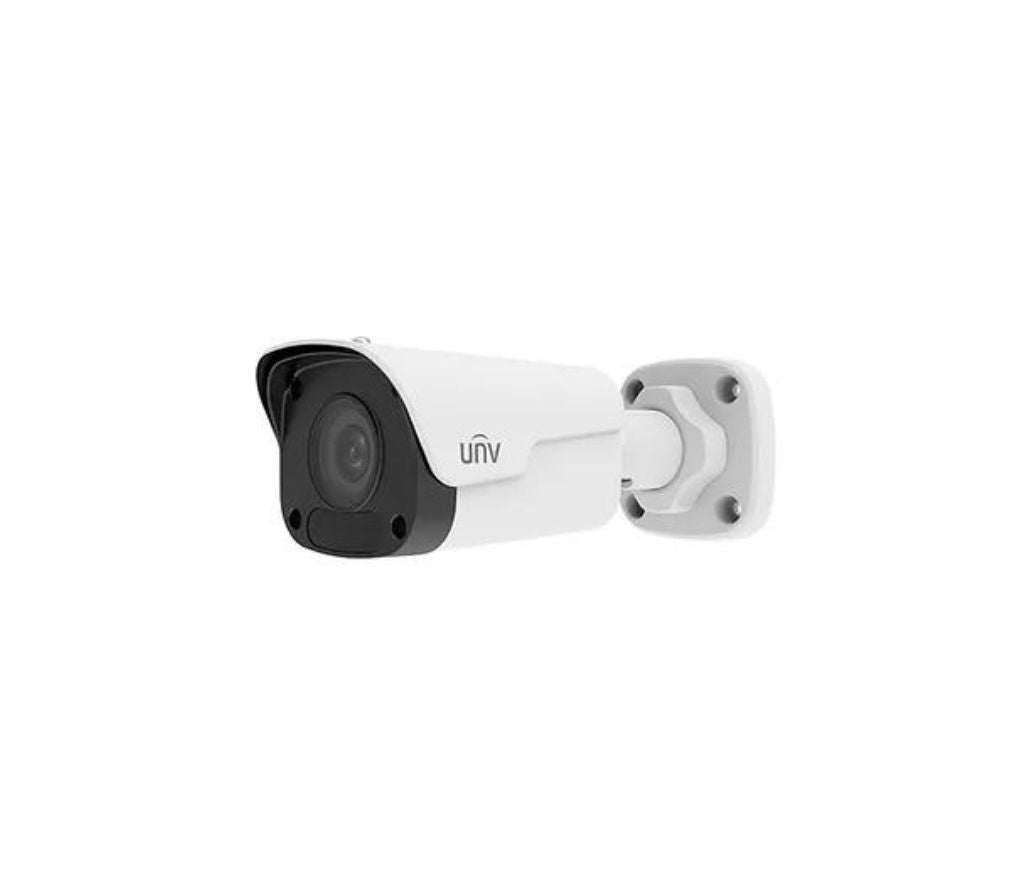

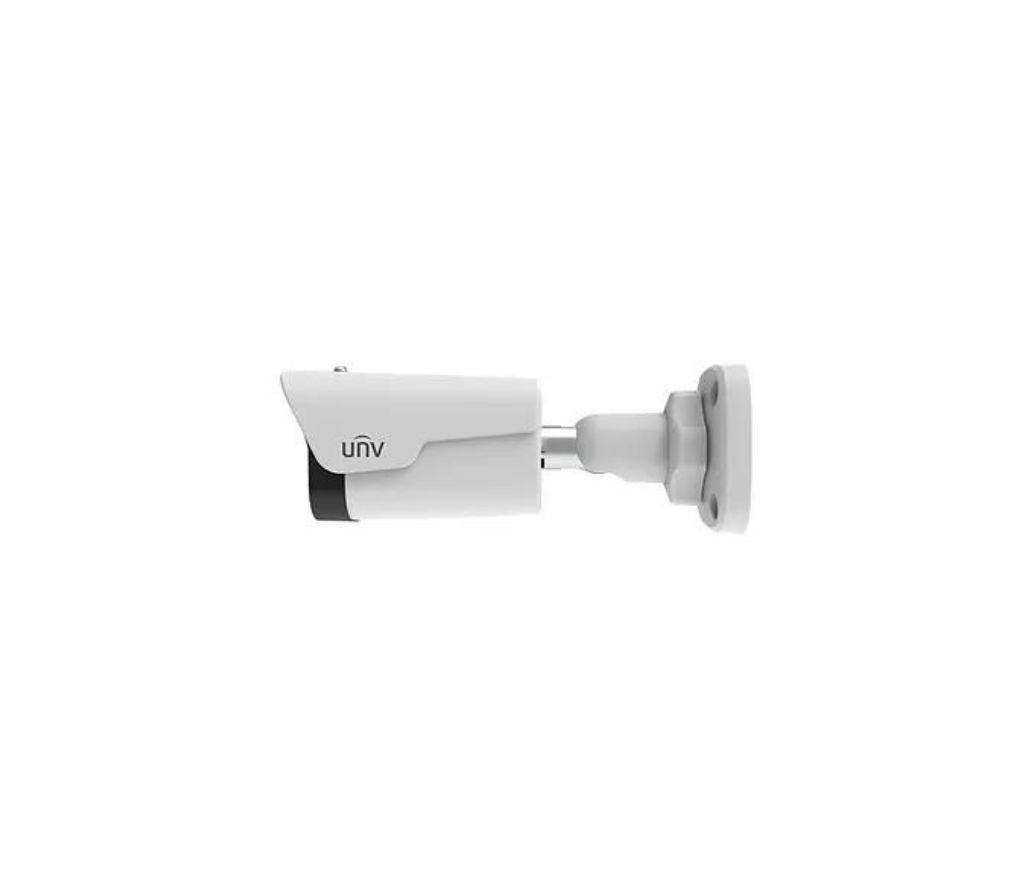

4MP Mini Fixed Bullet Network Camera
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
IPC2124LR3-PF28M-D
4MP Mini Fixed Bullet Network Camera
Specifications
Optics
Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265,H.265, H.264, MJPEG
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Wide temperature range: -30?C to 60?C (-22?F to 140?F)
Wide voltage range of ?25%
IP67
3-Axis
Specification
IPC2124LR3-PF28M-D
Camera
Sensor 1/3", 4.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 63 25.2 12.6 6.3
Angle of View (H) 104.4
Angle of View (V) 54.4
Angle of View (O) 135.7
Adjustment angle Pan:0?~360? Tilt: 0?~90? Rotate: 0?~360?
Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination Colour: 0.03 Lux (F2.0, AGC ON)
0 Lux with IR on
Digital noise reduction 2D/3D DNR
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
IR Range Up to 30m (98 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR DWDR
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream:4MP (2592*1520): Max. 20 fps;
Sub Stream:720P (1280*720): Max. 20 fps;
Third Stream:D1 (720*576): Max. 20 fps
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180?
Dewarping NA
HLC Supported
BLC Supported
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration ONVIF (Profile S, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network 10/100M Base-TX Ethernet
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power 12 V DC?25%, PoE (IEEE802.3 af)
Power consumption: Max 5W
Dimensions (L ? W ? H) 165 ? 63.1 ? 62.5mm (6.5? ? 2.5? ? 2.5?)
Net Weight 0.45kg (0.99lb)
Material Metal
Working Environment -30?C ~ +60?C (-22?F ~ 140?F), Humidity :?95% RH(non-condensing)
Strorage Environment -30?C ~ +60?C (-22?F ~ 140?F), Humidity :?95% RH(non-condensing)
Surge Protection 2KV
Ingress Protection IP67
Reset Button Supported
