IPC3605SB-ADF16KM-I0
IPC3605SB-ADF16KM-I0
Available in stock (11)
Description
Description
IPC3605SB-ADF16KM-I0

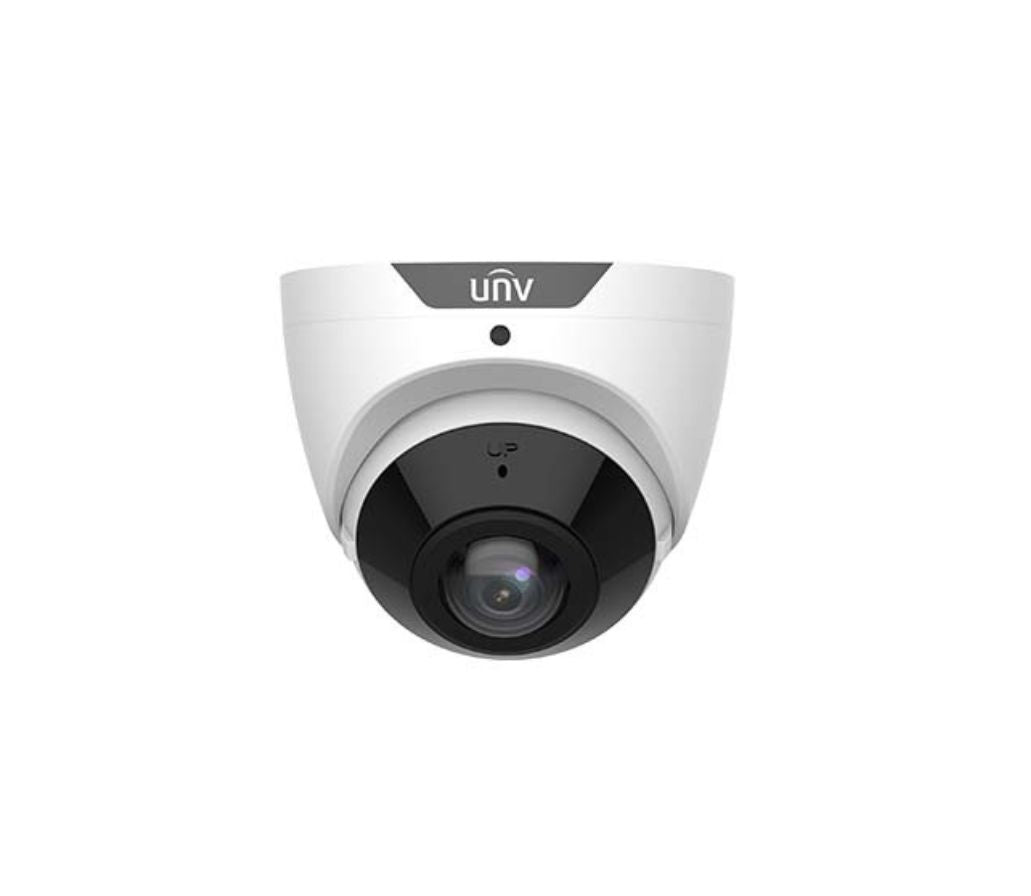

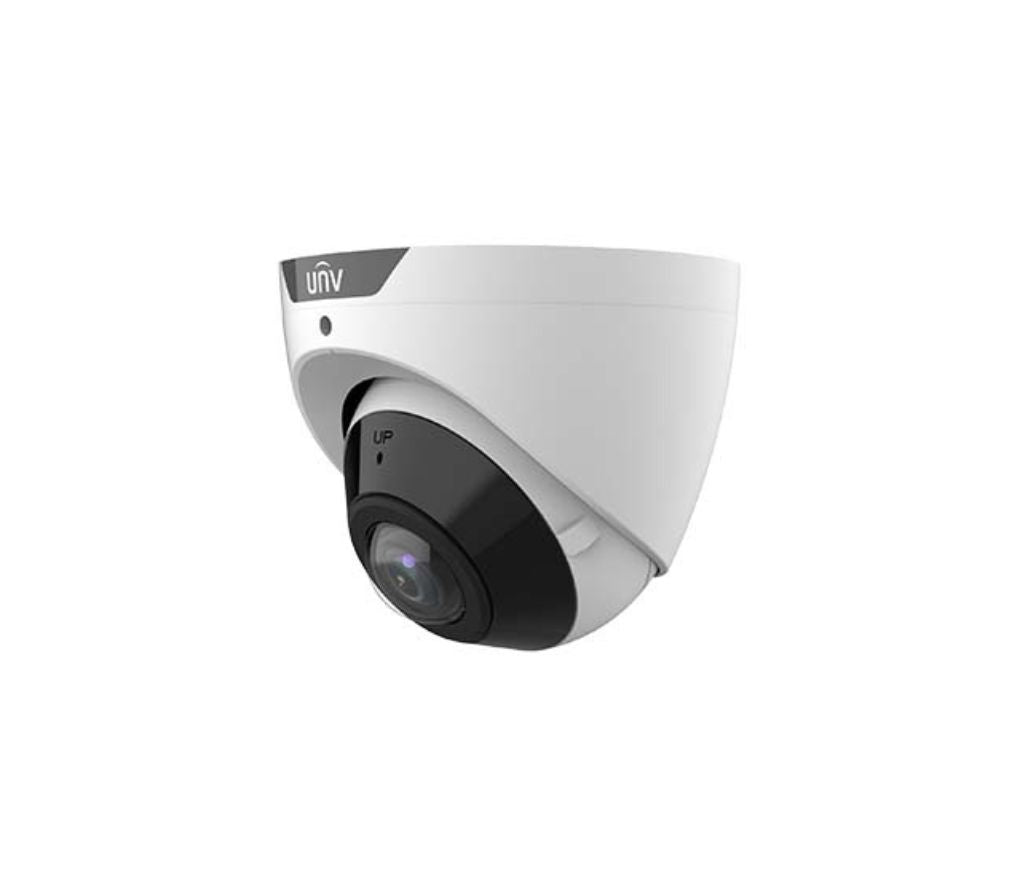

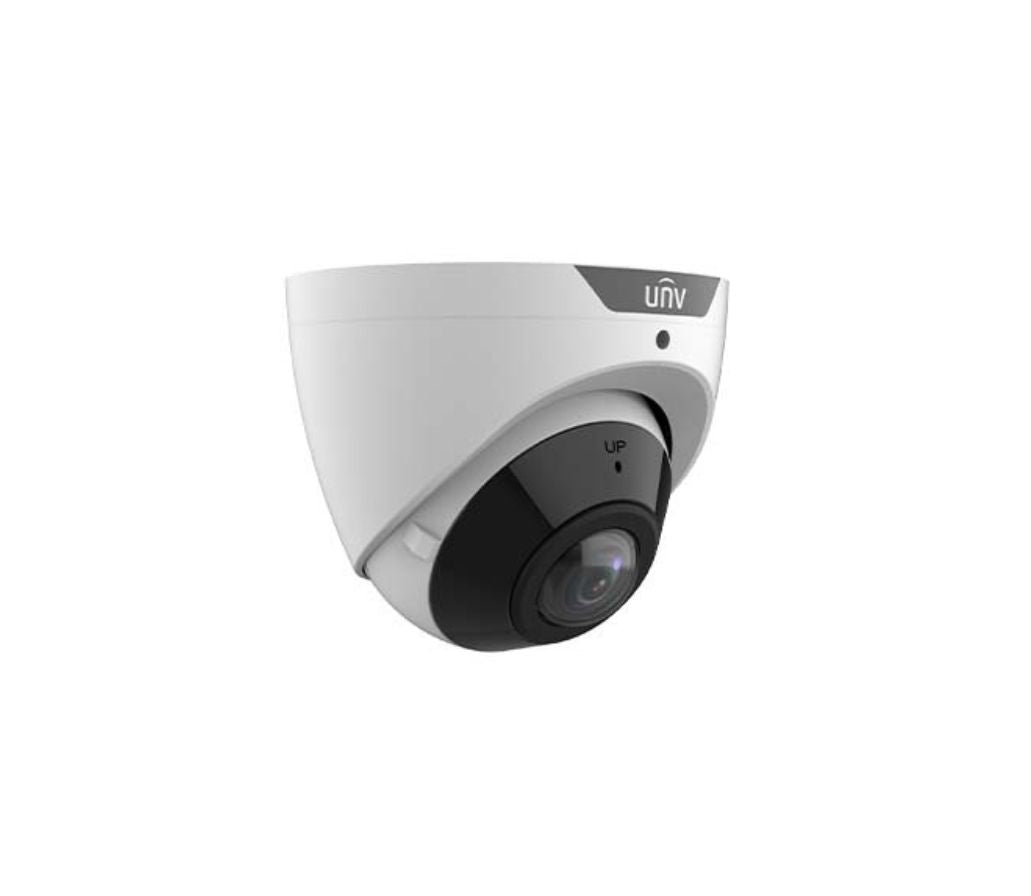

5MP HD Wide Angle Intelligent IR Fixed Eyeball Network Camera
? High quality image with 5MP, 1/2.7"CMOS? sensor
? 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps; 3MP(2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
? Wide Angle technology realize the horizontal viewing angle of 180?
? The dewarp level can be configured in the range of 1-9
? Ultra 265, H.265, H.264, MJPEG
? Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
? Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
? 120dB true WDR technology enables clear image in strong light scene
? Built-in Mic
? Smart IR, up to 20m (66ft) IR distance
? Supports 256 GB Micro SD card
? IP67 protection
? IK10 vandal resistant
Couldn't load pickup availability
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
IPC3605SB-ADF16KM-I0
5MP HD Wide Angle Intelligent IR Fixed Eyeball Network Camera
? High quality image with 5MP, 1/2.7"CMOS? sensor
? 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps; 3MP(2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
? Wide Angle technology realize the horizontal viewing angle of 180?
? The dewarp level can be configured in the range of 1-9
? Ultra 265, H.265, H.264, MJPEG
? Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
? Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
? 120dB true WDR technology enables clear image in strong light scene
? Built-in Mic
? Smart IR, up to 20m (66ft) IR distance
? Supports 256 GB Micro SD card
? IP67 protection
? IK10 vandal resistant
Specification
IPC3605SB-ADF16KM-I0
Camera
Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.01lux (F2.0, AGC ON)
0 lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0? ~ 360? Tilt: 0? ~ 75? Rotate: 0? ~ 360?
WDR 120dB
S/N >56dB
Lens
Lens 1.68mm@F2.0
Iris Fixed
Field of View (H) 180?
Field of View (V) 100?
Field of View (O) 180?
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
1.68 37.8(124.0ft) 15.1(49.6ft) 7.6(24.8ft) 3.8(12.4ft)
Illuminator
IR Range Up to 20m (66ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~10 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Triple streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/ Flip Vertical/ Flip Horizontal/180?
Dewarping Support
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4,IPv6, IGMP,, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
EMC CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection IP67 (IEC 60529)
IK10 (IEC 62262)
General
Power DC 12V?25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Power Interface ? 5.5mm coaxial power plug
Dimensions (? x H) ?111 x 93mm (?4.4?x 3.7?)
Weight 0.48kg (1.06lb)
Material Metal
Working Environment -30?C ~ 60?C (-22?F ~ 140?F), Humidity: ?95% RH (non-condensing)
Strorage Environment -30?C ~ 60?C (-22?F ~ 140?F), Humidity: ?95% RH (non-condensing)
Surge Protection 4KV
Reset Button Support
