Product Description

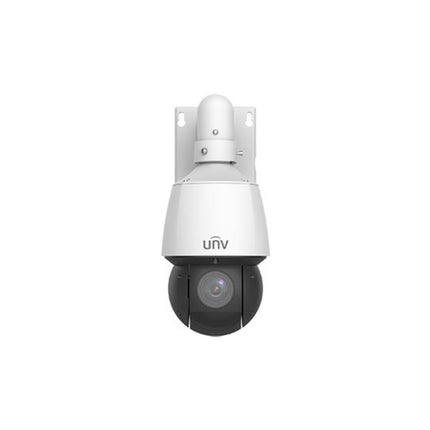

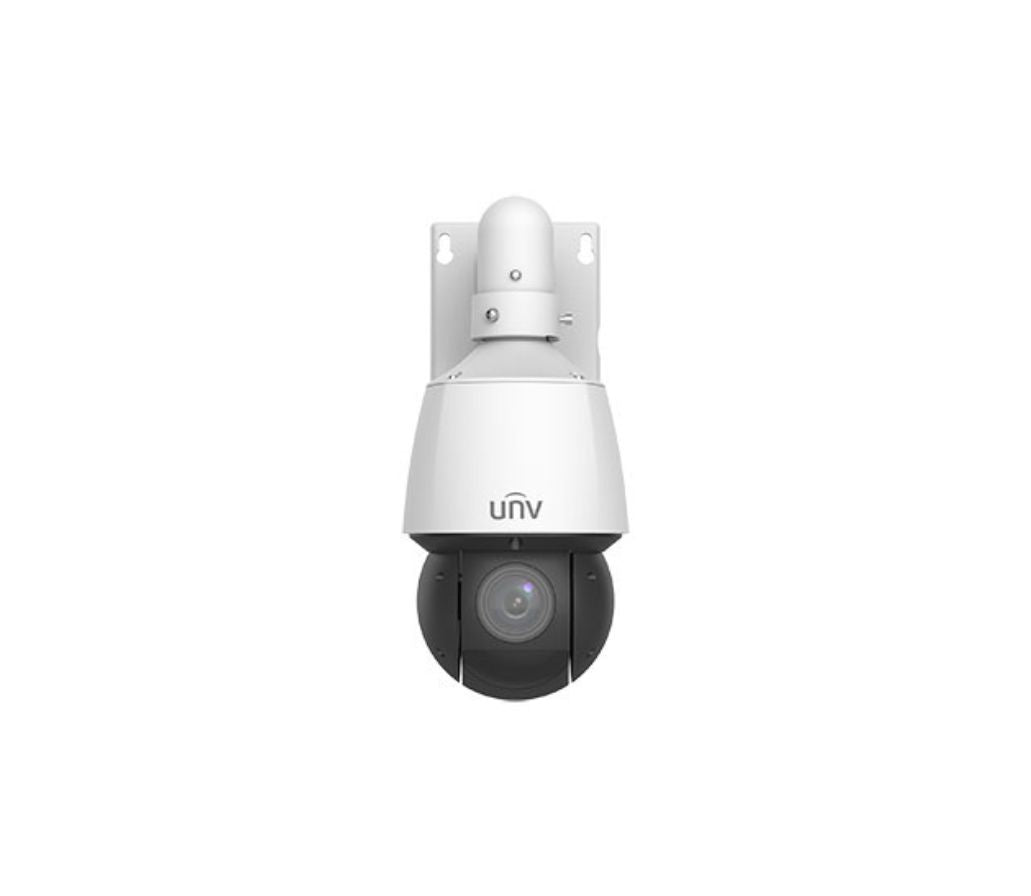

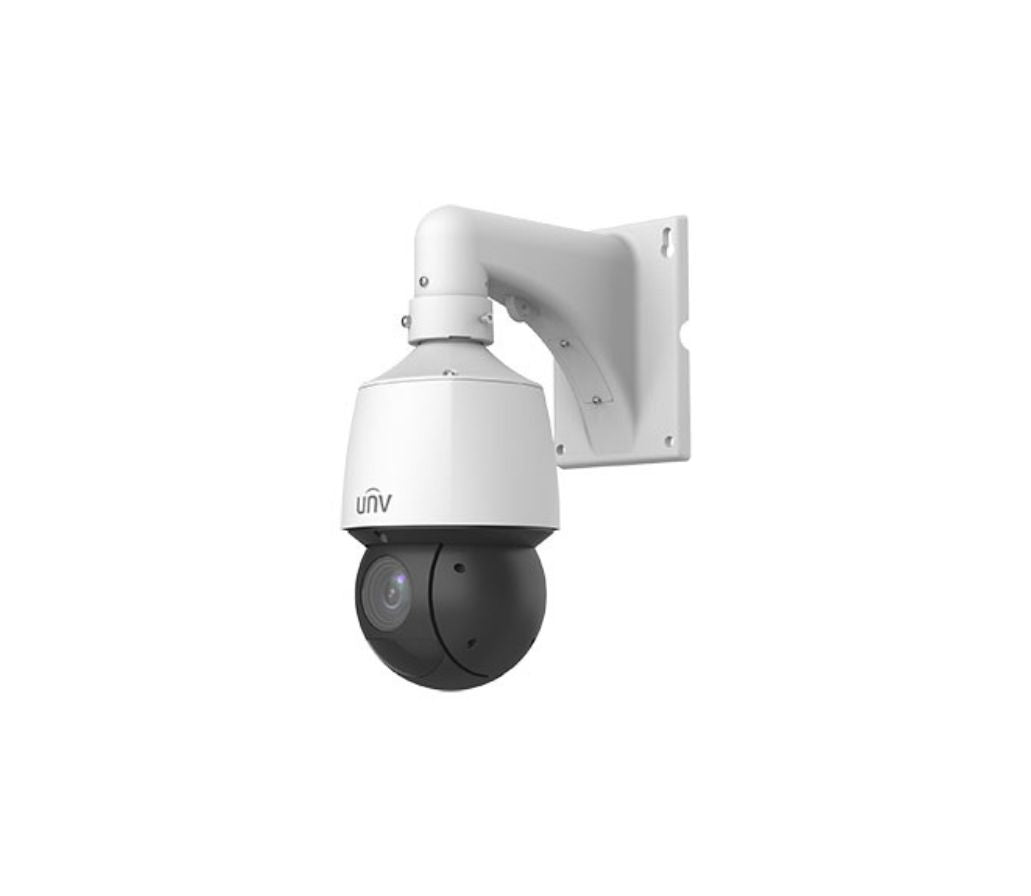

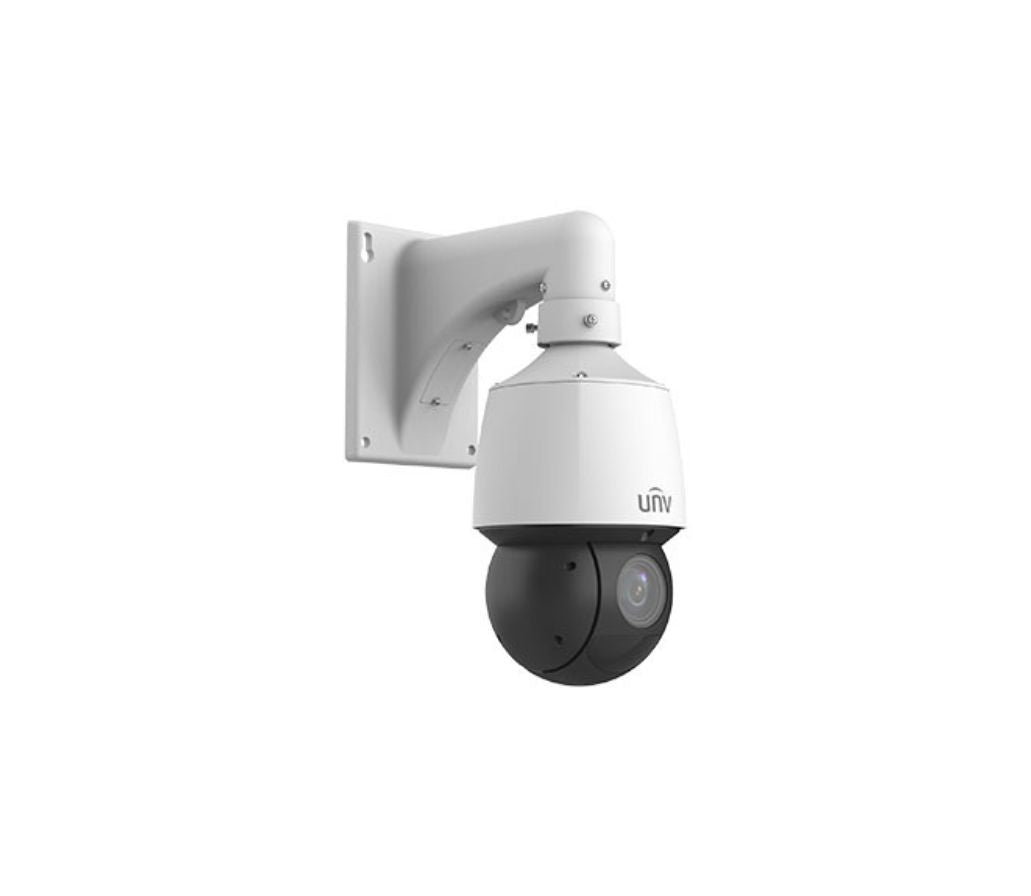

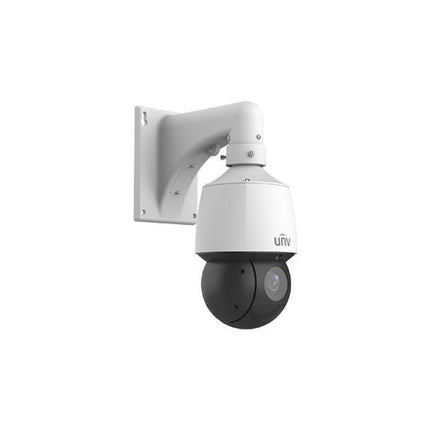

4MP 25x LightHunter Network PTZ Dome Camera

? High quality image with 4MP,1/2.8" CMOS sensor
? 2688*1520@30fps in the main stream
? Ultra 265, H.265, H.264, MJPEG
? 25X Optical Zoom
? Lighthunter technology ensures ultra-high image quality in low illumination environment
? Smart IR, up to 100m (328ft) IR distance
? DC 12V?25% or PoE+ (IEEE 802.3at)
? Alarm 2 in and 1 out, Audio 1 in and 1 out
? IP67 ingress protection
? IK10 vandal resistant

Specifications
IPC3618SE-ADF28KM-WL-I0 IPC3618SE-ADF40KM-WL-I0
Camera
Sensor 1/2.8", 8.0 megapixel, progressive scan, CMOS
Minimum Illumination
Colour: 0.0005 lux (F1.0, AGC ON)
0 lux with Light on
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 3? ~ 360? Tilt: 0? ~ 80? Rotate: 3? ~ 360?
WDR 120dB
S/N >56dB
Lens
Lens 2.8mm@F1.0 4.0mm@F1.0
Iris Fixed
Field of View (H) 106.7? 87.5?
Field of View (V) 57.1? 46.3?
Field of View (D) 115.7? 92.4?
DORI
DORI Distance
Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 86.9 34.8 17.4 8.7
4.0 124.1 49.7 24.8 12.4
Illuminator
Illuminator Range Up to 30m (98 ft) white light range
LED On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P
(1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Triple streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180?/90?Clockwise/90?Anti-clockwise
Dewarping Support
3
DATASHEET
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis People counting, support people flow counting and crowd density monitoring
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression G.711
Audio Bitrate 64 Kbps
Two-way audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,
802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP,
Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client
EZStation
EZView
EZLive
Web Browser
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O N/A
Alarm I/O N/A
RS485 N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
EMC
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035:
2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
4
DATASHEET
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power
DC 12V?25%, PoE (IEEE 802.3af)
Power consumption: Max 8.0W
Power Interface ? 5.5mm coaxial power plug
Dimensions (L ? W ? H) ?111 x 95mm (?4.4? x 3.7?)
Weight 0.44kg (0.97lb)
Material Metal + Plastic
Working Environment -30?C ~ 60?C (-22?F ~ 140?F), Humidity: ?95% RH (non-condensing)
Strorage Environment -30?C ~ 60?C (-22?F ~ 140?F), Humidity: ?95% RH (non-condensing)
Surge Protection 4KV
Reset Button N/A
