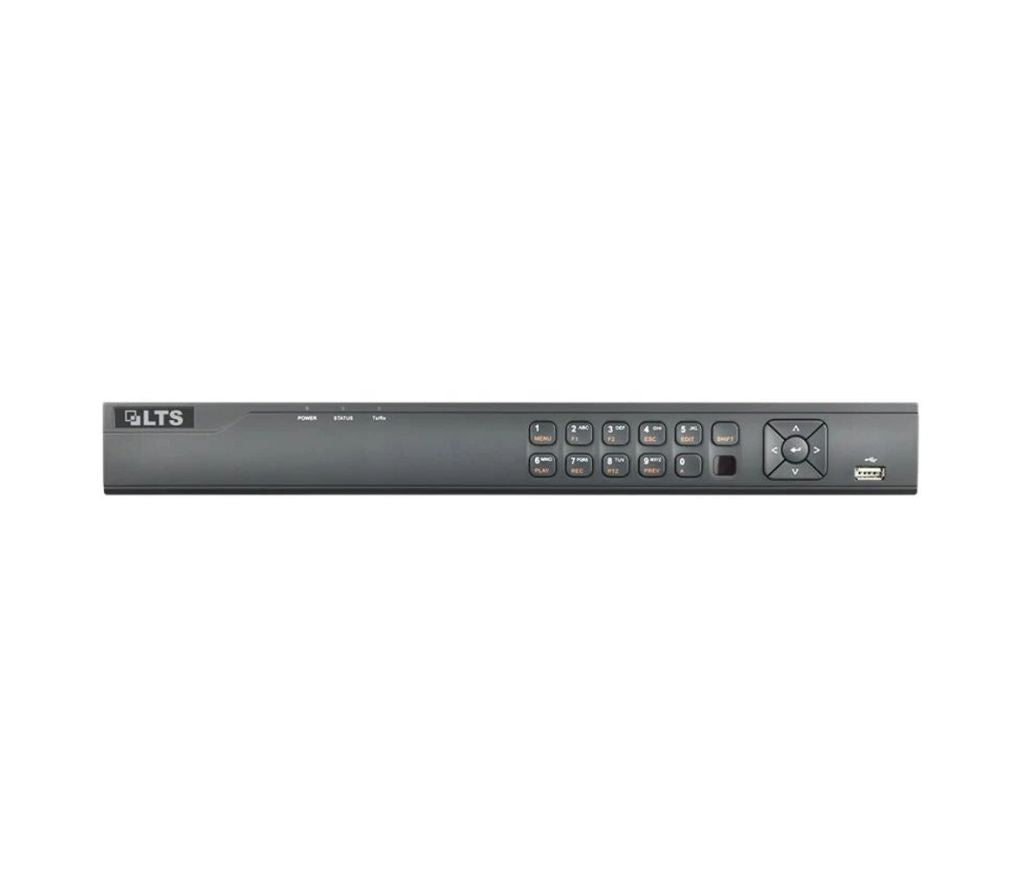

Name: LTD8316M-ET Lts 16ch CCTV Recorder w/ HDD Platinum 16-Channel TVI-P DVR
Brand: LTS
SKU: 298920568699-QT1
Price: 368.99 USD

LTD8316M-ET Lts 16ch CCTV Recorder w/ HDD Platinum 16-Channel TVI-P DVR

LTS
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

LTD8316M-ET Lts 16ch CCTV Recorder w/ HDD Platinum 16-Channel TVI-P DVR

LTS
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Out of stock, 10 Business Days Mid weeks
Monday to Friday we offer same day handling if the product is on stock and exceptions on holidays.

Weekends
We offer no deliveries in the weekends.

International
Depending on where you’re located, we offer next day delivery. Check status on this link

$402.20 $368.99

Guaranteed secure & safe checkout.

Free shipping on all orders

No hassle returns, 30 days return

Data sheet PDF

Product Description

Platinum 16-Channel TVI-P DVR

DVR with deep learning-based motion detection 2.0 for all analog channels along with deep learning-based perimeter protection
4 x IP channels (up to 6 MP), Audio / VGA / HDMI / BNC

Deep learning-based motion detection 2.0 for all analog channels
H.264 / H.264+ / H.265 / H.265 Pro / H.265 Pro+ video compression
HD-TVI / AHD / CVI / CVBS / IP video inputs
Audio via coaxial cable
Up to 24 IP camera input channels (up to 6 MP)
Up to 10 TB capacity per HDD

SPECIFICATIONS

Motion Detection 2.0
Person / Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify humans and vehicles and vastly reduce false alarms caused by objects like leaves and lights. Quick search by object or event type is supported
Perimeter Protection
Person / Vehicle Analysis	Up to 4 channels
Face Detection
Face Detection and Capture	1 channel of human face capture (HD analog camera)
Recording
Video Compressions	H.264 / H.264+ / H.265 / H.265 Pro / H.265 Pro+
Encoding Resolutions	Main stream, 1080p Lite mode disnabled: For 4 MP stream access: 4 MP lite @ 15 fps; 1080p lite / 720p / WD1 / 4CIF / VGA / CIF @ 25 fps (P) / 30 fps (N) For 3 MP stream access: 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF @ 15 fps For 1080p stream access: 1080p / 720p @ 15 fps; VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N) For 720p stream access: 720p / VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N) When 1080p Lite mode enabled: 4 MP lite / 3 MP @ 15 fps; 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N) Sub-stream: WD1 / 4CIF @ 12 fps; CIF @ 25 fps (P) / 30 fps (N)
Video Bitrate	32 Kbps to 6 Mbps
Dual Stream	Supported
Stream Type	Video, Video & Audio
Audio Compression	G.711 u
Audio Bitrate	64 Kbps
Video and Audio
IP Video Input	2 channels (up to 18 ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution Supports H.264 / H.264+ / H.265 / H.265+ IP cameras
Analog Video Input	16 ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
HD-TVI Input	3, 4 MP; 1080p @ 25 / 30 fps; 720p @ 25 / 30 / 50 / 60 fps The 3 MP signal input is only available for channels 1/2/3/4 of LTD8316M-ET
AHD Input	4 MP, 1080p @ 25 / 30 fps, 720p @ 25 / 30 fps
HD-CVI Input	4 MP, 1080p @ 25 / 30 fps, 720p @ 25 / 30 fps
CVBS Input	PAL / NTSC
CVBS Output	1 ch, BNC (1.0 Vp-p, 75 ?) Resolutions: PAL: 704 ? 576, NTSC: 704 ? 480
HDMI / VGA Output	1 ch, 1920 ? 1080 / 60 Hz, 1280 ? 1024 / 60 Hz, 1280 ? 720 / 60 Hz, 1024 ? 768 / 60 Hz, HDMI / VGA simultaneous output
Audio Input	1 ch, RCA (2.0 Vp-p, 1 k?) 16 ch via coaxial cable
Audio Output	1 ch, RCA (Linear, 1 k?)
Two-Way Audio	1 ch, RCA (2.0 Vp-p, 1 k?) (using the first audio input)
Synchronous Playback	16 ch
Network
Remote Connections	128
Network Protocols	TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
Network Interface	1 x RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-Fi	Compatible with Wi-Fi networks using dongle through USB interface
Auxiliary Interfaces
SATA	2 x SATA interfaces, up to 10 TB capacity for each drive
Serial	RS-485 (half-duplex)
USB	Front panel: 1 ? USB 2.0 Rear panel: 1 ? USB 3.0
Alarm Chanels (In/Out)	N/A
General
Power Supply	12 VDC, 3.3 A
Consumption (without HDD)	? 40 W
Operating Temperature	14? to 131? F (-10? to 55? C)
Operating Humidity	10 to 90%
Dimensions (W ? D ? H)	15.0 ? 12.6 ? 1.9" (380 ? 320 ? 48 mm)
Weight (without HDD)	? 4.4 lb (2 kg)

SKU

LTD8316M-ET

RECORDER TECHNOLOGY

DVR

RECORDER CASE

Compact Case

RECORDER SERIES

TurboHD

RECORDER CHANNEL

16-Channel
