Product Description

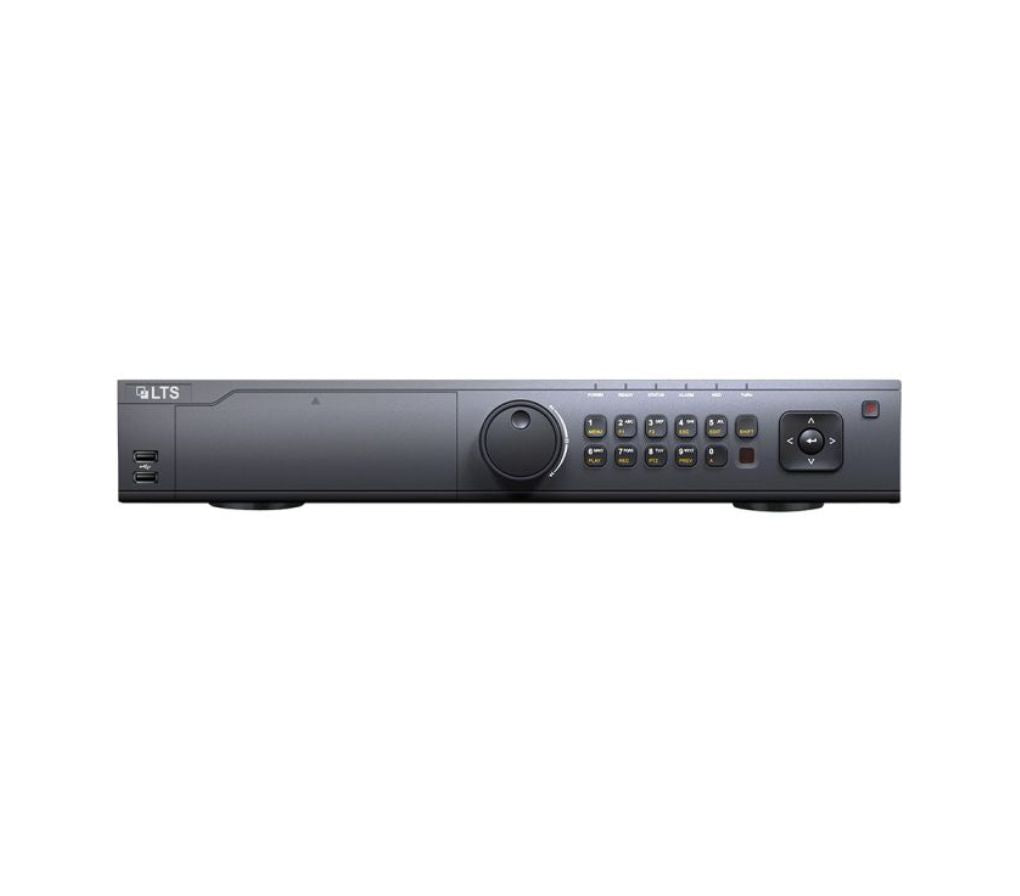

TURBO HD DVR

Platinum, TVI-P, DVR, 32ch+16ch IP up to 6MP Alarm/Audio, VGA/2x HDMI UL H.265 1.5U Case, Supports 4 SATA up to 10TB each

• Support H.265 Pro+/H.265 Pro/H.265 video compression
• Support HDTVI/AHD/CVI/CVBS/IP video input
• Max 40/48 IP cameras input (up to 6 MP)
• Max 800 m for 1080p and 1200 m for 720p HDTVI signal
• Supports 4 SATA up to 10TB each
• Support POS triggered recording and POS information overlay







Specifications
Model LTD8424K-EA LTD8432K-EA
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution
When 1080p Lite mode not enabled:
4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled:
4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/
CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)
/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/
VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)
/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input
16-ch (up to 40-ch) 16-ch (up to 48-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input
24-ch 32-ch
BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
HDTVI input
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
*: The 3 MP signal input is only available for channel 1/2/3/4.
AHD input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
CVBS output 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
HDMI1/VGA output 1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
HDMI2 output
1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ?
1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
Audio input 4-ch, RCA (2.0 Vp-p, 1 K?)
Audio output 1-ch, RCA (Linear, 1 K?)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 K?) (independent)
Synchronous playback 16-ch
Network
Remote connections 128
Network protocols
TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?,
HTTPS, ONVIF, SNMP
Network interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary interface
SATA 4 SATA interfaces
eSATA Support
Capacity Up to 10 TB capacity for each disk
Serial interface RS-232, RS-485 (full-duplex), Keyboard
Alarm in/out 16/4
USB interface
Front panel: 2 ? USB 2.0
Rear panel: 1 ? USB 3.0
General
Power supply 100 to 240 VAC, 50 to 60 Hz, 1.1 A
Consumption
(without HDD)
? 45 W
Working temperature -10 ?C to +55 ?C (+14 ?F to +131 ?F)
Working humidity 10% to 90%
Dimensions (W ? D ? H) 440 ? 390 ? 70 mm (17.3 ? 15.4 ? 2.8 inch)
Weights (without HDD) ? 7 kg (15.4 lb)
The rear panel of LTD8424K-EA provides 24 video input interfaces.
Physical Interfaces
Index Description Index Description
1 VIDEO IN 9 eSATA Interface
2 AUDIO IN, RCA Connector 10 HDMI1 Interface
3 LINE IN 11 HDMI2 Interface
4 AUDIO OUT 12 LAN Network Interface
5 VIDEO OUT 13 USB Interface
6
RS-485 Serial Interface, Keyboard
Interface, ALARM IN and ALARM OUT
14 GND
7 RS-232 Serial Interface 15 100 to 240 VAC Power Input
8 VGA Interface 16 Power Switch
