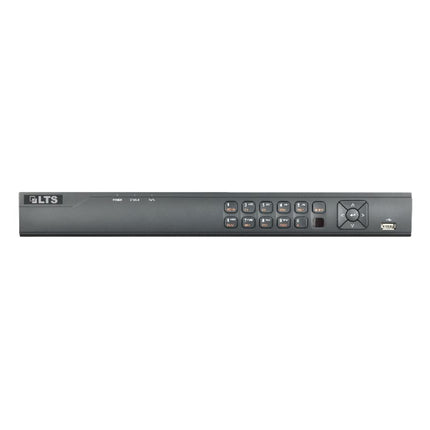

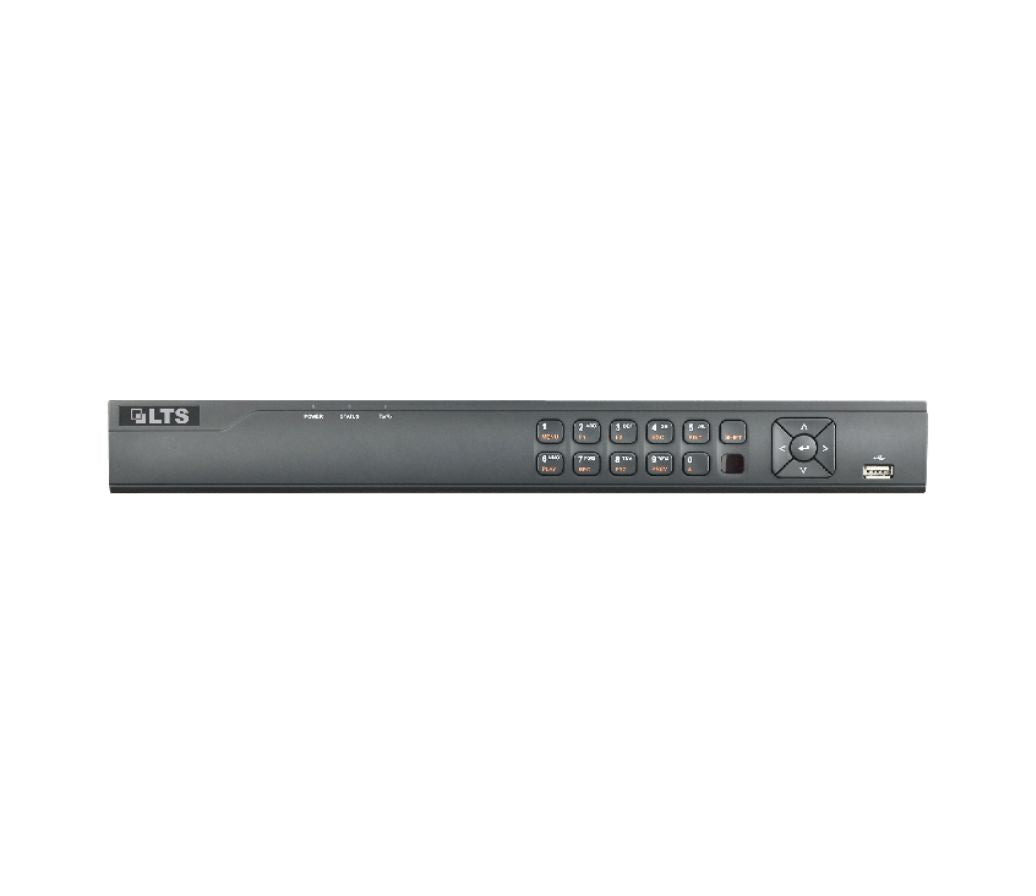

LTD8504K-ST Lts 4ch CCTV Recorder w/ HDD Platinum Professional Level HD-TVI

Description

LTD8504K-ST Lts 4ch CCTV Recorder w/ HDD Platinum Professional Level HD-TVI


This listing includes:

  • ¬†(1) HARD DRIVE OPTION:¬†NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB
  • (1) DIGITAL VIDEO RECORDER: LTD8504K-ST


LTD8504K-ST  view data sheet

Platinum Professional Level 4 Channel HD-TVI 4.0 DVR

H.265/H.265+, 4CH DVR, 4/1 RCA I/O, 5 in 1, 5MP HD-TVI input, 2CH 6MP IP Cameras Input, Support Live View, Storage, Playback up to 4 HD-TVI / Analog Cameras + 2 IP Cameras, Up to 1080P HDMI Video Output, CVBS Output, 1 SATA up to 8TB HDD each, 2 USB 2.0

  • H.265/H.265+ 4 Channel Video Recorder
  • 4/1 RCA I/O
  • 4 Channels Support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
  • 4 Channels Support up to 5MP HD-TVI input
  • Up to 2CH 6MP IP Cameras Input
  • Support Live View, Storage, Playback up to 4 HD-TVI / Analog Cameras + 2 IP Cameras
  • Up to 1080P HDMI Video Output
  • CVBS Output
  • 1 SATA up to 8TB HDD each
  • 2 USB 2.0

LTD8504K-ST Lts 4ch CCTV Recorder w/ HDD Platinum Professional Level HD-TVI

Product form

2 in stock 3-4 Business Days  Mid weeks
Monday to Friday we offer same day handling if the product is on stock and exceptions on holidays.

Weekends
We offer no deliveries in the weekends.

International
Depending on where you’re located, we offer next day delivery. Check status on this link

$191.39 $173.99

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on all orders
      • No hassle returns, 30 days return

      Description

      LTD8504K-ST Lts 4ch CCTV Recorder w/ HDD Platinum Professional Level HD-TVI


      This listing includes:

      • ¬†(1) HARD DRIVE OPTION:¬†NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB
      • (1) DIGITAL VIDEO RECORDER: LTD8504K-ST


      LTD8504K-ST  view data sheet

      Platinum Professional Level 4 Channel HD-TVI 4.0 DVR

      H.265/H.265+, 4CH DVR, 4/1 RCA I/O, 5 in 1, 5MP HD-TVI input, 2CH 6MP IP Cameras Input, Support Live View, Storage, Playback up to 4 HD-TVI / Analog Cameras + 2 IP Cameras, Up to 1080P HDMI Video Output, CVBS Output, 1 SATA up to 8TB HDD each, 2 USB 2.0

      • H.265/H.265+ 4 Channel Video Recorder
      • 4/1 RCA I/O
      • 4 Channels Support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
      • 4 Channels Support up to 5MP HD-TVI input
      • Up to 2CH 6MP IP Cameras Input
      • Support Live View, Storage, Playback up to 4 HD-TVI / Analog Cameras + 2 IP Cameras
      • Up to 1080P HDMI Video Output
      • CVBS Output
      • 1 SATA up to 8TB HDD each
      • 2 USB 2.0

      Data sheet PDF

      Product Description

      Platinum Professional Level 4 Channel HD-TVI 4.0 DVR

      H.265/H.265+, 4CH DVR, 4/1 RCA I/O, 5 in 1, 5MP HD-TVI input, 2CH 6MP IP Cameras Input, Support Live View, Storage, Playback up to 4 HD-TVI / Analog Cameras + 2 IP Cameras, Up to 1080P HDMI Video Output, CVBS Output, 1 SATA up to 8TB HDD each, 2 USB 2.0

      • H.265/H.265+ 4 Channel Video Recorder
      • 4/1 RCA I/O
      • 4 Channels Support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
      • 4 Channels Support up to 5MP HD-TVI input
      • Up to 2CH 6MP IP Cameras Input
      • Support Live View, Storage, Playback up to 4 HD-TVI / Analog Cameras + 2 IP Cameras
      • Up to 1080P HDMI Video Output
      • CVBS Output
      • 1 SATA up to 8TB HDD each
      • 2 USB 2.0


      SPECIFICATIONS


      Model

      LTD8504K-ST

      Recording

      Video compression

      H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

      Encoding resolution

      When 8 MP Lite mode is not enabled:

      8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

      When 8 MP Lite mode is enabled:

      8 MP Lite/5 MP/4 MP/3MP/1080P/720P/WD1/4CIF/VGA/CIF

      Frame rate

      Main stream:

      When 8 MP Lite mode is not enabled:

      8 MP@8 fps/5MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) When 8 MP Lite mode enabled:

      8 MP Lite/5 MP@12 fps/4 MP/3 MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps

      Sub-stream:

      WD1/4CIF/CIF@25fps (P)/30fps (N)

      Video bit rate

      32 Kbps to 10 Mbps

      Dual stream

      Support

      Stream type

      Video, Video & Audio

      Audio compression

      G.711u

      Audio bit rate

      64 Kbps

      Video and Audio

      IP video input

      4-ch (up to 8-ch)

      Up to 8 MP resolution

      Support H.265+/H.265/H.264+/H.264 IP cameras

      Analog video input

      4-ch

      BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection

      HDTVI input

      8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

      AHD input

      5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

      HDCVI input

      5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

      CVBS input

      PAL/NTSC

      CVBS output

      1-ch, BNC (1.0 Vp-p, 75 ?),

      resolution: PAL: 704 ? 576, NTSC: 704 ? 480

      VGA output

      1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz

      HDMI output

      1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz

      Audio input

      4-ch, RCA (2.0 Vp-p, 1 K?)

      Audio output

      1-ch, RCA (Linear, 1 K?)

      Two-way audio

      1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)

      Synchronous playback

      4-ch

      Network

      Remote connection

      32

      Network protocol

      TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?,

      HTTPS, ONVIF



      Network interface

      1,

      RJ45 10M/100M self-adaptive Ethernet interface

      Auxiliary interface

      SATA

      1 SATA interface

      Capacity

      Up to 10 TB capacity for each disk

      Serial interface

      RS-485 (half-duplex)

      USB interface

      2 ? USB 2.0

      Alarm in/out

      4/1

      General

      Power supply

      12 VDC, 1.5 A

      Consumption

      (without HDD)


      ? 10 W

      Working temperature

      -10 ?C to +55 ?C (+14 ?F to +131 ?F)

      Working humidity

      10% to 90%

      Dimension (W ? D ? H)

      315 ? 242 ? 45 mm (12.4 ? 9.5 ? 1.8 inch)

      Weight (without HDD)

      ? 1.16 kg (2.6 lb)

      *: Normally, only CH1/CH2 support VCA.

      If "Enhance VCA" mode is on, all channels support VCA, but Max Res only 2MP.
