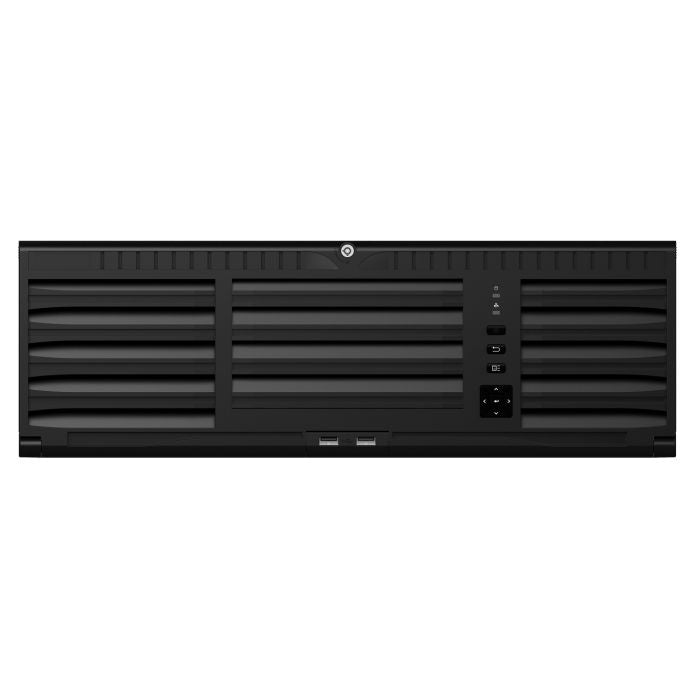

LTN07128-R16 Lts 128ch IP PoE Recorder w/ HDD

Description

LTN07128-R16 Lts 128ch IP PoE Recorder w/ HDD

Platinum 128-Channel Enterpri


This listing includes:

  • ¬†(1) HARD DRIVE OPTION:¬†NO HARD DRIVE;16TB;32TB;64TB;80TB;128TB;160TB
  • (1) NETWORK RECORDER: LTN07128-R16


LTN07128-R16  view data sheet

Platinum 128-Channel Enterprise Level NVR



Platinum, Enterprise Level, 128-Channel NVR, RAID, 20 ch @ 1080p, Supports 16 x SATA HDDs at up to 10 TB each, 3U (no pre-installed storage

  • Platinum 128-Channel Network Video Recorder
  • Supports Live View, Recording, and Playback of IP Cameras up to 12 MP
  • Quad-Core CPU
  • 576 Mbps Bandwidth
  • 4K (3840 x 2160) HDMI Video Output
  • Supports 16 x SATA HDDs at up to 10 TB each
  • 4 x RJ45 10/100/1000 Mbps, 4 x Fiber Optic Ethernet Interfaces
  • RAID 0, 1, 5, 6, 10, and Hot Swapping
  • H.264 / H.264+ / H.265 / H.265+
  • 20 channels @ 1080p

LTN07128-R16 Lts 128ch IP PoE Recorder w/ HDD

Product form

3 in stock 3-4 Business Days  Mid weeks
Monday to Friday we offer same day handling if the product is on stock and exceptions on holidays.

Weekends
We offer no deliveries in the weekends.

International
Depending on where you’re located, we offer next day delivery. Check status on this link

$5,354.99 $5,099.99

      • Guaranteed secure & safe checkout.

        shop pay
      • Free shipping on all orders
      • No hassle returns, 30 days return

      Description

      LTN07128-R16 Lts 128ch IP PoE Recorder w/ HDD

      Platinum 128-Channel Enterpri


      This listing includes:

      • ¬†(1) HARD DRIVE OPTION:¬†NO HARD DRIVE;16TB;32TB;64TB;80TB;128TB;160TB
      • (1) NETWORK RECORDER: LTN07128-R16


      LTN07128-R16  view data sheet

      Platinum 128-Channel Enterprise Level NVR



      Platinum, Enterprise Level, 128-Channel NVR, RAID, 20 ch @ 1080p, Supports 16 x SATA HDDs at up to 10 TB each, 3U (no pre-installed storage

      • Platinum 128-Channel Network Video Recorder
      • Supports Live View, Recording, and Playback of IP Cameras up to 12 MP
      • Quad-Core CPU
      • 576 Mbps Bandwidth
      • 4K (3840 x 2160) HDMI Video Output
      • Supports 16 x SATA HDDs at up to 10 TB each
      • 4 x RJ45 10/100/1000 Mbps, 4 x Fiber Optic Ethernet Interfaces
      • RAID 0, 1, 5, 6, 10, and Hot Swapping
      • H.264 / H.264+ / H.265 / H.265+
      • 20 channels @ 1080p

      Data sheet PDF

      Product Description

      Platinum 128-Channel Enterprise Level NVR



      Platinum, Enterprise Level, 128-Channel NVR, RAID, 20 ch @ 1080p, Supports 16 x SATA HDDs at up to 10 TB each, 3U (no pre-installed storage

      • Platinum 128-Channel Network Video Recorder
      • Supports Live View, Recording, and Playback of IP Cameras up to 12 MP
      • Quad-Core CPU
      • 576 Mbps Bandwidth
      • 4K (3840 x 2160) HDMI Video Output
      • Supports 16 x SATA HDDs at up to 10 TB each
      • 4 x RJ45 10/100/1000 Mbps, 4 x Fiber Optic Ethernet Interfaces
      • RAID 0, 1, 5, 6, 10, and Hot Swapping
      • H.264 / H.264+ / H.265 / H.265+
      • 20 channels @ 1080p
      SPECIFICATIONS
      Video / Audio Input
      IP Video Input 128 channel
      Bandwidth:Incoming / Outgoing 576 Mbps / 512 Mbps
      Bandwidth: Incoming / Outgoing (RAID mode) 576 Mbps / 512 Mbps
      Protocols

      LTS, ACTi, Arecont, Axis, Bosch, Brickcom, Canon, Hunt, ONVIF (Version 2.5), Panasonic, Pelco, PSIA, RTSP, Samsung, Sony, Vivotek, Zavio, Hikvision
      Video / Audio Output
      HDMI Output Two independent HDMI outputs @ 4K. Resolutions: 4K: (4096 ? 2160 / 3840 ? 2160) / 30 Hz, 2K: (2560 ? 1440) / 60 Hz, 1080p (1920 ? 1080) / 60 Hz, UXGA (1600 ? 1200) / 60 Hz, SXGA (1280 ? 1024) / 60 Hz, 720p (1280 ? 720) / 60 Hz, XGA (1024 ? 768) / 60 Hz
      VGA Output 1 ch. Resolutions: 1080p (1920 ? 1080) / 60 Hz, UXGA (1600 ? 1200) / 60 Hz, SXGA (1280 ? 1024) / 60 Hz, 720p (1280 ? 720) / 60 Hz, XGA (1024 ? 768) / 60 Hz
      Audio Output 1 ch, RCA (Linear, 1k?)
      Video & Audio Decoding
      Decoding Formats H.264, H.264 Zip+, H.265, H.265+, MPEG4, MJPEG
      Video Resolutions

      3, 4, 5, 6, 7, 8, 12 MP; UXGA; 720p; VGA; 4CIF, DCIF, 2CIF, CIF, QCIF
      Synchronous Playback Up to 16 channels
      Capability 20 channels @ 1080p
      Data Storage
      SATA 16 x SATA interfaces supporting hot-plug
      Capacity Up to 10 TB capacity for each HDD
      RAID
      RAID Type RAID 0, 1, 5, 6, and 10
      Network Management
      Protocols IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
      Network Interface 4 x RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
      External Interface
      Two-way Audio Input 1 ch, RCA (2.0 Vp-p, 1 k?)
      Serial Ports 1 x RS-485, Keyboard
      USB

      Front Panel: 2 ? USB 2.0

      Rear Panel: 2 ? USB 3.0
      Alarm Channels (In/Out) 16 / 8
      Decoding Boards 1
      General
      Power Supply 100 ~ 240 VAC, 550 W
      Consumption ? 140 W (without HDDs or DVD-R/W)
      OperatingTemperature 32? to 122? F (0? to 50? C)
      Operating Humidity 10 - 90%
      Housing 19-inch rack-mounted 3U chassis
      Dimensions
      (W x D x H)      		 17.4 ? 19.4 ? 5.7" (442? 494 ?146 mm)
      Weight ? 35.3 lb (16 kg, without HDDs or DVD-R/W)
      SKU LTN07128-R16
      RECORDER TECHNOLOGY IP / NVR
      RECORDER CASE 3U Case
      RECORDER SERIES Platinum Series
      RECORDER CHANNEL 128-Channel
