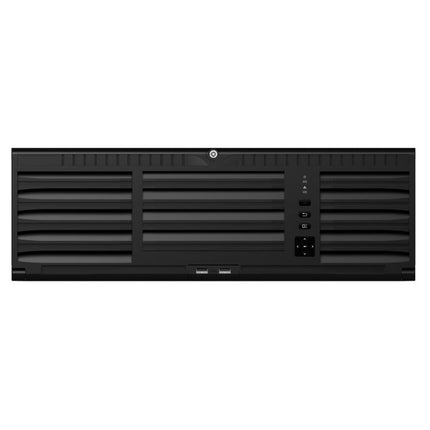

Platinum 128-Channel NVR


Platinum, 128-Channel NVR, 400 Mbps, H.265+ , 16 x SATA up to 16 TB each, 3U

  • Up to 128 IP camera input channels
  • Up to 4 ch @ 12 MP / 8 ch @ 8 MP / 16 ch @ 4 MP / 32 ch @ 1080p decoding capacity
  • Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
  • 2 x HDMI (different sources) and 2 x VGA (different sources) interfaces, 8K or dual 4K video outputs
  • Supports special cameras, including people counting cameras, License Plate Recognition (LPR) cameras, and fisheye cameras
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+M hot swapping for even more reliable data storage, effectively prevents data loss
  • H.265+
  • 16 x SATA up to 16 TB each
  • 100 ~ 240V AC
  • 3U rack mount
SPECIFICATIONS

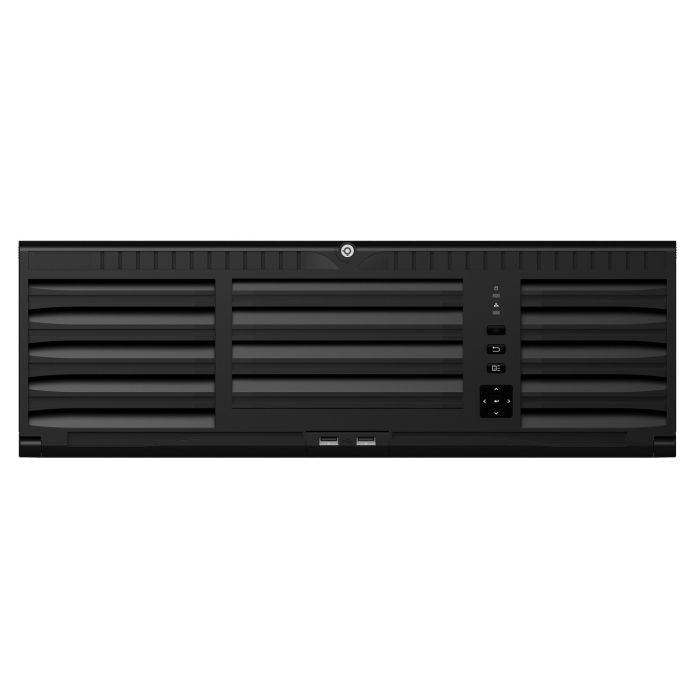

SKU LTN07128-R16N
RECORDER TECHNOLOGY IP / NVR
RECORDER CASE 3U Case
RECORDER SERIES Platinum Series
RECORDER CHANNEL 128-Channel
