Product Description

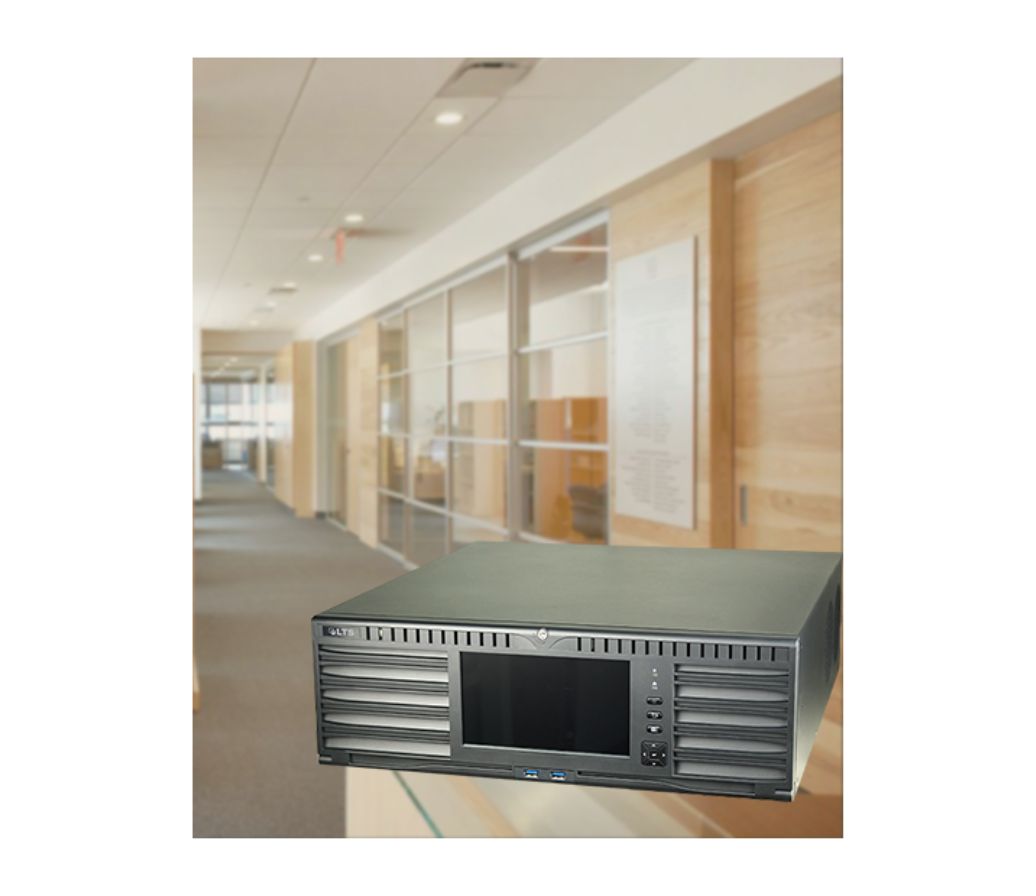

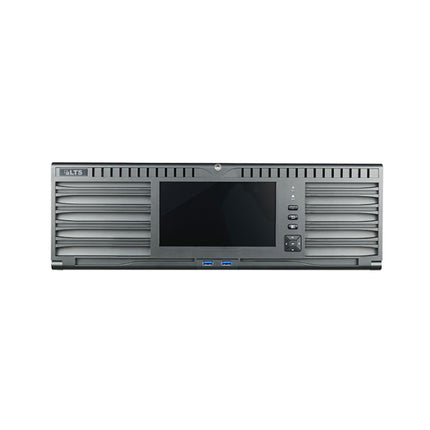

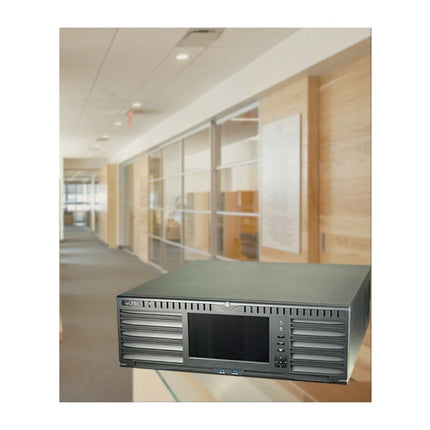

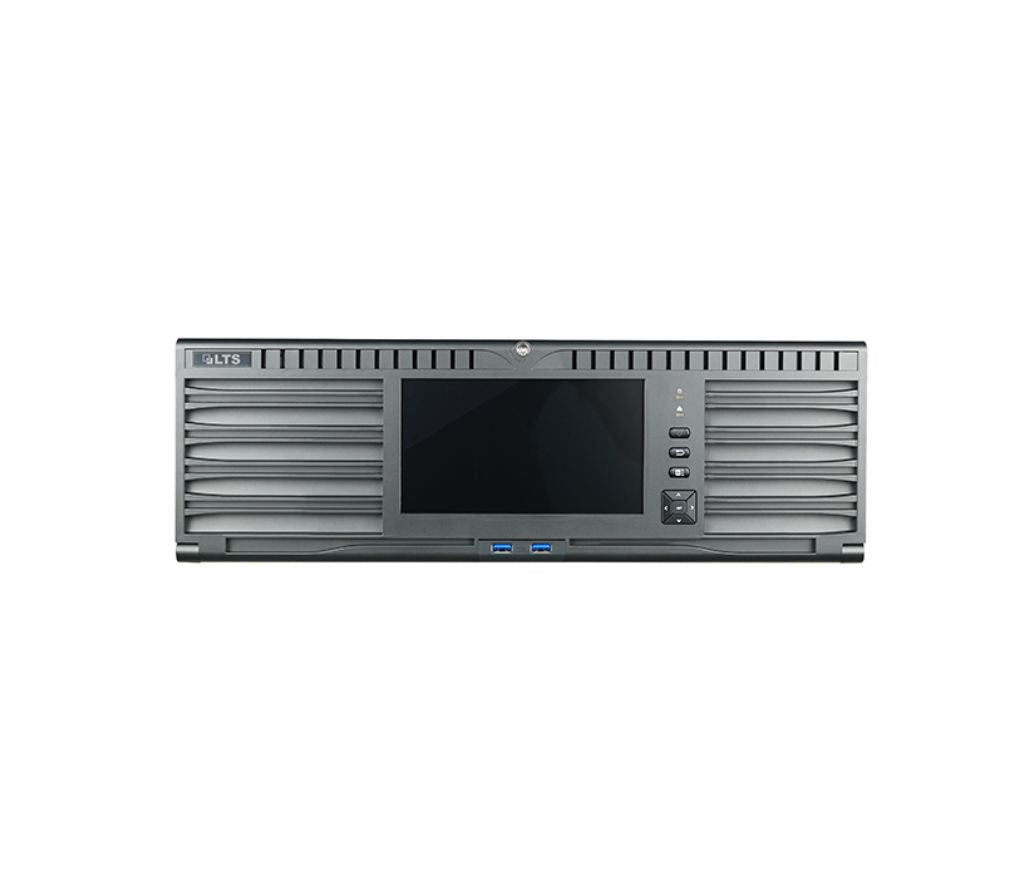

Platinum 256-Channel Enterprise Level NVR
Platinum, Enterprise Level, 256-Channel NVR, RAID, 3U, Supports 16 x SATA HDDs at up to 10 TB each (no pre-installed storage
DETAILS
SPECIFICATIONS
Video / Audio Input
IP Video Input 256 Channels
Two-Way audio Input 1 ch, RCA (2.0 Vp-p, 1 k?)
Network
Incoming Bandwidth 768 Mbps / 768 Mbps
Outgoing Bandwidth 768 Mbps / 768 Mbps
Remote Connections 256
Video / Audio Output
Recording Resolutions 3, 5, 6, 8 MP; 1080p; UXGA; 720p; VGA; 4CIF, DCIF, 2CIF, CIF, QCIF
HDMI 1 / VGA 1 Output Resolutions
Two independent HDMI outputs of 4K resolution. Resolutions:
4K (4096 x 2160), 4K (3840 x 2160) / 30 Hz, 2K (2560 x 1440) / 60 Hz, 1080p (1920 x 1080) / 60 Hz, UXGA (1600 x 1200) / 60 Hz, SXGA (1280 x 1024) / 60 Hz, 720p (1280 x 720) / 60 Hz, XGA (1024 x 768) / 60 Hz
1 ch. Resolutions: 1080p (1920 x 1080) / 60 Hz, UXGA (1600 x 1200) / 60 Hz, SXGA (1280 x 1024) / 60 Hz, 720p (1280 x 720) / 60 Hz, XGA (1024 x 768) / 60 Hz
HDMI 2 Output 1 ch, 1920 ? 1080 / 60 Hz, 1600 ? 1200 / 60 Hz, 1280 ? 1024 / 60 Hz, 1280 ? 720 / 60 Hz, 1024 ? 768 / 60 Hz
HDMI Outputs (on HDMI Output Extension Board) 1 ch, 1920 ? 1080p / 60 Hz, 1600 ? 1200 / 60 Hz, 1280 ? 1024 / 60 Hz, 1280 ? 720 / 60 Hz, 1024 ? 768 / 60 Hz
Audio Output 1 ch, RCA (Linear, 1 k?)
Decoding
Live View / Playback Resolutions H.264, MPEG4, M-JPEG
Synchronous Playback 16 channels
Capability 22 ch @ 1080p
Data Storage
SATA 16 x SATA interfaces supporting HDD hot-swapping
Capacity Up to 10 TB Capacity per HDD
Disk Array
Array Type RAID 0 / 1 / 5 / 6 / 10
Number of Arrays 16

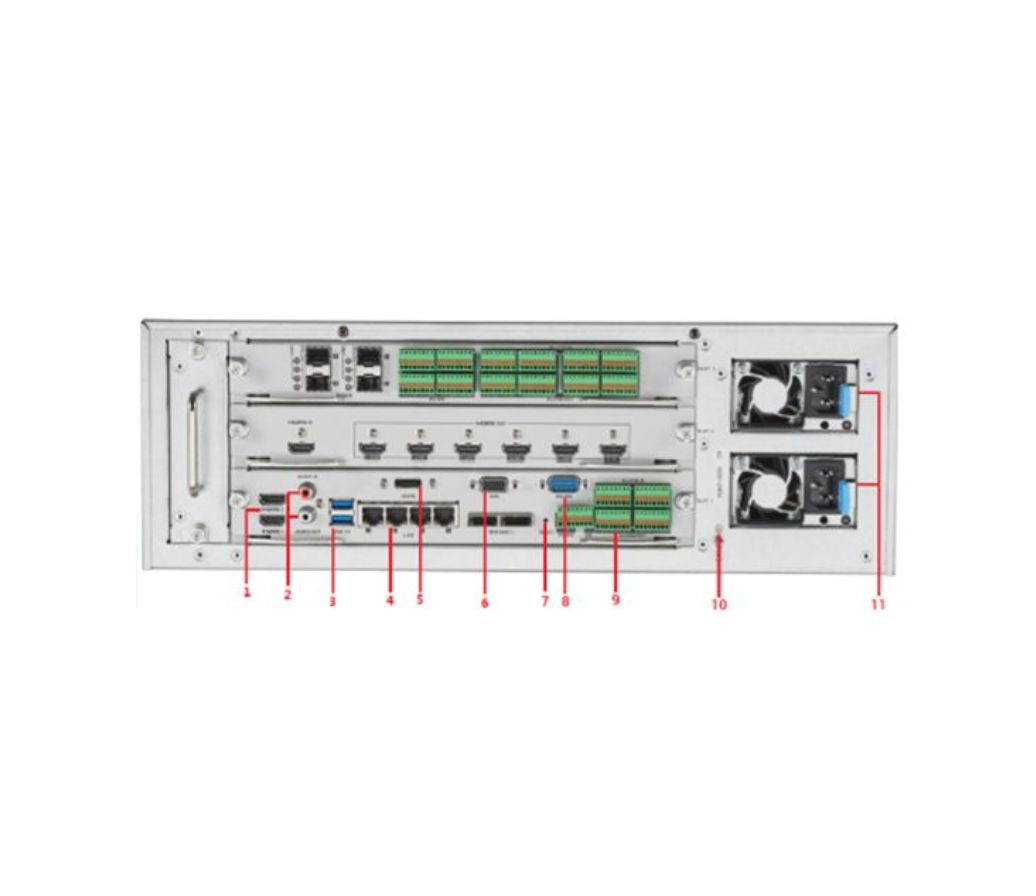

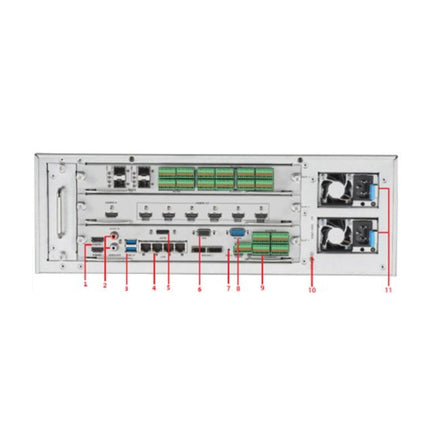

Interface
Network Interface 4 x RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Optic Fiber Interface 4 x 1000 Mbps Fiber Optic Interface
Serial Interface 1 x RS-485,Keyboard
USB Interface Front Panel: 2 x USB 2.0; Rear Panel: 2 x USB 3.0
Alarm Channels (In/Out) 16 / 8
General
Power Supply 100 ~ 240 VAC, 550 W
Consumption ? 140 W (without HDDs or DVD-R/W)
Operating Temp. 14? - 131? F (-10? - 55? C)
Operating Humidity 10 - 90%
Housing 19-Inch Rack-Mounted 3U Chassis
Dimensions
(W x D x H) 17.4 ? 19.4 ? 5.7" (442? 494 ?146 mm)
Weight ? 35.3 lb (16 kg, without HDDs or DVD-R/W)
SKU LTN07256-R16
RECORDER TECHNOLOGY IP / NVR
RECORDER CASE 3U Case
RECORDER SERIES Platinum Series
RECORDER CHANNEL Others
