Product Description

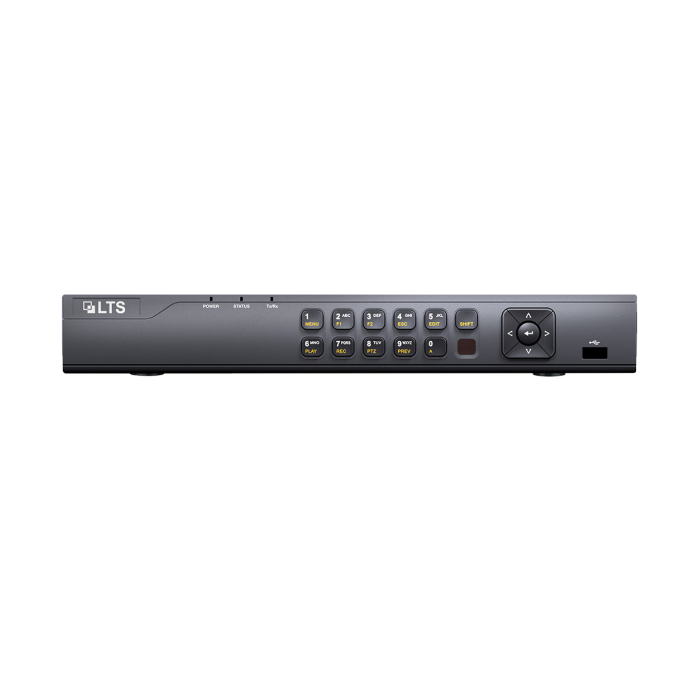

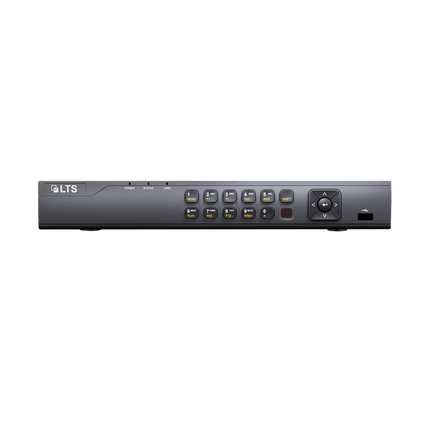

Platinum 4-Channel Professional Level NVR

Platinum NVR with up to 4 IP camera input channels, H.265+ video compression, up to 1 ch @ 8 MP / 5 ch @ 1080p decoding capacity, up to 40 Mbps incoming bandwidth

• Up to 4-ch IP camera inputs
• H.264 / H.264+ / H.265 / H.265+ video formats
• Up to 1 ch @ 8 MP / 5 ch @ 1080p decoding capacity
• Up to 40 Mbps incoming bandwidth

Details
• Up to 4-ch IP camera inputs
• H.264 / H.264+ / H.265 / H.265+ video formats
• Up to 1 ch @ 8 MP / 5 ch @ 1080p decoding capacity
• Up to 40 Mbps incoming bandwidth

SPECIFICATIONS	Video and Audio IP Video Input 4-ch Up to 8 MP resolution Incoming Bandwidth 40 Mbps Outgoing Bandwidth 80 Mbps HDMI Output 1-ch, 4K (4096 x 2160) / 30 Hz, 4K (3840 x 2160) / 30 Hz, 2K (2560 x 1440) / 60 Hz, 1920 x 1080 / 60 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz VGA Output 1-ch, 1920 ? 1080 / 60 Hz, 1280 ? 1024 / 60 Hz, 1280 ? 720 / 60 Hz Video Output Mode HDMI / VGA simultaneous output CVBS Output N/A Audio Output 1-ch, RCA (Linear, 1 K?) Two-way Audio Input 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input) Decoding Decoding Formats H.264 / H.264+ / H.265 / H.265+ Recording Resolutions 3, 4,5, 6, 8 MP; 1080p; UXGA; 720p; VGA; 4CIF / DCIF / 2CIF / CIF / QCIF Synchronous Playback 4 ch Capability 1 ch @ 8 MP (30 fps) / 5 ch @ 1080p (30 fps) Stream Type Video, Video & Audio Audio Compression G.711 ulaw / G.711 alaw / G.722 / G.726 Network Remote connection 16 Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS Network Interface 1 x RJ-45 10/100 Mbps self-adaptive Ethernet interface PoE Interface 4 x RJ-45 10/100 Mbps self-adaptive Ethernet interface Power ? 50 W Supported Standard IEEE 802.3 af / at Auxiliary Interface SATA 1 x SATA interface Capacity Up to 6 TB capacity for each disk USB Interface Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0 General Power Supply 48 V DC, 1.35 A Consumption (witdout HDD and PoE off) ? 10 W Working Temperature 14? to 131? F (-10? to 55? C) Working Humidity 10% to 90% Dimensions (W ? D ? H) 12.4 x 9.4 x 1.9" (320 x 240 x 48 mm) Weight (without HDD) ? 1 kg (2.2 lb)
SKU	LTN8704QN-P4
RECORDER TECHNOLOGY	IP / NVR
RECORDER CASE	mini 1U
RECORDER SERIES	Platinum Series
RECORDER CHANNEL	4-Channel
