LTN8716D-P16N
LTN8716D-P16N
$514.79 $467.99
-
Guaranteed secure & safe checkout.
- Free shipping on all orders
- No hassle returns, 30 days return
Data sheet PDF

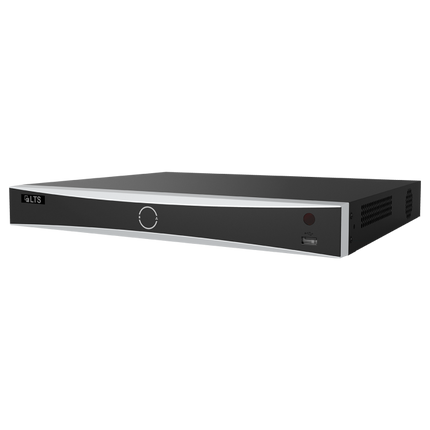

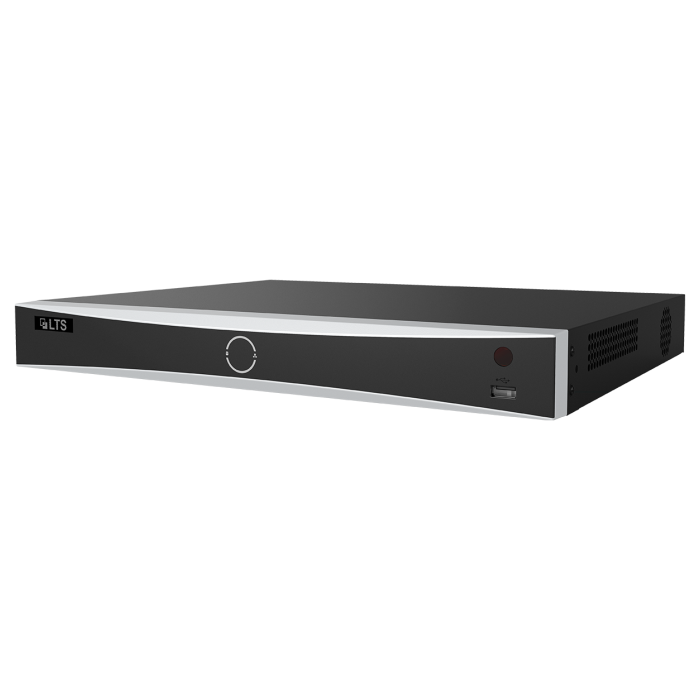

Product Description
Platinum 16-Channel VCA NVR
Platinum, NVR, 16 channels, 160 Mbps, 16 x PoE, Up to 12 MP Recording, Up to 2 ch @ 12 MP (30 fps) or 3 ch @ 8 MP (30 fps) or 6 ch @ 4 MP (30 fps) decoding capacity, 2 x SATA up to 10 TB per HDD, MD 2.0 - Human and Vehicle Detection
- Up to 16 channels of IP camera inputs, plug & play with 16 power-over-Ethernet (PoE) interfaces
- H.264 / H.264+ / H.265 / H.265+ video formats
- Up to 2 ch @ 12 MP / 3 ch @ 8 MP / 6 ch @ 4 MP / 12 ch @ 1080p decoding capacities
- Up to 160 Mbps incoming bandwidth
- NVR provides MD 2.0 VCA functionality
Specifications
Facial Recognition
Facial Detection and Analytics Face image comparison, human face capture, face image search
Face Image Library
Up to 16 image libraries, with up to 20,000 face images in total
(each picture ? 4 MB; total capacity ? 1 GB)
Facial Detection and Analytics
Performance
1 ch human face capture
Face Image Comparison 4 ch face image comparison alarm
Motion Detection 2.0
Human / Vehicle Analysis 16 channels
Video and Audio
IP Video Input 16 ch
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 160 Mbps
HDMI Output
1 channel: 4K: 3840 ? 2160 @ 30 Hz; 2K: 2560 ? 1440 @ 60 Hz, 1920 ? 1080 @ 60 Hz,
1600 ? 1200 @ 60 Hz, 1280 ? 1024 @ 60 Hz, 1280 ? 720 @ 60 Hz, 1024 ? 768 @ 60 Hz
VGA Output 1 channel: 1920 ? 1080 @ 60 Hz, 1280 ? 1024 @ 60 Hz, 1280 ? 720 @ 60 Hz
Video Output Mode HDMI / VGA independent output
CVBS Output N/A
Audio Output 1 ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
Two-Way Audio 1 ch, RCA (Linear, 1 K?)
Decoding
Format H.265 / H.265+ / H.264+ / H.264
Recording Resolution 3, 4, 5, 6, 8, 12 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback 16 channels
NVR Decoding Capability
MD 2.0 / VCA On: 1 ch: 12 MP @ 30 fps; 2 ch: 8 MP @ 30 fps;
4 ch: 4 MP @ 30 fps; 8 ch: 1080p @ 30 fps
MD 2.0 / VCA Off: 2 ch: 12 MP @ 30 fps; 3 ch: 8 MP @ 30 fps;
6 ch: 4 MP @ 30 fps; 12 ch: 1080p @ 30 fps
Stream Type Video, Video & Audio
Audio Compression G.711 ulaw / G.711 alaw / G.722 / G.726 / AAC
Network
Remote Connections 128
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?,
HTTP, HTTPS
Network Interface 1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface 16 x RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ? 200 W
Standard IEEE 802.3 af/at
Auxiliary Interface
SATA 2 x SATA interfaces
Capacity Up to 10 TB storage capacity for each HDD
USB Interface Front panel: 1 ? USB 2.0; Rear panel: 1 ? USB 2.0
Alarm In/Out 4/1
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ? 15 W (without HDD and PoE off)
Operating Temperature 14? to 131? F (-10? to 55? C)
Operating Humidity 10% to 90%
Dimensions (W ? D ? H) 15.2 ? 12.4 ? 2.0 in. (385 ? 315 ? 52 mm )
Weight (without HDD) ? 6.6 lbs (3 kg)
Certifications
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
