Product Description

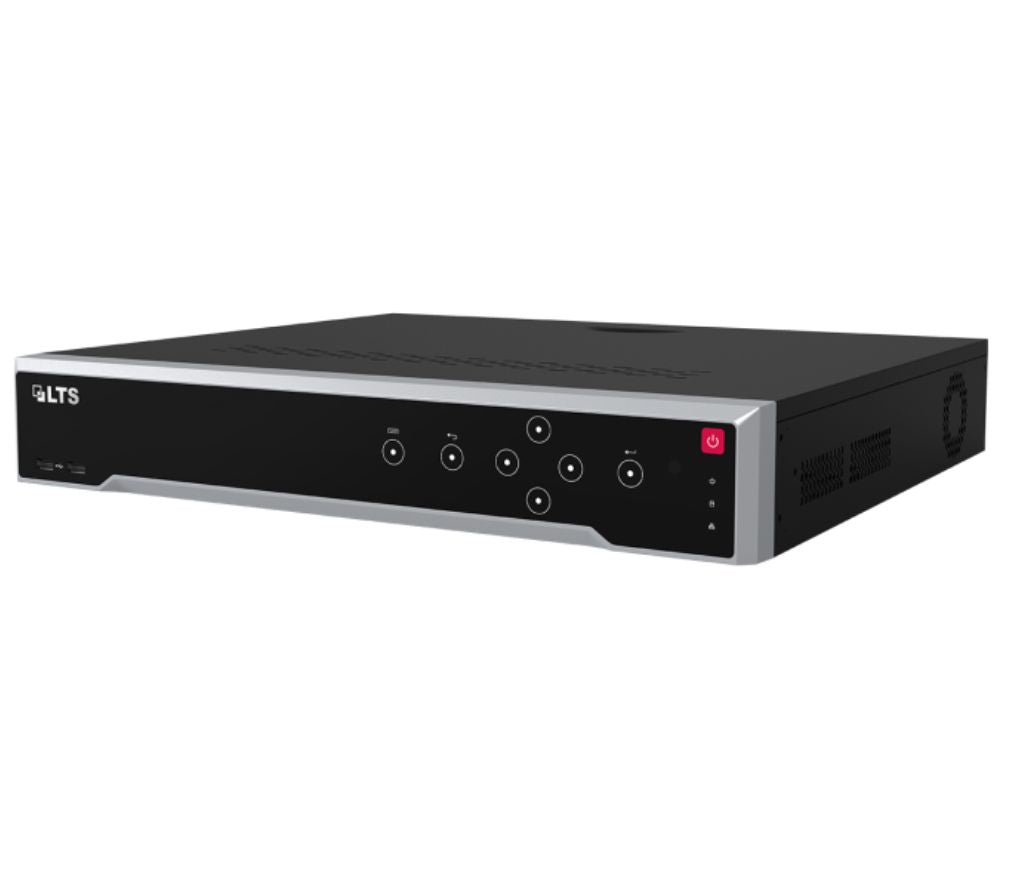

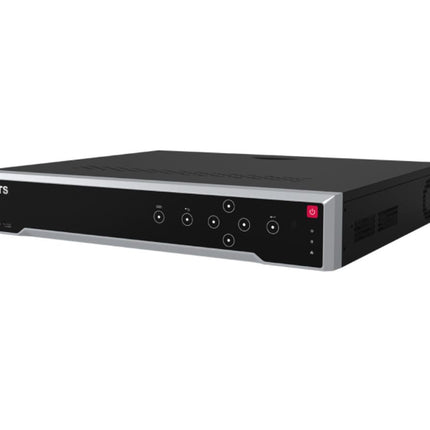

Platinum M-Series 32-Channel 8K NVR
Platinum, NVR, 32 channels, 4K, 320 Mbps, 16 PoE ports, Up to 32 MP recording, 4 x SATA ports for HDDs up to 14 TB each
Professional and Reliable
HD Video Output
Storage and Playback
POS & Smart Functions
Network & Ethernet Access
Specifications
Video and Audio
IP Video Input 32 channels, up to 32 MP resolution
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 400 Mbps
HDMI 1 Output
8K: 7680 ? 4320 / 30 Hz
4K: 3840 ? 2160 / 60 Hz, 3840 ? 2160 / 30 Hz
2K: 2560 ? 1440, 1920 ? 1080, 1600 ? 1200, 1280 ? 1024, 1280 ? 720, 1024 ? 768 / 60 Hz
HDMI 2 Output
4K: 3840 ? 2160 / 60 Hz, 3840 ? 2160 / 30 Hz
2K: 2560 ? 1440, 1920 ? 1080, 1600 ? 1200, 1280 ? 1024, 1280 ? 720, 1024 ? 768 / 60 Hz
VGA Output 1920 ? 1080, 1600 ? 1200, 1280 ? 1024, 1280 ? 720, 1024 ? 768 / 60 Hz
Video Output Mode HDMI1 / VGA simultaneous output, HDMI2 / VGA independent output
CVBS Output 1 ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
Audio Output 1 ch, RCA (Linear, 1 K?)
Two-Way Audio 1 ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
Decoding
Decoding Format H.265+ / H.265 / H.264+ / H.264
Recording Resolution
3, 4, 5, 6, 8, 12, 24, 32 MP / 1080p / UXGA / 720p/ V GA / 4CIF/ D CIF / 2CIF / CIF / QCIF
Synchronous Playback 16-channel
Decoding Capability 8 ch @ 8 MP (25 fps) / 16 ch @ 4 MP (30 fps) / 32 ch @ 1080p (30 fps)
Dual-Stream Recording Supported
Stream Type Video, Video & Audio
Audio Compression G.711 ulaw / G.711 alaw / G.722 / G.726 / AAC / MP2L2
Network
Remote Connections 128
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,
UPnP?, HTTP, HTTPS
Network Interface 1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface 16 x RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ? 200 W
Standard IEEE 802.3 af / at
RAID
RAID Type N/A
Auxiliary Interface
eSATA 1 x eSATA interface
SATA 4 x SATA interfaces
Capacity Up to 14 TB capacity for each disk
Serial Interface 2 x RS-485 (half-duplex), 1 RS-232
Alarm In / Out 16 / 9
USB Interface Front panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; power will be
turned on when the alarm output is triggered
Note: The Ctrl 12V power is controlled by alarm output 9
12 VDC 12 VDC, 1 A power output
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ? 15 W (without HDD and PoE off)
Operating Temperature 14? to 131? F (-10? to 55? C)
Operating Humidity 10% to 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimensions (W ? D ? H) 17.5 ? 15.7 ? 3.0 in. (445 ? 400 ? 75 mm)
Weight (without HDD) ? 11 lbs (5 kg)
Certifications
FCC Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9,
EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
Dimensions (mm)
Physical Interface
No. Description No. Description
1 Network interfaces with PoE function 8 RS-232 serial interface
2 USB 3.0 interface and LAN interface 9 Alarm out
3 eSATA interface 10 Alarm in, alarm out, RS-485, Ctrl 12V
and DC 12V
4 Audio in and audio out 11 GND
5 HDMI 1 and HDMI 2 interfaces 12 100 to 240 VAC power supply
6 CVBS video output 13 Power switch
7 VGA output
