Product Description

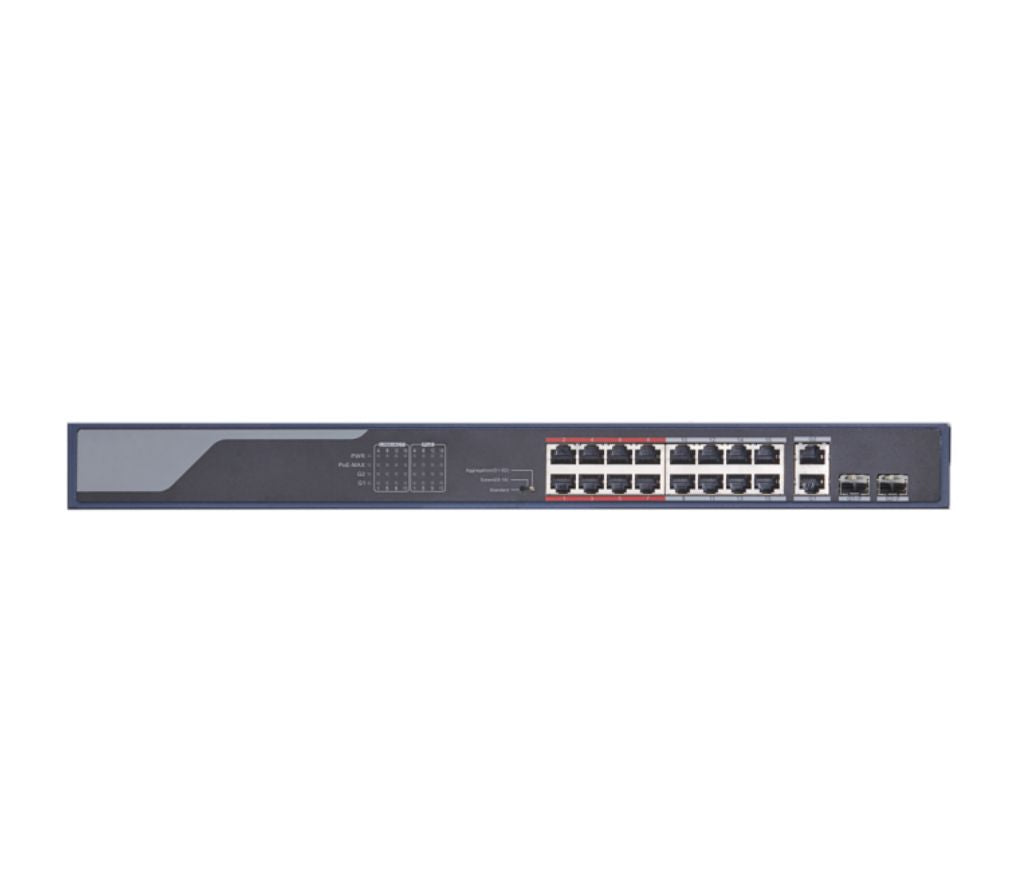

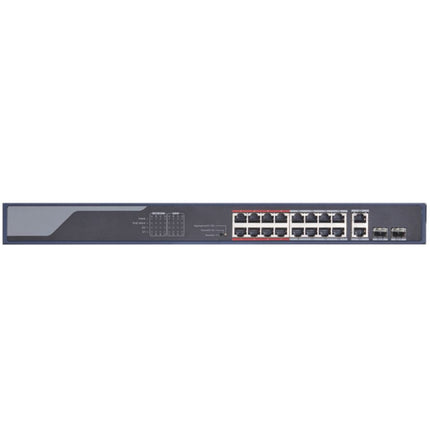

16-PoE Port Switch With 2 Gb Uplink And 2 SFP Ports
16-PoE Port Switch with 2 Gb Uplink and 2 SFP, 230 W
Model POE-SW1602N
Network
parameters
Port number 16 ? 100 Mbps PoE ports, 2 ? 1000 Mbps combos
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
High priority ports Ports 1 to 8
Ports for long-distance
transmission
Ports 9 to 16
Link aggregation port G1 to G2
MAC address table 4 K
Switching capacity 7.2 Gbps
Packet forwarding rate 5.356 Mpps
Internal cache 2.75 Mbits
PoE power
supply
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin
Ports for long-distance transmission (9-16) support 8-core power
supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous
power supply
Ports for close-range transmission (1-8) support 4-core power
supply, Ethernet cable 1/2/3/6 provide power supply
PoE port Ports 1 to 16
Max. port power 30 W
PoE power budget 230 W
Max. power consumption 250 W
General
Shell Metal material
Gross weight 3.47 kg (7.65 lb)
Net weight 2.65 kg (5.84 lb)
Dimension (L ? H ? D) 440 mm ? 44 mm ? 220.8 mm (17.3? ? 1.73? ? 8.7?)
Operating temperature -10 ?C to 55 ?C (14 ?F to 131 ?F)
Storage temperature -40 ?C to 85 ?C (-40 ?F to 185 ?F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 100 to 240 VAC, 50/60 Hz, Max. 4 A
Power consumption in idle 20 W
