Product Description

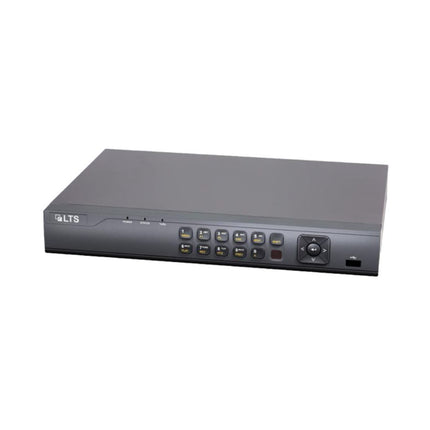

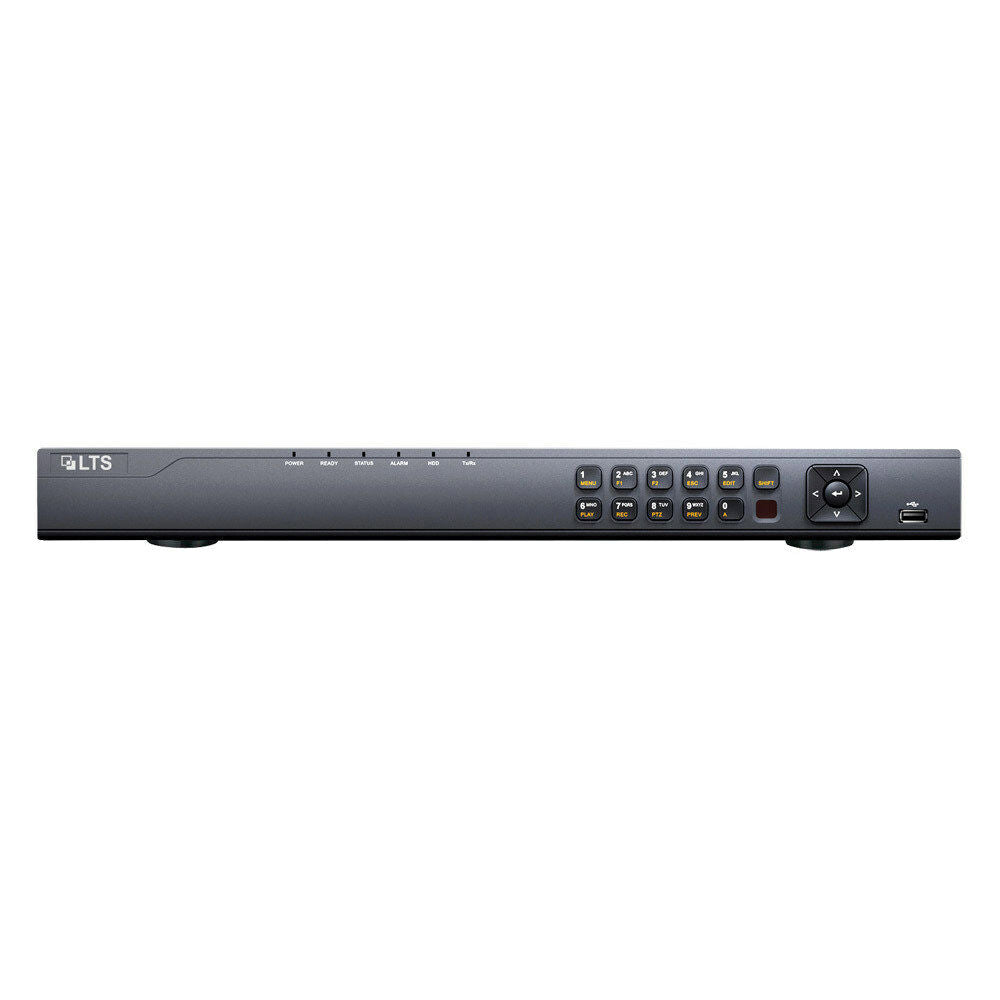

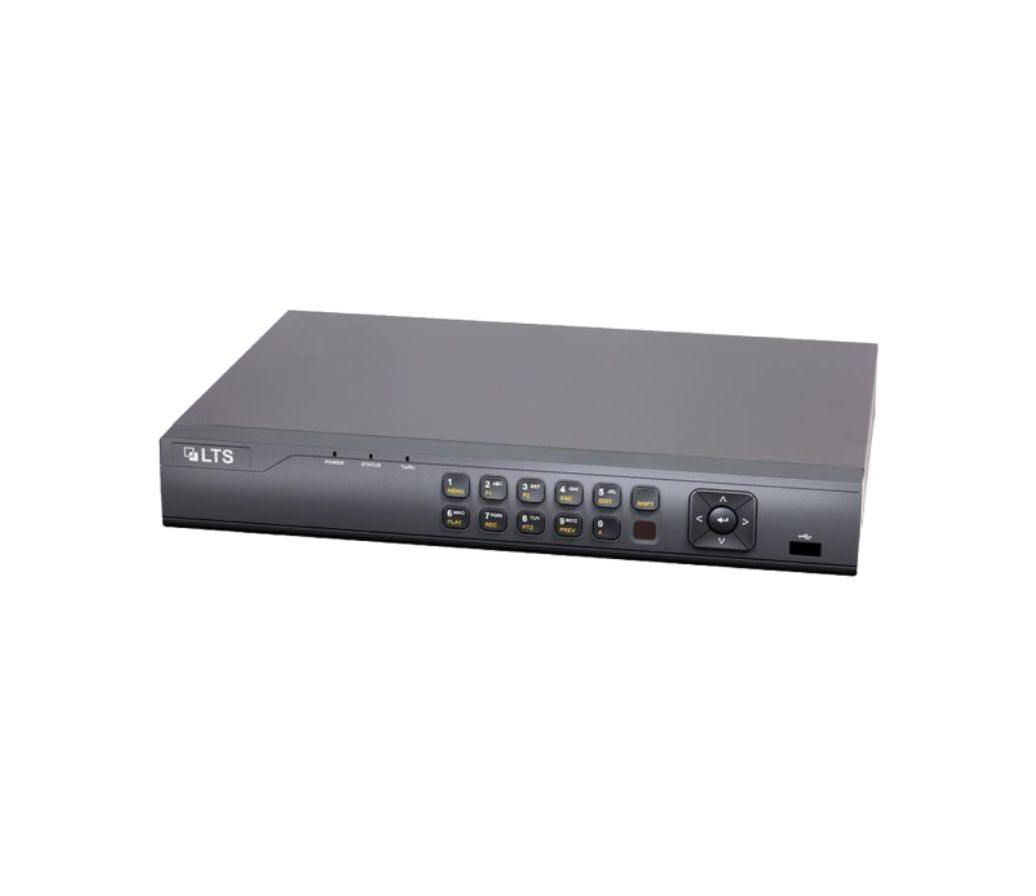

Platinum 8-Channel Advanced Level HD-TVI DVR
Deep learning-based motion detection 2.0 for all analog channels, Deep learning-based perimeter protection, H.264 / H.264+ / H.265 / H.265 Pro / H.265 Pro+ video compression, HD-TVI / AHD / CVI / CVBS / IP video inputs, Audio via coaxial cable, Up to 12 IP camera input channels (up to 6 MP), Up to 10 TB capacity per HDD
Specifications
Model LTD8304M-ET LTD8308M-ETC
Motion Detection 2.0?
Human / vehicle analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog
channels. It can distinguish humans and vehicles, and radically reduce false
alarms caused by objects like leaves, animals, and light changes.
Quick search by object or event type is supported.
Perimeter Protection?
Human / vehicle analysis Up to 2 channels Up to 4 channels
Recording
Video compression H.264 / H.264+ / H.265 / H.265 Pro / H.265 Pro+
Encoding resolutions
Main stream, with 1080p Lite mode disabled:
? 4 MP stream access: 4 MP lite @ 15 fps; 1080p lite / 720p / WD1 / 4CIF / VGA /
CIF @ 25 fps (P) / 30 fps (N)
? 3 MP stream access: 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF @ 15 fps
? 1080p stream access: 1080p / 720p @ 15 fps;
VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)
? 720p stream access: 720p / VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)
With 1080p Lite mode enabled: 4 MP Lite / 3 MP @ 15 fps; 1080p Lite / 720p Lite /
VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)
Sub-stream:
WD1 / 4CIF @ 12 fps; CIF @ 25 fps (P) / 30 fps (N)
Video bitrate 32 Kbps to 6 Mbps
Dual stream Supported
Stream type Video, Video & Audio
Audio compression G.711 u
Audio bitrate 64 Kbps
Video and Audio
IP video input2
1 channel (up to 5)
Enhanced IP mode on:
2 ch (up to 6), each up to 4 Mbps
2 channels (up to 10)
Enhanced IP mode on:
4 ch (up to 12), each up to 4 Mbps
Up to 6 MP resolution
Support for H.264 / H.264+ / H.265 / H.265+ IP cameras
Total bandwidth 72 Mbps 96 Mbps
Analog video input
4 channels 8 channels
BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
HDTVI input
3 & 4 MP, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 60 fps, 720p @ 50 fps,
720p @ 30 fps, 720p @ 25 fps
*The 3 MP signal input is only available for channel 1 of LTD8304M-ET, for
channel 1/2 of LTD8308M-ETC
AHD input 4 MP, 1080p @ 25 fps, 1080p @ 30 fps, 720p @ 25 fps, 720p @ 30 fps
HDCVI input 4 MP, 1080p @ 25 fps, 1080p @ 30 fps, 720p @ 25 fps, 720p @ 30 fps
CVBS input PAL / NTSC
CVBS output
1 ch, BNC (1.0 Vp-p, 75 ?)
Resolutions: PAL: 704 ? 576, NTSC: 704 ? 480
HDMI/VGA output
1 ch, 1920 ? 1080 @ 60Hz, 1280 ? 1024 @ 60 Hz, 1280 ? 720 @ 60 Hz,
1024 ? 768 @ 60 Hz; HDMI / VGA simultaneous output
Audio input
1 ch, RCA (2.0 Vp-p, 1 K?)
4 ch via coaxial cable 8 ch via coaxial cable
Audio output 1 ch, RCA (Linear, 1 K?)
Two-way audio 1 ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
Synchronous playback 4 ch 8 ch
Network
Remote connections 32 64
Network protocols
TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?,
HTTPS, ONVIF
Network interface 1 x RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary interface
SATA 1 x SATA interface, up to 10 TB storage for each disk drive
Serial interface RS-485 (half-duplex)
USB interface
Front panel: 1 ? USB 2.0
Rear panel: 1 ? USB 2.0
Alarm in/out N/A
General
Power supply 12 VDC, 1.5 A
Consumption
(without HDD)
? 18 W
Operating temperature 14? to 131? F (-10? to 55? C)
Operating humidity 10% to 90%
Dimensions (W ? D ? H) 12.4 ? 9.5 ? 1.8 in. (315 ? 242 ? 45 mm)
Weight (without HDD) ? 2.6 lbs (1.16 kg) ? 3.9 lbs (1.78 kg)
Notes:
1: Motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enabling one function will
make the other unavailable.
2: Enhanced IP mode might conflict with smart events (motion detection 2.0 and perimeter protection) or
other functions. Please refer to the user manual for details.
*The rear panel of LTD8304M-ET provides 4 video input interfaces.
The rear panel of LTD8308M-ETC provides 8 video input interfaces.

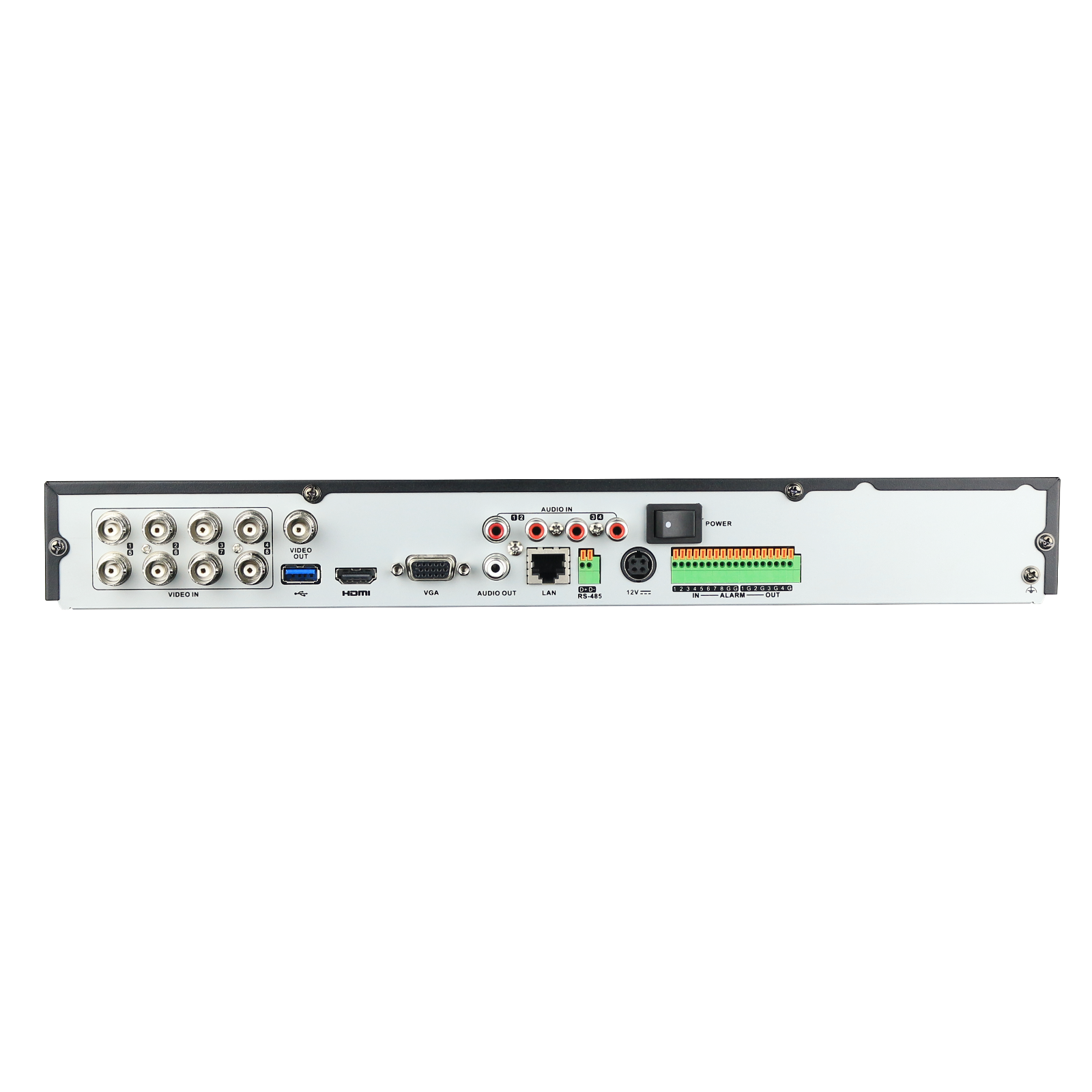

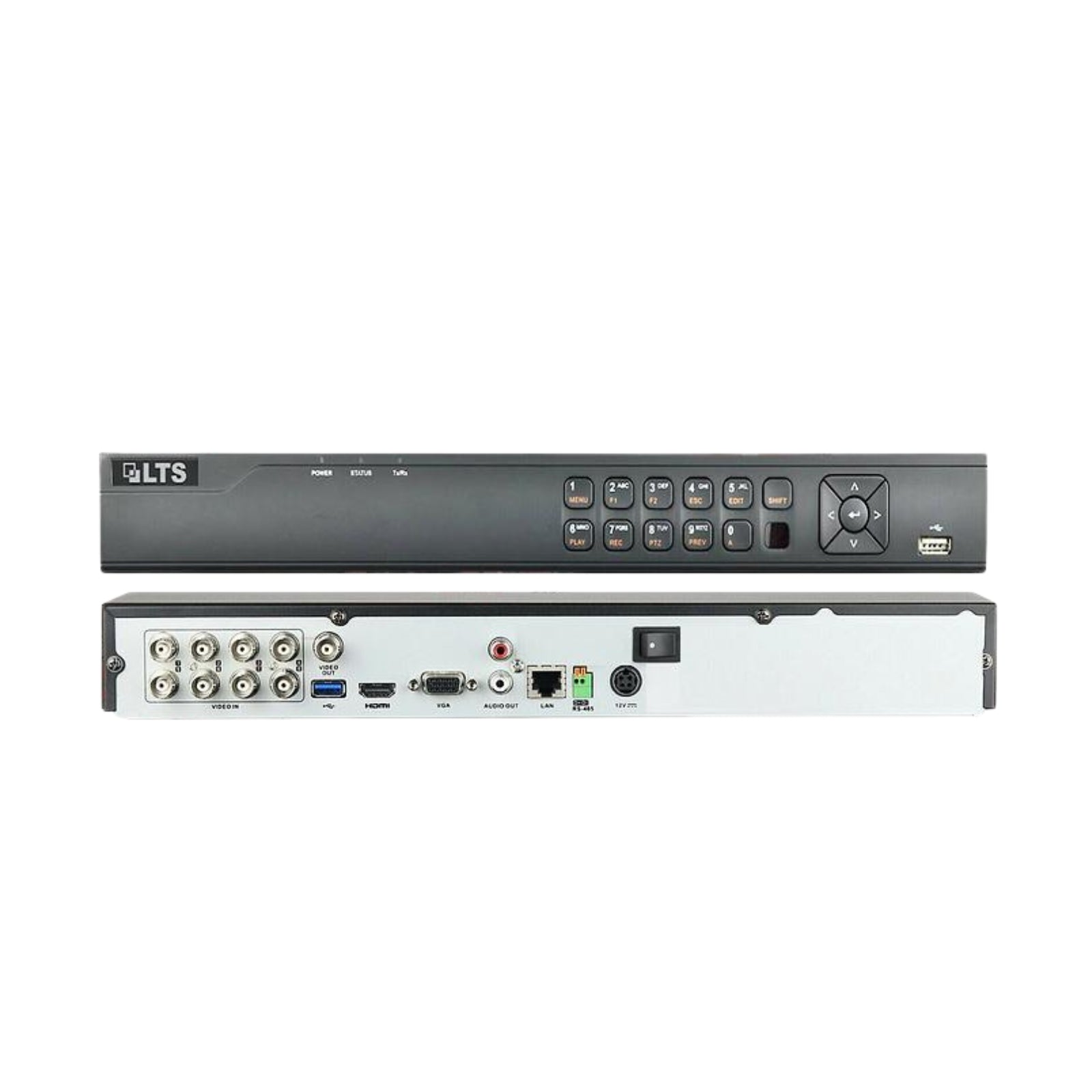

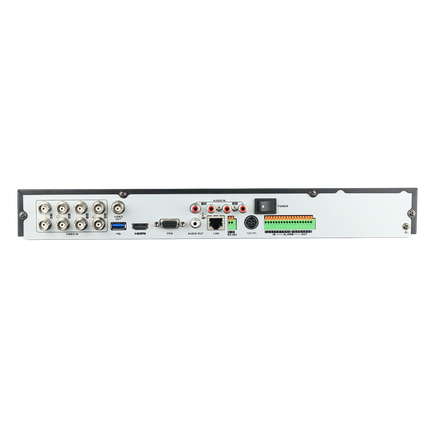

Physical Interface
No. Description No. Description
1 Video In 7 Audio In, RCA connector
2 USB interface 8 LAN network interface
3 Video Out 9 RS-485 serial interface
4 HDMI interface 10 12 VDC pow
